| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_088T03_9000001750_11860cztM0_level2.evt | modeM0/AS1A04_088T03_9000001750_11860cztM0_level2_quad_clean.evt |
| Size (bytes) | 586,863,360 | 86,310,720 |
| Size | 559.7 MB | 82.3 MB |
| Events in quadrant A | 3,839,677 | 531,298 |
| Events in quadrant B | 5,264,759 | 521,462 |
| Events in quadrant C | 3,556,107 | 518,753 |
| Events in quadrant D | 4,581,902 | 497,902 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16483 | 2 |
| B | 0 | 20632 | 1 |
| C | 0 | 16162 | 1 |
| D | 0 | 18841 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7820 | 306 | 3.913043% |
| B | 7820 | 667 | 8.529412% |
| C | 7820 | 230 | 2.941176% |
| D | 7820 | 310 | 3.964194% |

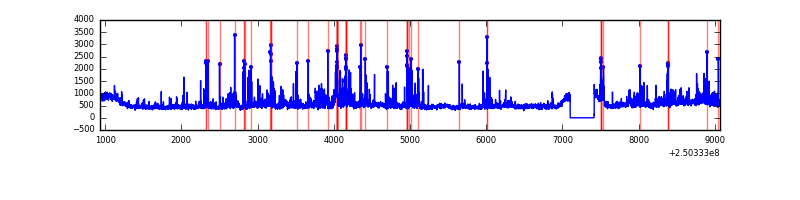

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8136 | 7822 | 2 | 2 | 0.02% | 0.03% |  |
| B | 8136 | 7822 | 279 | 279 | 3.43% | 3.57% |  |
| C | 8136 | 7822 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8136 | 7822 | 53 | 53 | 0.65% | 0.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 63870 | 326.28 | 946 | 926 | 192.9 |
| A | 1 | 178 | 32568 | 164.02 | 946 | 926 | 192.9 |
| A | 1 | 161 | 28656 | 143.74 | 946 | 926 | 192.9 |
| B | 4 | 239 | 1200497 | 6699.61 | 927 | 904 | 179.1 |
| B | 15 | 204 | 113543 | 629.08 | 927 | 904 | 179.1 |
| B | 3 | 64 | 93364 | 516.38 | 927 | 904 | 179.1 |
| C | 13 | 61 | 6725 | 27.63 | 908 | 910 | 210.4 |
| C | 8 | 128 | 5707 | 22.8 | 908 | 910 | 210.4 |
| C | 8 | 112 | 3651 | 13.02 | 908 | 910 | 210.4 |
| D | 1 | 52 | 504925 | 2310.73 | 907 | 875 | 218.1 |
| D | 8 | 195 | 230786 | 1053.99 | 907 | 875 | 218.1 |
| D | 13 | 104 | 154313 | 703.41 | 907 | 875 | 218.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|

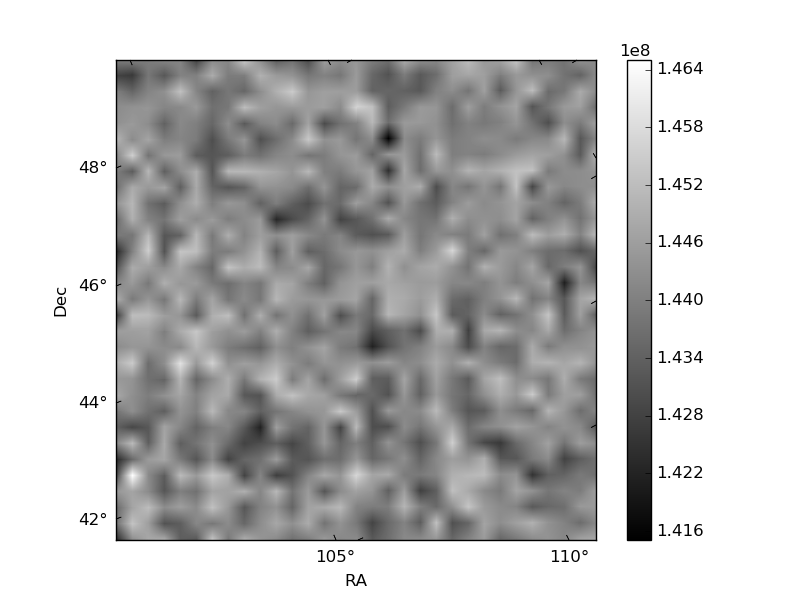

| Quadrant D |  |
 |

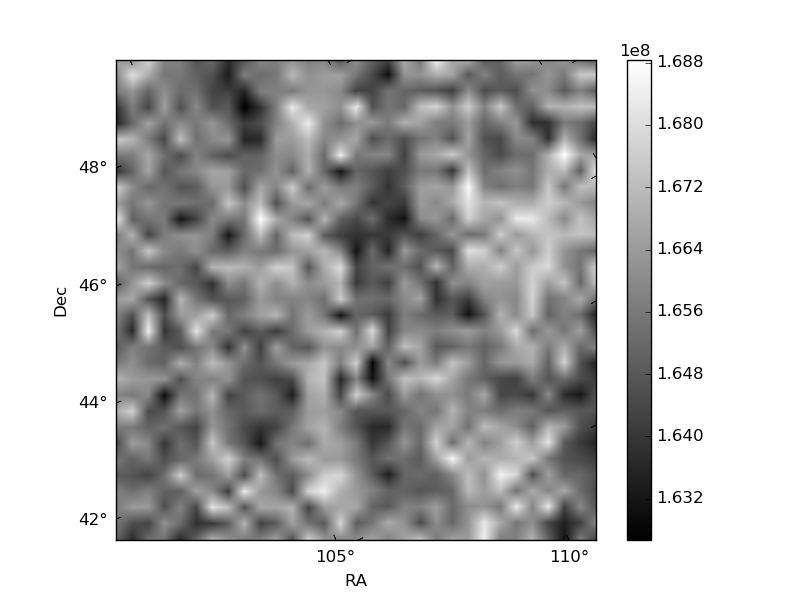

Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

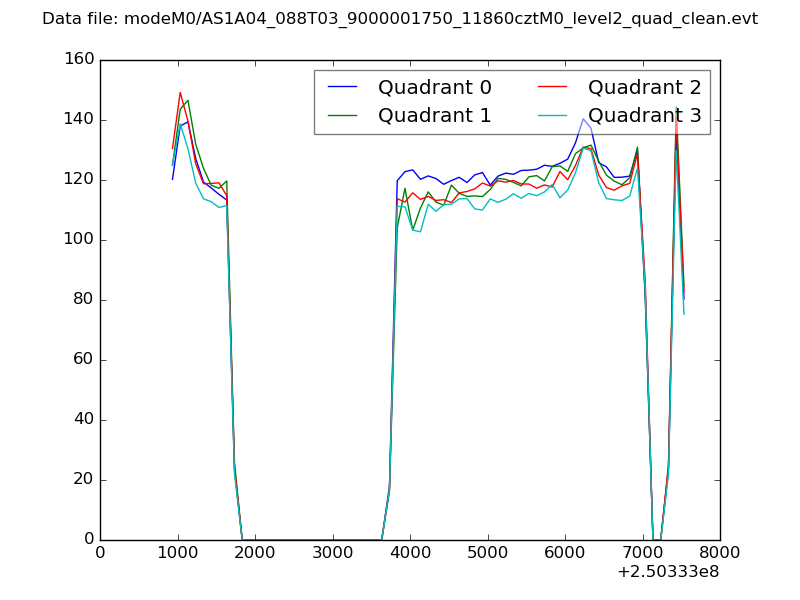

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

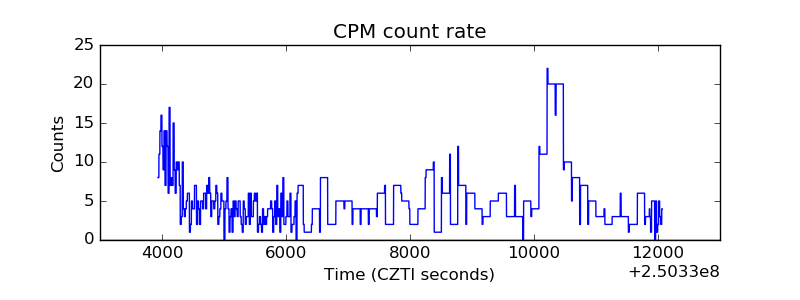

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

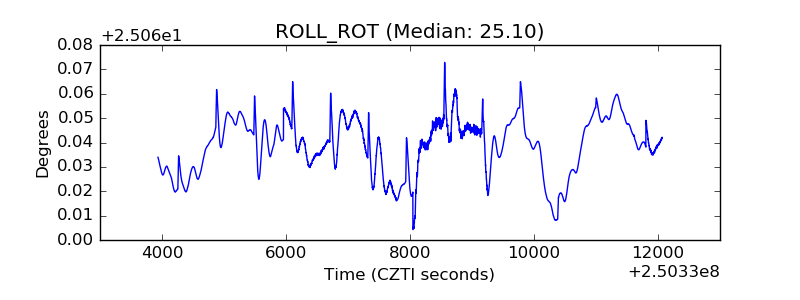

| _ROLL_ROT |  |
| _Roll_DEC |  |

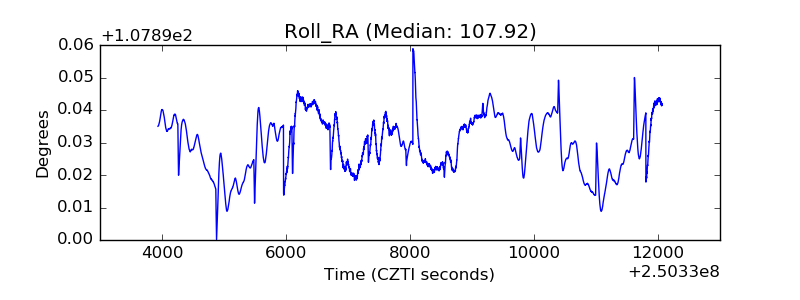

| _Roll_RA |  |

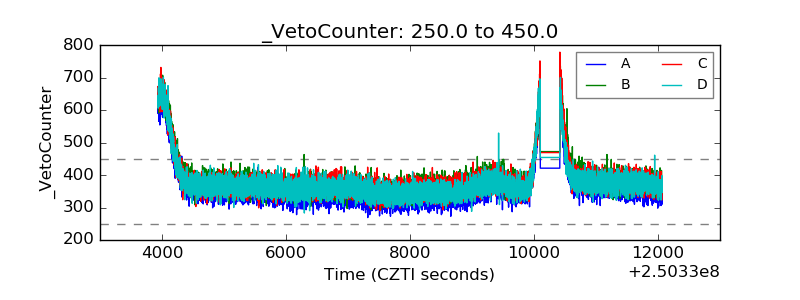

| Veto Counter |  |
