| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_088T03_9000001750_11862cztM0_level2.evt | modeM0/AS1A04_088T03_9000001750_11862cztM0_level2_quad_clean.evt |
| Size (bytes) | 587,689,920 | 81,653,760 |
| Size | 560.5 MB | 77.9 MB |
| Events in quadrant A | 3,997,447 | 495,592 |
| Events in quadrant B | 5,198,901 | 483,584 |
| Events in quadrant C | 3,512,236 | 482,419 |
| Events in quadrant D | 4,556,200 | 463,975 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 160 | 0 |
| B | 0 | 160 | 0 |
| C | 0 | 160 | 0 |
| D | 0 | 160 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16931 | 2 |
| B | 0 | 20524 | 2 |
| C | 0 | 15978 | 2 |
| D | 0 | 18792 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7862 | 123 | 1.564487% |
| B | 7862 | 485 | 6.168914% |
| C | 7862 | 83 | 1.055711% |
| D | 7862 | 161 | 2.047825% |

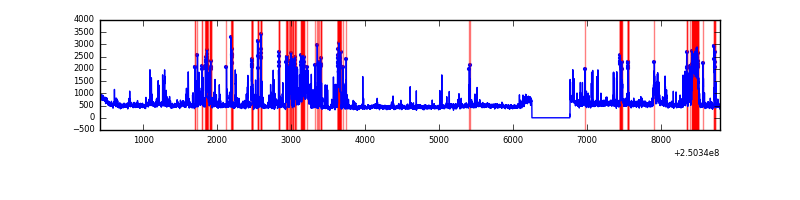

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8378 | 7864 | 2 | 2 | 0.02% | 0.03% |  |
| B | 8378 | 7864 | 231 | 231 | 2.76% | 2.94% |  |
| C | 8378 | 7864 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8378 | 7864 | 59 | 59 | 0.70% | 0.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 252 | 175575 | 917.09 | 935 | 915 | 190.5 |
| A | 1 | 162 | 87058 | 452.31 | 935 | 915 | 190.5 |
| A | 1 | 178 | 45180 | 232.42 | 935 | 915 | 190.5 |
| B | 4 | 239 | 1034534 | 5912.19 | 916 | 891 | 174.8 |
| B | 4 | 173 | 183288 | 1043.27 | 916 | 891 | 174.8 |
| B | 3 | 64 | 129436 | 735.24 | 916 | 891 | 174.8 |
| C | 13 | 61 | 6696 | 27.8 | 900 | 900 | 208.5 |
| C | 14 | 234 | 2754 | 8.89 | 900 | 900 | 208.5 |
| C | 3 | 202 | 2214 | 6.3 | 900 | 900 | 208.5 |
| D | 1 | 52 | 590125 | 2726.95 | 895 | 869 | 216.1 |
| D | 8 | 195 | 217561 | 1002.8 | 895 | 869 | 216.1 |
| D | 13 | 104 | 153500 | 706.34 | 895 | 869 | 216.1 |

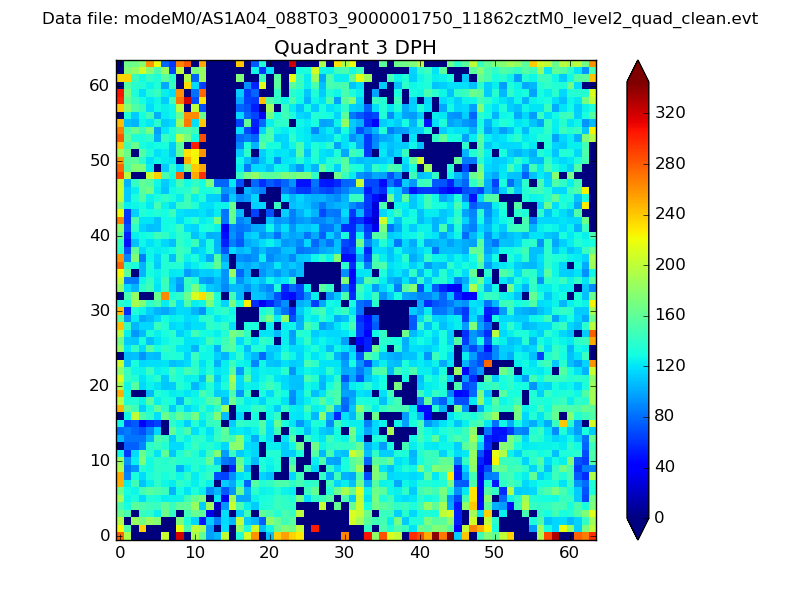

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

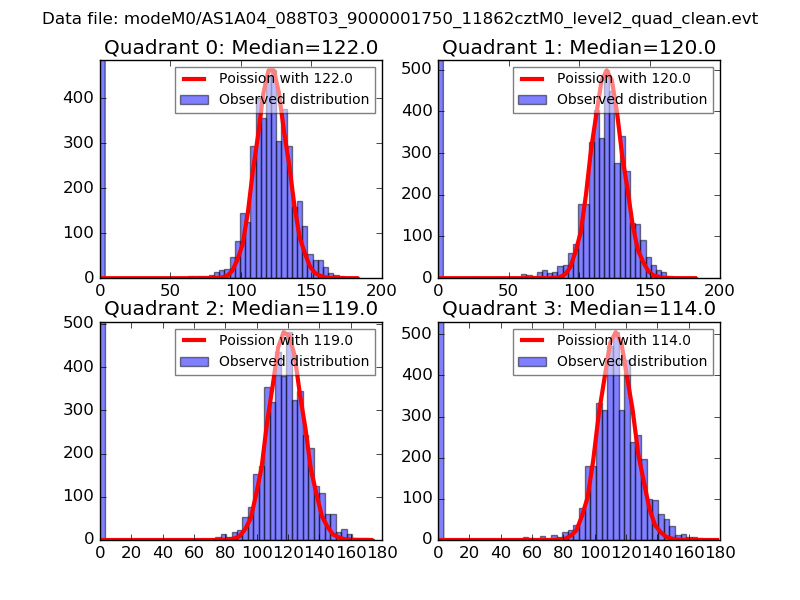

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

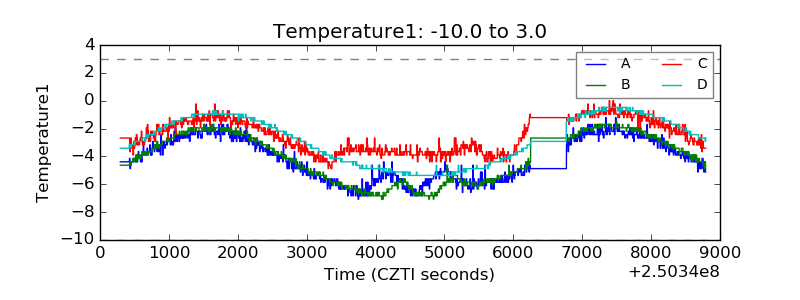

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

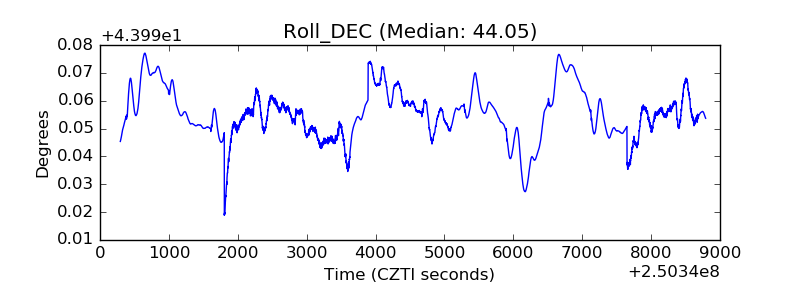

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
