| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_049T01_9000001754_11869cztM0_level2.evt | modeM0/AS1A04_049T01_9000001754_11869cztM0_level2_quad_clean.evt |
| Size (bytes) | 460,454,400 | 87,909,120 |
| Size | 439.1 MB | 83.8 MB |
| Events in quadrant A | 3,194,015 | 562,906 |
| Events in quadrant B | 3,927,031 | 564,172 |
| Events in quadrant C | 2,887,235 | 569,427 |
| Events in quadrant D | 3,513,354 | 530,800 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13511 | 3 |
| B | 0 | 15820 | 2 |
| C | 0 | 12779 | 2 |
| D | 0 | 14458 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 25 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6232 | 32 | 0.513479% |
| B | 6232 | 305 | 4.894095% |
| C | 6232 | 9 | 0.144416% |
| D | 6232 | 118 | 1.893453% |

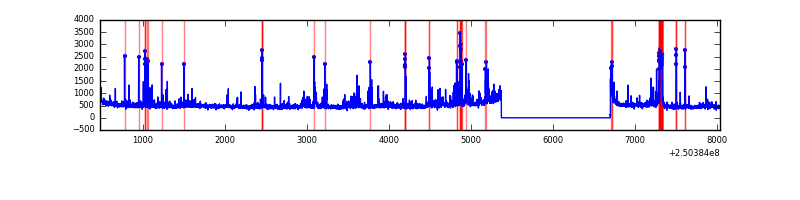

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7563 | 6234 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7563 | 6234 | 155 | 155 | 2.05% | 2.49% |  |
| C | 7563 | 6234 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7563 | 6234 | 80 | 80 | 1.06% | 1.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 99540 | 652.27 | 747 | 731 | 151.5 |
| A | 1 | 162 | 90114 | 590.04 | 747 | 731 | 151.5 |
| A | 1 | 178 | 43824 | 284.47 | 747 | 731 | 151.5 |
| B | 4 | 239 | 719818 | 5211.26 | 747 | 729 | 138.0 |
| B | 3 | 64 | 143434 | 1034.19 | 747 | 729 | 138.0 |
| B | 15 | 204 | 47531 | 339.18 | 747 | 729 | 138.0 |
| C | 13 | 61 | 5381 | 27.36 | 740 | 744 | 169.5 |
| C | 7 | 247 | 2047 | 7.69 | 740 | 744 | 169.5 |
| C | 3 | 202 | 1827 | 6.39 | 740 | 744 | 169.5 |
| D | 1 | 52 | 226481 | 1310.95 | 720 | 697 | 172.2 |
| D | 8 | 195 | 201206 | 1164.2 | 720 | 697 | 172.2 |
| D | 13 | 122 | 120427 | 695.18 | 720 | 697 | 172.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

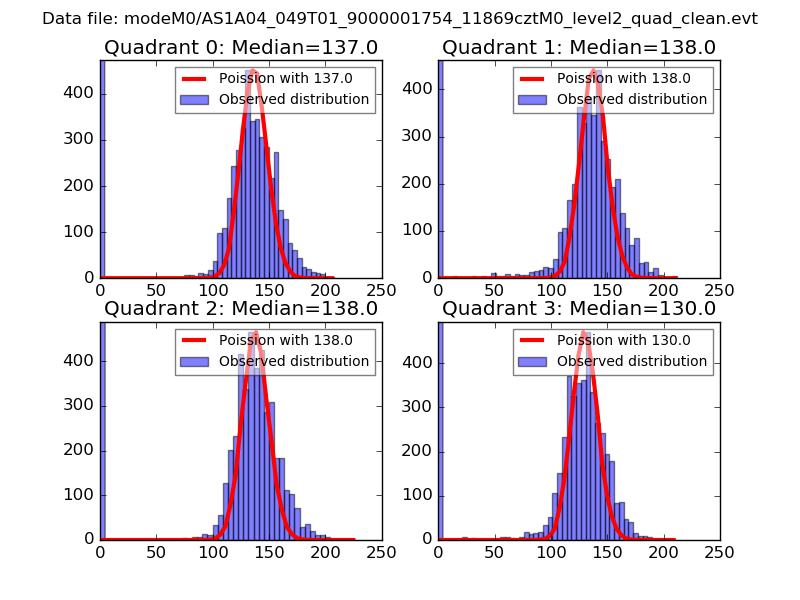

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

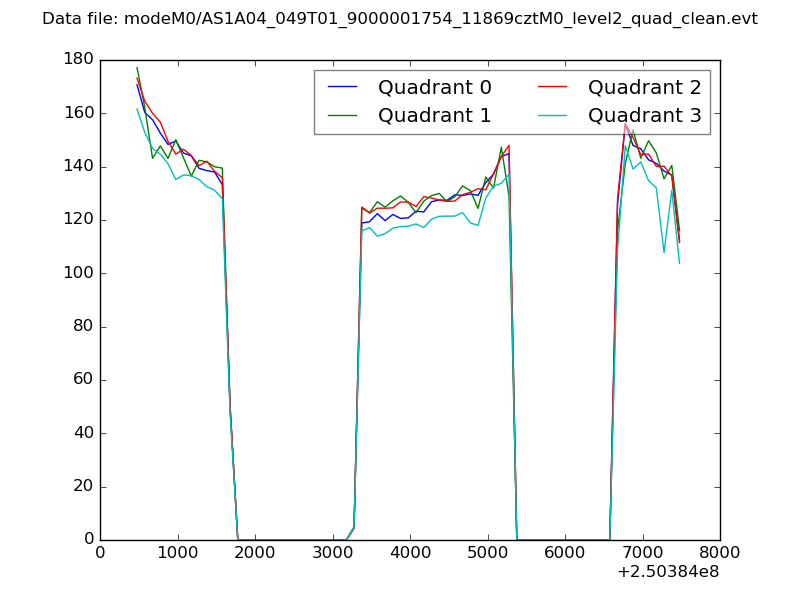

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

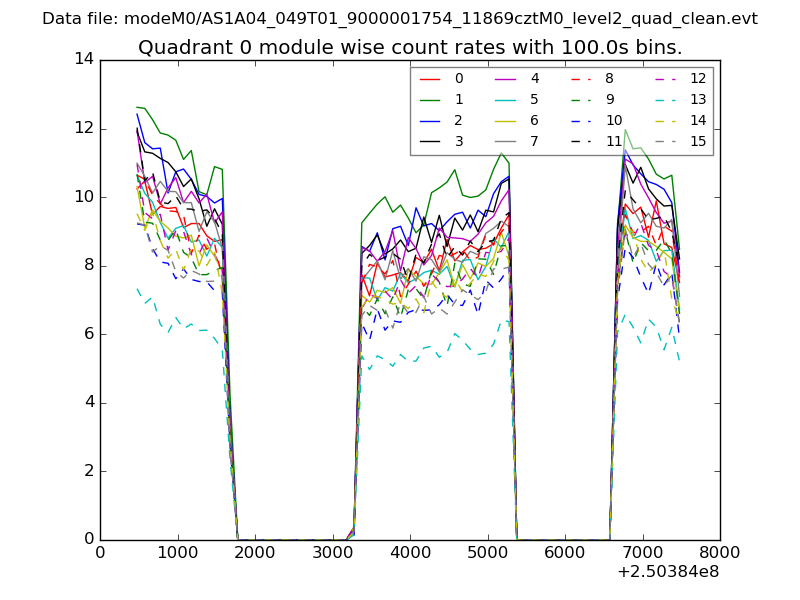

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

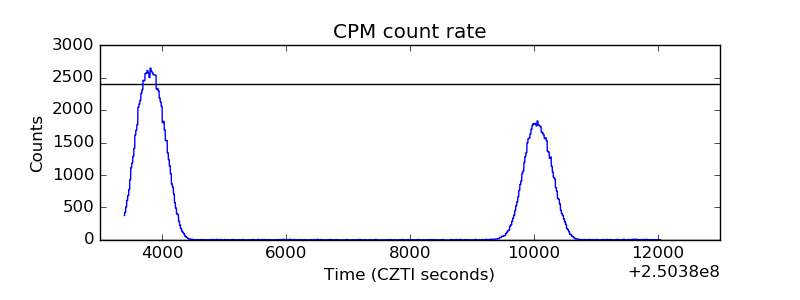

| _CPM_Rate |  |

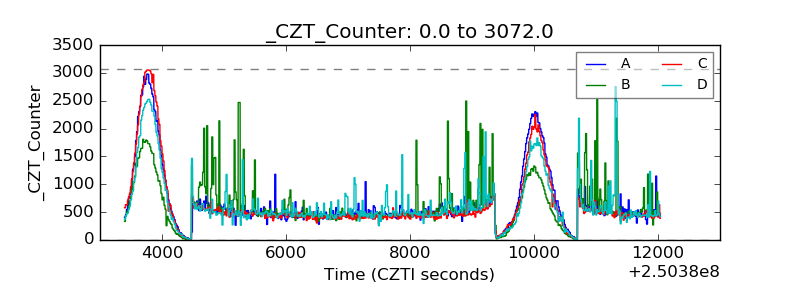

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

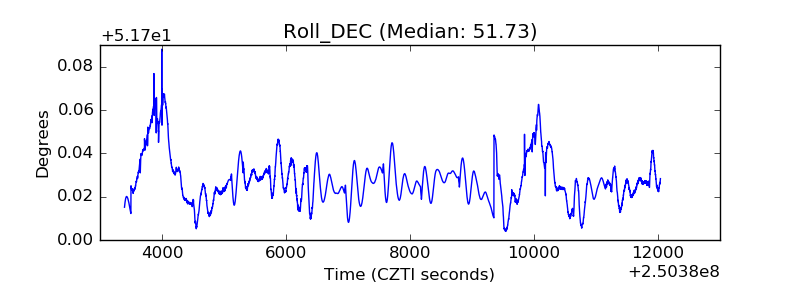

| _Roll_DEC |  |
| _Roll_RA |  |

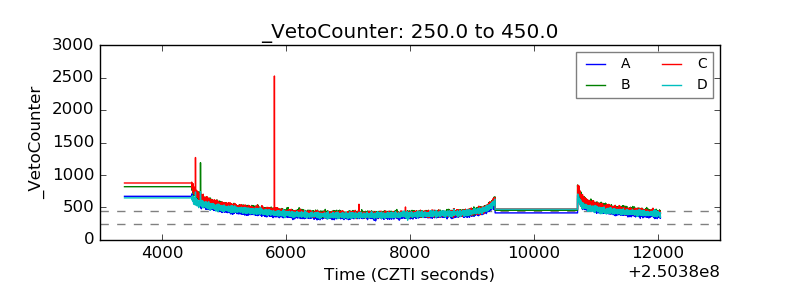

| Veto Counter |  |
