| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_049T01_9000001754_11870cztM0_level2.evt | modeM0/AS1A04_049T01_9000001754_11870cztM0_level2_quad_clean.evt |
| Size (bytes) | 493,122,240 | 80,847,360 |
| Size | 470.3 MB | 77.1 MB |
| Events in quadrant A | 3,187,324 | 508,937 |
| Events in quadrant B | 3,907,881 | 503,799 |
| Events in quadrant C | 2,971,950 | 508,576 |
| Events in quadrant D | 4,428,567 | 476,255 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13768 | 3 |
| B | 0 | 15946 | 2 |
| C | 0 | 13323 | 2 |
| D | 0 | 17506 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6460 | 83 | 1.284830% |
| B | 6460 | 286 | 4.427245% |
| C | 6460 | 44 | 0.681115% |
| D | 6460 | 522 | 8.080495% |

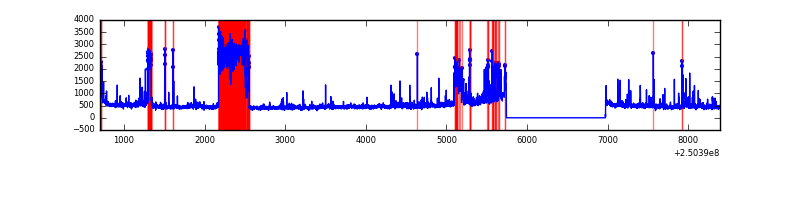

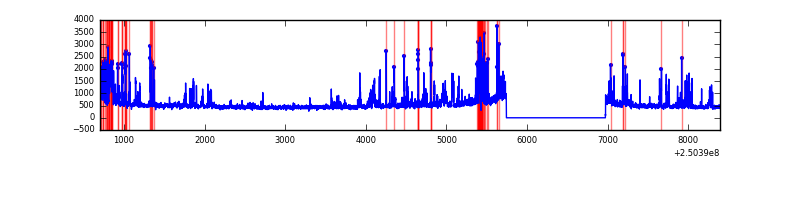

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7691 | 6462 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7691 | 6462 | 103 | 103 | 1.34% | 1.59% |  |
| C | 7691 | 6462 | 9 | 9 | 0.12% | 0.14% |  |
| D | 7691 | 6462 | 429 | 429 | 5.58% | 6.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 79422 | 512.71 | 766 | 749 | 153.4 |
| A | 8 | 15 | 50501 | 324.23 | 766 | 749 | 153.4 |
| A | 1 | 178 | 36936 | 235.83 | 766 | 749 | 153.4 |
| B | 4 | 239 | 587272 | 4142.68 | 764 | 746 | 141.6 |
| B | 3 | 64 | 120612 | 846.62 | 764 | 746 | 141.6 |
| B | 15 | 204 | 56768 | 395.68 | 764 | 746 | 141.6 |
| C | 0 | 207 | 35125 | 198.29 | 752 | 756 | 173.3 |
| C | 13 | 61 | 5603 | 27.96 | 752 | 756 | 173.3 |
| C | 12 | 4 | 2288 | 8.84 | 752 | 756 | 173.3 |
| D | 13 | 122 | 1034962 | 6127.28 | 706 | 685 | 168.8 |
| D | 1 | 52 | 307489 | 1817.57 | 706 | 685 | 168.8 |
| D | 8 | 195 | 192576 | 1136.8 | 706 | 685 | 168.8 |

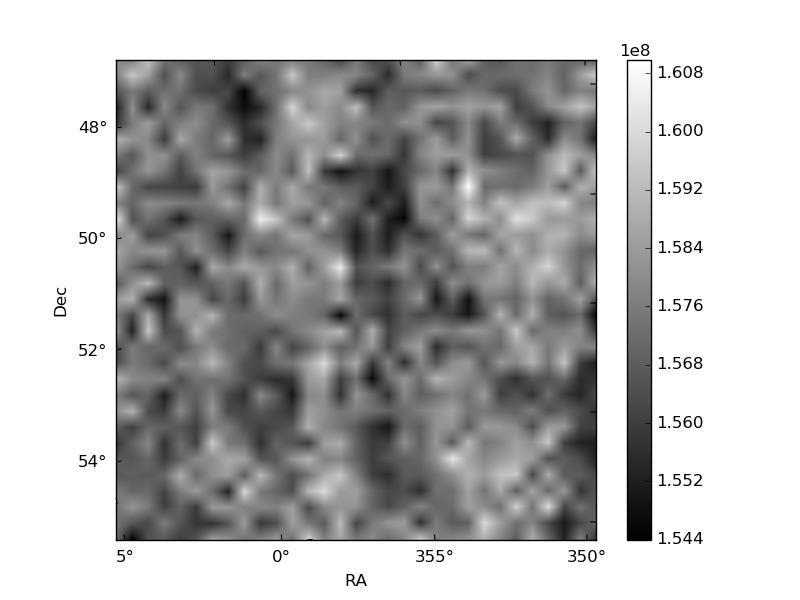

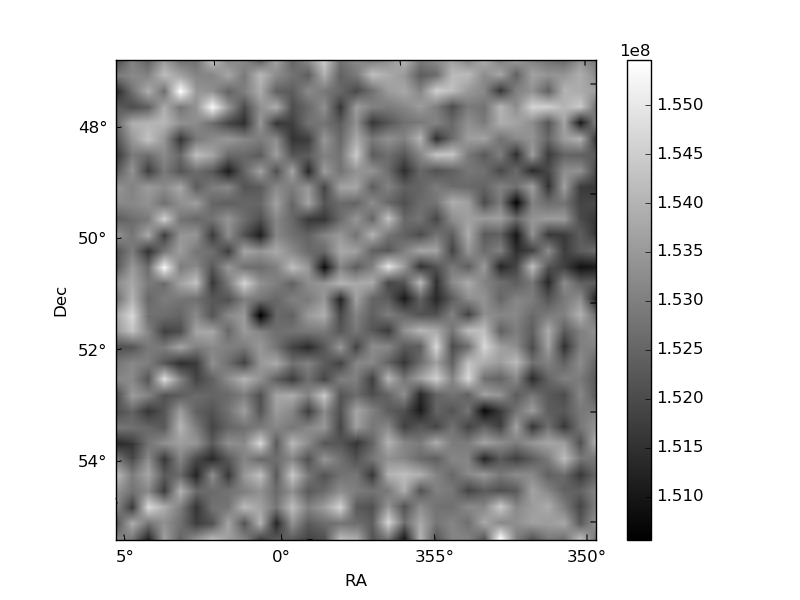

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

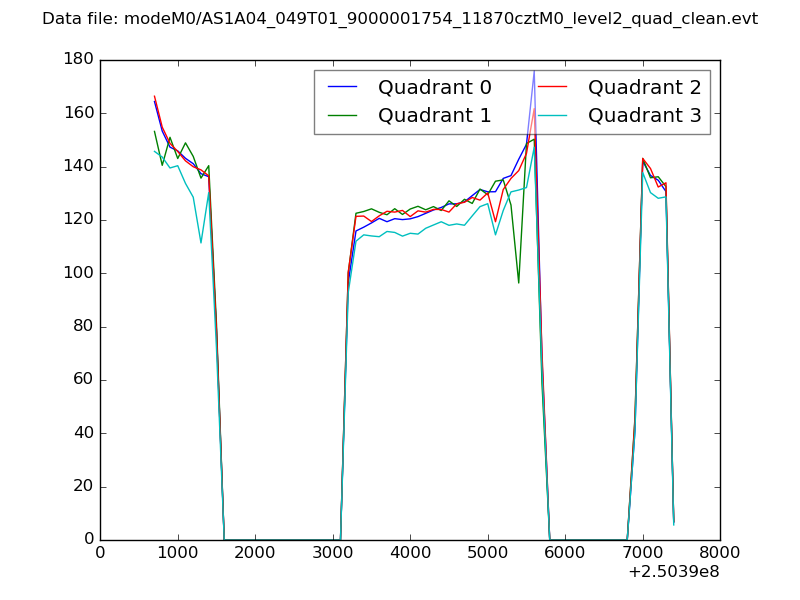

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

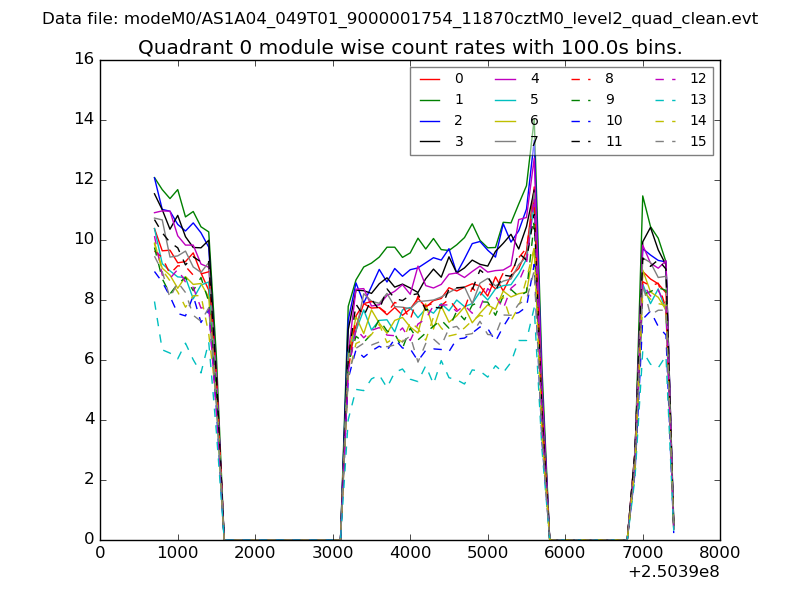

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

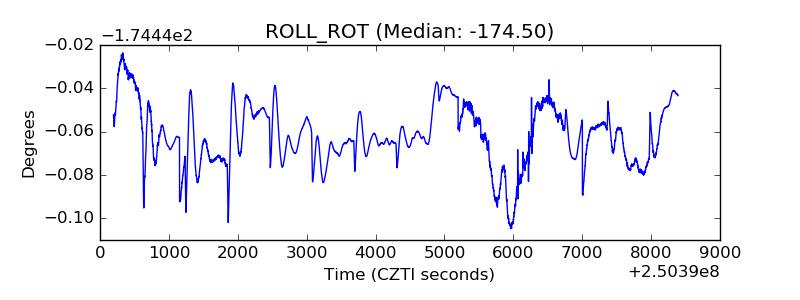

| _ROLL_ROT |  |

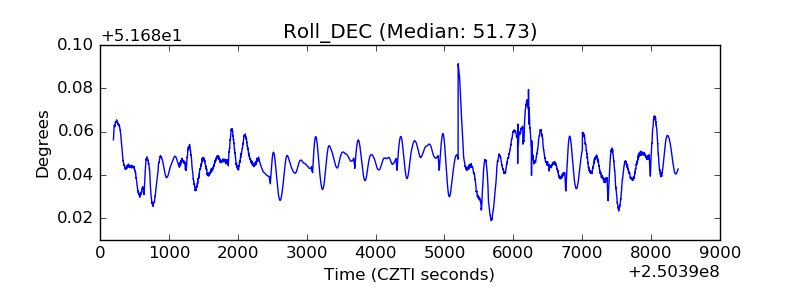

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
