| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_209T01_9000001758_11880cztM0_level2.evt | modeM0/AS1T01_209T01_9000001758_11880cztM0_level2_quad_clean.evt |
| Size (bytes) | 471,326,400 | 105,603,840 |
| Size | 449.5 MB | 100.7 MB |
| Events in quadrant A | 3,321,472 | 702,071 |
| Events in quadrant B | 4,244,172 | 694,872 |
| Events in quadrant C | 2,880,177 | 688,598 |
| Events in quadrant D | 3,388,566 | 661,140 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14178 | 3 |
| B | 0 | 17037 | 2 |
| C | 0 | 13254 | 2 |
| D | 0 | 14407 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6478 | 52 | 0.802717% |
| B | 6478 | 287 | 4.430380% |
| C | 6478 | 28 | 0.432232% |
| D | 6478 | 44 | 0.679222% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7569 | 6480 | 7 | 7 | 0.09% | 0.11% |  |
| B | 7569 | 6480 | 120 | 120 | 1.59% | 1.85% |  |
| C | 7569 | 6480 | 15 | 15 | 0.20% | 0.23% |  |
| D | 7569 | 6480 | 27 | 27 | 0.36% | 0.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 115646 | 747.22 | 756 | 740 | 153.8 |
| A | 8 | 15 | 74089 | 476.98 | 756 | 740 | 153.8 |
| A | 1 | 178 | 59157 | 379.88 | 756 | 740 | 153.8 |
| B | 4 | 239 | 743202 | 5191.6 | 749 | 731 | 143.0 |
| B | 15 | 185 | 243933 | 1700.55 | 749 | 731 | 143.0 |
| B | 15 | 204 | 185234 | 1290.1 | 749 | 731 | 143.0 |
| C | 1 | 16 | 44541 | 262.07 | 722 | 724 | 167.2 |
| C | 0 | 207 | 17475 | 100.19 | 722 | 724 | 167.2 |
| C | 13 | 61 | 5467 | 28.37 | 722 | 724 | 167.2 |
| D | 8 | 195 | 258815 | 1475.98 | 719 | 699 | 174.9 |
| D | 1 | 52 | 131743 | 749.35 | 719 | 699 | 174.9 |
| D | 13 | 249 | 72335 | 409.63 | 719 | 699 | 174.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

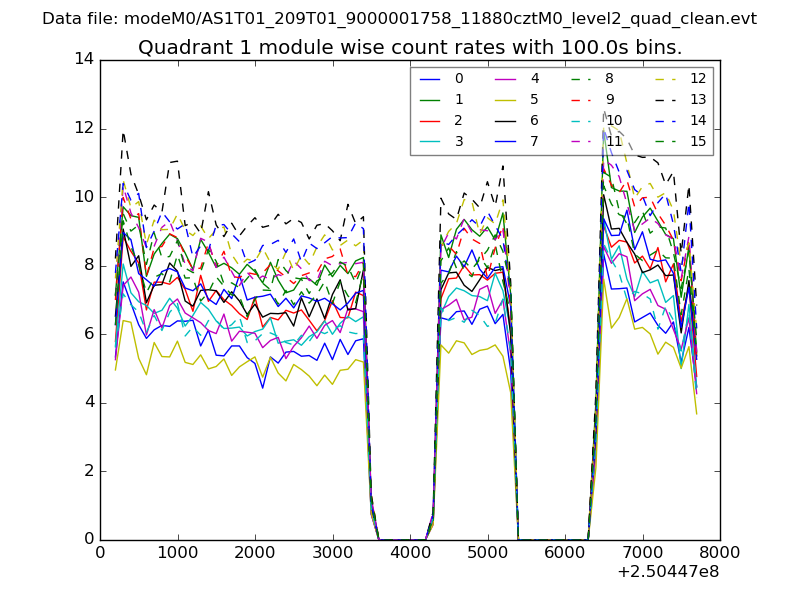

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

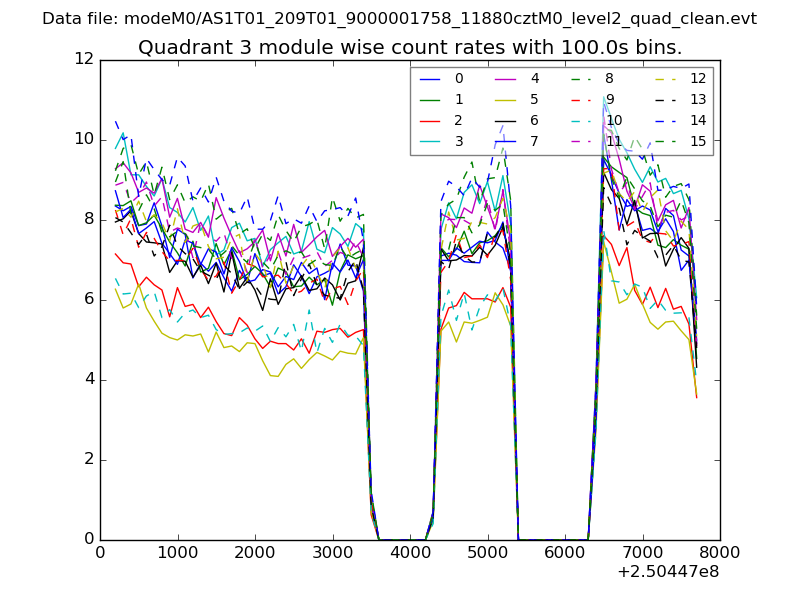

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

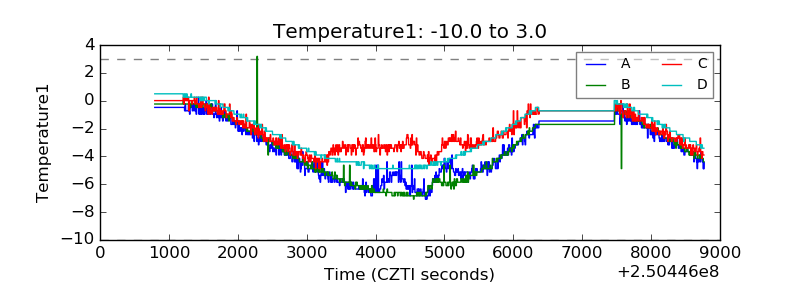

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

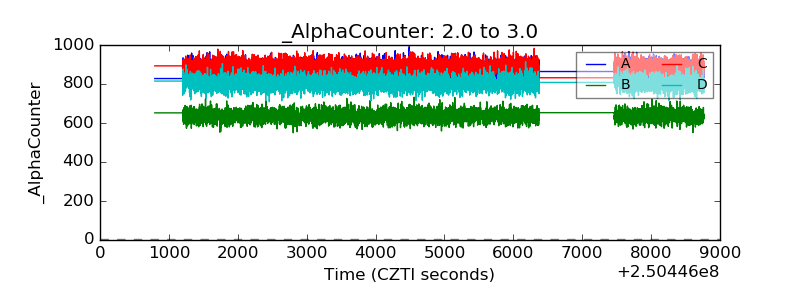

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
