| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_130T01_9000001762_11899cztM0_level2.evt | modeM0/AS1A04_130T01_9000001762_11899cztM0_level2_quad_clean.evt |
| Size (bytes) | 505,232,640 | 86,385,600 |
| Size | 481.8 MB | 82.4 MB |
| Events in quadrant A | 3,920,498 | 545,294 |
| Events in quadrant B | 4,014,283 | 539,108 |
| Events in quadrant C | 3,065,891 | 551,936 |
| Events in quadrant D | 3,858,691 | 525,453 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15960 | 3 |
| B | 0 | 16139 | 2 |
| C | 0 | 13497 | 2 |
| D | 0 | 15468 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6518 | 113 | 1.733661% |
| B | 6518 | 293 | 4.495244% |
| C | 6518 | 19 | 0.291500% |
| D | 6518 | 77 | 1.181344% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9089 | 6521 | 1 | 1 | 0.01% | 0.02% |  |
| B | 9089 | 6521 | 150 | 150 | 1.65% | 2.30% |  |
| C | 9089 | 6521 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9089 | 6521 | 35 | 35 | 0.39% | 0.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 63 | 572780 | 3558.7 | 797 | 780 | 160.7 |
| A | 1 | 162 | 94904 | 585.59 | 797 | 780 | 160.7 |
| A | 8 | 15 | 55691 | 341.63 | 797 | 780 | 160.7 |
| B | 4 | 239 | 752334 | 4976.74 | 791 | 773 | 151.0 |
| B | 15 | 204 | 73192 | 479.55 | 791 | 773 | 151.0 |
| B | 0 | 214 | 27016 | 173.78 | 791 | 773 | 151.0 |
| C | 13 | 61 | 5645 | 26.62 | 784 | 790 | 182.4 |
| C | 12 | 4 | 5375 | 25.14 | 784 | 790 | 182.4 |
| C | 8 | 222 | 2504 | 9.4 | 784 | 790 | 182.4 |
| D | 8 | 195 | 418982 | 2080.45 | 771 | 753 | 201.0 |
| D | 5 | 222 | 102616 | 506.71 | 771 | 753 | 201.0 |
| D | 1 | 52 | 86601 | 427.05 | 771 | 753 | 201.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

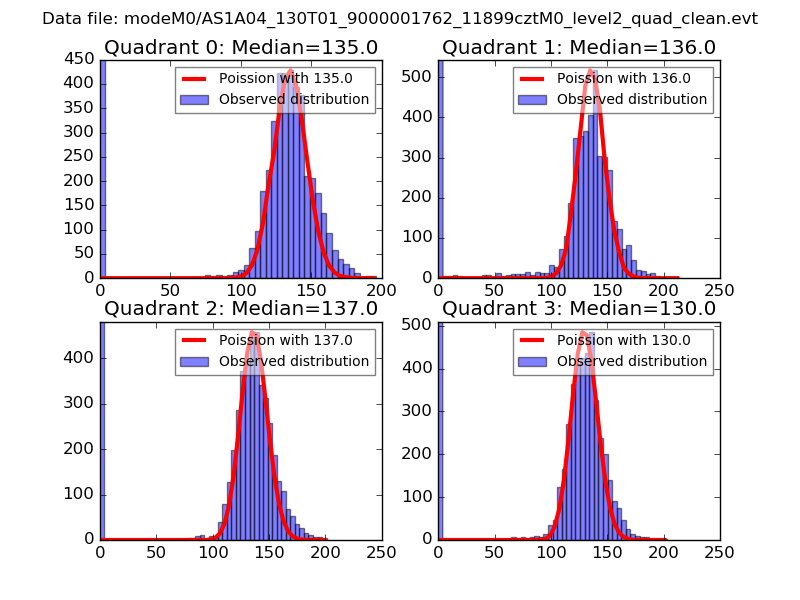

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
