| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_130T01_9000001762_11900cztM0_level2.evt | modeM0/AS1A04_130T01_9000001762_11900cztM0_level2_quad_clean.evt |
| Size (bytes) | 500,016,960 | 78,422,400 |
| Size | 476.9 MB | 74.8 MB |
| Events in quadrant A | 3,971,926 | 482,082 |
| Events in quadrant B | 3,833,717 | 477,424 |
| Events in quadrant C | 3,009,952 | 487,973 |
| Events in quadrant D | 3,875,133 | 462,497 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16179 | 3 |
| B | 0 | 15742 | 2 |
| C | 0 | 13555 | 2 |
| D | 0 | 15732 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6662 | 63 | 0.945662% |
| B | 6662 | 180 | 2.701891% |
| C | 6662 | 9 | 0.135095% |
| D | 6662 | 110 | 1.651156% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7618 | 6664 | 5 | 5 | 0.07% | 0.08% |  |
| B | 7618 | 6664 | 97 | 97 | 1.27% | 1.46% |  |
| C | 7618 | 6664 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7618 | 6664 | 76 | 76 | 1.00% | 1.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 63 | 676357 | 4209.94 | 786 | 770 | 160.5 |
| A | 1 | 162 | 77529 | 478.33 | 786 | 770 | 160.5 |
| A | 8 | 15 | 59530 | 366.16 | 786 | 770 | 160.5 |
| B | 4 | 239 | 624401 | 4159.59 | 785 | 766 | 149.9 |
| B | 15 | 204 | 62707 | 413.14 | 785 | 766 | 149.9 |
| B | 0 | 214 | 27442 | 177.93 | 785 | 766 | 149.9 |
| C | 13 | 61 | 5705 | 27.56 | 771 | 776 | 178.9 |
| C | 14 | 234 | 2190 | 7.91 | 771 | 776 | 178.9 |
| C | 3 | 202 | 1939 | 6.5 | 771 | 776 | 178.9 |
| D | 1 | 52 | 334120 | 1818.55 | 760 | 741 | 183.3 |
| D | 8 | 195 | 296881 | 1615.42 | 760 | 741 | 183.3 |
| D | 12 | 2 | 61850 | 333.34 | 760 | 741 | 183.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

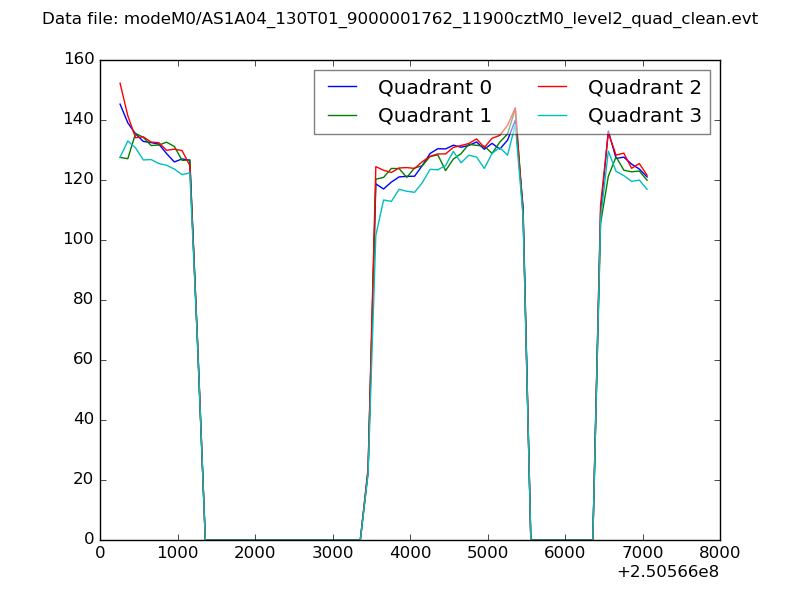

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

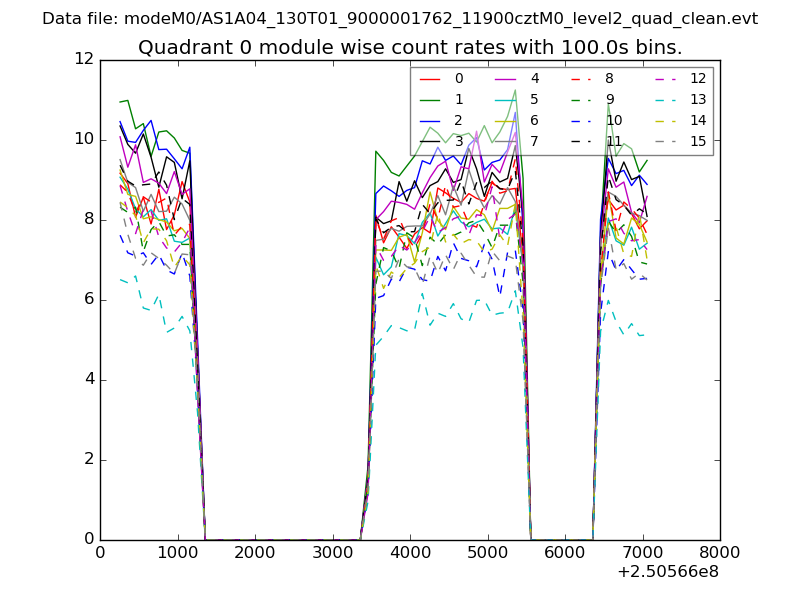

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

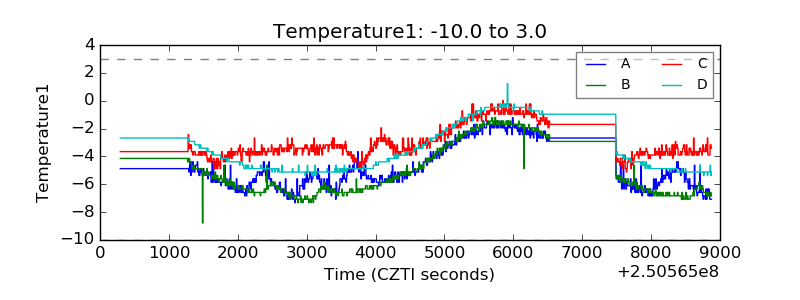

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

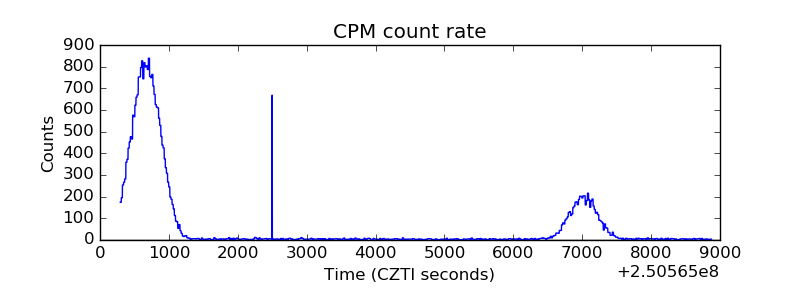

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

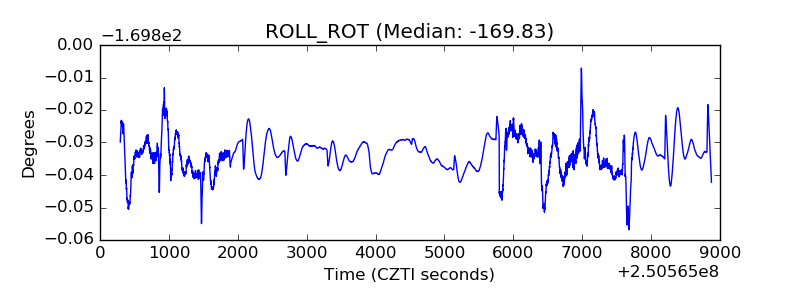

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

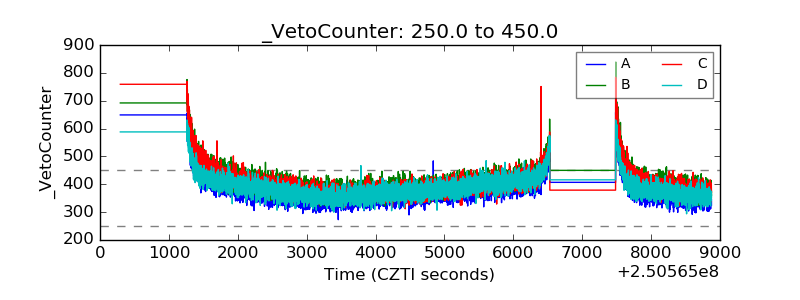

| Veto Counter |  |
