| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_083T04_9000001760_11891cztM0_level2.evt | modeM0/AS1G08_083T04_9000001760_11891cztM0_level2_quad_clean.evt |
| Size (bytes) | 717,102,720 | 120,657,600 |
| Size | 683.9 MB | 115.1 MB |
| Events in quadrant A | 5,273,982 | 749,558 |
| Events in quadrant B | 5,765,540 | 741,438 |
| Events in quadrant C | 4,394,020 | 764,707 |
| Events in quadrant D | 5,630,483 | 729,754 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 196 | 0 |
| B | 0 | 196 | 0 |
| C | 0 | 196 | 0 |
| D | 0 | 196 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21647 | 3 |
| B | 0 | 23241 | 2 |
| C | 0 | 19776 | 2 |
| D | 0 | 22478 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9648 | 261 | 2.705224% |
| B | 9648 | 492 | 5.099502% |
| C | 9648 | 187 | 1.938226% |
| D | 9648 | 318 | 3.296020% |

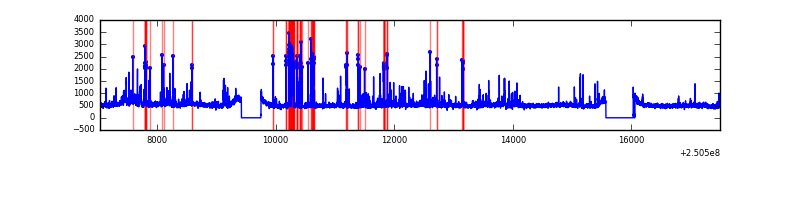

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 10454 | 9652 | 19 | 19 | 0.18% | 0.20% |  |
| B | 10454 | 9652 | 181 | 181 | 1.73% | 1.88% |  |
| C | 10454 | 9652 | 7 | 7 | 0.07% | 0.07% |  |
| D | 10454 | 9652 | 125 | 125 | 1.20% | 1.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 365691 | 1579.28 | 1132 | 1107 | 230.9 |
| A | 1 | 162 | 166055 | 714.51 | 1132 | 1107 | 230.9 |
| A | 7 | 144 | 108832 | 466.64 | 1132 | 1107 | 230.9 |
| B | 4 | 239 | 1025992 | 4705.11 | 1130 | 1099 | 217.8 |
| B | 15 | 204 | 117345 | 533.66 | 1130 | 1099 | 217.8 |
| B | 3 | 64 | 39243 | 175.11 | 1130 | 1099 | 217.8 |
| C | 12 | 4 | 33717 | 125.91 | 1117 | 1121 | 258.9 |
| C | 13 | 61 | 7992 | 26.54 | 1117 | 1121 | 258.9 |
| C | 14 | 234 | 6079 | 19.15 | 1117 | 1121 | 258.9 |
| D | 8 | 195 | 567191 | 2099.59 | 1105 | 1070 | 269.6 |
| D | 1 | 52 | 299960 | 1108.5 | 1105 | 1070 | 269.6 |
| D | 13 | 104 | 134649 | 495.41 | 1105 | 1070 | 269.6 |

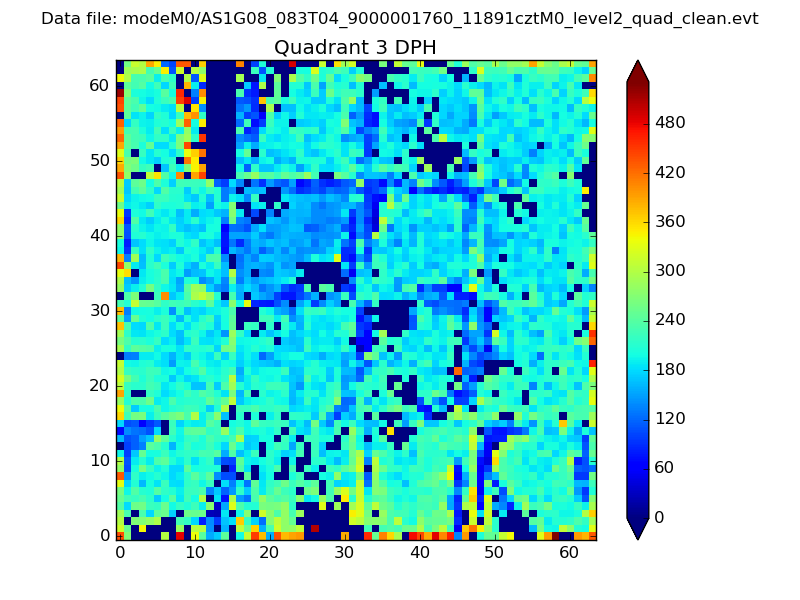

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

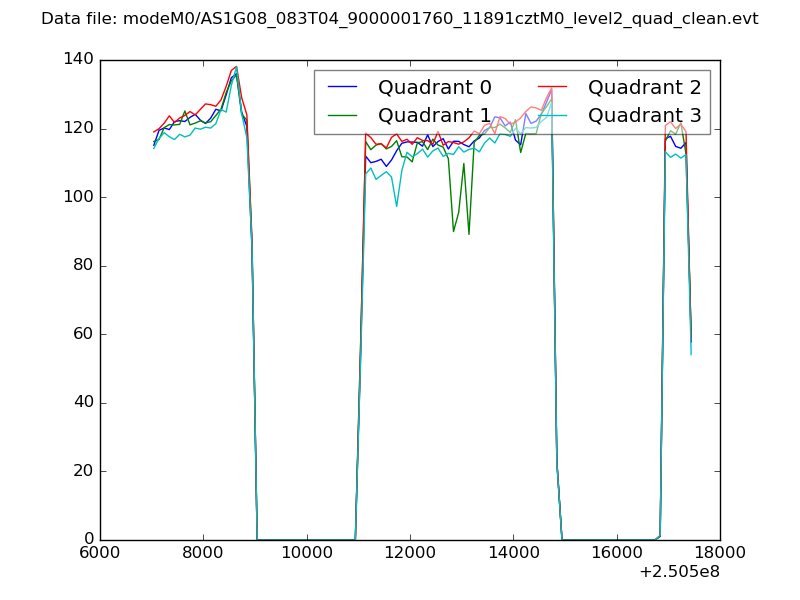

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

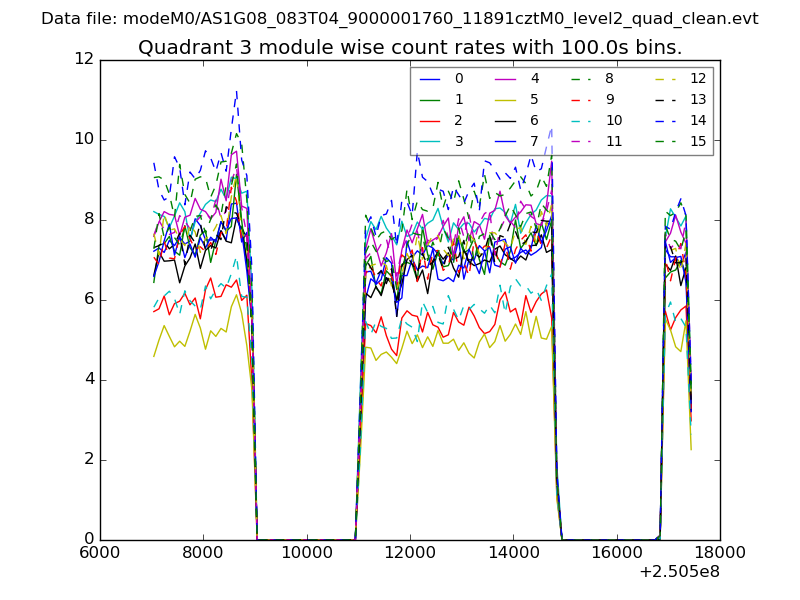

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

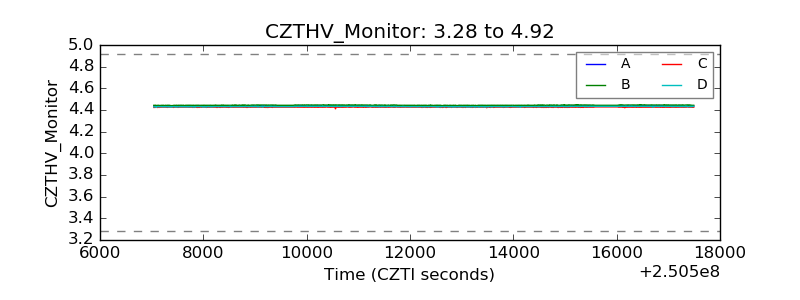

| CZT HV Monitor |  |
| D_VDD |  |

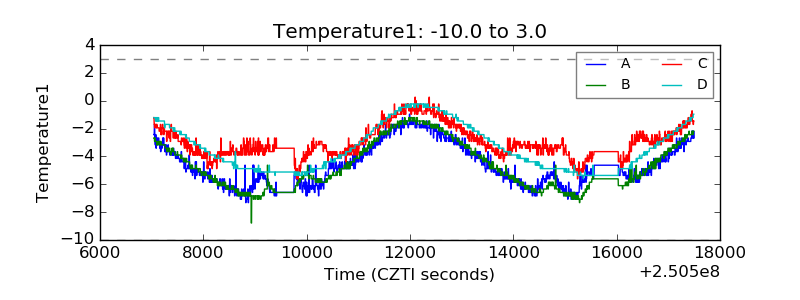

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

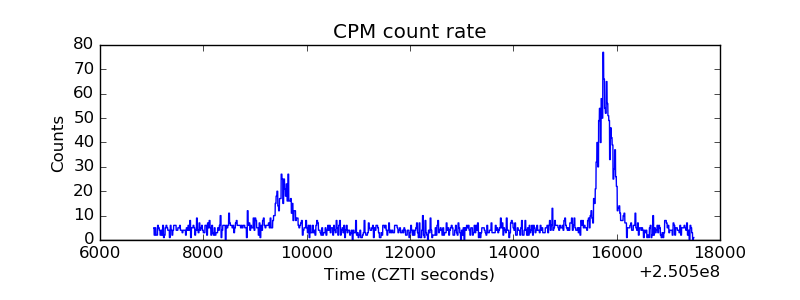

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

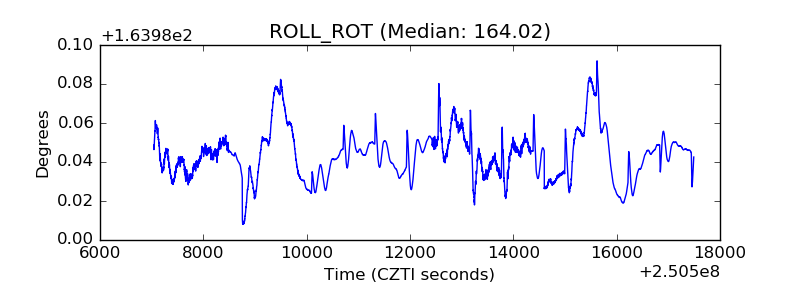

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
