| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_083T04_9000001760_11893cztM0_level2.evt | modeM0/AS1G08_083T04_9000001760_11893cztM0_level2_quad_clean.evt |
| Size (bytes) | 556,148,160 | 96,543,360 |
| Size | 530.4 MB | 92.1 MB |
| Events in quadrant A | 3,362,008 | 631,411 |
| Events in quadrant B | 5,379,067 | 607,607 |
| Events in quadrant C | 2,986,745 | 631,866 |
| Events in quadrant D | 4,672,038 | 596,666 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14368 | 2 |
| B | 0 | 20492 | 1 |
| C | 0 | 13413 | 1 |
| D | 0 | 18244 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6541 | 105 | 1.605259% |
| B | 6541 | 429 | 6.558630% |
| C | 6541 | 59 | 0.902003% |
| D | 6541 | 322 | 4.922795% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7537 | 6543 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7537 | 6543 | 294 | 294 | 3.90% | 4.49% |  |
| C | 7537 | 6543 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7537 | 6543 | 219 | 219 | 2.91% | 3.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 111698 | 689.59 | 784 | 767 | 160.9 |
| A | 1 | 178 | 60473 | 371.16 | 784 | 767 | 160.9 |
| A | 1 | 161 | 53093 | 325.28 | 784 | 767 | 160.9 |
| B | 3 | 64 | 1309247 | 8935.01 | 769 | 751 | 146.4 |
| B | 4 | 239 | 869319 | 5930.98 | 769 | 751 | 146.4 |
| B | 15 | 204 | 126913 | 861.49 | 769 | 751 | 146.4 |
| C | 13 | 61 | 5635 | 27.21 | 766 | 768 | 178.9 |
| C | 3 | 202 | 1974 | 6.74 | 766 | 768 | 178.9 |
| C | -1 | -1 | -1 | -1.0 | 766 | 768 | 178.9 |
| D | 1 | 52 | 670084 | 3524.11 | 751 | 734 | 189.9 |
| D | 8 | 195 | 546229 | 2872.02 | 751 | 734 | 189.9 |
| D | 13 | 104 | 159899 | 838.0 | 751 | 734 | 189.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

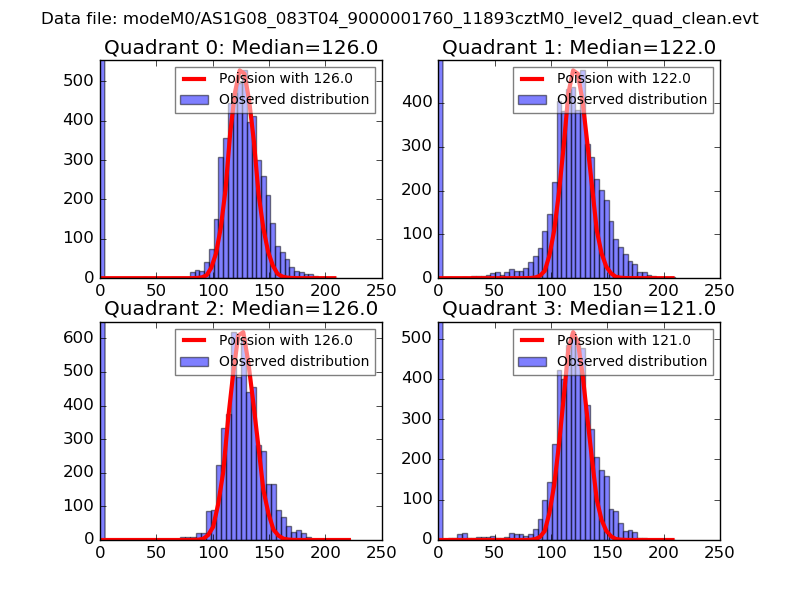

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

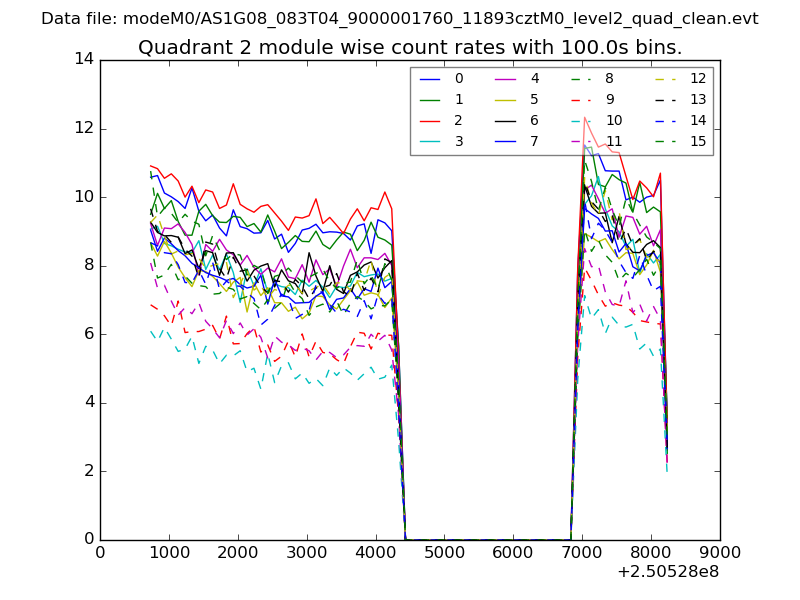

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

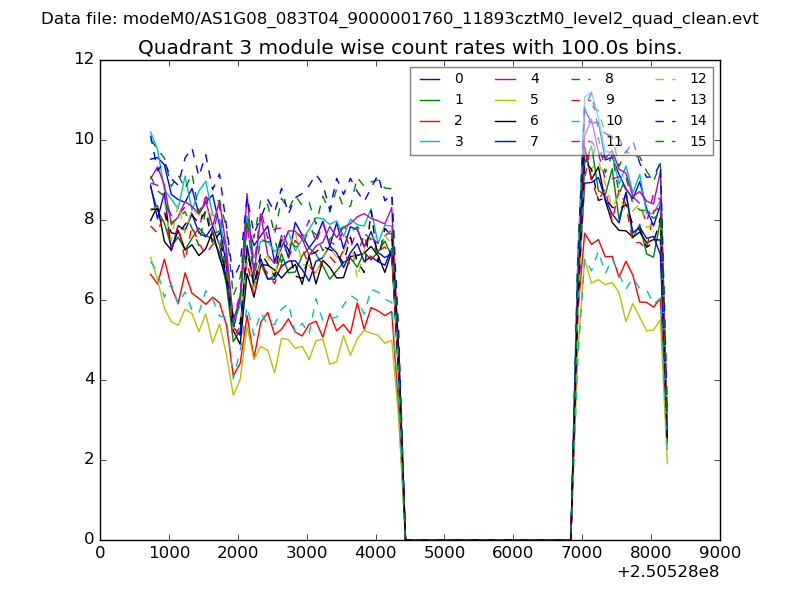

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
