| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_088T05_9000001764_11911cztM0_level2.evt | modeM0/AS1A04_088T05_9000001764_11911cztM0_level2_quad_clean.evt |
| Size (bytes) | 605,064,960 | 87,206,400 |
| Size | 577.0 MB | 83.2 MB |
| Events in quadrant A | 3,465,322 | 586,214 |
| Events in quadrant B | 4,470,041 | 566,223 |
| Events in quadrant C | 2,956,321 | 589,655 |
| Events in quadrant D | 7,010,793 | 463,259 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14413 | 3 |
| B | 0 | 17399 | 2 |
| C | 0 | 12868 | 2 |
| D | 0 | 25102 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6224 | 44 | 0.706941% |
| B | 6224 | 365 | 5.864396% |
| C | 6224 | 21 | 0.337404% |
| D | 6224 | 1409 | 22.638175% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

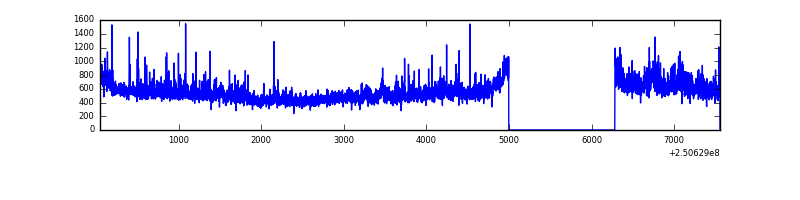

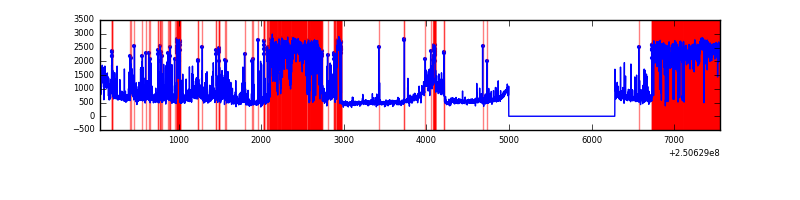

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7510 | 6225 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7510 | 6225 | 260 | 260 | 3.46% | 4.18% |  |
| C | 7510 | 6226 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7509 | 6224 | 1321 | 1321 | 17.59% | 21.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 277640 | 1783.65 | 774 | 759 | 155.2 |
| A | 1 | 162 | 78871 | 503.19 | 774 | 759 | 155.2 |
| A | 1 | 178 | 42100 | 266.32 | 774 | 759 | 155.2 |
| B | 4 | 239 | 1055643 | 7366.49 | 759 | 741 | 143.2 |
| B | 15 | 204 | 139763 | 970.81 | 759 | 741 | 143.2 |
| B | 0 | 231 | 103237 | 715.74 | 759 | 741 | 143.2 |
| C | 13 | 61 | 5452 | 26.99 | 757 | 764 | 173.7 |
| C | 0 | 207 | 3758 | 17.23 | 757 | 764 | 173.7 |
| C | 12 | 4 | 2683 | 11.05 | 757 | 764 | 173.7 |
| D | 1 | 52 | 3607843 | 22540.3 | 670 | 651 | 160.0 |
| D | 8 | 195 | 398584 | 2486.57 | 670 | 651 | 160.0 |
| D | 13 | 249 | 135920 | 845.26 | 670 | 651 | 160.0 |

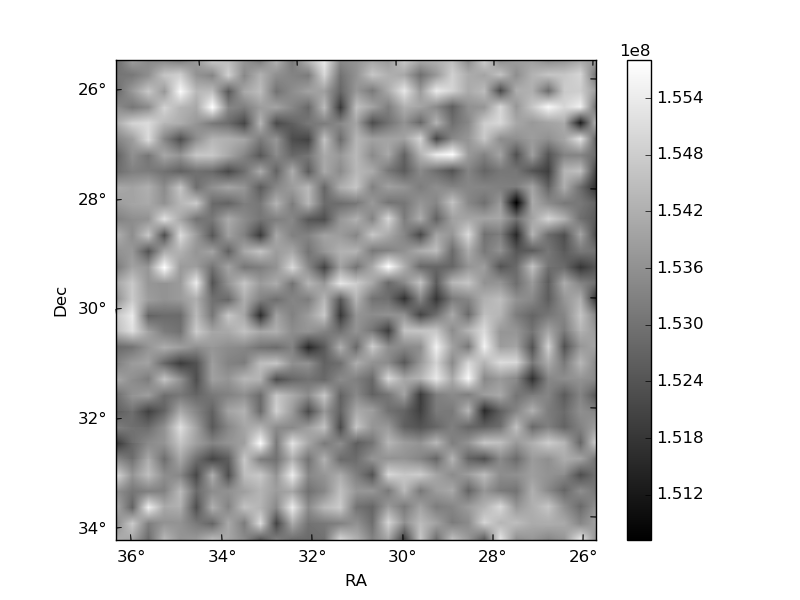

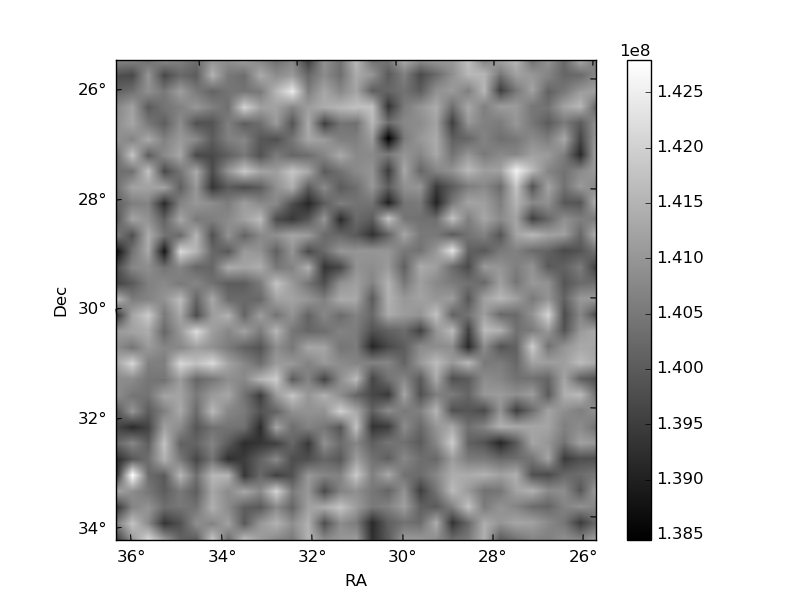

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

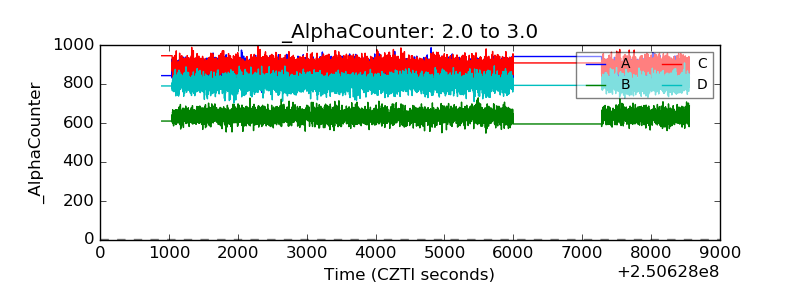

| Alpha Counter |  |

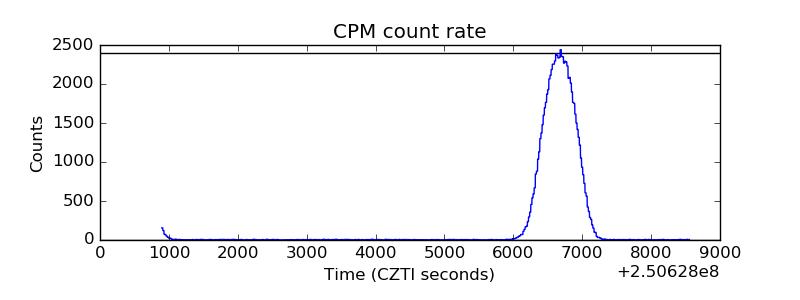

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

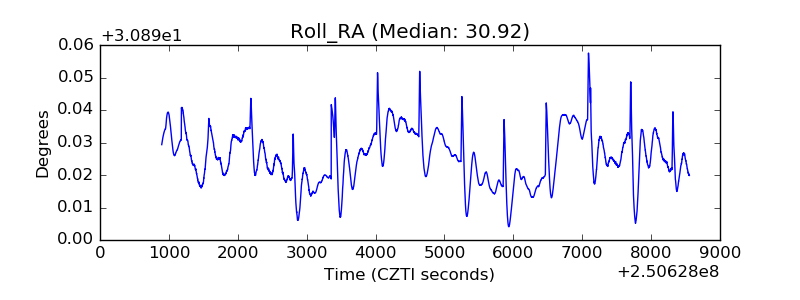

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

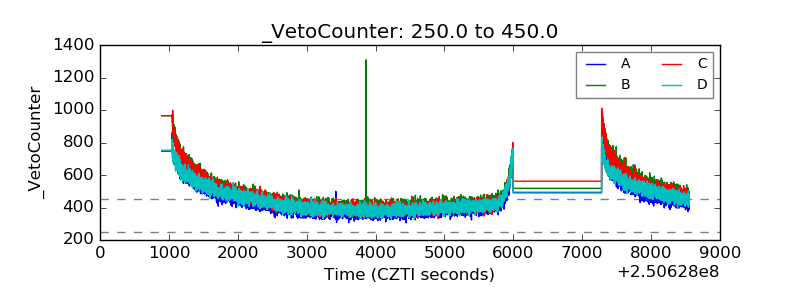

| Veto Counter |  |
