| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_088T05_9000001764_11914cztM0_level2.evt | modeM0/AS1A04_088T05_9000001764_11914cztM0_level2_quad_clean.evt |
| Size (bytes) | 547,171,200 | 82,071,360 |
| Size | 521.8 MB | 78.3 MB |
| Events in quadrant A | 3,666,727 | 522,545 |
| Events in quadrant B | 4,305,047 | 506,375 |
| Events in quadrant C | 3,022,663 | 527,850 |
| Events in quadrant D | 5,128,924 | 467,734 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15234 | 3 |
| B | 0 | 17170 | 2 |
| C | 0 | 13514 | 2 |
| D | 0 | 19632 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6595 | 154 | 2.335102% |
| B | 6595 | 418 | 6.338135% |
| C | 6595 | 19 | 0.288097% |
| D | 6595 | 508 | 7.702805% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8926 | 6597 | 93 | 93 | 1.04% | 1.41% |  |
| B | 8926 | 6596 | 245 | 245 | 2.74% | 3.71% |  |
| C | 8926 | 6598 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8926 | 6598 | 510 | 510 | 5.71% | 7.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 492857 | 3093.26 | 783 | 766 | 159.1 |
| A | 1 | 162 | 40410 | 249.2 | 783 | 766 | 159.1 |
| A | 7 | 144 | 31283 | 191.83 | 783 | 766 | 159.1 |
| B | 4 | 239 | 1144356 | 7692.62 | 779 | 760 | 148.7 |
| B | 15 | 204 | 41107 | 271.4 | 779 | 760 | 148.7 |
| B | 0 | 214 | 33473 | 220.05 | 779 | 760 | 148.7 |
| C | 13 | 61 | 5772 | 27.83 | 774 | 778 | 179.5 |
| C | 12 | 4 | 4903 | 22.98 | 774 | 778 | 179.5 |
| C | 14 | 234 | 2050 | 7.09 | 774 | 778 | 179.5 |
| D | 1 | 52 | 1725147 | 9881.09 | 734 | 714 | 174.5 |
| D | 8 | 195 | 198943 | 1135.86 | 734 | 714 | 174.5 |
| D | 13 | 122 | 97017 | 551.82 | 734 | 714 | 174.5 |

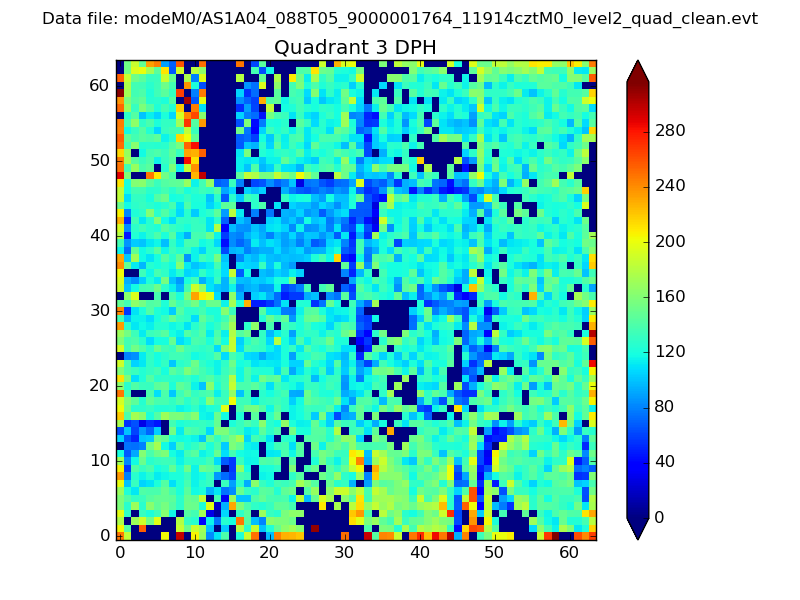

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

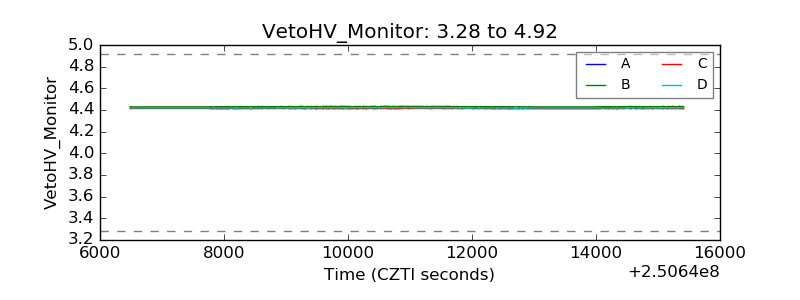

| Veto HV Monitor |  |
| Veto LLD |  |

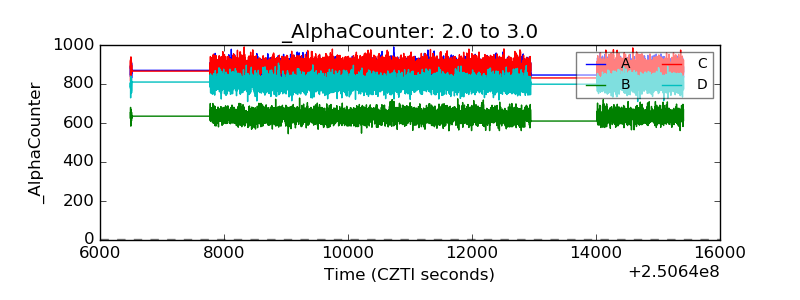

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

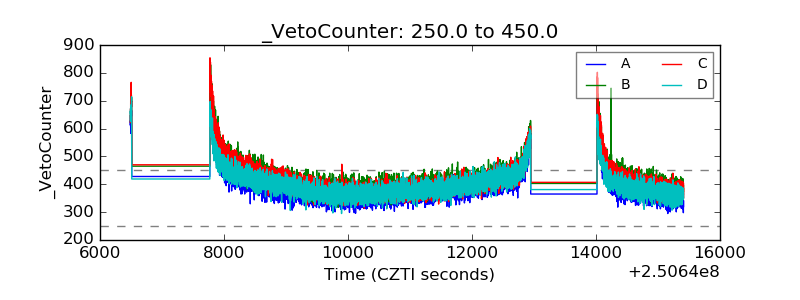

| Veto Counter |  |
