| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_088T05_9000001764_11916cztM0_level2.evt | modeM0/AS1A04_088T05_9000001764_11916cztM0_level2_quad_clean.evt |
| Size (bytes) | 694,817,280 | 73,451,520 |
| Size | 662.6 MB | 70.0 MB |
| Events in quadrant A | 4,064,019 | 437,920 |
| Events in quadrant B | 4,908,821 | 411,367 |
| Events in quadrant C | 3,256,751 | 449,790 |
| Events in quadrant D | 8,326,150 | 423,815 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16774 | 2 |
| B | 0 | 19470 | 1 |
| C | 0 | 14808 | 1 |
| D | 0 | 29370 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7190 | 170 | 2.364395% |
| B | 7190 | 630 | 8.762170% |
| C | 7190 | 78 | 1.084840% |
| D | 7190 | 1899 | 26.411683% |

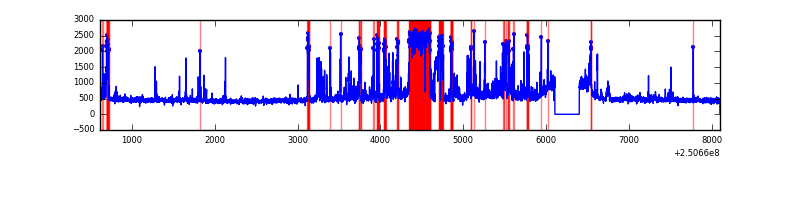

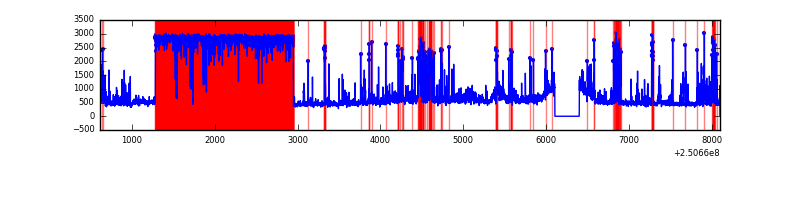

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7486 | 7191 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7486 | 7191 | 373 | 373 | 4.98% | 5.19% |  |
| C | 7486 | 7191 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7486 | 7191 | 1794 | 1794 | 23.96% | 24.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 298527 | 1708.16 | 844 | 827 | 174.3 |
| A | 1 | 162 | 192398 | 1099.21 | 844 | 827 | 174.3 |
| A | 1 | 178 | 106340 | 605.42 | 844 | 827 | 174.3 |
| B | 4 | 239 | 1242010 | 7815.0 | 825 | 803 | 158.8 |
| B | 0 | 231 | 195375 | 1225.08 | 825 | 803 | 158.8 |
| B | 15 | 204 | 150412 | 941.98 | 825 | 803 | 158.8 |
| C | 13 | 61 | 5927 | 26.18 | 834 | 839 | 194.4 |
| C | 12 | 4 | 4542 | 19.05 | 834 | 839 | 194.4 |
| C | 3 | 202 | 2051 | 6.24 | 834 | 839 | 194.4 |
| D | 1 | 52 | 4623791 | 27390.17 | 691 | 670 | 168.8 |
| D | 4 | 95 | 424866 | 2513.19 | 691 | 670 | 168.8 |
| D | 8 | 195 | 218418 | 1290.07 | 691 | 670 | 168.8 |

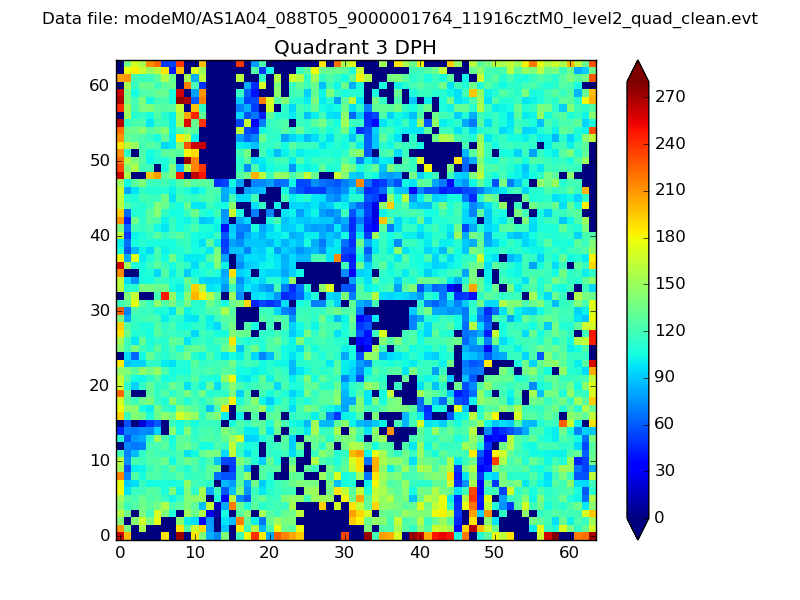

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

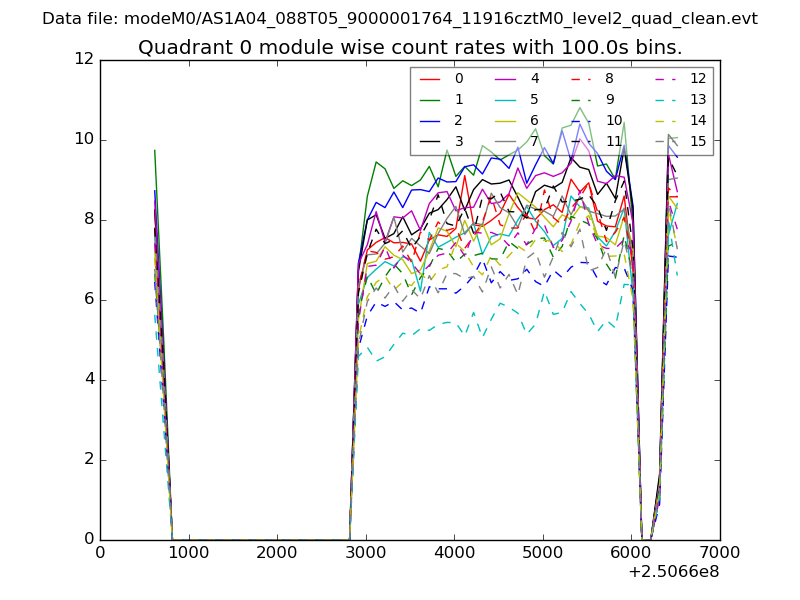

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

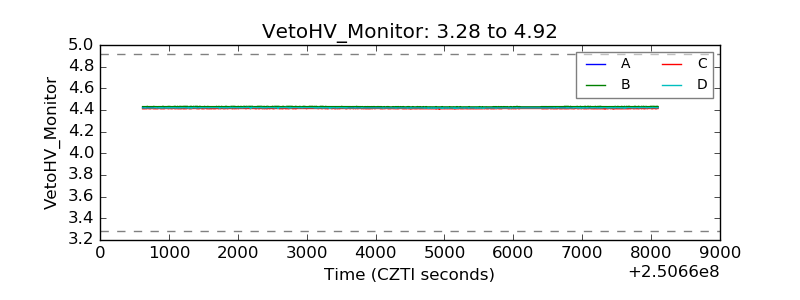

| Veto HV Monitor |  |
| Veto LLD |  |

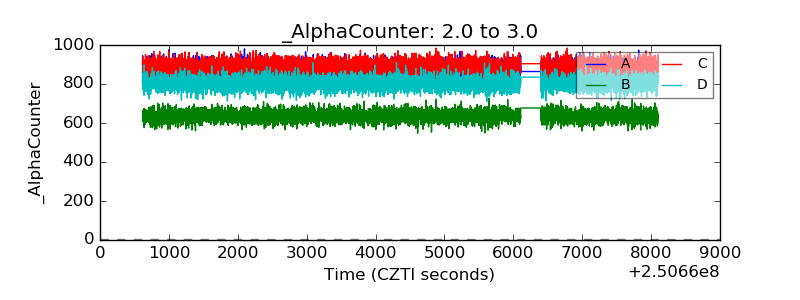

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

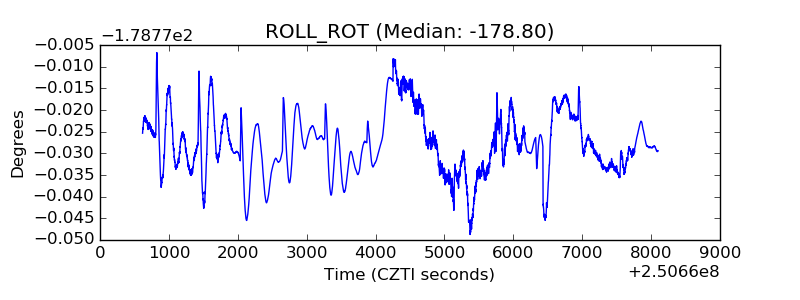

| _ROLL_ROT |  |

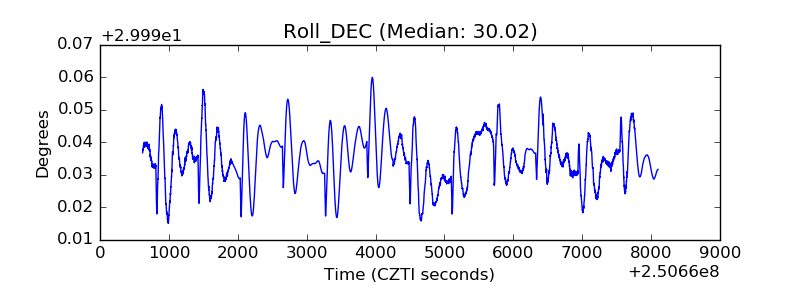

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
