| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_124T01_9000001766_11938cztM0_level2.evt | modeM0/AS1A04_124T01_9000001766_11938cztM0_level2_quad_clean.evt |
| Size (bytes) | 510,606,720 | 122,207,040 |
| Size | 487.0 MB | 116.5 MB |
| Events in quadrant A | 3,382,533 | 835,326 |
| Events in quadrant B | 4,356,302 | 828,726 |
| Events in quadrant C | 2,946,350 | 823,210 |
| Events in quadrant D | 4,341,452 | 764,627 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14409 | 2 |
| B | 0 | 17479 | 1 |
| C | 0 | 13228 | 1 |
| D | 0 | 17363 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6442 | 61 | 0.946911% |
| B | 6442 | 331 | 5.138156% |
| C | 6442 | 33 | 0.512263% |
| D | 6442 | 345 | 5.355480% |

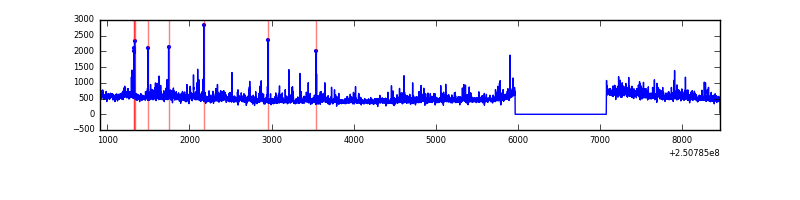

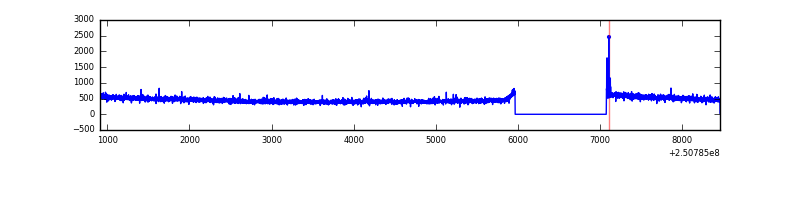

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7554 | 6443 | 8 | 8 | 0.11% | 0.12% |  |
| B | 7554 | 6443 | 205 | 205 | 2.71% | 3.18% |  |
| C | 7554 | 6443 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7554 | 6443 | 237 | 237 | 3.14% | 3.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 113969 | 732.46 | 768 | 753 | 154.6 |
| A | 1 | 178 | 57418 | 366.6 | 768 | 753 | 154.6 |
| A | 7 | 144 | 51442 | 327.94 | 768 | 753 | 154.6 |
| B | 4 | 239 | 696315 | 4885.28 | 759 | 740 | 142.4 |
| B | 15 | 204 | 315023 | 2207.32 | 759 | 740 | 142.4 |
| B | 3 | 64 | 244915 | 1714.93 | 759 | 740 | 142.4 |
| C | 0 | 10 | 10219 | 55.18 | 750 | 754 | 171.5 |
| C | 0 | 207 | 5785 | 29.33 | 750 | 754 | 171.5 |
| C | 13 | 61 | 5553 | 27.98 | 750 | 754 | 171.5 |
| D | 1 | 52 | 938798 | 5379.67 | 727 | 705 | 174.4 |
| D | 8 | 195 | 323558 | 1851.46 | 727 | 705 | 174.4 |
| D | 10 | 50 | 80443 | 457.27 | 727 | 705 | 174.4 |

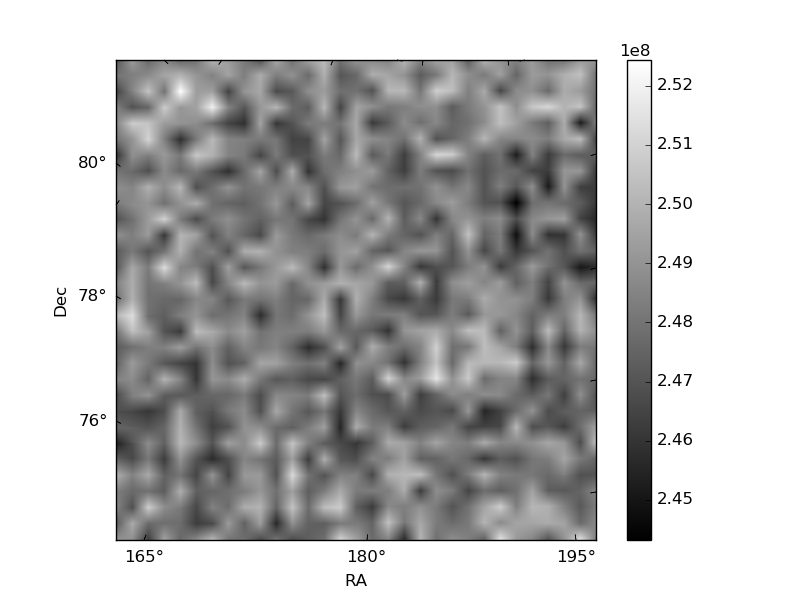

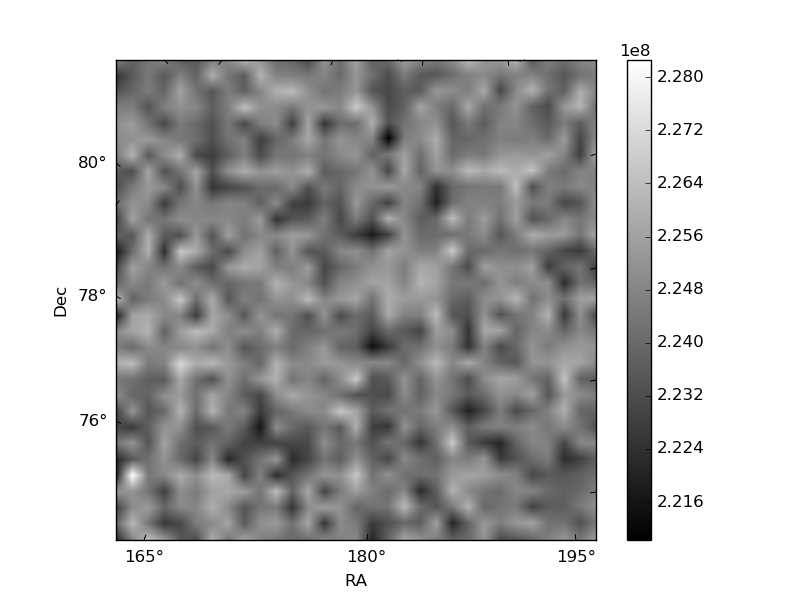

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

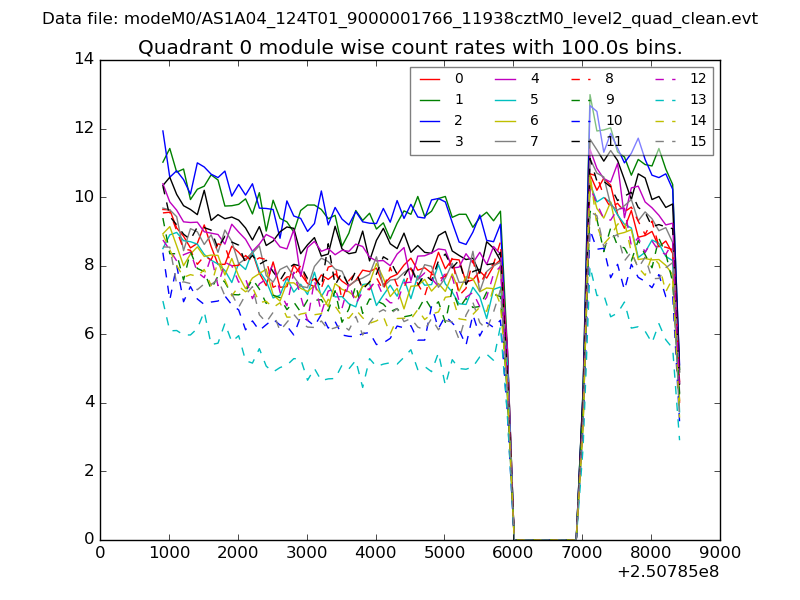

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

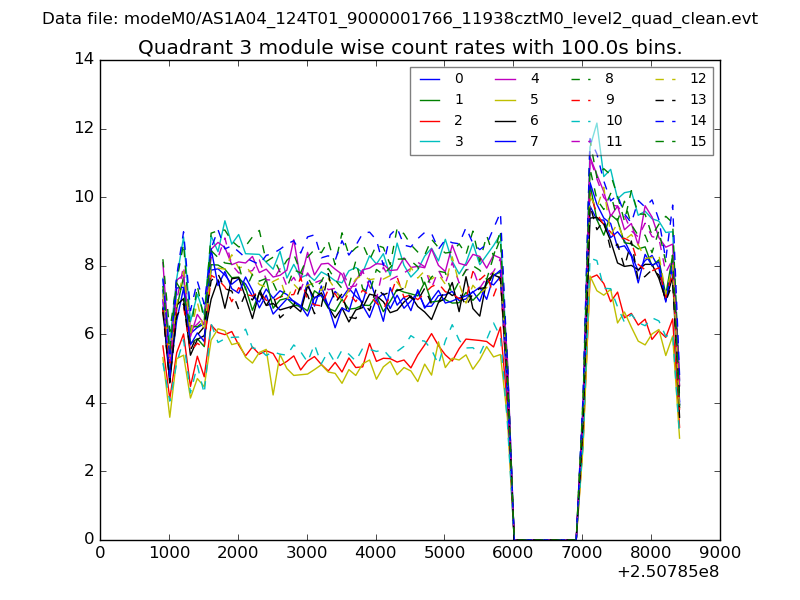

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

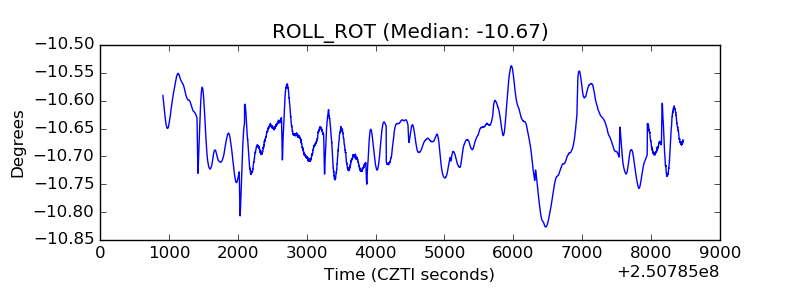

| _ROLL_ROT |  |

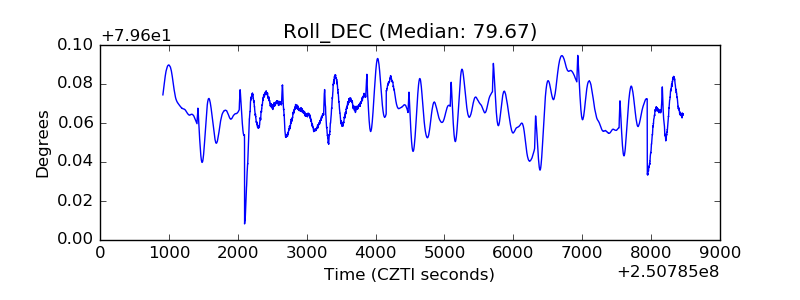

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
