| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_124T01_9000001766_11946cztM0_level2.evt | modeM0/AS1A04_124T01_9000001766_11946cztM0_level2_quad_clean.evt |
| Size (bytes) | 515,592,000 | 124,338,240 |
| Size | 491.7 MB | 118.6 MB |
| Events in quadrant A | 3,544,313 | 833,491 |
| Events in quadrant B | 4,138,001 | 839,118 |
| Events in quadrant C | 3,016,837 | 824,464 |
| Events in quadrant D | 4,436,965 | 777,772 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15329 | 2 |
| B | 0 | 17071 | 1 |
| C | 0 | 14310 | 1 |
| D | 0 | 17962 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7046 | 116 | 1.646324% |
| B | 7046 | 316 | 4.484814% |
| C | 7046 | 29 | 0.411581% |
| D | 7046 | 221 | 3.136531% |

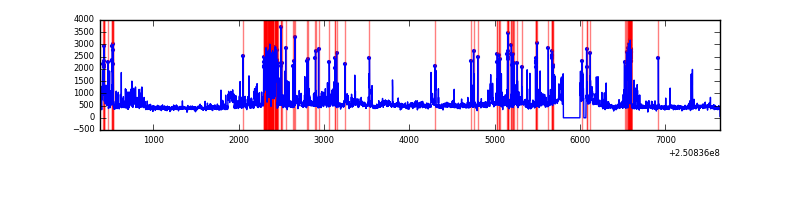

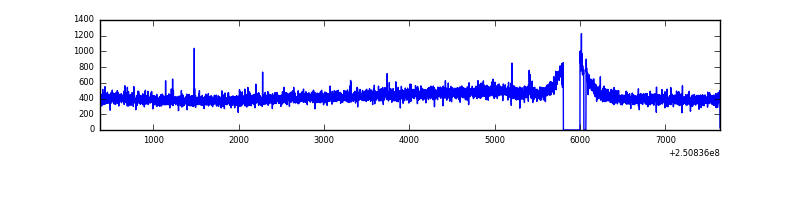

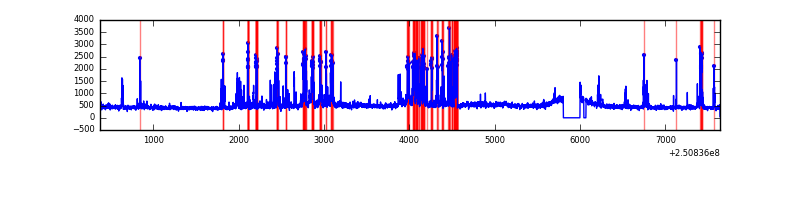

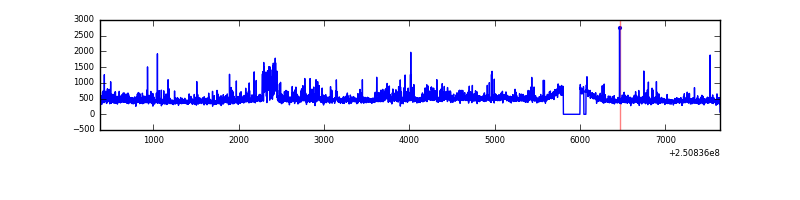

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7267 | 7048 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7267 | 7048 | 183 | 183 | 2.52% | 2.60% |  |
| C | 7267 | 7049 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7267 | 7048 | 181 | 181 | 2.49% | 2.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 137099 | 836.59 | 797 | 779 | 162.9 |
| A | 11 | 29 | 125866 | 767.65 | 797 | 779 | 162.9 |
| A | 1 | 178 | 69399 | 421.12 | 797 | 779 | 162.9 |
| B | 4 | 239 | 884805 | 5846.66 | 790 | 769 | 151.2 |
| B | 15 | 204 | 92018 | 603.48 | 790 | 769 | 151.2 |
| B | 0 | 214 | 32489 | 209.78 | 790 | 769 | 151.2 |
| C | 8 | 128 | 8396 | 43.15 | 766 | 767 | 176.8 |
| C | 0 | 10 | 6716 | 33.64 | 766 | 767 | 176.8 |
| C | 13 | 61 | 5685 | 27.81 | 766 | 767 | 176.8 |
| D | 1 | 52 | 621121 | 3443.6 | 754 | 732 | 180.2 |
| D | 13 | 122 | 497124 | 2755.33 | 754 | 732 | 180.2 |
| D | 8 | 195 | 335827 | 1860.01 | 754 | 732 | 180.2 |

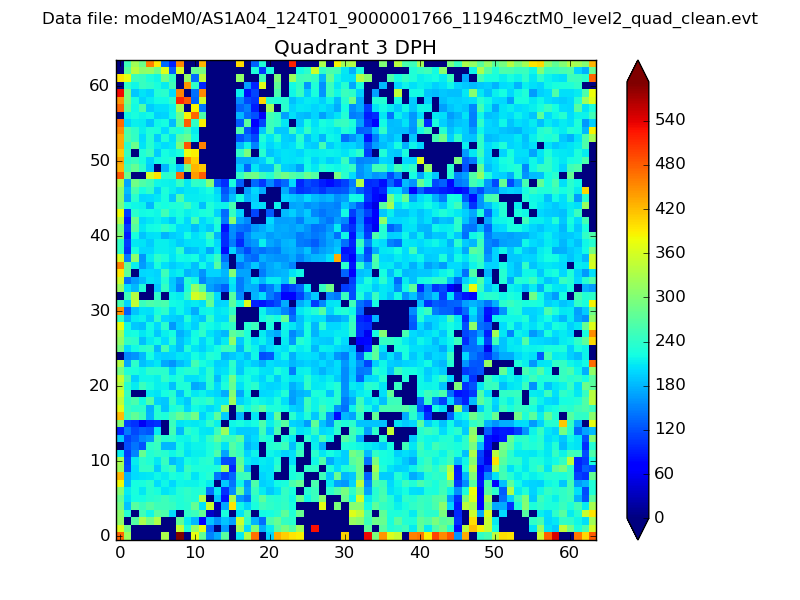

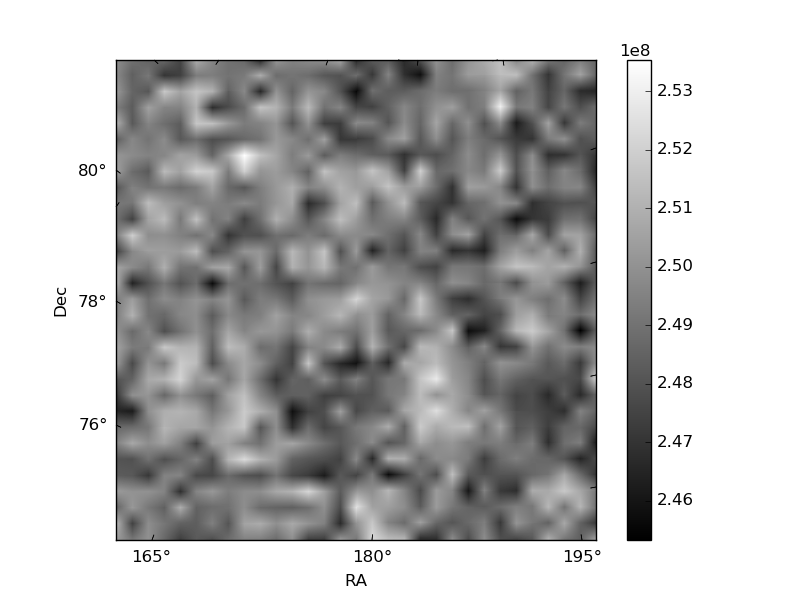

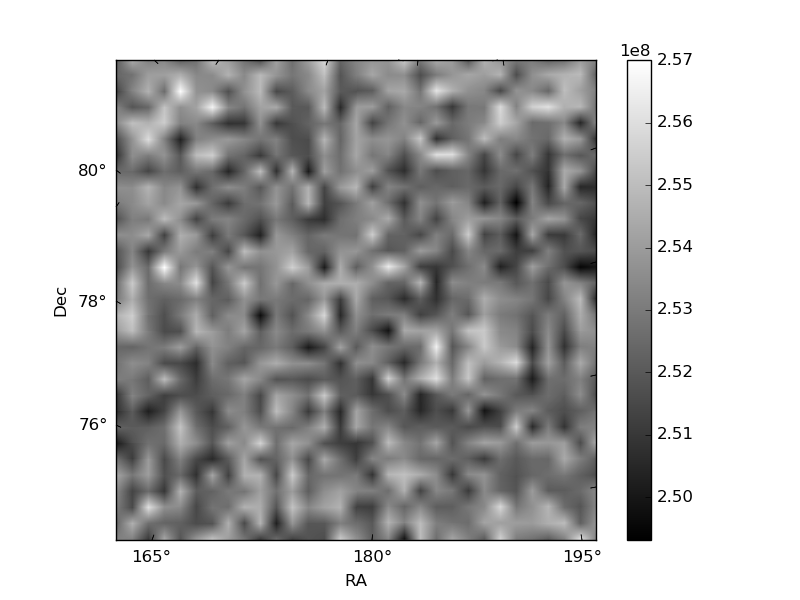

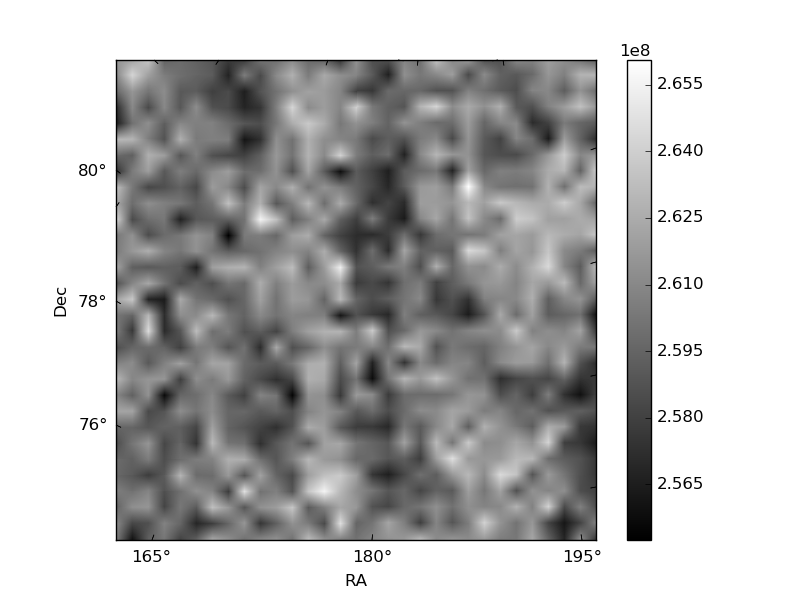

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

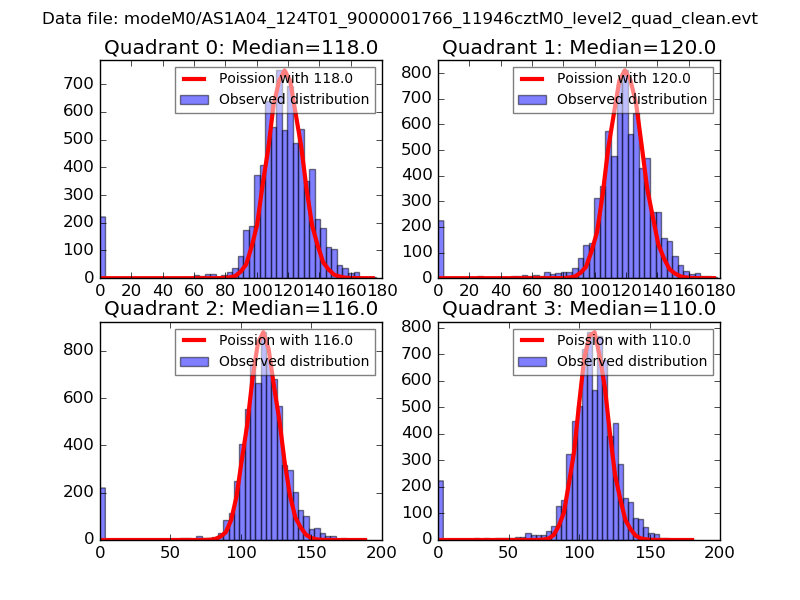

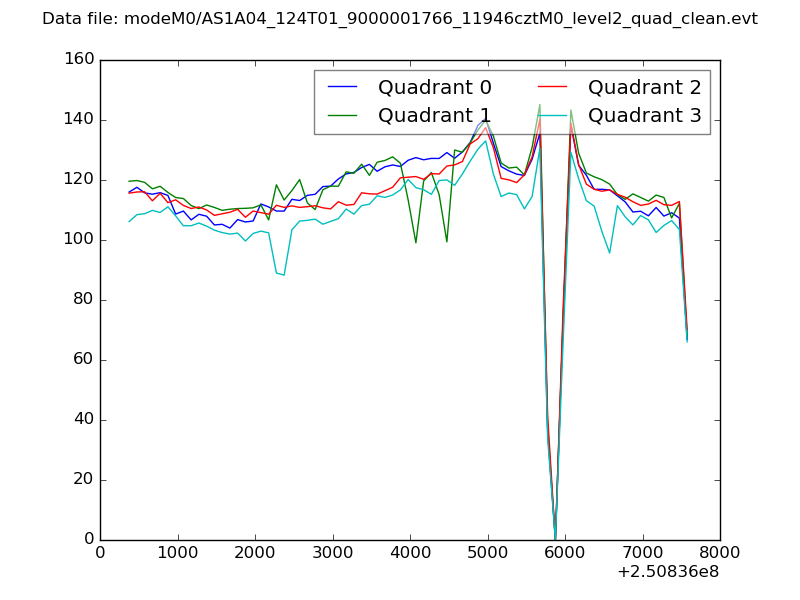

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

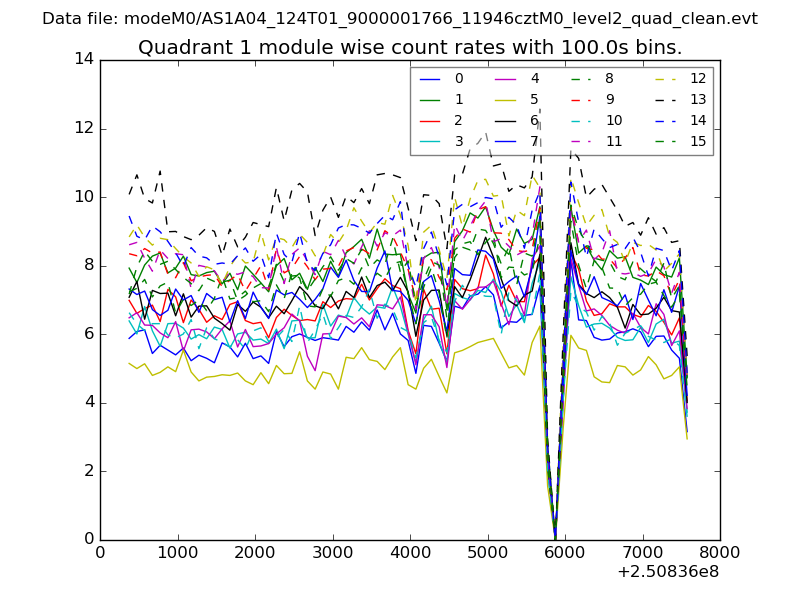

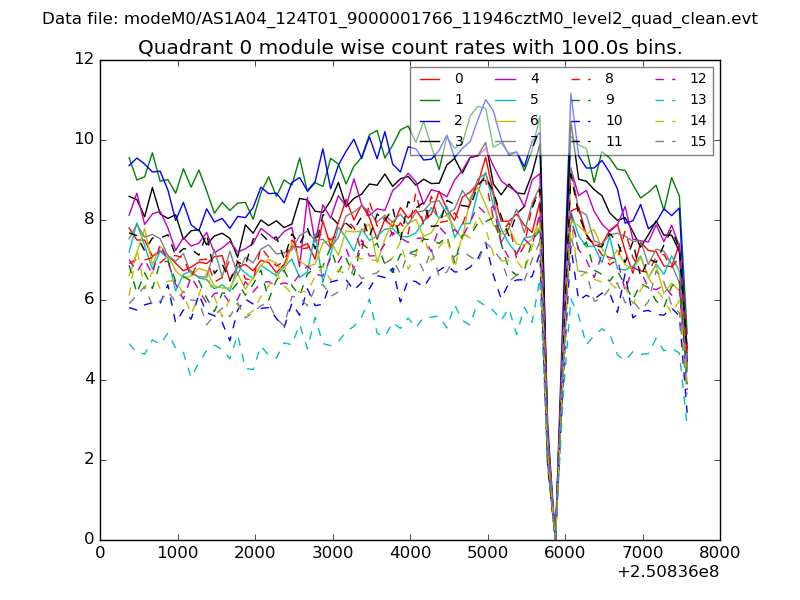

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

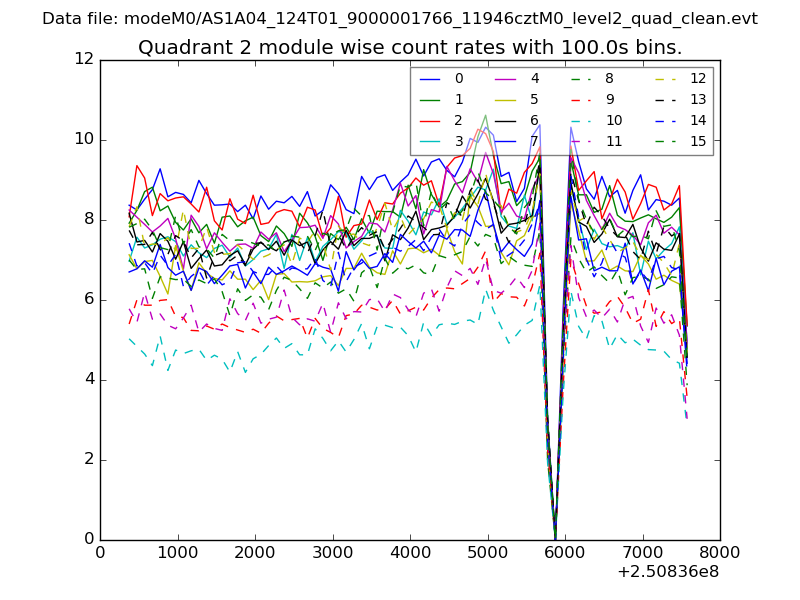

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

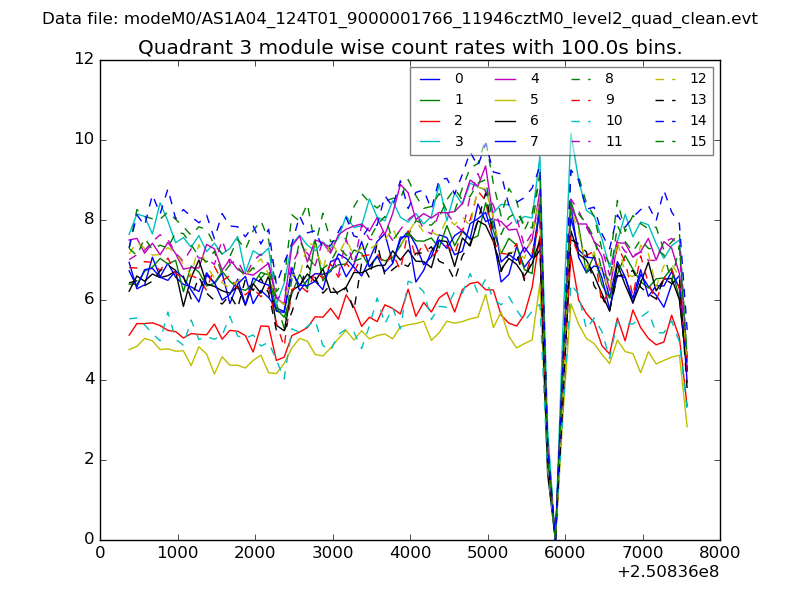

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

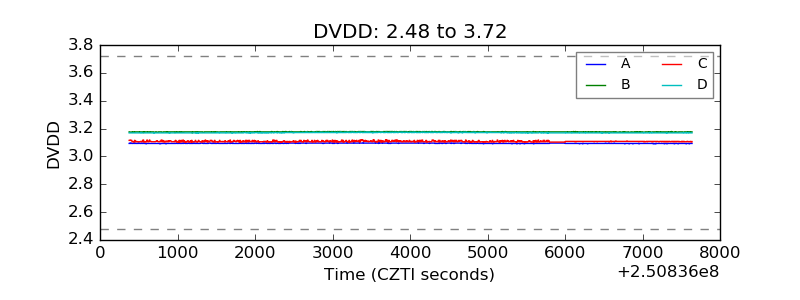

| D_VDD |  |

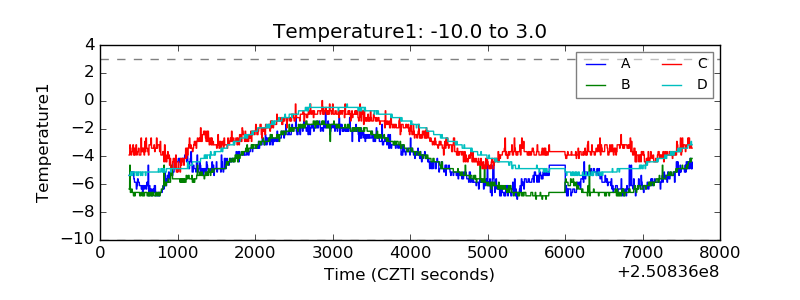

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

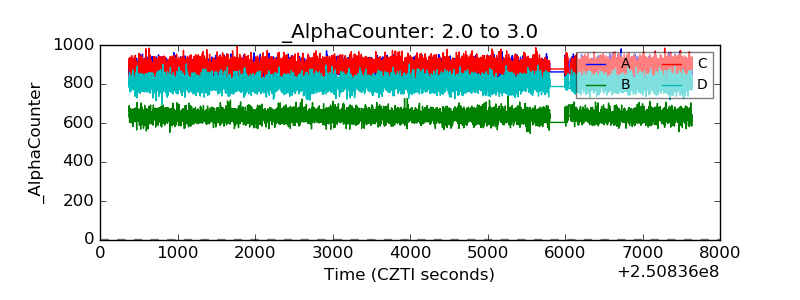

| Alpha Counter |  |

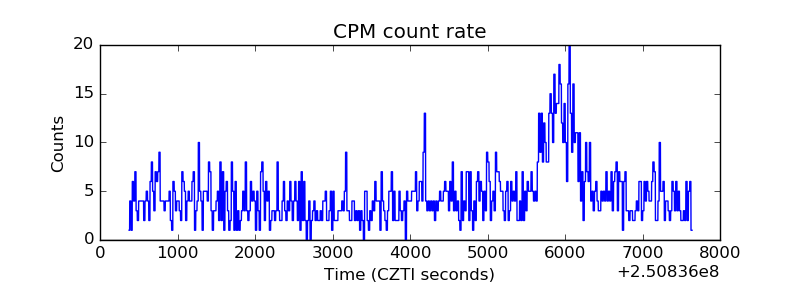

| _CPM_Rate |  |

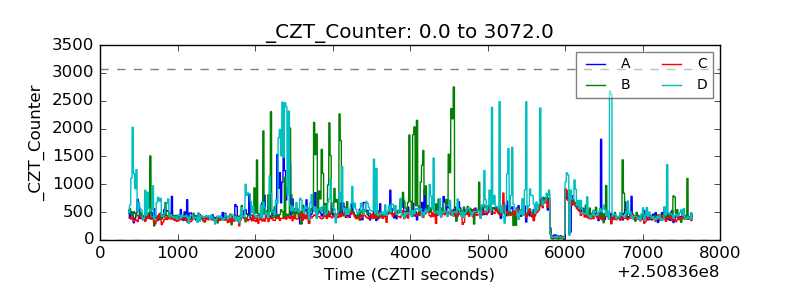

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

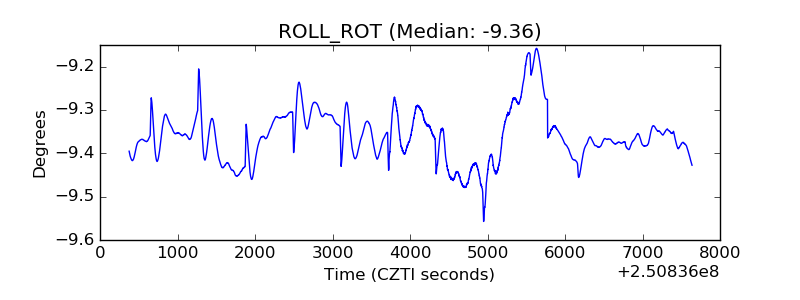

| _ROLL_ROT |  |
| _Roll_DEC |  |

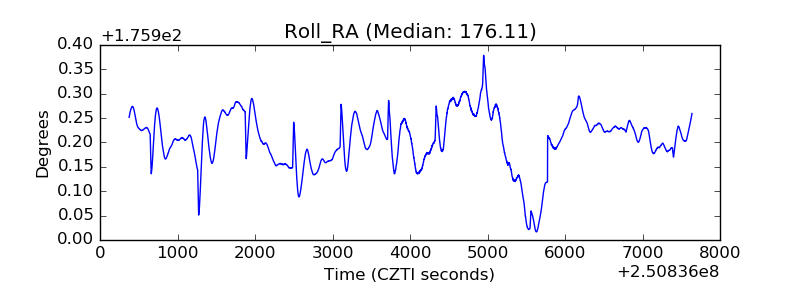

| _Roll_RA |  |

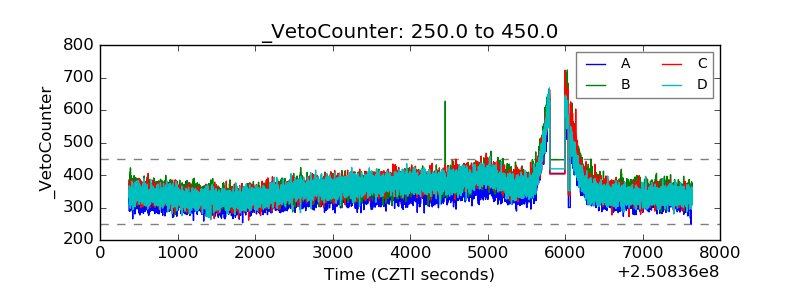

| Veto Counter |  |
