| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_124T01_9000001766_11951cztM0_level2.evt | modeM0/AS1A04_124T01_9000001766_11951cztM0_level2_quad_clean.evt |
| Size (bytes) | 449,824,320 | 116,012,160 |
| Size | 429.0 MB | 110.6 MB |
| Events in quadrant A | 3,333,510 | 781,903 |
| Events in quadrant B | 3,767,127 | 787,973 |
| Events in quadrant C | 2,780,132 | 769,732 |
| Events in quadrant D | 3,320,070 | 740,501 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14064 | 2 |
| B | 0 | 15289 | 1 |
| C | 0 | 12643 | 1 |
| D | 0 | 14182 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6214 | 114 | 1.834567% |
| B | 6214 | 196 | 3.154168% |
| C | 6214 | 37 | 0.595430% |
| D | 6214 | 104 | 1.673640% |

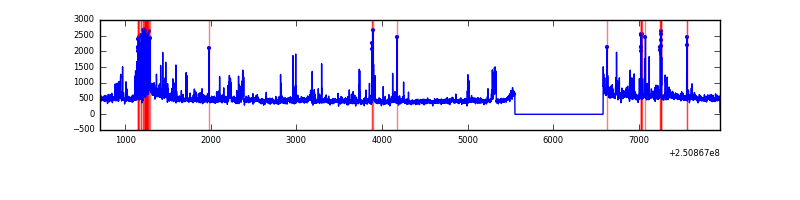

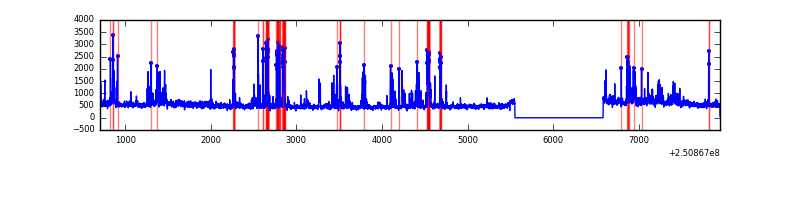

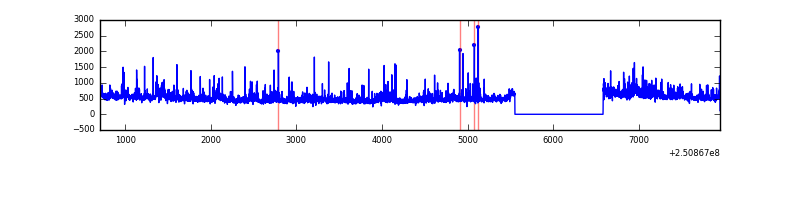

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7246 | 6215 | 4 | 4 | 0.06% | 0.06% |  |
| B | 7246 | 6215 | 109 | 109 | 1.50% | 1.75% |  |
| C | 7246 | 6215 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7246 | 6215 | 52 | 52 | 0.72% | 0.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 151244 | 1026.02 | 727 | 711 | 146.7 |
| A | 8 | 15 | 82520 | 557.61 | 727 | 711 | 146.7 |
| A | 1 | 178 | 79350 | 536.0 | 727 | 711 | 146.7 |
| B | 4 | 239 | 637095 | 4627.22 | 727 | 711 | 137.5 |
| B | 15 | 204 | 153147 | 1108.38 | 727 | 711 | 137.5 |
| B | 5 | 255 | 28886 | 204.86 | 727 | 711 | 137.5 |
| C | 14 | 234 | 6574 | 35.71 | 710 | 711 | 164.2 |
| C | 13 | 61 | 5292 | 27.9 | 710 | 711 | 164.2 |
| C | 0 | 10 | 2096 | 8.43 | 710 | 711 | 164.2 |
| D | 10 | 50 | 156829 | 924.23 | 706 | 688 | 168.9 |
| D | 8 | 195 | 127143 | 748.51 | 706 | 688 | 168.9 |
| D | 1 | 52 | 111265 | 654.52 | 706 | 688 | 168.9 |

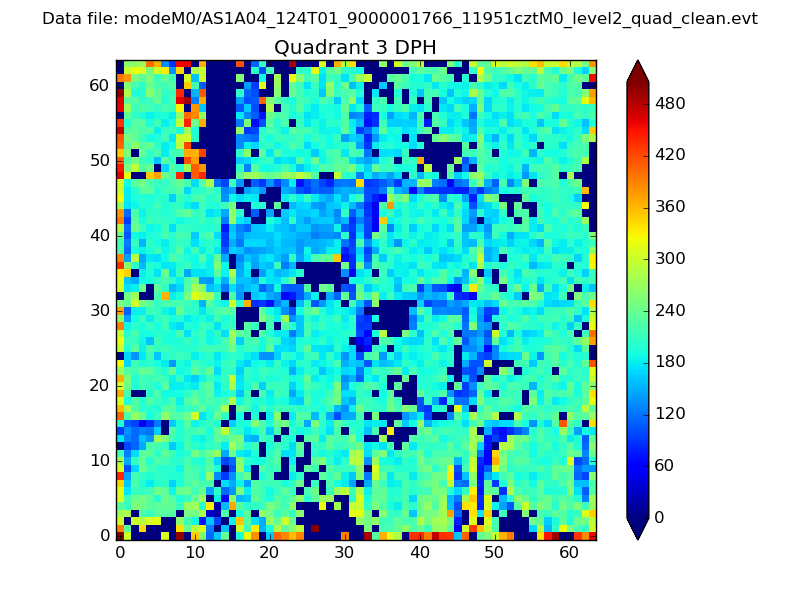

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

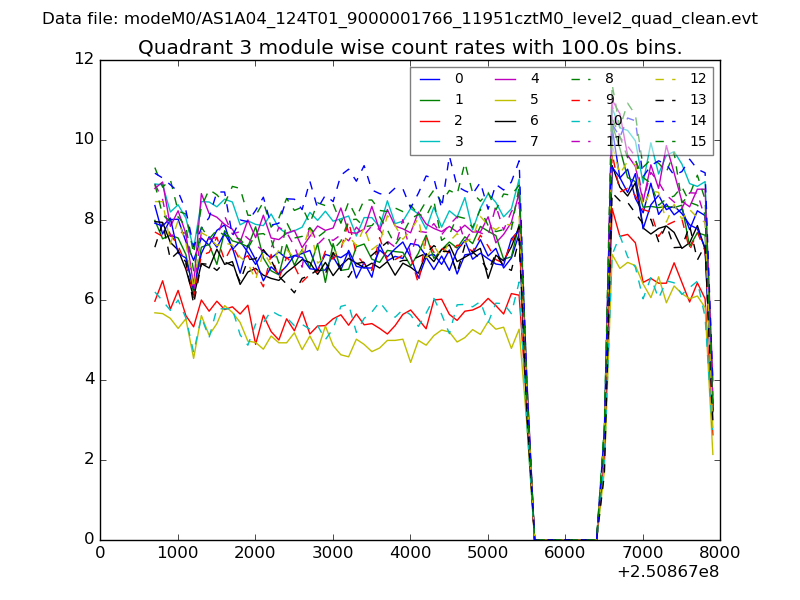

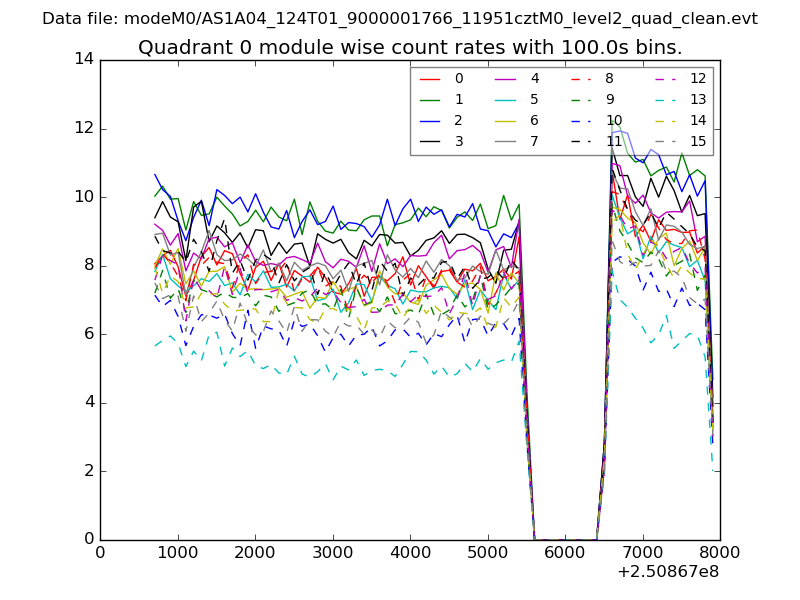

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

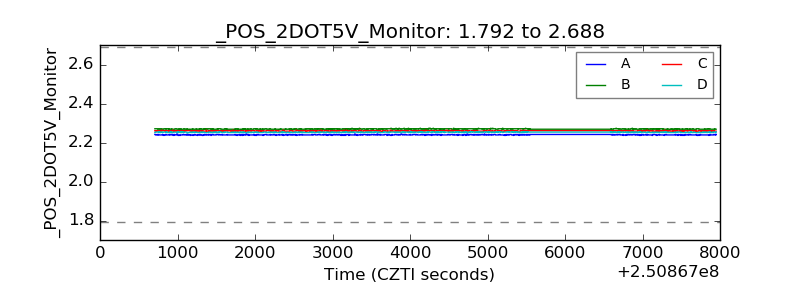

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

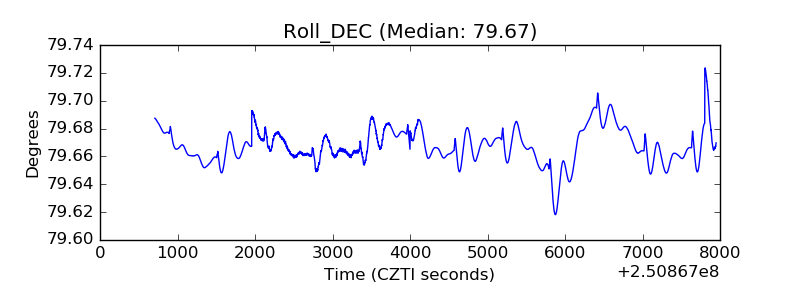

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
