| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_124T01_9000001766_11957cztM0_level2.evt | modeM0/AS1A04_124T01_9000001766_11957cztM0_level2_quad_clean.evt |
| Size (bytes) | 447,359,040 | 120,467,520 |
| Size | 426.6 MB | 114.9 MB |
| Events in quadrant A | 3,134,685 | 811,107 |
| Events in quadrant B | 3,566,698 | 822,285 |
| Events in quadrant C | 2,825,479 | 810,365 |
| Events in quadrant D | 3,591,681 | 763,775 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13670 | 3 |
| B | 0 | 14949 | 2 |
| C | 0 | 12931 | 2 |
| D | 0 | 15254 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6314 | 47 | 0.744378% |
| B | 6314 | 221 | 3.500158% |
| C | 6314 | 16 | 0.253405% |
| D | 6314 | 120 | 1.900538% |

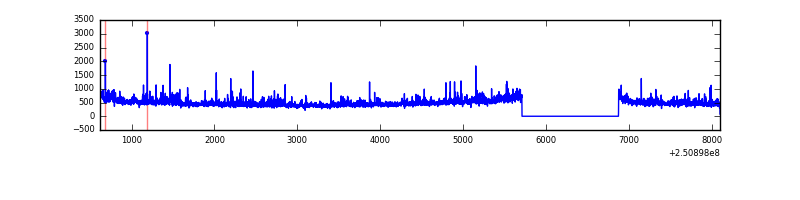

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7480 | 6316 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7480 | 6316 | 110 | 110 | 1.47% | 1.74% |  |
| C | 7480 | 6316 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7480 | 6315 | 80 | 80 | 1.07% | 1.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 98441 | 667.61 | 728 | 714 | 146.4 |
| A | 1 | 178 | 52745 | 355.45 | 728 | 714 | 146.4 |
| A | 1 | 161 | 46052 | 309.72 | 728 | 714 | 146.4 |
| B | 4 | 239 | 480136 | 3479.47 | 732 | 713 | 137.8 |
| B | 10 | 244 | 89185 | 642.1 | 732 | 713 | 137.8 |
| B | 15 | 204 | 57712 | 413.68 | 732 | 713 | 137.8 |
| C | 1 | 16 | 20640 | 120.16 | 717 | 719 | 165.8 |
| C | 13 | 61 | 5228 | 27.2 | 717 | 719 | 165.8 |
| C | 8 | 128 | 3765 | 18.37 | 717 | 719 | 165.8 |
| D | 1 | 52 | 356055 | 2138.38 | 700 | 681 | 166.2 |
| D | 13 | 104 | 114235 | 683.28 | 700 | 681 | 166.2 |
| D | 8 | 195 | 109831 | 656.78 | 700 | 681 | 166.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

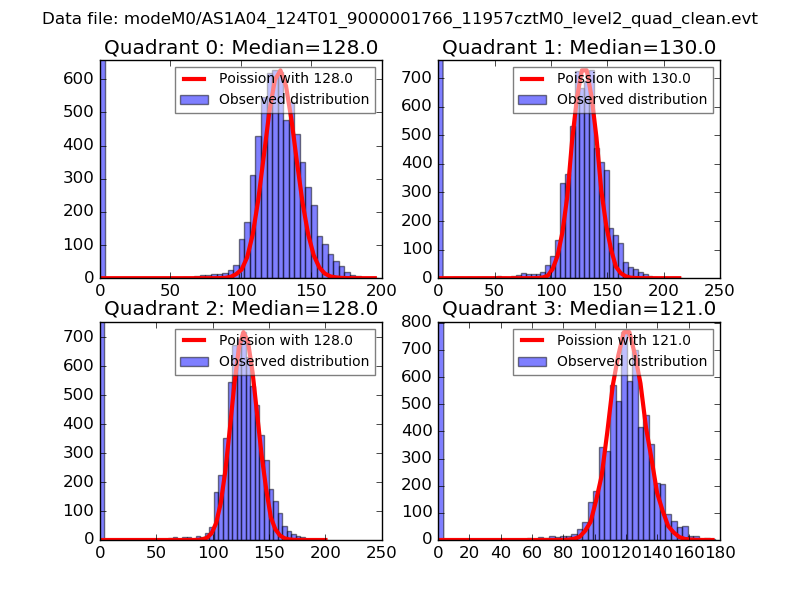

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

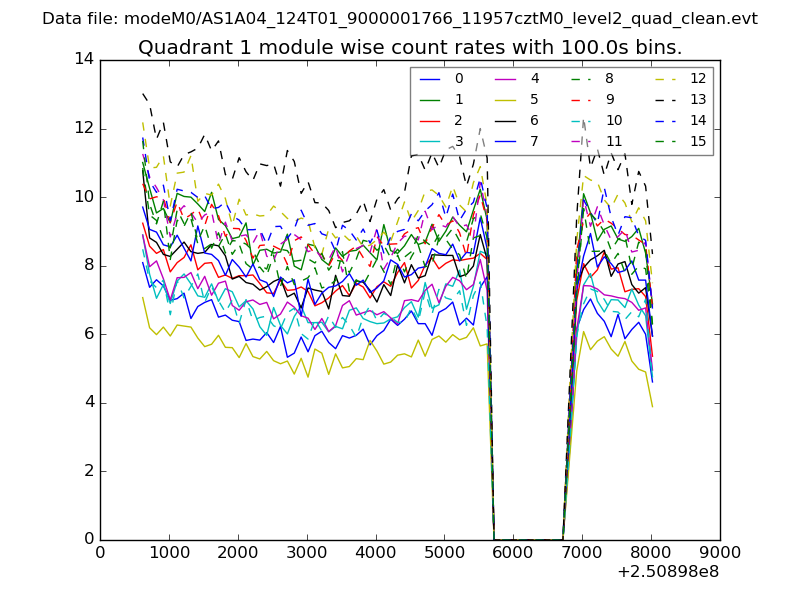

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

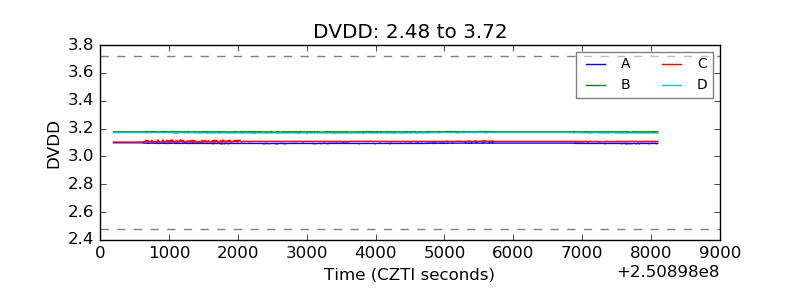

| D_VDD |  |

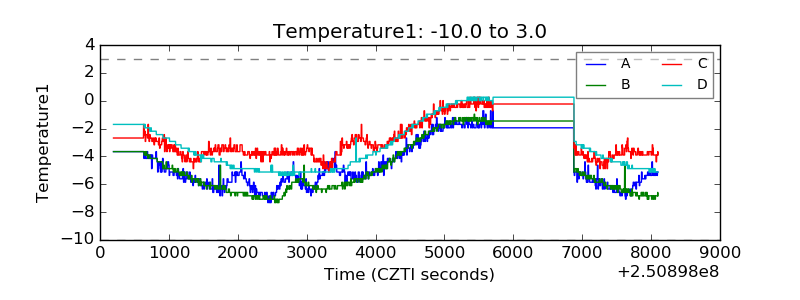

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

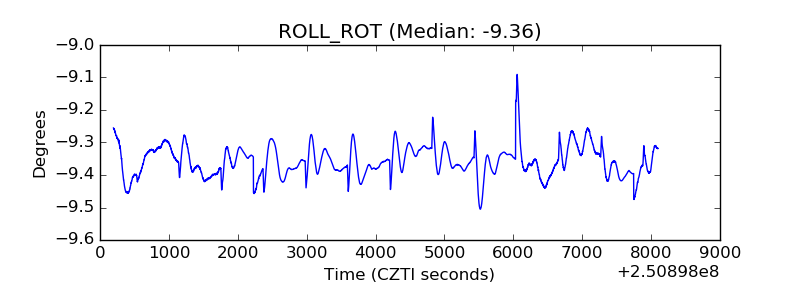

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

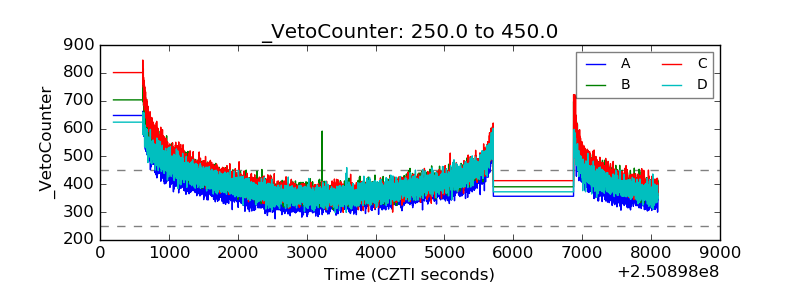

| Veto Counter |  |
