| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_124T01_9000001766_11958cztM0_level2.evt | modeM0/AS1A04_124T01_9000001766_11958cztM0_level2_quad_clean.evt |
| Size (bytes) | 516,176,640 | 134,809,920 |
| Size | 492.3 MB | 128.6 MB |
| Events in quadrant A | 3,585,789 | 908,550 |
| Events in quadrant B | 4,108,896 | 914,028 |
| Events in quadrant C | 3,175,920 | 899,971 |
| Events in quadrant D | 4,266,800 | 853,123 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15768 | 3 |
| B | 0 | 17283 | 2 |
| C | 0 | 14921 | 2 |
| D | 0 | 17980 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7282 | 78 | 1.071134% |
| B | 7282 | 287 | 3.941225% |
| C | 7282 | 27 | 0.370777% |
| D | 7282 | 96 | 1.318319% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9298 | 7285 | 4 | 4 | 0.04% | 0.05% |  |
| B | 9298 | 7285 | 142 | 142 | 1.53% | 1.95% |  |
| C | 9298 | 7285 | 1 | 1 | 0.01% | 0.01% |  |
| D | 9298 | 7284 | 36 | 36 | 0.39% | 0.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 120915 | 723.33 | 830 | 814 | 166.0 |
| A | 1 | 178 | 61040 | 362.72 | 830 | 814 | 166.0 |
| A | 1 | 161 | 53989 | 320.25 | 830 | 814 | 166.0 |
| B | 4 | 239 | 572758 | 3657.5 | 831 | 810 | 156.4 |
| B | 15 | 204 | 109178 | 692.99 | 831 | 810 | 156.4 |
| B | 10 | 244 | 103520 | 656.81 | 831 | 810 | 156.4 |
| C | 13 | 61 | 5932 | 27.38 | 813 | 816 | 186.9 |
| C | 0 | 207 | 4206 | 18.14 | 813 | 816 | 186.9 |
| C | 8 | 222 | 2292 | 7.9 | 813 | 816 | 186.9 |
| D | 1 | 52 | 639541 | 3330.8 | 798 | 773 | 191.8 |
| D | 8 | 195 | 214129 | 1112.52 | 798 | 773 | 191.8 |
| D | 13 | 104 | 89876 | 464.62 | 798 | 773 | 191.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

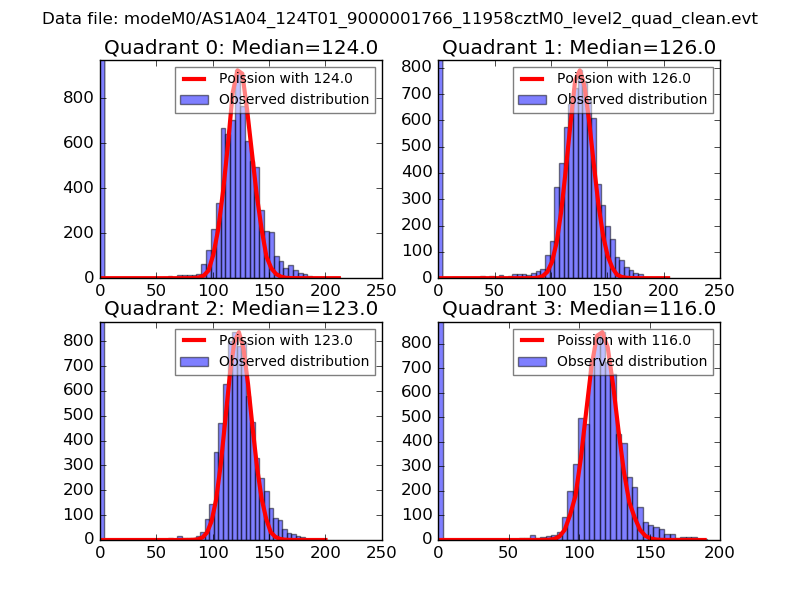

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

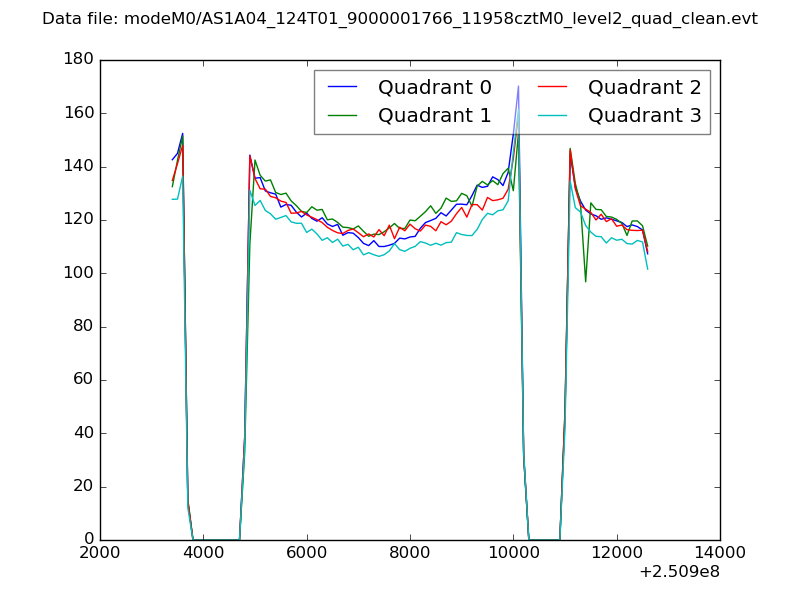

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

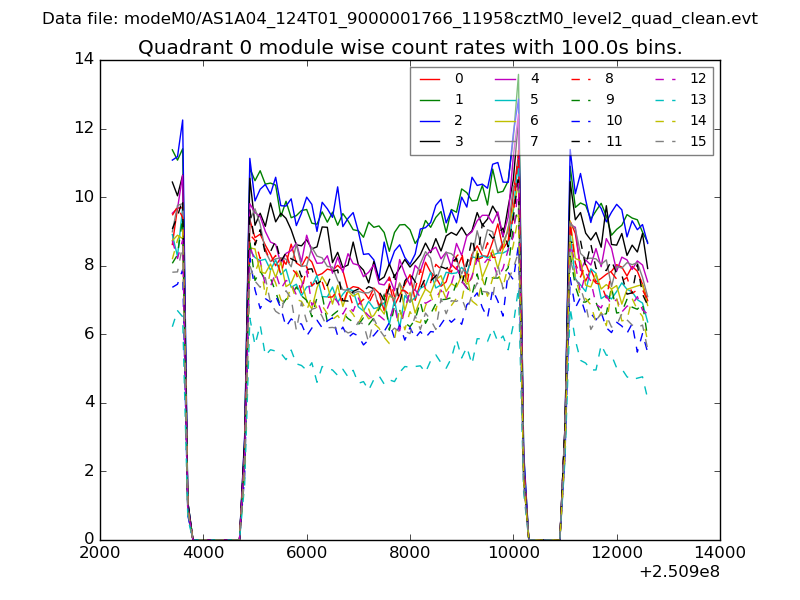

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

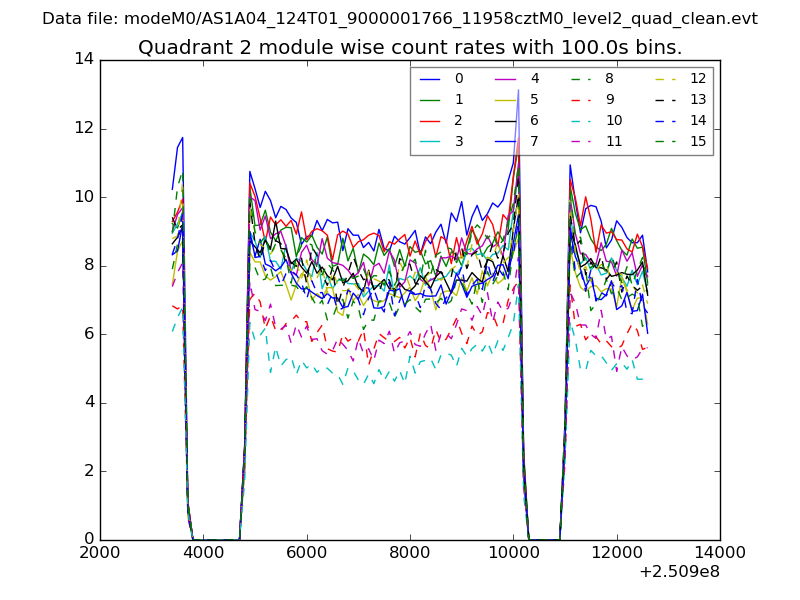

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

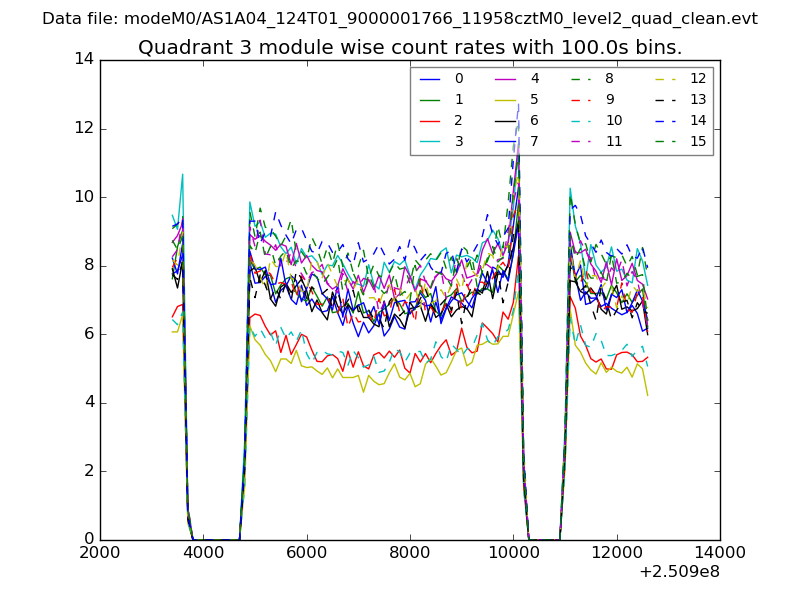

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

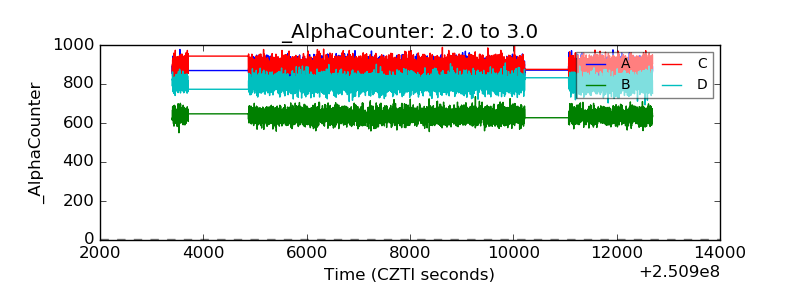

| Alpha Counter |  |

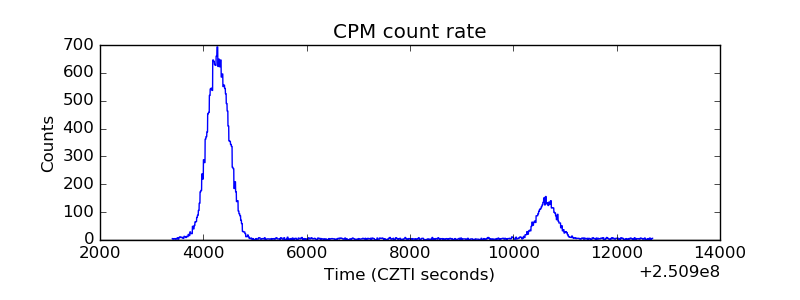

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

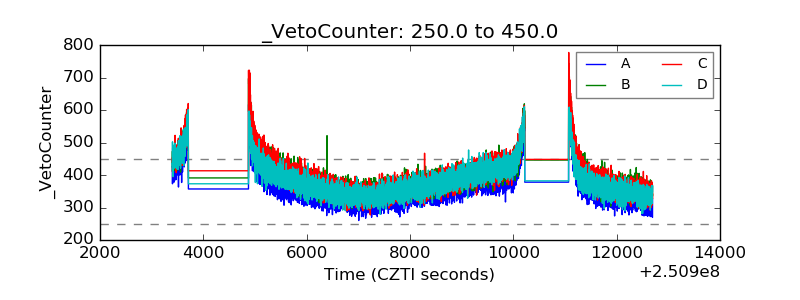

| Veto Counter |  |
