| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_076T03_9000001768_11967cztM0_level2.evt | modeM0/AS1G08_076T03_9000001768_11967cztM0_level2_quad_clean.evt |
| Size (bytes) | 546,891,840 | 102,453,120 |
| Size | 521.6 MB | 97.7 MB |
| Events in quadrant A | 3,564,746 | 676,817 |
| Events in quadrant B | 4,488,375 | 660,715 |
| Events in quadrant C | 3,038,858 | 675,484 |
| Events in quadrant D | 5,025,911 | 632,205 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14916 | 2 |
| B | 0 | 17818 | 1 |
| C | 0 | 13468 | 1 |
| D | 0 | 19219 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6555 | 127 | 1.937452% |
| B | 6555 | 360 | 5.491991% |
| C | 6555 | 53 | 0.808543% |
| D | 6555 | 370 | 5.644546% |

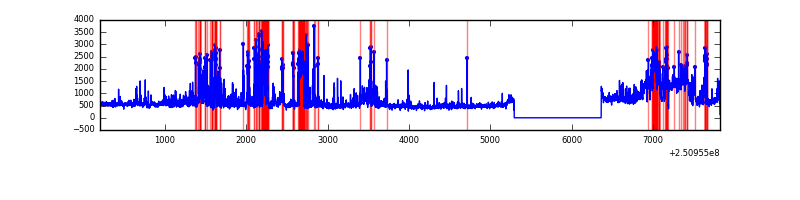

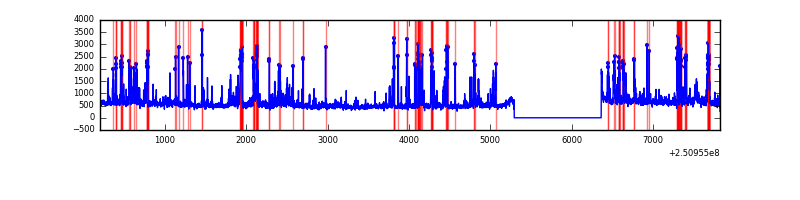

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7626 | 6556 | 7 | 7 | 0.09% | 0.11% |  |
| B | 7626 | 6556 | 181 | 181 | 2.37% | 2.76% |  |
| C | 7626 | 6556 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7626 | 6556 | 273 | 273 | 3.58% | 4.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 162582 | 991.98 | 805 | 787 | 163.1 |
| A | 1 | 178 | 88141 | 535.58 | 805 | 787 | 163.1 |
| A | 1 | 161 | 76693 | 465.39 | 805 | 787 | 163.1 |
| B | 4 | 239 | 875566 | 5848.43 | 785 | 765 | 149.6 |
| B | 3 | 64 | 172299 | 1146.78 | 785 | 765 | 149.6 |
| B | 15 | 204 | 99449 | 659.74 | 785 | 765 | 149.6 |
| C | 13 | 61 | 5797 | 27.86 | 777 | 781 | 180.0 |
| C | 0 | 207 | 3934 | 17.51 | 777 | 781 | 180.0 |
| C | 14 | 234 | 3458 | 14.87 | 777 | 781 | 180.0 |
| D | 1 | 52 | 794634 | 4304.37 | 772 | 751 | 184.4 |
| D | 10 | 15 | 513616 | 2780.71 | 772 | 751 | 184.4 |
| D | 8 | 195 | 286467 | 1549.13 | 772 | 751 | 184.4 |

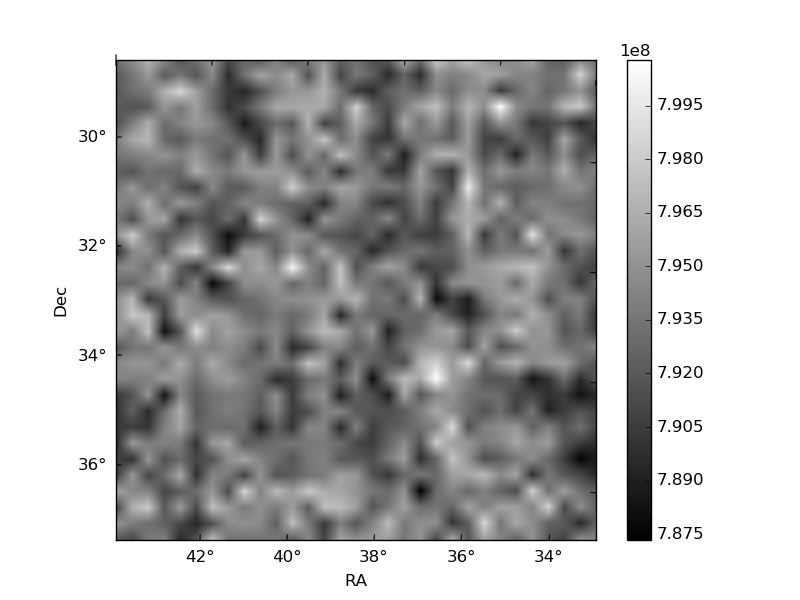

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

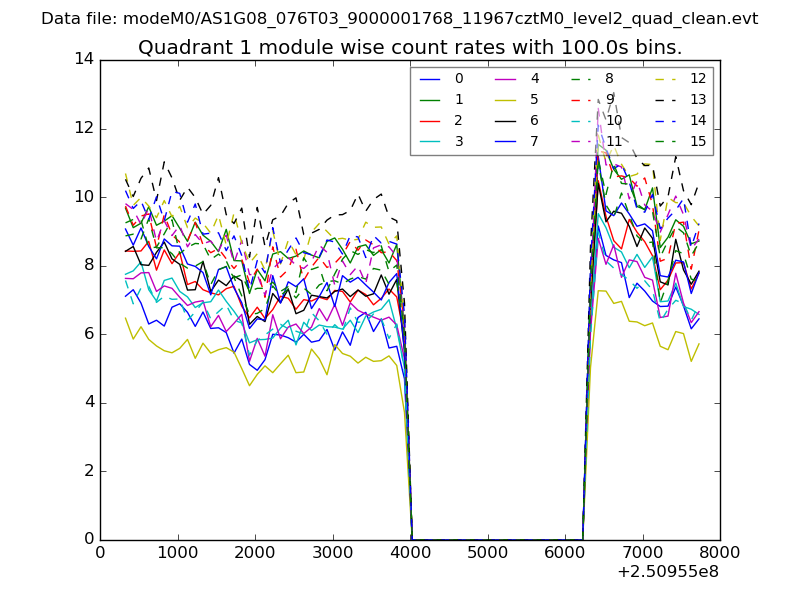

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

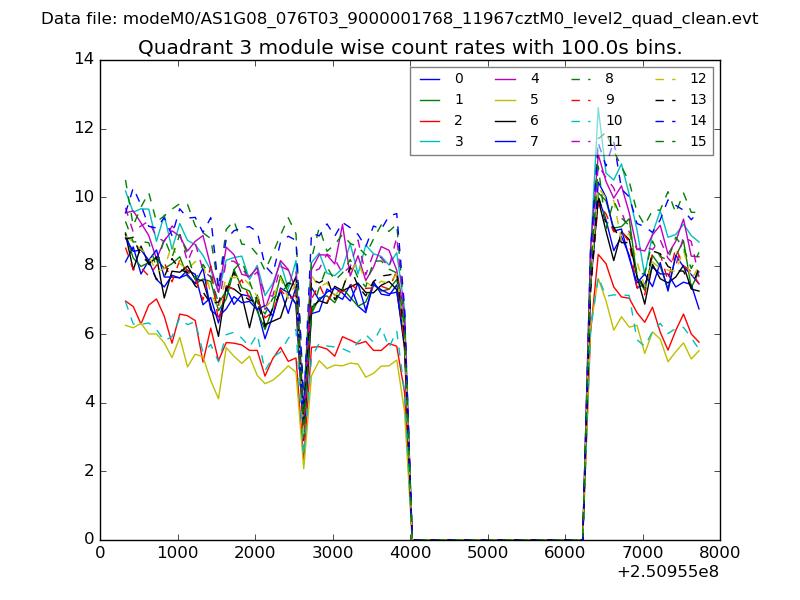

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

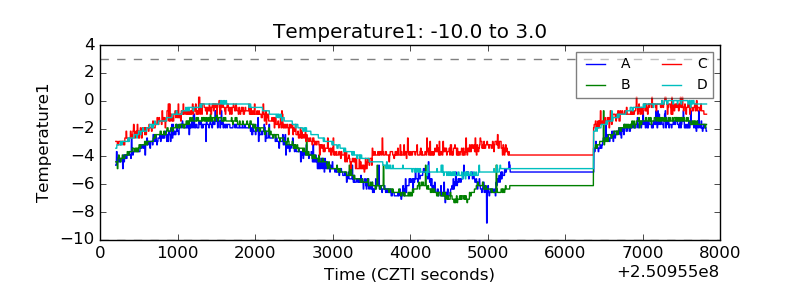

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

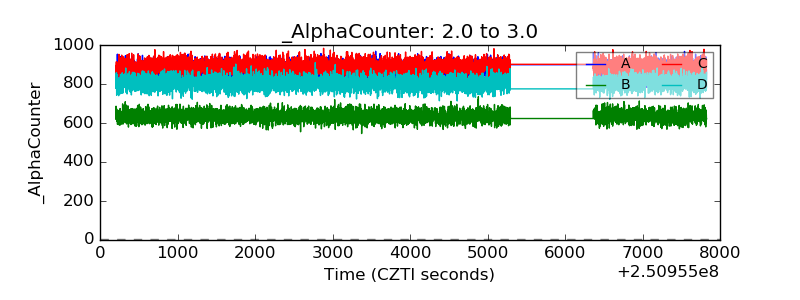

| Alpha Counter |  |
| _CPM_Rate |  |

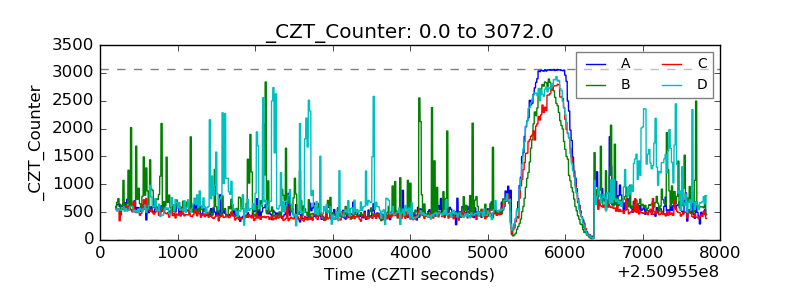

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
