| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_076T03_9000001768_11968cztM0_level2.evt | modeM0/AS1G08_076T03_9000001768_11968cztM0_level2_quad_clean.evt |
| Size (bytes) | 499,605,120 | 91,604,160 |
| Size | 476.5 MB | 87.4 MB |
| Events in quadrant A | 3,327,863 | 600,619 |
| Events in quadrant B | 4,093,206 | 590,786 |
| Events in quadrant C | 2,755,962 | 598,016 |
| Events in quadrant D | 4,549,915 | 568,743 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13821 | 2 |
| B | 0 | 16209 | 1 |
| C | 0 | 12185 | 1 |
| D | 0 | 17438 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5948 | 126 | 2.118359% |
| B | 5948 | 237 | 3.984533% |
| C | 5948 | 22 | 0.369872% |
| D | 5948 | 249 | 4.186281% |

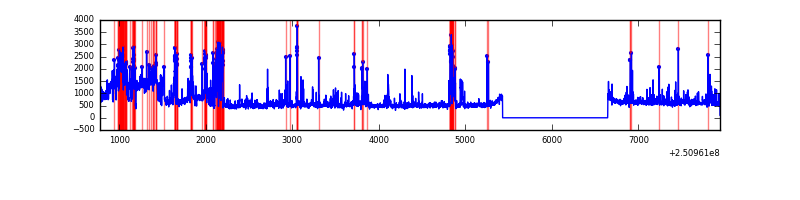

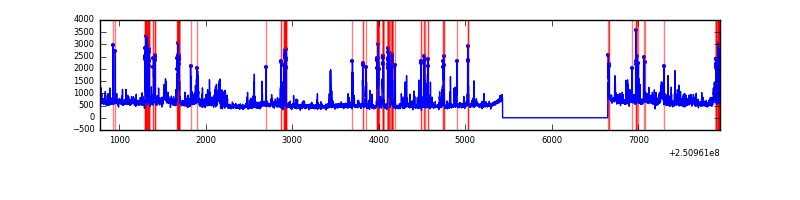

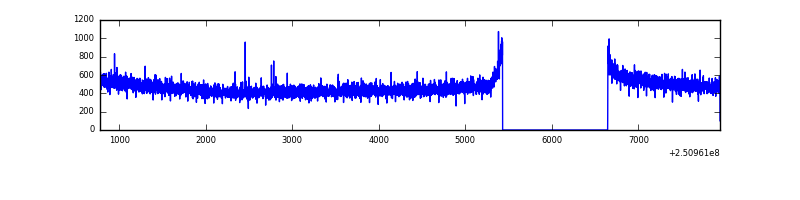

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7164 | 5949 | 57 | 57 | 0.80% | 0.96% |  |
| B | 7164 | 5949 | 156 | 156 | 2.18% | 2.62% |  |
| C | 7164 | 5950 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7164 | 5949 | 204 | 204 | 2.85% | 3.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 126857 | 849.24 | 729 | 715 | 148.5 |
| A | 11 | 29 | 104528 | 698.92 | 729 | 715 | 148.5 |
| A | 6 | 254 | 89184 | 595.61 | 729 | 715 | 148.5 |
| B | 4 | 239 | 830710 | 6166.48 | 717 | 699 | 134.6 |
| B | 15 | 204 | 166655 | 1232.95 | 717 | 699 | 134.6 |
| B | 11 | 51 | 143770 | 1062.93 | 717 | 699 | 134.6 |
| C | 13 | 61 | 5264 | 28.04 | 706 | 708 | 162.5 |
| C | 14 | 234 | 3328 | 16.13 | 706 | 708 | 162.5 |
| C | 3 | 202 | 1783 | 6.62 | 706 | 708 | 162.5 |
| D | 1 | 52 | 582602 | 3514.13 | 704 | 687 | 165.6 |
| D | 10 | 15 | 529679 | 3194.54 | 704 | 687 | 165.6 |
| D | 8 | 195 | 351281 | 2117.21 | 704 | 687 | 165.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

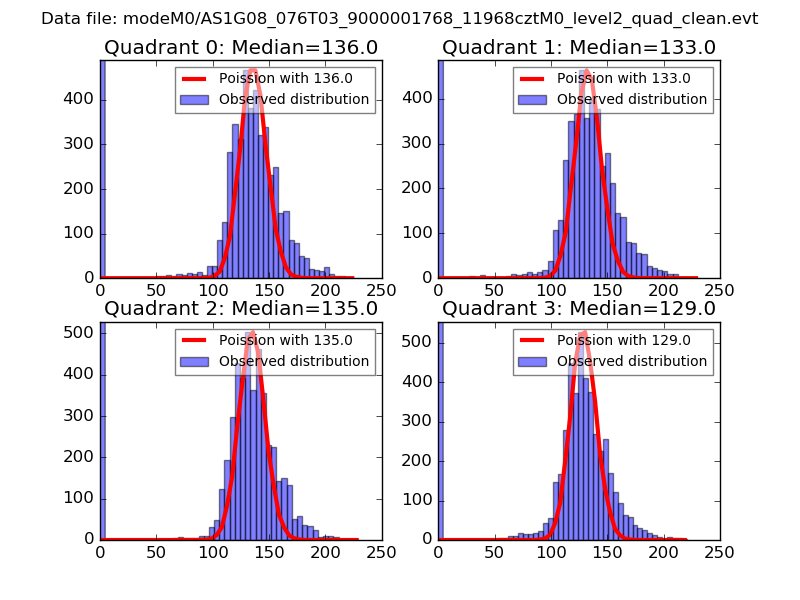

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

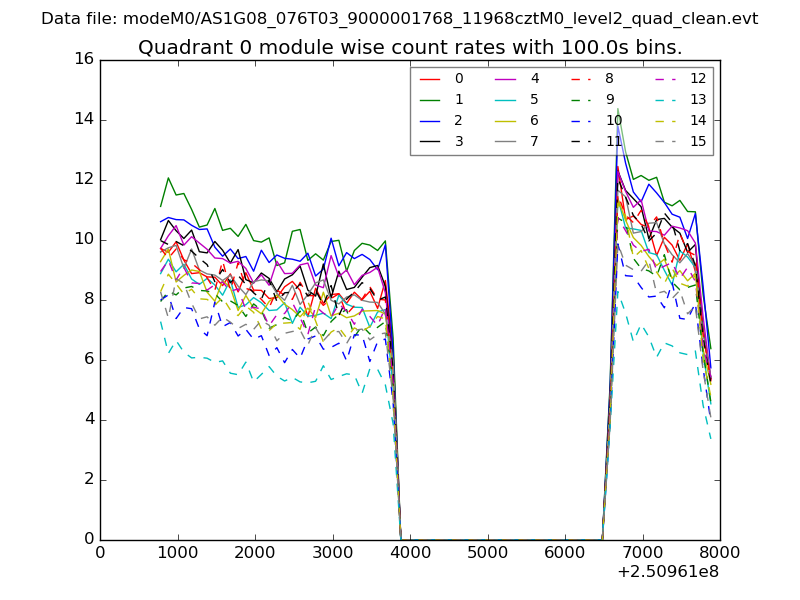

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

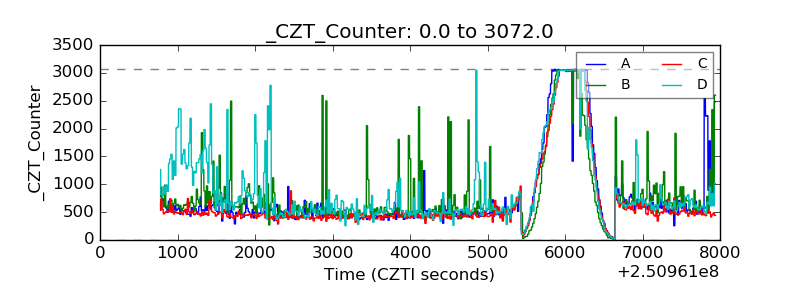

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

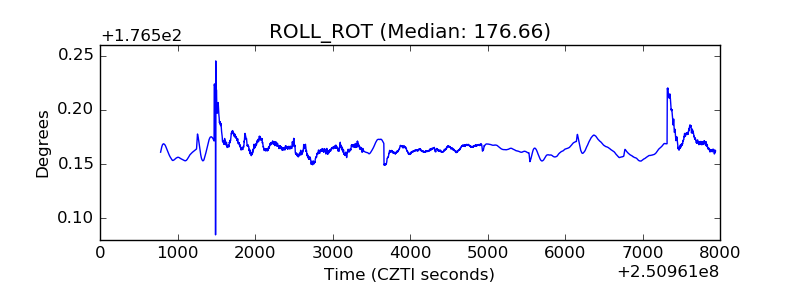

| _ROLL_ROT |  |

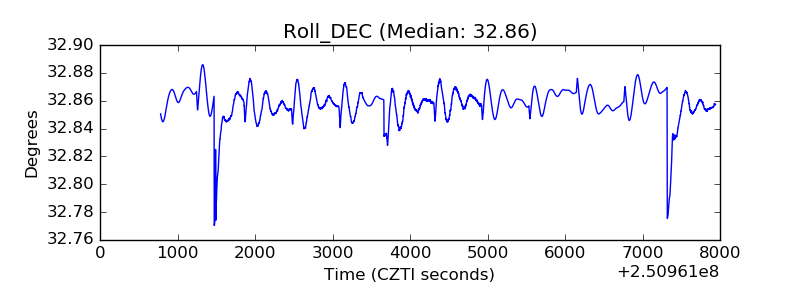

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
