| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_082T01_9000001772_11972cztM0_level2.evt | modeM0/AS1A04_082T01_9000001772_11972cztM0_level2_quad_clean.evt |
| Size (bytes) | 110,278,080 | 29,240,640 |
| Size | 105.2 MB | 27.9 MB |
| Events in quadrant A | 825,780 | 194,338 |
| Events in quadrant B | 872,348 | 197,194 |
| Events in quadrant C | 676,734 | 193,059 |
| Events in quadrant D | 854,216 | 183,405 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32 | 0 |
| B | 0 | 32 | 0 |
| C | 0 | 32 | 0 |
| D | 0 | 32 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3540 | 2 |
| B | 0 | 3657 | 1 |
| C | 0 | 3204 | 1 |
| D | 0 | 3644 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1585 | 23 | 1.451104% |
| B | 1585 | 40 | 2.523659% |
| C | 1585 | 2 | 0.126183% |
| D | 1585 | 22 | 1.388013% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1586 | 1586 | 12 | 12 | 0.76% | 0.76% |  |
| B | 1586 | 1586 | 19 | 19 | 1.20% | 1.20% |  |
| C | 1586 | 1586 | 0 | 0 | 0.00% | 0.00% |  |
| D | 1586 | 1586 | 17 | 17 | 1.07% | 1.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 29 | 65325 | 1733.67 | 176 | 172 | 37.6 |
| A | 1 | 162 | 38232 | 1012.75 | 176 | 172 | 37.6 |
| A | 1 | 178 | 16168 | 425.64 | 176 | 172 | 37.6 |
| B | 4 | 239 | 143839 | 3970.38 | 179 | 175 | 36.2 |
| B | 15 | 204 | 12808 | 349.13 | 179 | 175 | 36.2 |
| B | 11 | 51 | 8357 | 226.12 | 179 | 175 | 36.2 |
| C | 13 | 61 | 1229 | 25.17 | 173 | 174 | 41.9 |
| C | 14 | 234 | 823 | 15.48 | 173 | 174 | 41.9 |
| C | 7 | 247 | 411 | 5.65 | 173 | 174 | 41.9 |
| D | 4 | 95 | 52971 | 1186.58 | 166 | 162 | 44.5 |
| D | 8 | 195 | 41133 | 920.59 | 166 | 162 | 44.5 |
| D | 13 | 104 | 29385 | 656.62 | 166 | 162 | 44.5 |

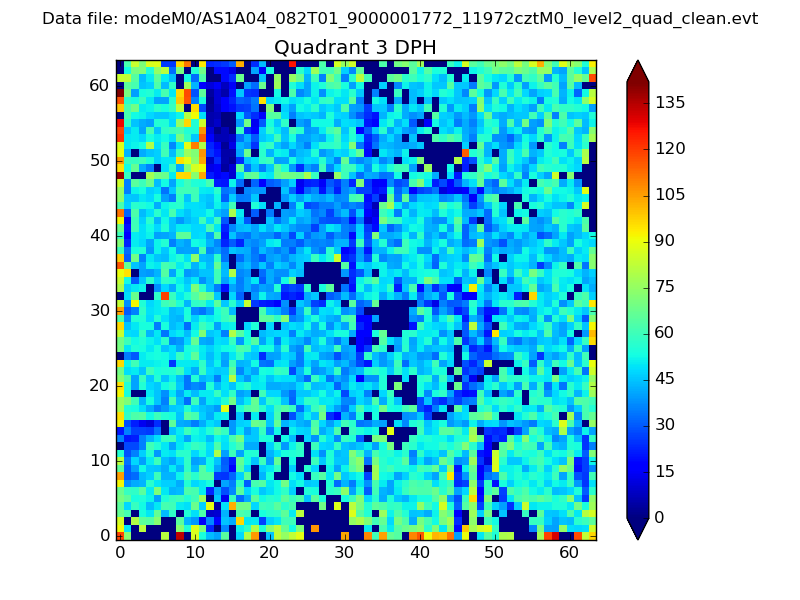

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

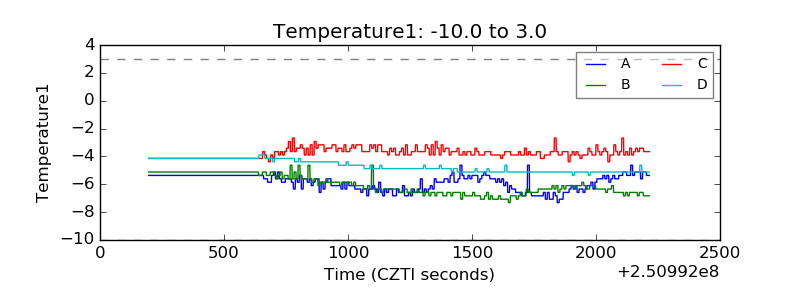

| Temperature 1 |  |
| Veto HV Monitor |  |

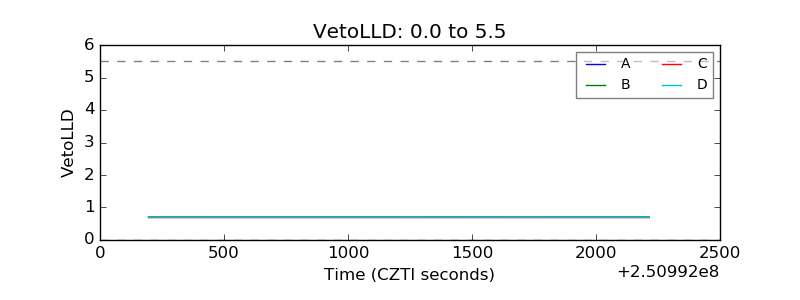

| Veto LLD |  |

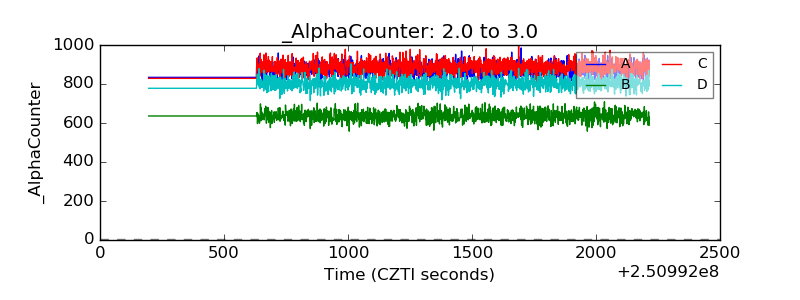

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

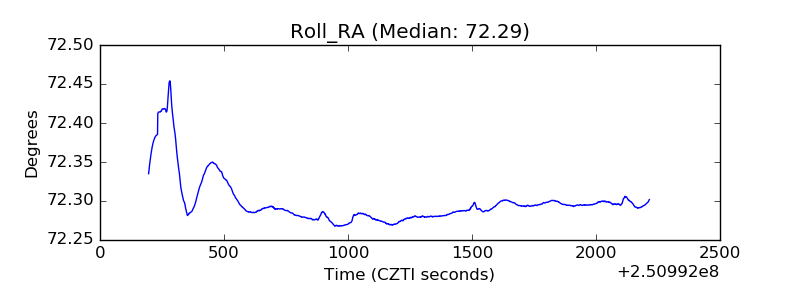

| _Roll_RA |  |
| Veto Counter |  |
