| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_082T01_9000001772_11984cztM0_level2.evt | modeM0/AS1A04_082T01_9000001772_11984cztM0_level2_quad_clean.evt |
| Size (bytes) | 469,874,880 | 99,630,720 |
| Size | 448.1 MB | 95.0 MB |
| Events in quadrant A | 3,343,156 | 661,621 |
| Events in quadrant B | 4,240,318 | 663,475 |
| Events in quadrant C | 2,881,096 | 647,612 |
| Events in quadrant D | 3,345,462 | 612,550 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14106 | 3 |
| B | 0 | 16635 | 2 |
| C | 0 | 12775 | 2 |
| D | 0 | 13940 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6195 | 77 | 1.242938% |
| B | 6195 | 341 | 5.504439% |
| C | 6195 | 10 | 0.161421% |
| D | 6195 | 41 | 0.661824% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

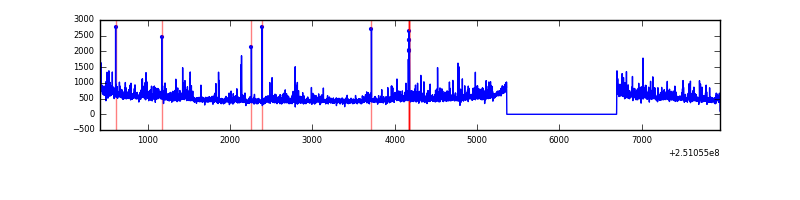

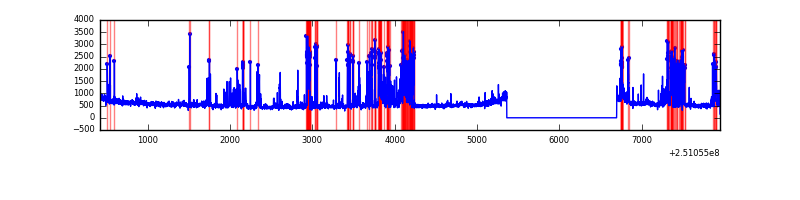

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7531 | 6196 | 10 | 10 | 0.13% | 0.16% |  |
| B | 7531 | 6196 | 205 | 205 | 2.72% | 3.31% |  |
| C | 7531 | 6197 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7531 | 6197 | 21 | 21 | 0.28% | 0.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 137036 | 888.51 | 764 | 751 | 153.4 |
| A | 1 | 178 | 73507 | 474.33 | 764 | 751 | 153.4 |
| A | 1 | 161 | 64028 | 412.54 | 764 | 751 | 153.4 |
| B | 3 | 64 | 597130 | 4162.8 | 761 | 744 | 143.3 |
| B | 4 | 239 | 514687 | 3587.34 | 761 | 744 | 143.3 |
| B | 15 | 204 | 112053 | 776.94 | 761 | 744 | 143.3 |
| C | 1 | 16 | 11653 | 64.18 | 735 | 738 | 170.1 |
| C | 13 | 61 | 5453 | 27.72 | 735 | 738 | 170.1 |
| C | 8 | 208 | 4683 | 23.2 | 735 | 738 | 170.1 |
| D | 8 | 195 | 299404 | 1738.49 | 721 | 701 | 171.8 |
| D | 1 | 52 | 109588 | 633.74 | 721 | 701 | 171.8 |
| D | 13 | 104 | 51271 | 294.32 | 721 | 701 | 171.8 |

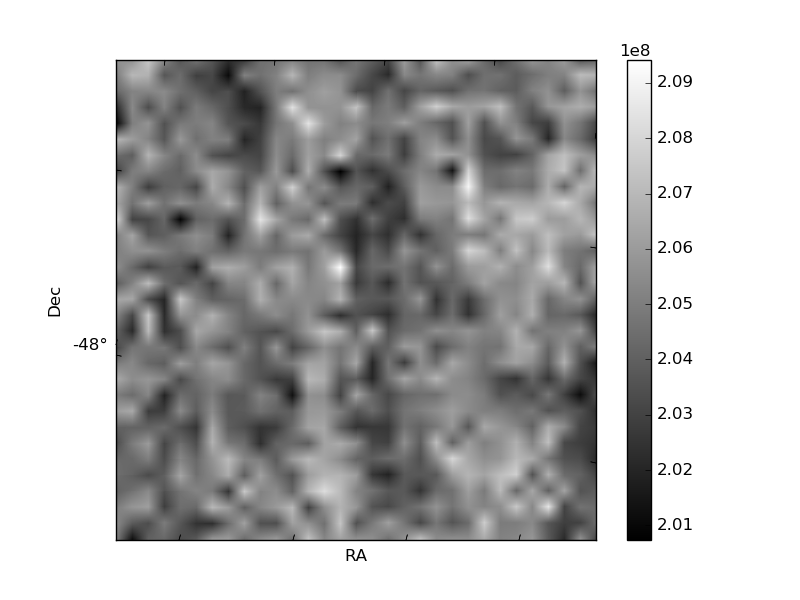

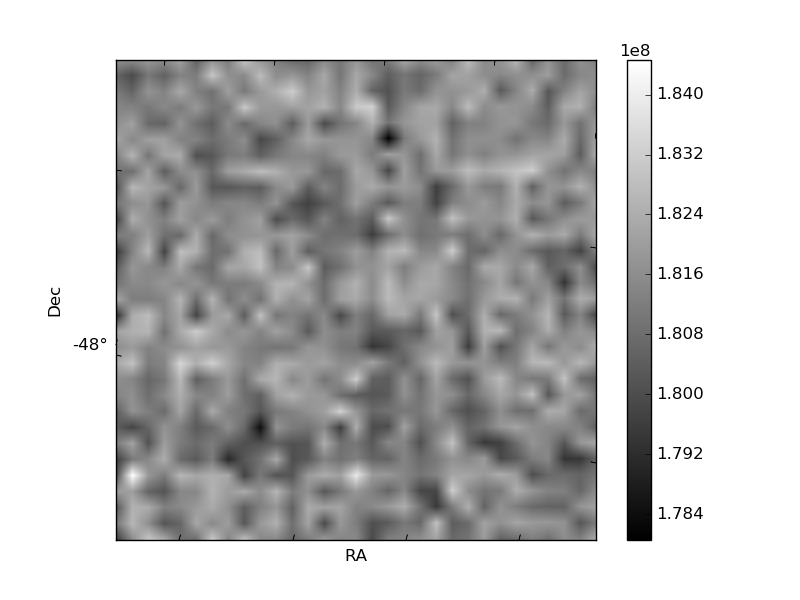

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

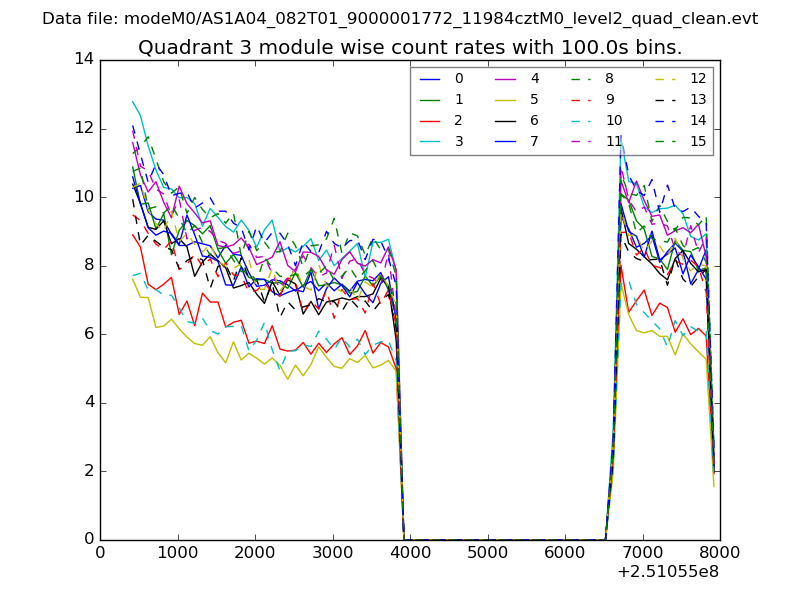

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

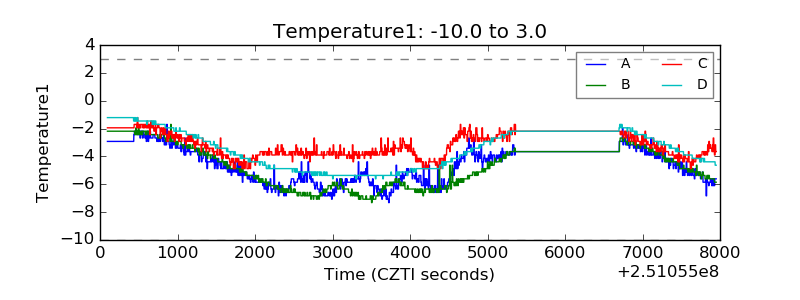

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

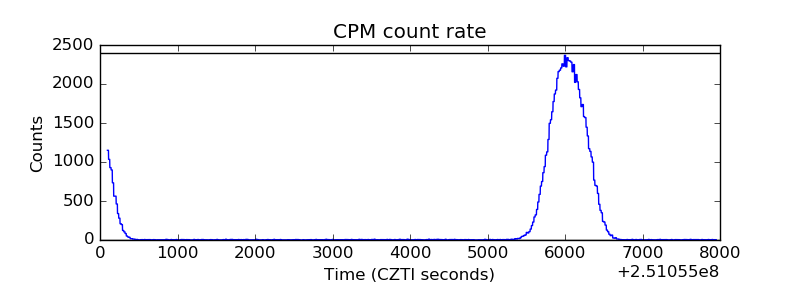

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

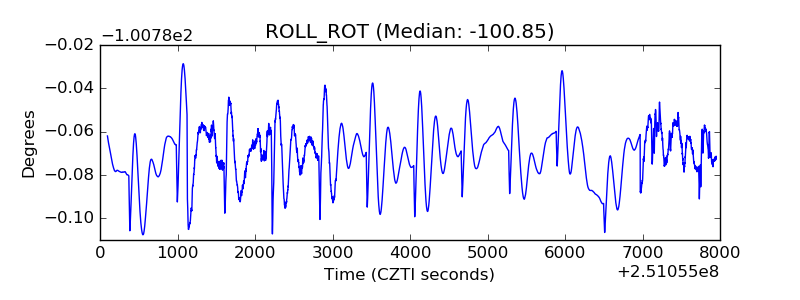

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
