| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_082T01_9000001772_11994cztM0_level2.evt | modeM0/AS1A04_082T01_9000001772_11994cztM0_level2_quad_clean.evt |
| Size (bytes) | 546,212,160 | 86,402,880 |
| Size | 520.9 MB | 82.4 MB |
| Events in quadrant A | 3,456,989 | 550,074 |
| Events in quadrant B | 4,970,553 | 533,564 |
| Events in quadrant C | 3,050,088 | 547,390 |
| Events in quadrant D | 4,609,980 | 518,074 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14656 | 3 |
| B | 0 | 19096 | 2 |
| C | 0 | 13732 | 2 |
| D | 0 | 18238 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6702 | 102 | 1.521934% |
| B | 6702 | 597 | 8.907789% |
| C | 6702 | 53 | 0.790809% |
| D | 6702 | 226 | 3.372128% |

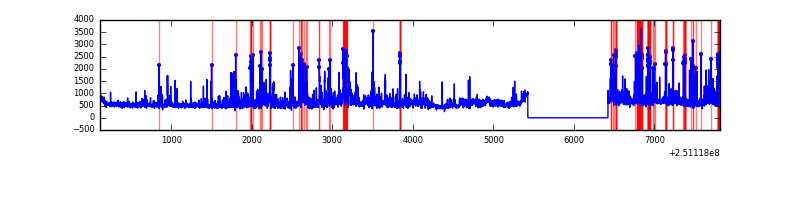

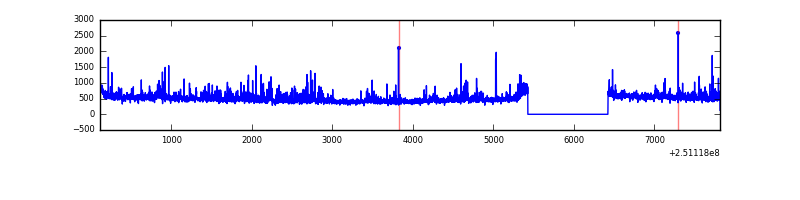

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7698 | 6703 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7698 | 6703 | 420 | 420 | 5.46% | 6.27% |  |
| C | 7698 | 6703 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7697 | 6702 | 157 | 157 | 2.04% | 2.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 137513 | 838.41 | 807 | 790 | 163.1 |
| A | 1 | 178 | 71994 | 436.63 | 807 | 790 | 163.1 |
| A | 1 | 161 | 63709 | 385.83 | 807 | 790 | 163.1 |
| B | 4 | 239 | 1114643 | 7362.15 | 788 | 768 | 151.3 |
| B | 3 | 64 | 493885 | 3259.25 | 788 | 768 | 151.3 |
| B | 11 | 51 | 128355 | 843.29 | 788 | 768 | 151.3 |
| C | 14 | 234 | 5942 | 28.69 | 780 | 783 | 179.8 |
| C | 13 | 61 | 5776 | 27.77 | 780 | 783 | 179.8 |
| C | 3 | 202 | 1937 | 6.42 | 780 | 783 | 179.8 |
| D | 1 | 52 | 822263 | 4473.31 | 771 | 749 | 183.6 |
| D | 13 | 104 | 257230 | 1396.59 | 771 | 749 | 183.6 |
| D | 8 | 195 | 224998 | 1221.08 | 771 | 749 | 183.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

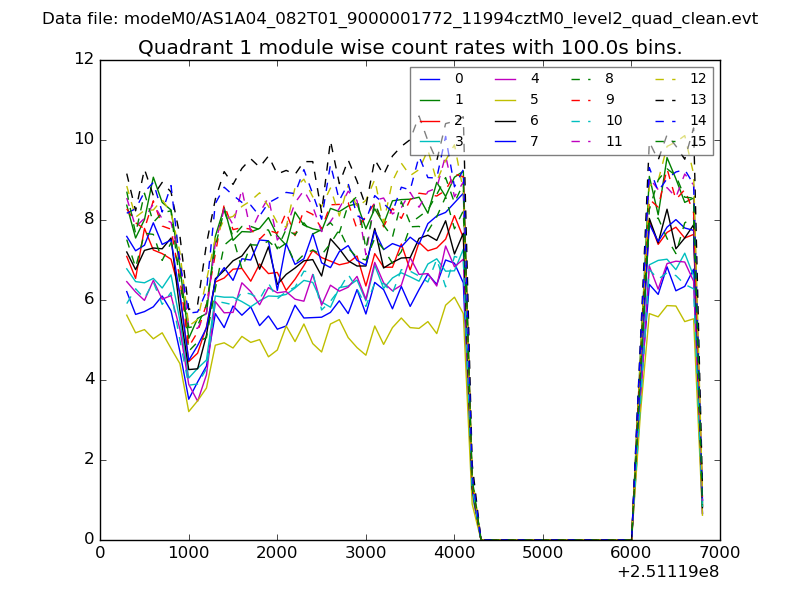

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

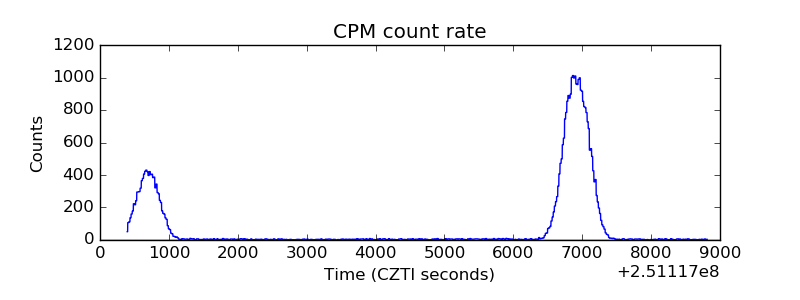

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

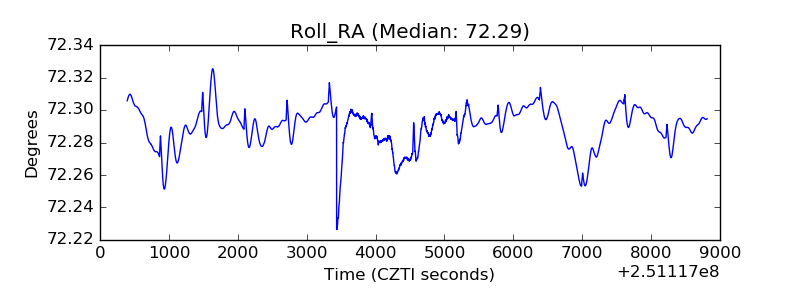

| _Roll_RA |  |

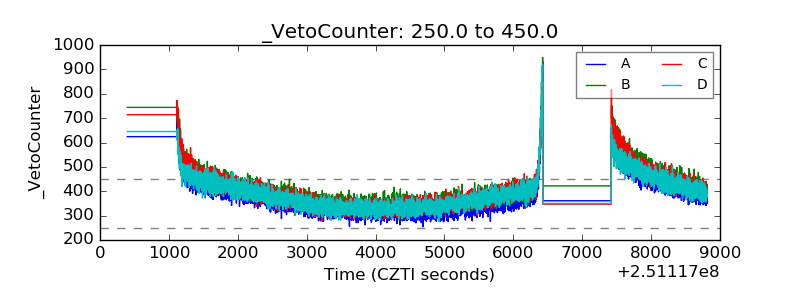

| Veto Counter |  |
