| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_024T03_9000001774_12001cztM0_level2.evt | modeM0/AS1G08_024T03_9000001774_12001cztM0_level2_quad_clean.evt |
| Size (bytes) | 468,210,240 | 94,492,800 |
| Size | 446.5 MB | 90.1 MB |
| Events in quadrant A | 3,109,946 | 614,602 |
| Events in quadrant B | 4,335,337 | 604,633 |
| Events in quadrant C | 2,892,412 | 607,700 |
| Events in quadrant D | 3,402,530 | 583,372 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13756 | 3 |
| B | 0 | 17211 | 2 |
| C | 0 | 13227 | 2 |
| D | 0 | 14941 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6473 | 36 | 0.556156% |
| B | 6473 | 402 | 6.210412% |
| C | 6473 | 21 | 0.324425% |
| D | 6473 | 114 | 1.761162% |

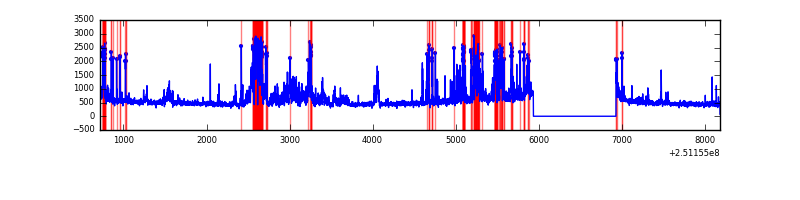

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

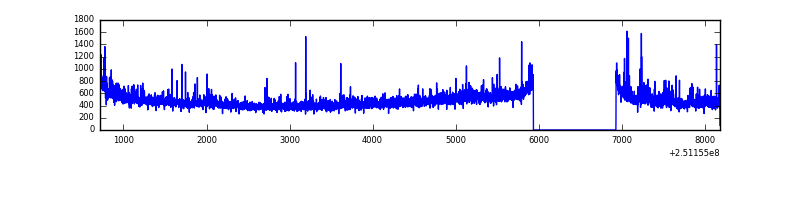

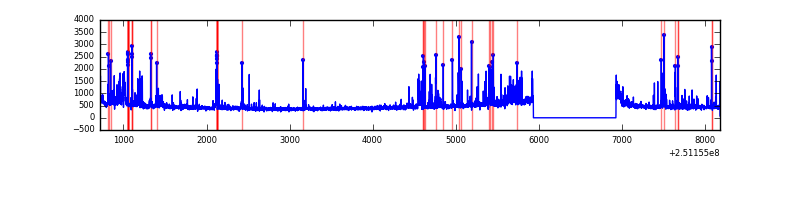

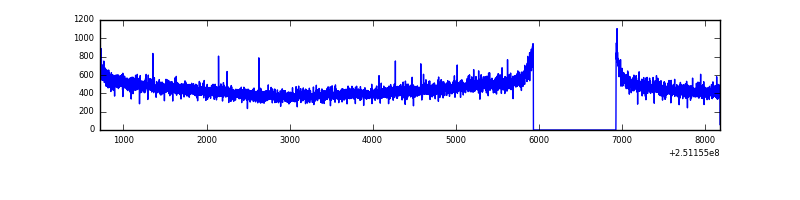

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7469 | 6474 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7469 | 6475 | 228 | 228 | 3.05% | 3.52% |  |
| C | 7469 | 6475 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7469 | 6475 | 48 | 48 | 0.64% | 0.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 83754 | 535.04 | 756 | 743 | 155.1 |
| A | 1 | 178 | 42355 | 268.21 | 756 | 743 | 155.1 |
| A | 1 | 161 | 37012 | 233.77 | 756 | 743 | 155.1 |
| B | 4 | 239 | 597818 | 4229.32 | 744 | 725 | 141.2 |
| B | 10 | 244 | 294627 | 2081.76 | 744 | 725 | 141.2 |
| B | 3 | 64 | 281525 | 1988.96 | 744 | 725 | 141.2 |
| C | 13 | 61 | 5470 | 27.76 | 740 | 743 | 170.3 |
| C | 12 | 4 | 2817 | 12.18 | 740 | 743 | 170.3 |
| C | 0 | 207 | 2246 | 8.83 | 740 | 743 | 170.3 |
| D | 1 | 52 | 176347 | 1011.49 | 725 | 704 | 173.6 |
| D | 13 | 104 | 176133 | 1010.26 | 725 | 704 | 173.6 |
| D | 10 | 50 | 58547 | 333.1 | 725 | 704 | 173.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

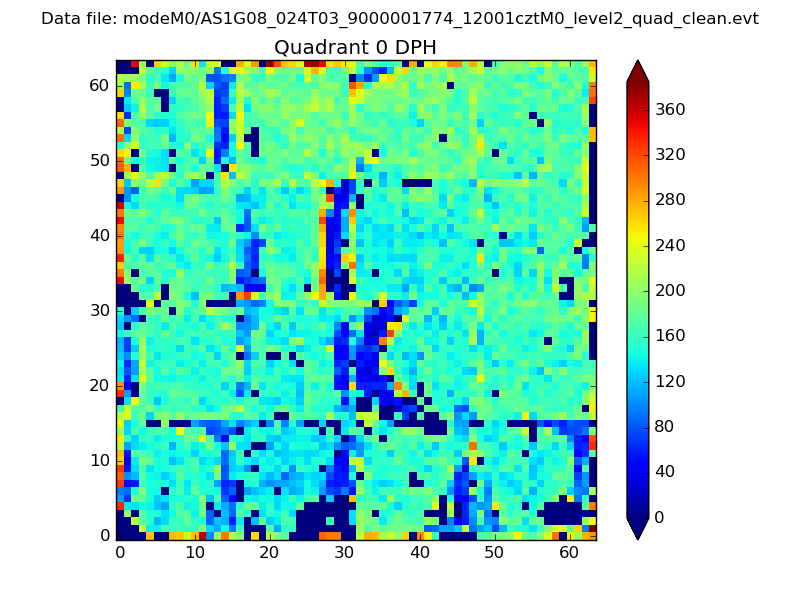

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|

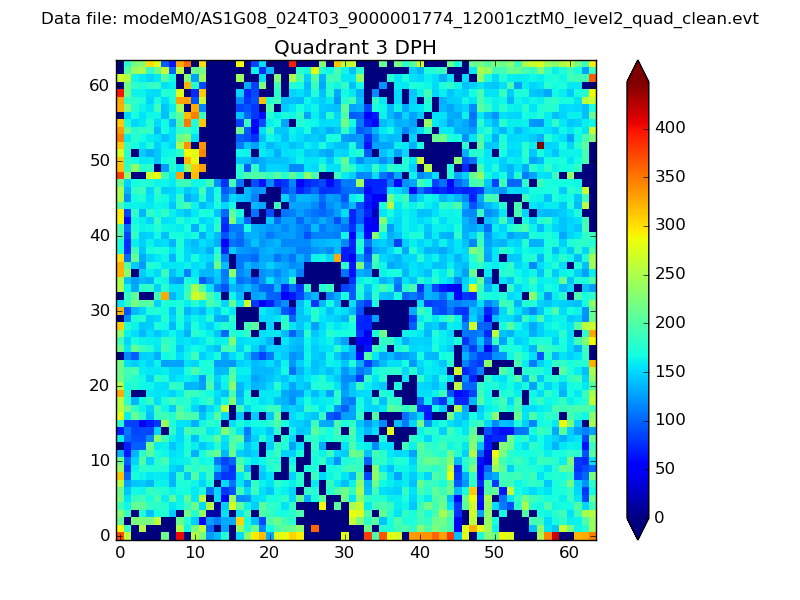

| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

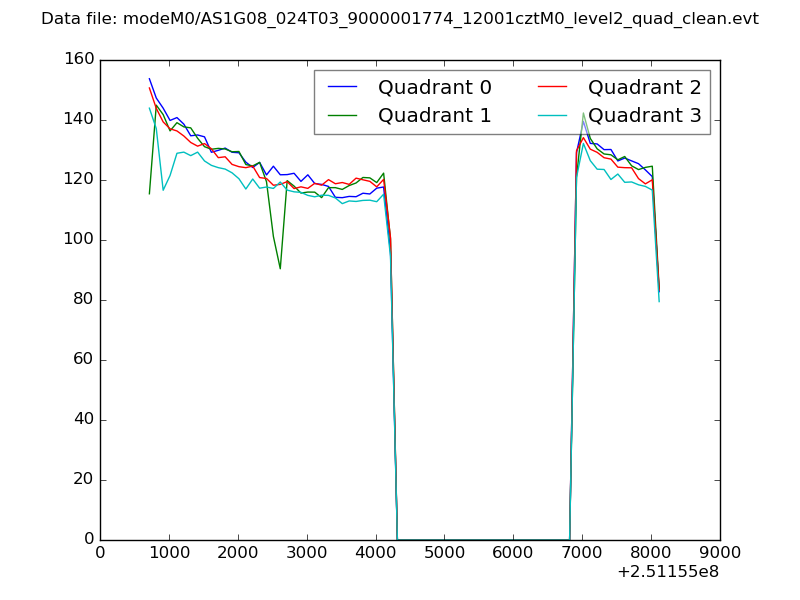

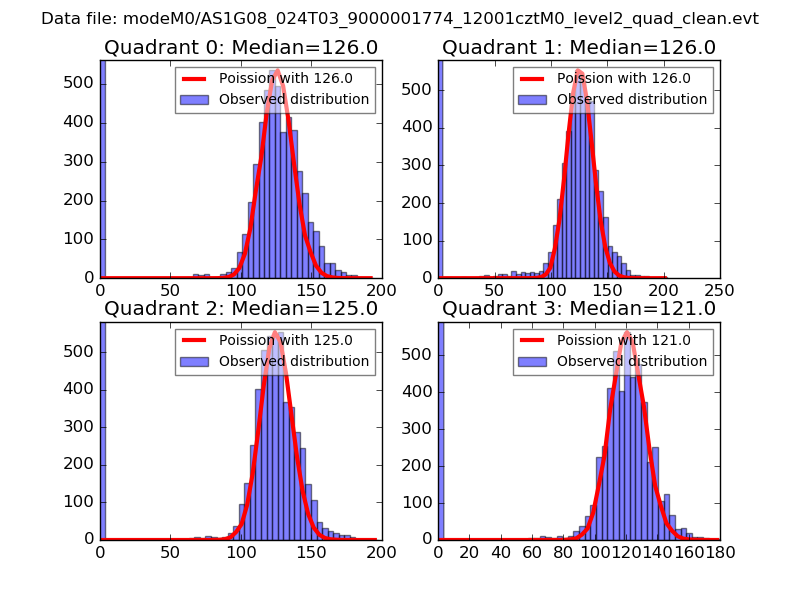

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

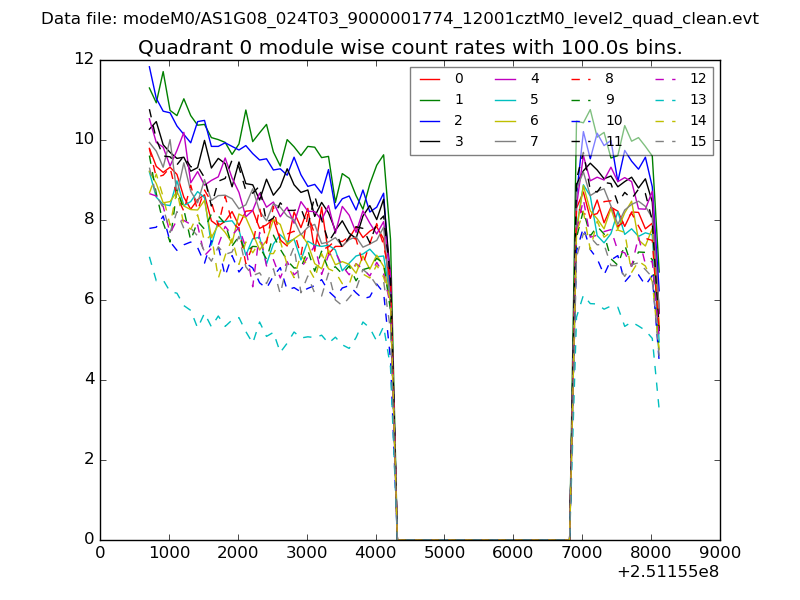

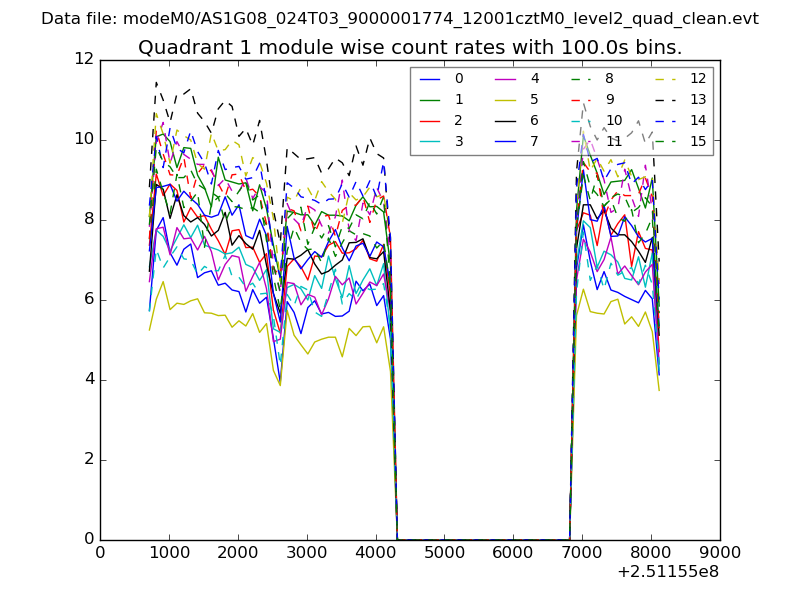

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

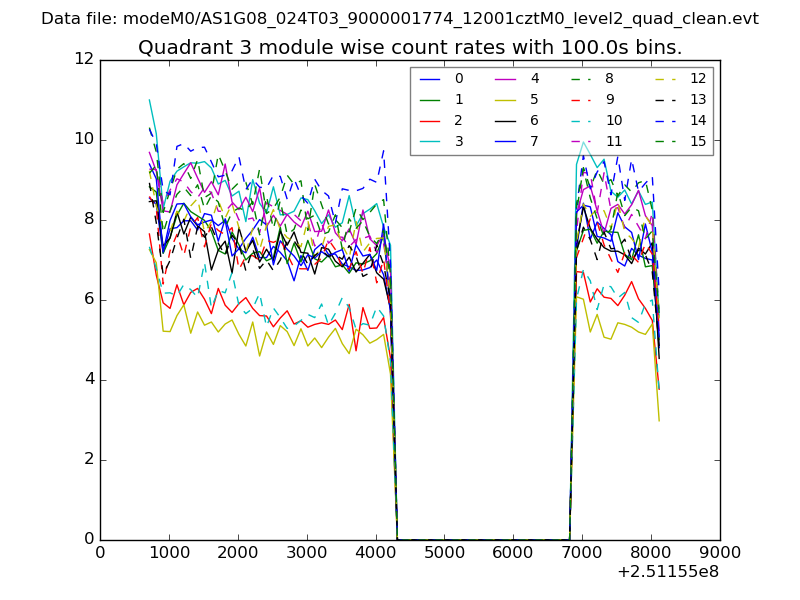

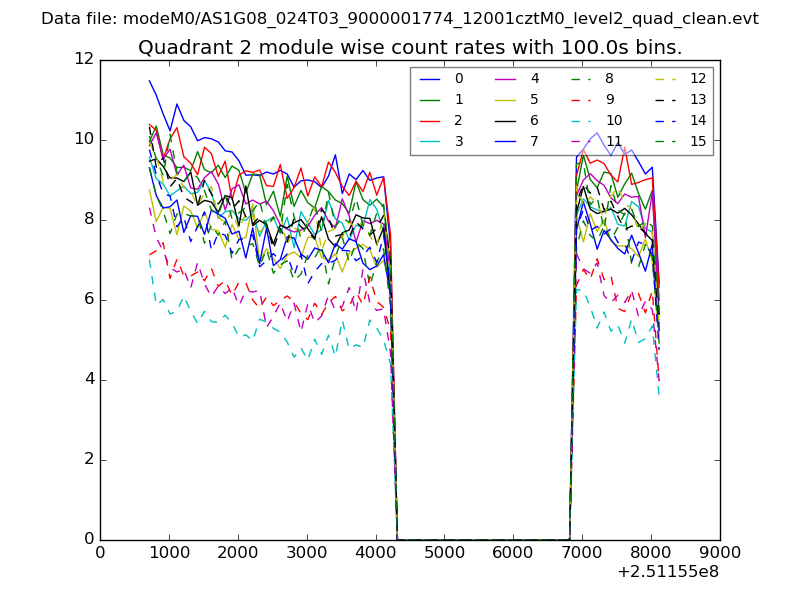

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

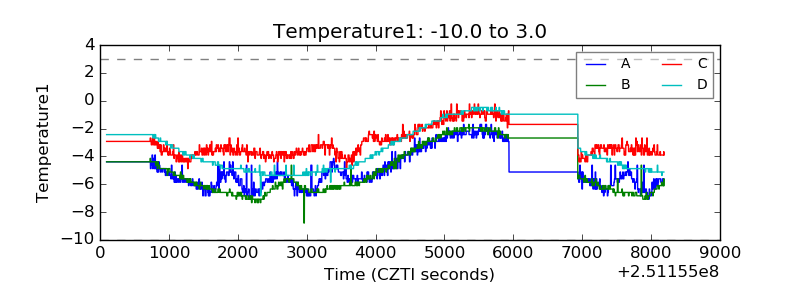

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

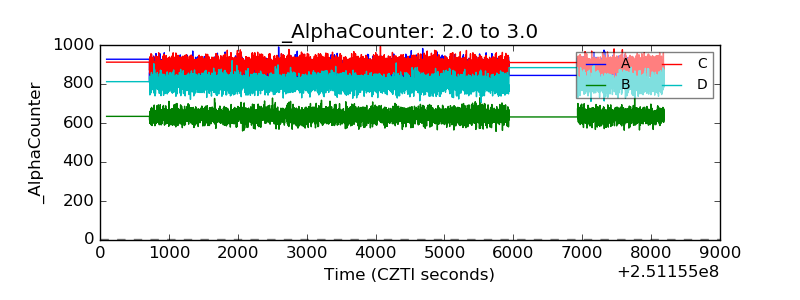

| Alpha Counter |  |

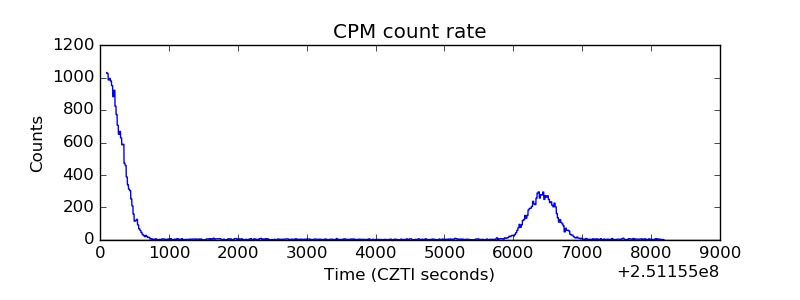

| _CPM_Rate |  |

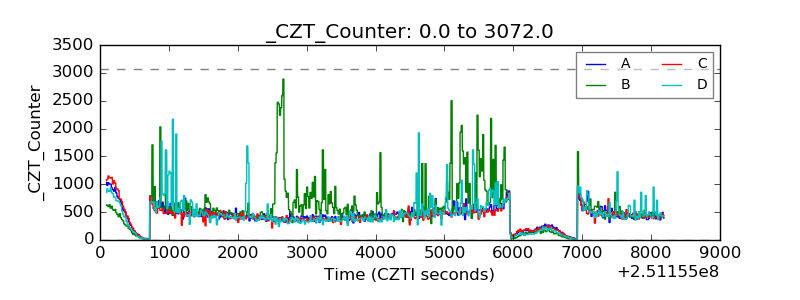

| CZT Counter |  |

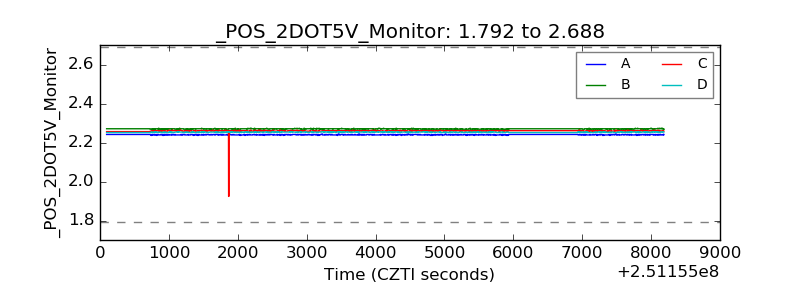

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

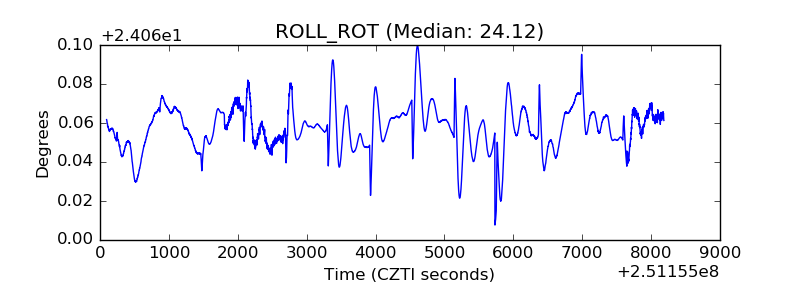

| _ROLL_ROT |  |

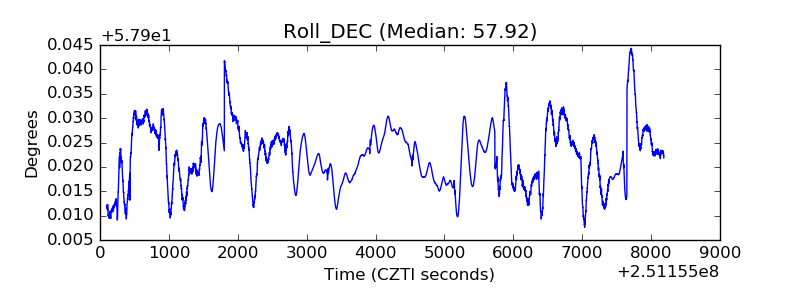

| _Roll_DEC |  |
| _Roll_RA |  |

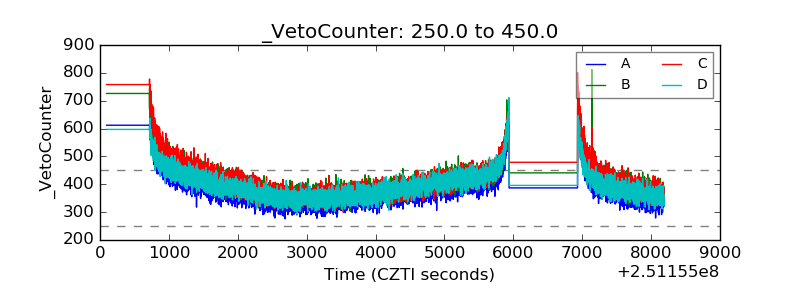

| Veto Counter |  |
