| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_024T03_9000001774_12004cztM0_level2.evt | modeM0/AS1G08_024T03_9000001774_12004cztM0_level2_quad_clean.evt |
| Size (bytes) | 618,684,480 | 121,749,120 |
| Size | 590.0 MB | 116.1 MB |
| Events in quadrant A | 4,184,105 | 801,941 |
| Events in quadrant B | 5,596,456 | 749,569 |
| Events in quadrant C | 3,738,336 | 793,398 |
| Events in quadrant D | 4,651,011 | 761,549 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 170 | 0 |
| B | 0 | 170 | 0 |
| C | 0 | 170 | 0 |
| D | 0 | 170 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18096 | 3 |
| B | 0 | 22314 | 2 |
| C | 0 | 17250 | 2 |
| D | 0 | 19724 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8359 | 185 | 2.213183% |
| B | 8359 | 833 | 9.965307% |
| C | 8359 | 55 | 0.657973% |
| D | 8359 | 186 | 2.225147% |

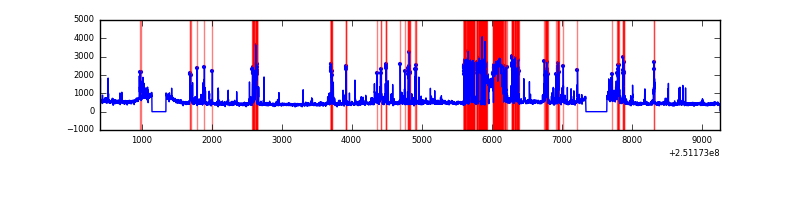

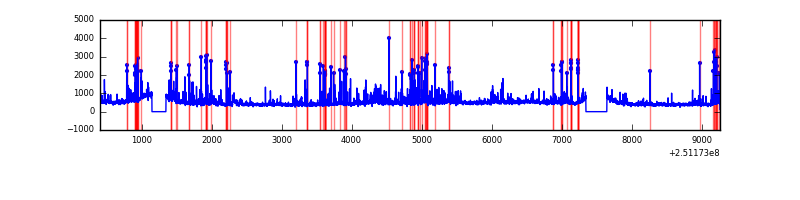

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8860 | 8361 | 1 | 1 | 0.01% | 0.01% |  |
| B | 8860 | 8361 | 439 | 439 | 4.95% | 5.25% |  |
| C | 8860 | 8362 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8860 | 8362 | 112 | 112 | 1.26% | 1.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 156989 | 771.32 | 985 | 962 | 202.3 |
| A | 1 | 178 | 78574 | 383.67 | 985 | 962 | 202.3 |
| A | 1 | 161 | 70233 | 342.44 | 985 | 962 | 202.3 |
| B | 3 | 64 | 918711 | 5055.02 | 940 | 917 | 181.6 |
| B | 4 | 239 | 795376 | 4375.72 | 940 | 917 | 181.6 |
| B | 11 | 51 | 54888 | 297.26 | 940 | 917 | 181.6 |
| C | 13 | 61 | 6938 | 26.77 | 957 | 960 | 223.3 |
| C | 12 | 4 | 5115 | 18.6 | 957 | 960 | 223.3 |
| C | 14 | 234 | 2446 | 6.65 | 957 | 960 | 223.3 |
| D | 1 | 52 | 747815 | 3260.12 | 943 | 915 | 229.1 |
| D | 13 | 104 | 105515 | 456.57 | 943 | 915 | 229.1 |
| D | 8 | 195 | 87868 | 379.54 | 943 | 915 | 229.1 |

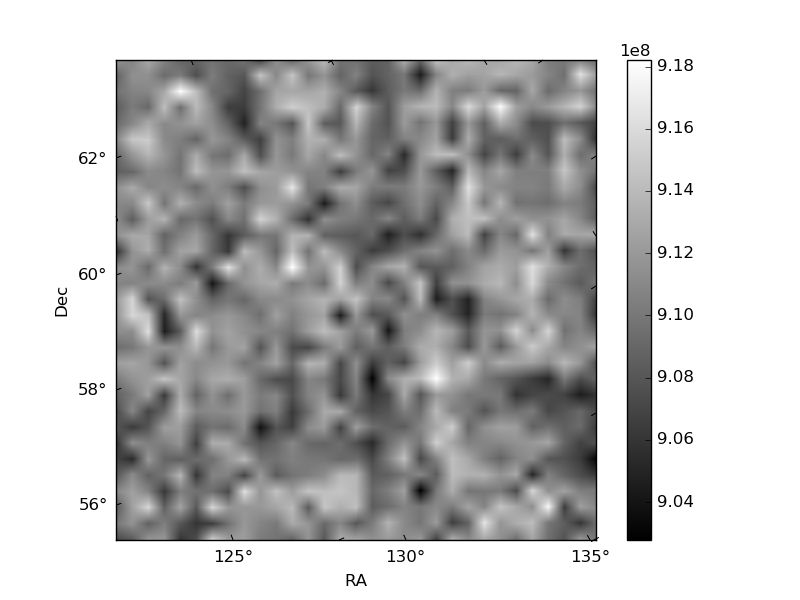

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

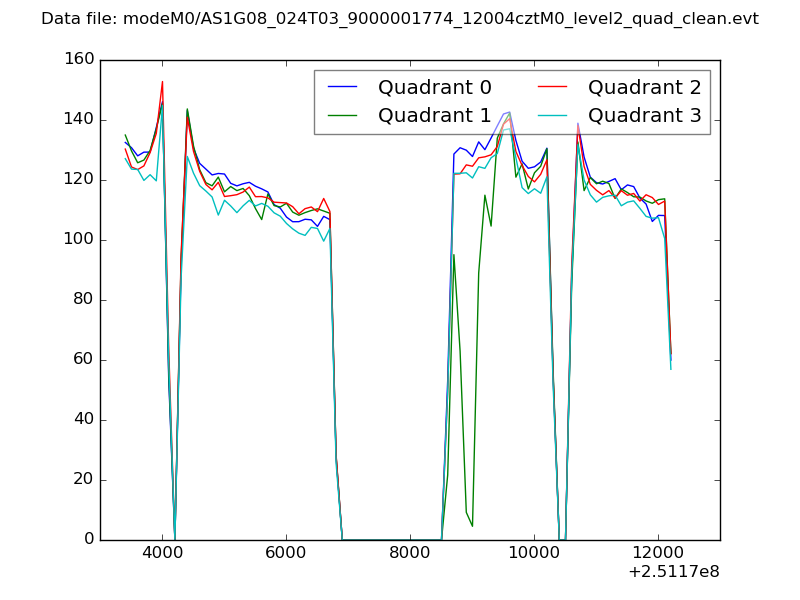

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

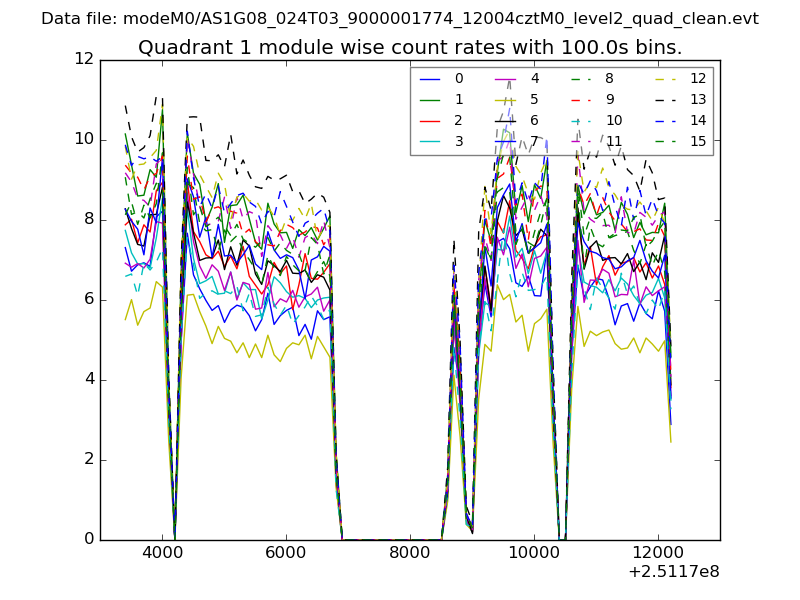

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

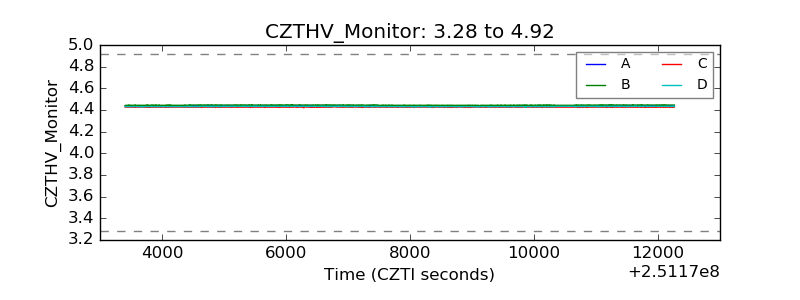

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

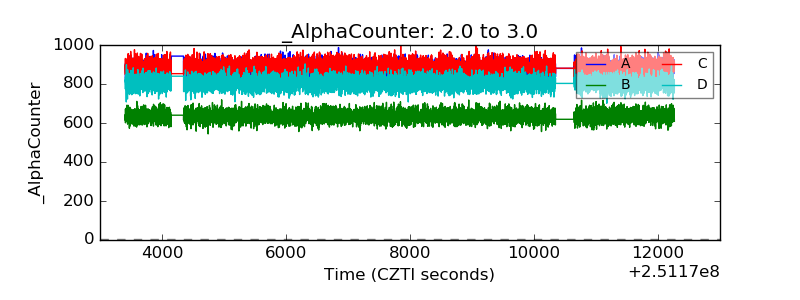

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

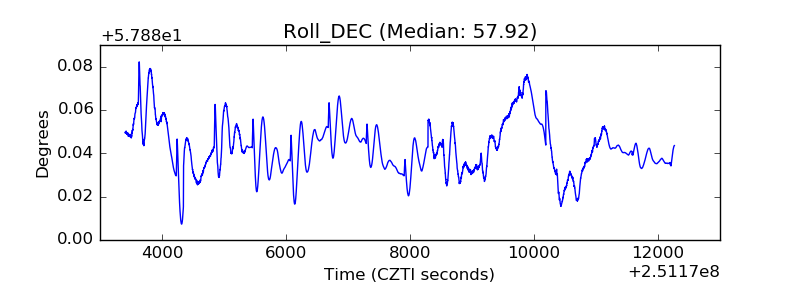

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
