| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_024T03_9000001774_12007cztM0_level2.evt | modeM0/AS1G08_024T03_9000001774_12007cztM0_level2_quad_clean.evt |
| Size (bytes) | 728,737,920 | 118,572,480 |
| Size | 695.0 MB | 113.1 MB |
| Events in quadrant A | 4,959,453 | 745,181 |
| Events in quadrant B | 7,019,791 | 715,873 |
| Events in quadrant C | 4,270,903 | 739,029 |
| Events in quadrant D | 5,154,253 | 709,963 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 200 | 0 |
| B | 0 | 200 | 0 |
| C | 0 | 200 | 0 |
| D | 0 | 200 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21190 | 3 |
| B | 0 | 27557 | 2 |
| C | 0 | 19970 | 2 |
| D | 0 | 22269 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9820 | 184 | 1.873727% |
| B | 9820 | 904 | 9.205703% |
| C | 9820 | 47 | 0.478615% |
| D | 9820 | 154 | 1.568228% |

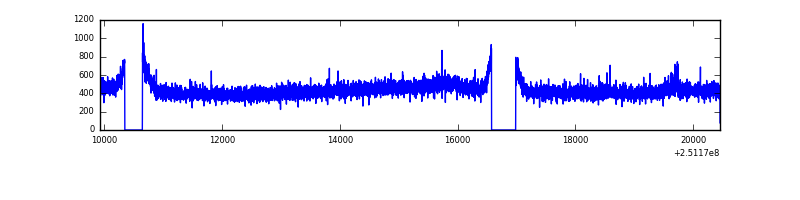

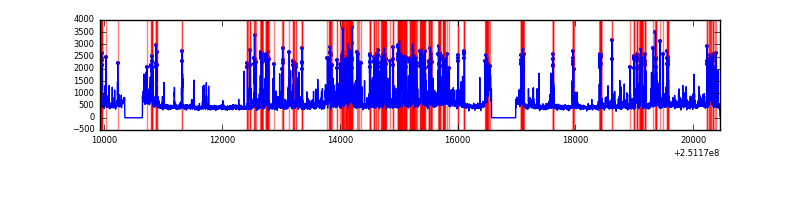

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 10531 | 9822 | 15 | 15 | 0.14% | 0.15% |  |
| B | 10531 | 9822 | 500 | 500 | 4.75% | 5.09% |  |
| C | 10531 | 9822 | 0 | 0 | 0.00% | 0.00% |  |
| D | 10531 | 9822 | 89 | 89 | 0.85% | 0.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 209950 | 907.8 | 1129 | 1106 | 230.1 |
| A | 1 | 178 | 108731 | 467.82 | 1129 | 1106 | 230.1 |
| A | 1 | 161 | 95650 | 410.96 | 1129 | 1106 | 230.1 |
| B | 4 | 239 | 1270416 | 6117.46 | 1089 | 1061 | 207.5 |
| B | 3 | 64 | 1134776 | 5463.76 | 1089 | 1061 | 207.5 |
| B | 0 | 231 | 97842 | 466.42 | 1089 | 1061 | 207.5 |
| C | 7 | 247 | 29826 | 114.43 | 1087 | 1086 | 251.2 |
| C | 13 | 61 | 7978 | 27.44 | 1087 | 1086 | 251.2 |
| C | 12 | 4 | 3338 | 8.97 | 1087 | 1086 | 251.2 |
| D | 1 | 52 | 476427 | 1835.11 | 1081 | 1048 | 259.0 |
| D | 13 | 104 | 220944 | 848.87 | 1081 | 1048 | 259.0 |
| D | 8 | 195 | 139322 | 533.78 | 1081 | 1048 | 259.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

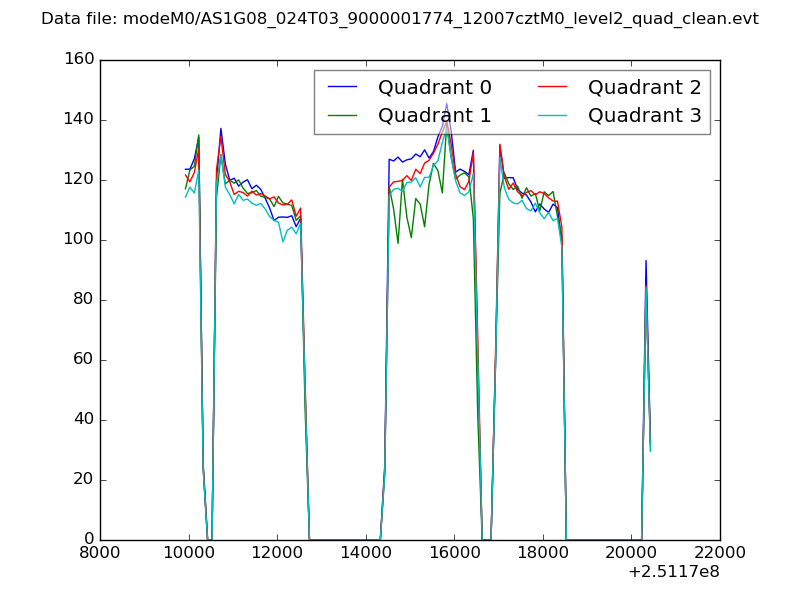

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

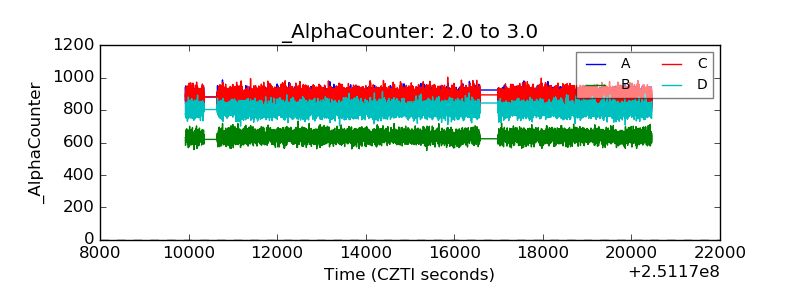

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

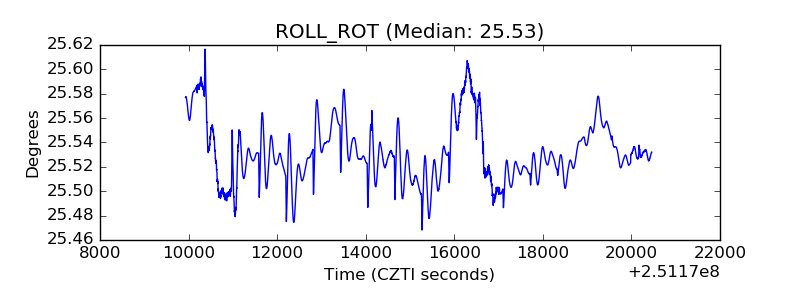

| _ROLL_ROT |  |
| _Roll_DEC |  |

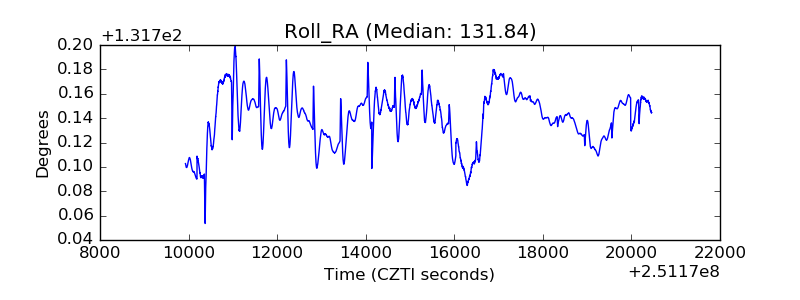

| _Roll_RA |  |

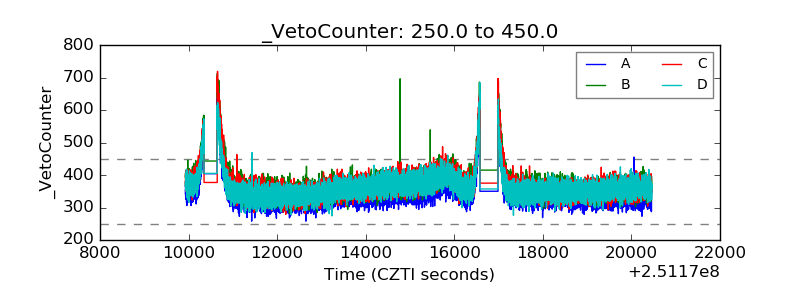

| Veto Counter |  |
