| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_112T01_9000001778_12015cztM0_level2.evt | modeM0/AS1A04_112T01_9000001778_12015cztM0_level2_quad_clean.evt |
| Size (bytes) | 552,211,200 | 115,176,960 |
| Size | 526.6 MB | 109.8 MB |
| Events in quadrant A | 3,362,722 | 777,125 |
| Events in quadrant B | 5,869,315 | 742,531 |
| Events in quadrant C | 2,895,055 | 784,267 |
| Events in quadrant D | 4,154,981 | 729,915 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14483 | 3 |
| B | 0 | 21789 | 2 |
| C | 0 | 13288 | 2 |
| D | 0 | 16894 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6509 | 119 | 1.828238% |
| B | 6509 | 969 | 14.887079% |
| C | 6509 | 23 | 0.353357% |
| D | 6509 | 283 | 4.347826% |

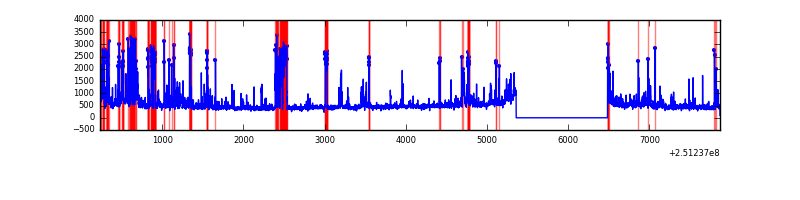

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7635 | 6511 | 59 | 59 | 0.77% | 0.91% |  |
| B | 7635 | 6510 | 718 | 718 | 9.40% | 11.03% |  |
| C | 7635 | 6511 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7635 | 6511 | 257 | 257 | 3.37% | 3.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 177738 | 1167.43 | 752 | 738 | 151.6 |
| A | 1 | 162 | 108421 | 710.24 | 752 | 738 | 151.6 |
| A | 1 | 178 | 57081 | 371.62 | 752 | 738 | 151.6 |
| B | 4 | 206 | 2016396 | 14800.8 | 731 | 713 | 136.2 |
| B | 4 | 239 | 382289 | 2801.84 | 731 | 713 | 136.2 |
| B | 3 | 64 | 336555 | 2466.03 | 731 | 713 | 136.2 |
| C | 13 | 61 | 5480 | 27.98 | 740 | 745 | 169.2 |
| C | 8 | 222 | 5320 | 27.04 | 740 | 745 | 169.2 |
| C | 7 | 247 | 2336 | 9.4 | 740 | 745 | 169.2 |
| D | 1 | 52 | 878357 | 5101.75 | 717 | 694 | 172.0 |
| D | 8 | 195 | 114145 | 659.47 | 717 | 694 | 172.0 |
| D | 7 | 80 | 103018 | 594.79 | 717 | 694 | 172.0 |

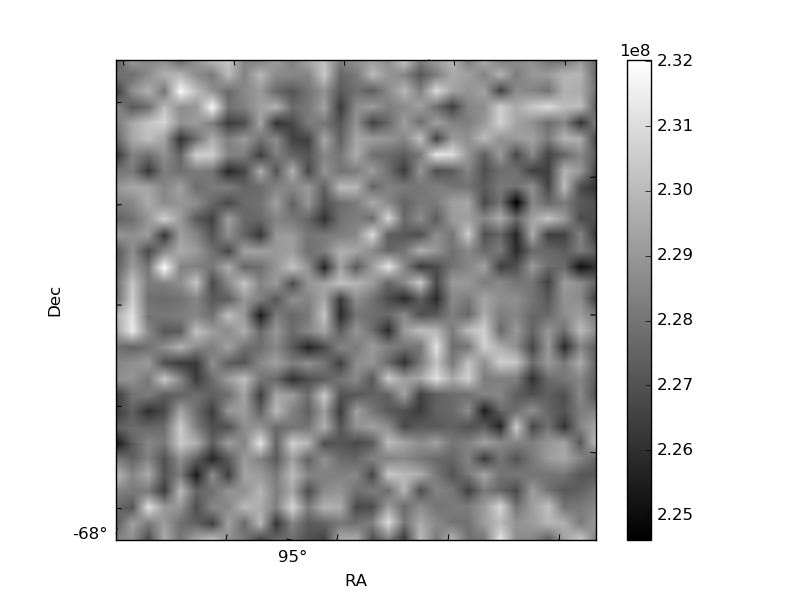

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

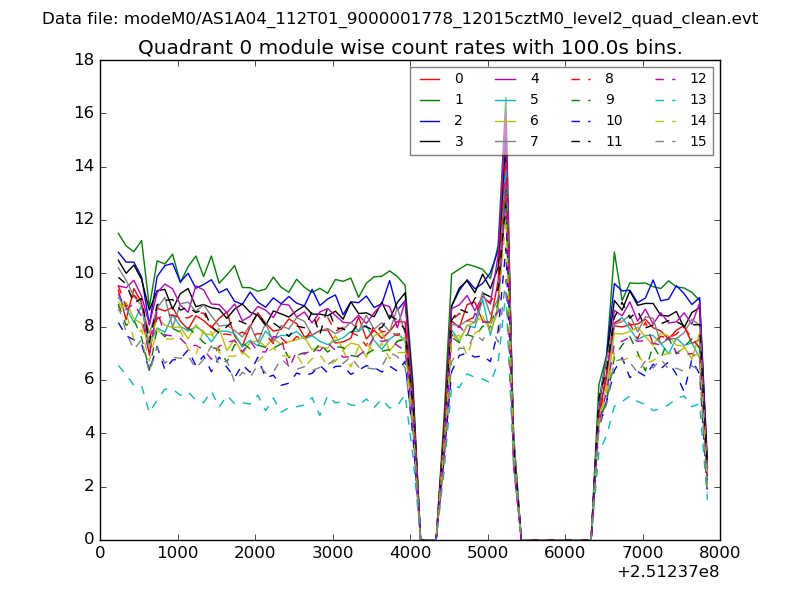

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

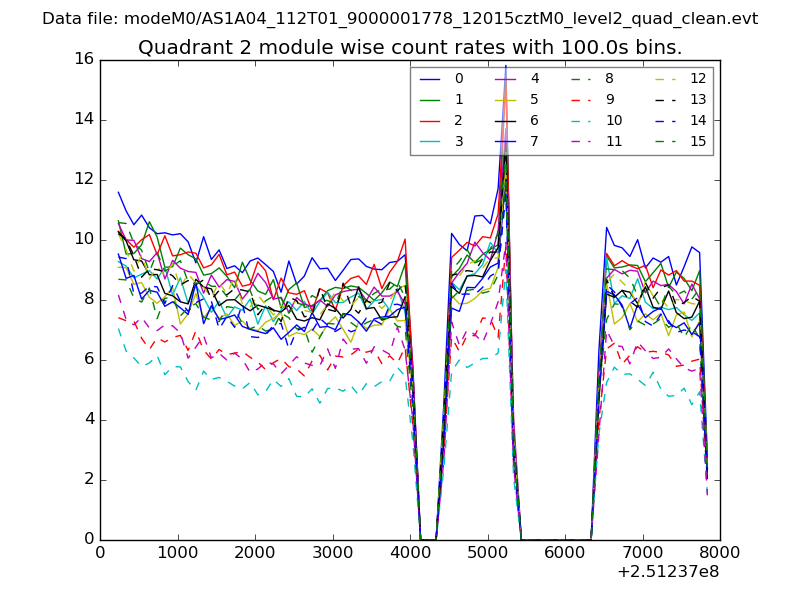

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

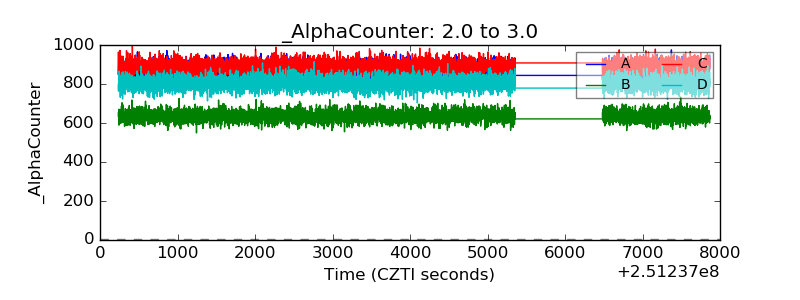

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

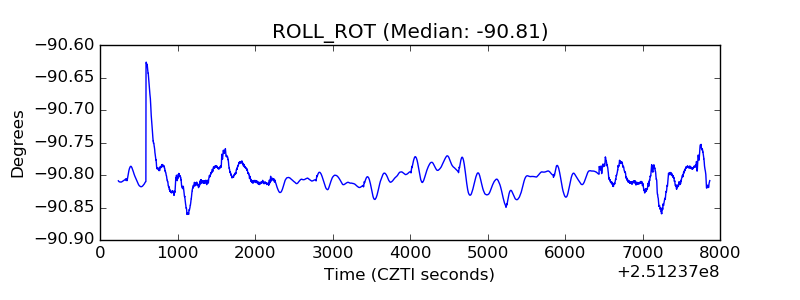

| _ROLL_ROT |  |

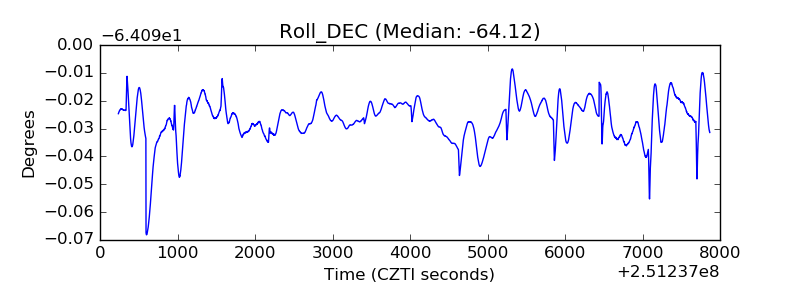

| _Roll_DEC |  |
| _Roll_RA |  |

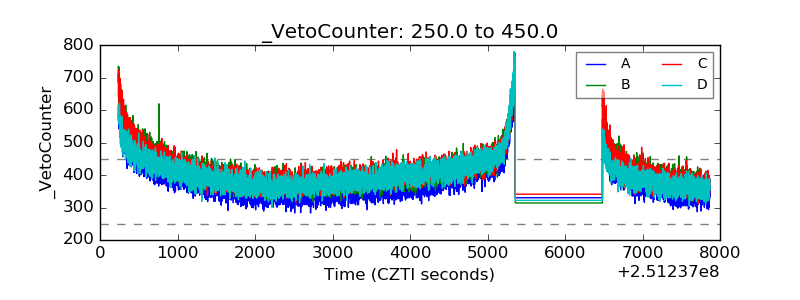

| Veto Counter |  |
