| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_024T01_9000001776_12010cztM0_level2.evt | modeM0/AS1G08_024T01_9000001776_12010cztM0_level2_quad_clean.evt |
| Size (bytes) | 574,272,000 | 73,794,240 |
| Size | 547.7 MB | 70.4 MB |
| Events in quadrant A | 3,674,061 | 452,185 |
| Events in quadrant B | 4,572,701 | 454,079 |
| Events in quadrant C | 3,188,591 | 446,144 |
| Events in quadrant D | 5,506,650 | 418,851 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15272 | 3 |
| B | 0 | 18086 | 2 |
| C | 0 | 13917 | 2 |
| D | 0 | 20873 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6642 | 131 | 1.972298% |
| B | 6642 | 342 | 5.149051% |
| C | 6642 | 66 | 0.993677% |
| D | 6642 | 501 | 7.542909% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7703 | 6643 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7703 | 6643 | 167 | 167 | 2.17% | 2.51% |  |
| C | 7703 | 6643 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7703 | 6643 | 388 | 388 | 5.04% | 5.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 150241 | 859.18 | 854 | 836 | 173.9 |
| A | 1 | 178 | 79530 | 452.55 | 854 | 836 | 173.9 |
| A | 1 | 161 | 70218 | 399.0 | 854 | 836 | 173.9 |
| B | 4 | 239 | 873197 | 5553.6 | 820 | 800 | 157.1 |
| B | 10 | 245 | 167601 | 1061.84 | 820 | 800 | 157.1 |
| B | 11 | 51 | 120329 | 760.91 | 820 | 800 | 157.1 |
| C | 13 | 61 | 5970 | 27.12 | 815 | 819 | 189.9 |
| C | 7 | 247 | 5141 | 22.75 | 815 | 819 | 189.9 |
| C | 5 | 175 | 2631 | 9.54 | 815 | 819 | 189.9 |
| D | 1 | 52 | 1927307 | 9696.59 | 817 | 798 | 198.7 |
| D | 8 | 195 | 179739 | 900.65 | 817 | 798 | 198.7 |
| D | 7 | 80 | 89102 | 444.46 | 817 | 798 | 198.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

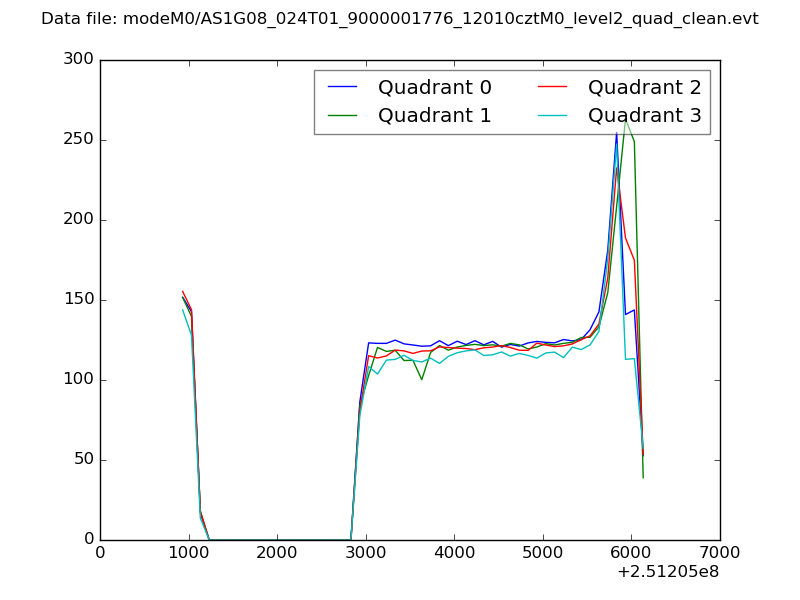

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
