| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_024T01_9000001776_12012cztM0_level2.evt | modeM0/AS1G08_024T01_9000001776_12012cztM0_level2_quad_clean.evt |
| Size (bytes) | 605,188,800 | 89,046,720 |
| Size | 577.2 MB | 84.9 MB |
| Events in quadrant A | 3,861,531 | 582,670 |
| Events in quadrant B | 4,726,943 | 570,694 |
| Events in quadrant C | 3,113,415 | 579,955 |
| Events in quadrant D | 6,203,289 | 526,936 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15820 | 3 |
| B | 0 | 18352 | 2 |
| C | 0 | 13443 | 2 |
| D | 0 | 22623 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 22 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6252 | 211 | 3.374920% |
| B | 6252 | 520 | 8.317338% |
| C | 6252 | 48 | 0.767754% |
| D | 6252 | 892 | 14.267434% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

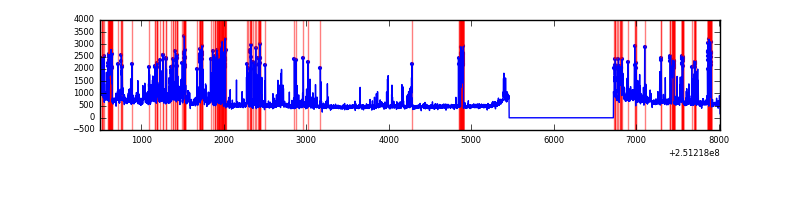

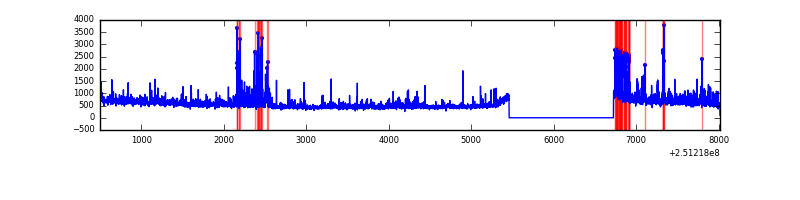

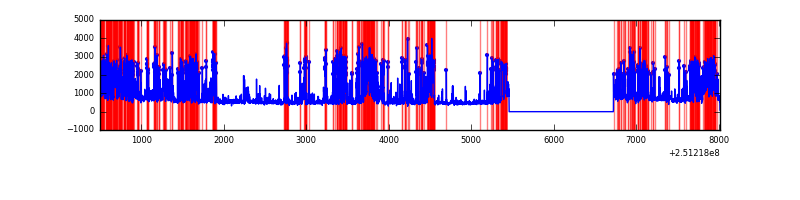

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7518 | 6253 | 72 | 72 | 0.96% | 1.15% |  |
| B | 7518 | 6253 | 285 | 285 | 3.79% | 4.56% |  |
| C | 7518 | 6253 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7518 | 6253 | 801 | 801 | 10.65% | 12.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 376175 | 2331.26 | 805 | 789 | 161.0 |
| A | 1 | 162 | 145187 | 896.75 | 805 | 789 | 161.0 |
| A | 1 | 178 | 77077 | 473.77 | 805 | 789 | 161.0 |
| B | 4 | 239 | 719991 | 4930.31 | 793 | 774 | 145.9 |
| B | 10 | 245 | 366578 | 2507.63 | 793 | 774 | 145.9 |
| B | 4 | 206 | 283038 | 1934.95 | 793 | 774 | 145.9 |
| C | 13 | 61 | 5809 | 27.4 | 798 | 804 | 182.6 |
| C | 3 | 202 | 2013 | 6.62 | 798 | 804 | 182.6 |
| C | 7 | 247 | 1791 | 5.4 | 798 | 804 | 182.6 |
| D | 1 | 52 | 1522610 | 8634.59 | 746 | 725 | 176.3 |
| D | 4 | 95 | 935612 | 5304.19 | 746 | 725 | 176.3 |
| D | 7 | 80 | 464968 | 2633.94 | 746 | 725 | 176.3 |

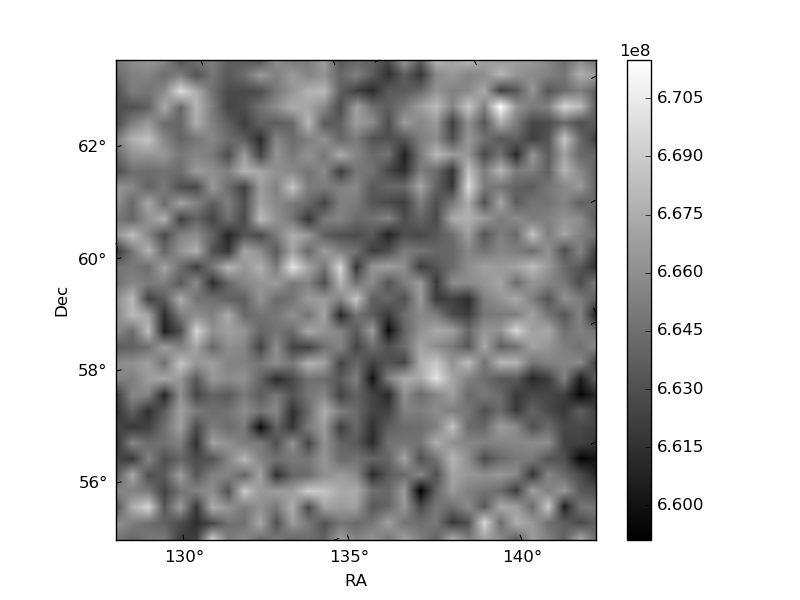

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

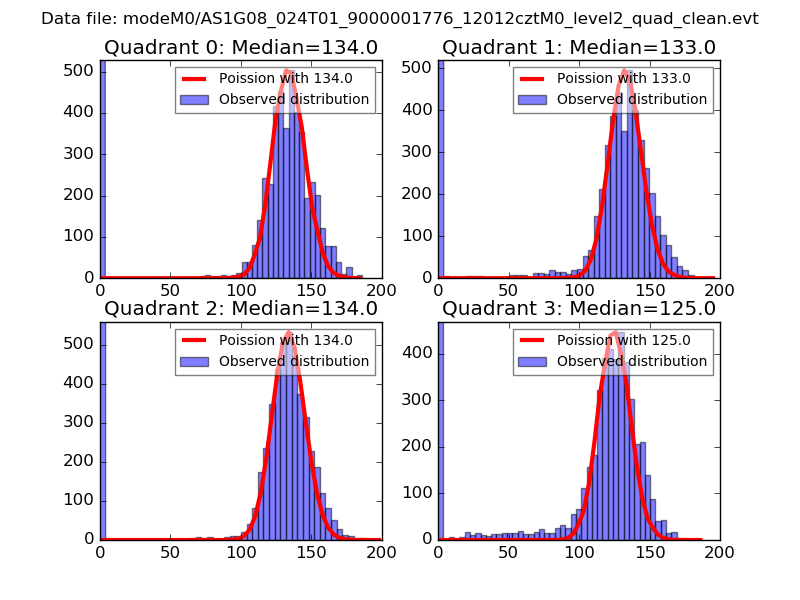

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

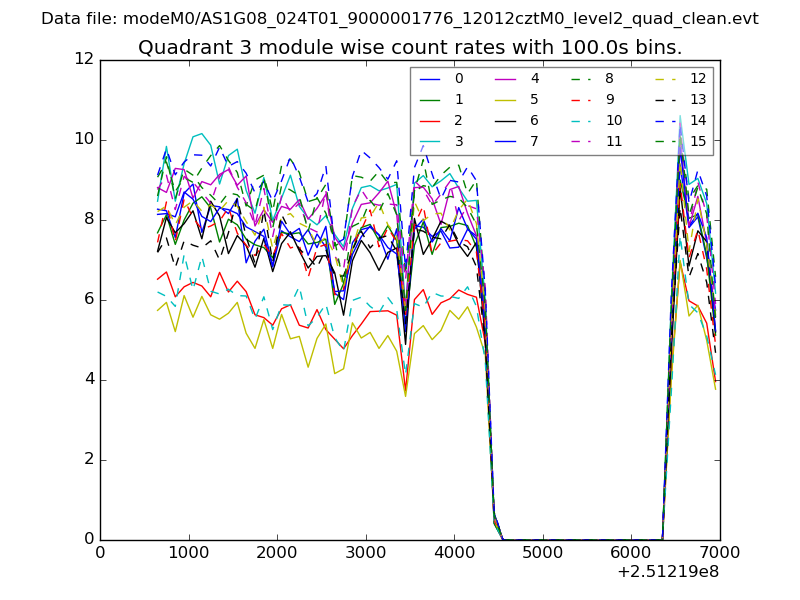

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

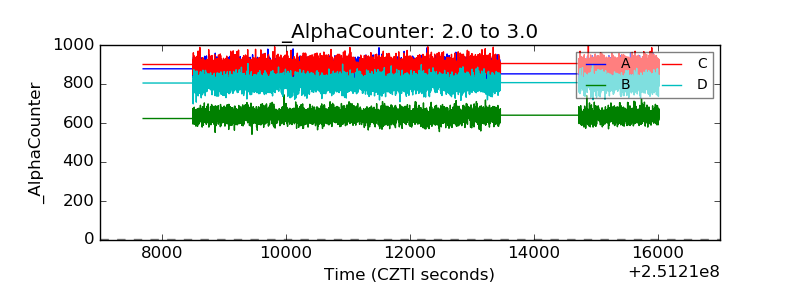

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

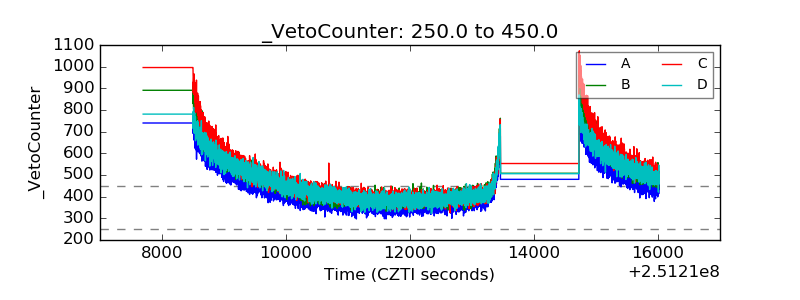

| Veto Counter |  |
