| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_024T01_9000001776_12014cztM0_level2.evt | modeM0/AS1G08_024T01_9000001776_12014cztM0_level2_quad_clean.evt |
| Size (bytes) | 574,937,280 | 101,845,440 |
| Size | 548.3 MB | 97.1 MB |
| Events in quadrant A | 3,711,453 | 678,341 |
| Events in quadrant B | 5,261,843 | 657,851 |
| Events in quadrant C | 3,094,253 | 682,781 |
| Events in quadrant D | 4,924,685 | 632,723 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15242 | 2 |
| B | 0 | 19829 | 2 |
| C | 0 | 13299 | 2 |
| D | 0 | 18882 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 22 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6198 | 214 | 3.452727% |
| B | 6198 | 830 | 13.391417% |
| C | 6198 | 56 | 0.903517% |
| D | 6198 | 439 | 7.082930% |

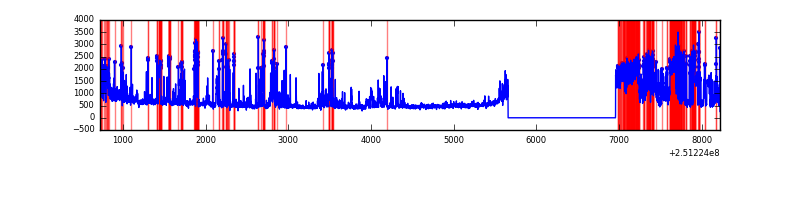

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7499 | 6200 | 57 | 57 | 0.76% | 0.92% |  |
| B | 7499 | 6199 | 432 | 432 | 5.76% | 6.97% |  |
| C | 7499 | 6199 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7499 | 6199 | 350 | 350 | 4.67% | 5.65% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 279124 | 1746.29 | 793 | 778 | 159.4 |
| A | 1 | 162 | 134733 | 840.41 | 793 | 778 | 159.4 |
| A | 1 | 178 | 72735 | 451.44 | 793 | 778 | 159.4 |
| B | 4 | 206 | 1040474 | 7241.54 | 774 | 757 | 143.6 |
| B | 4 | 239 | 603763 | 4199.88 | 774 | 757 | 143.6 |
| B | 10 | 245 | 246629 | 1712.48 | 774 | 757 | 143.6 |
| C | 13 | 61 | 5931 | 28.5 | 792 | 797 | 180.1 |
| C | 8 | 222 | 2007 | 6.72 | 792 | 797 | 180.1 |
| C | 1 | 16 | 1991 | 6.63 | 792 | 797 | 180.1 |
| D | 4 | 95 | 850140 | 4646.51 | 768 | 747 | 182.8 |
| D | 1 | 52 | 670576 | 3664.22 | 768 | 747 | 182.8 |
| D | 8 | 195 | 133684 | 727.22 | 768 | 747 | 182.8 |

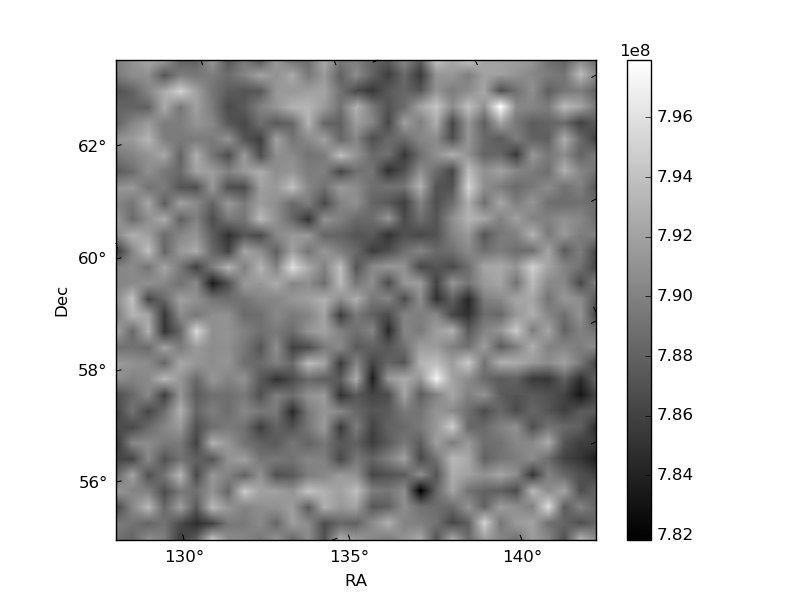

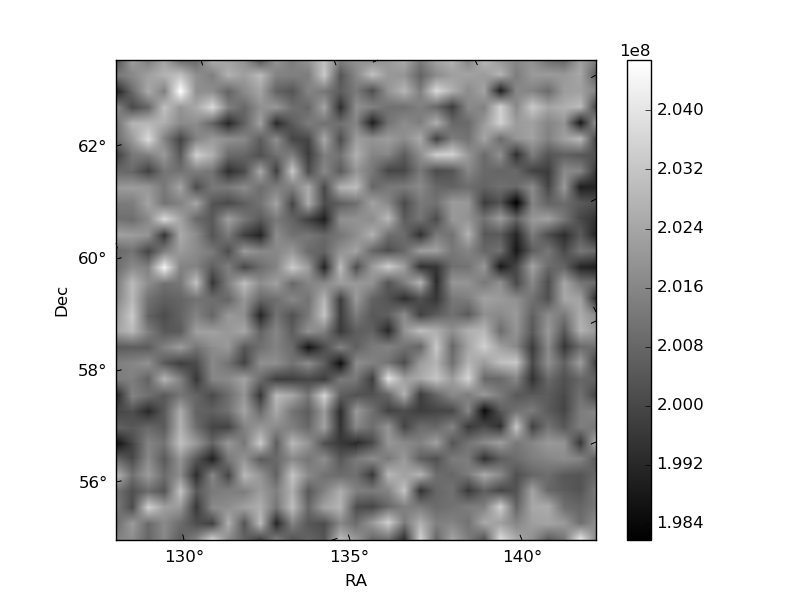

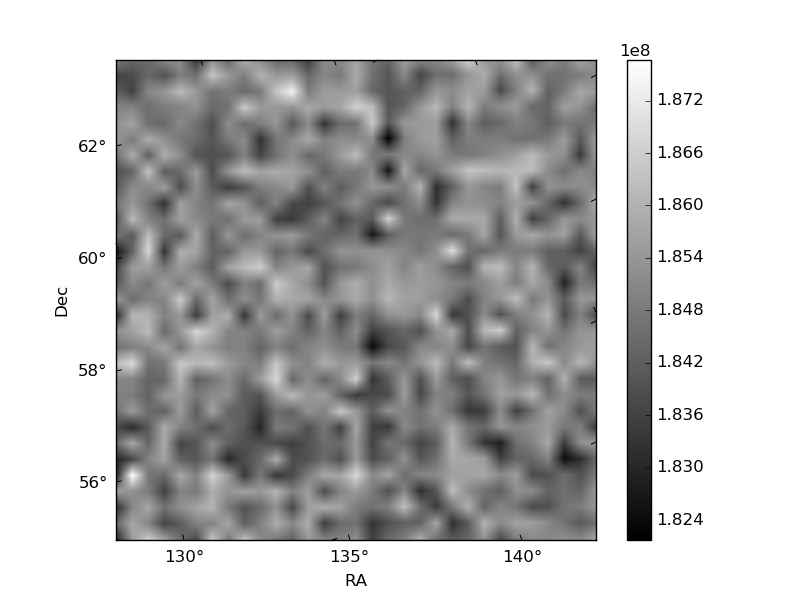

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

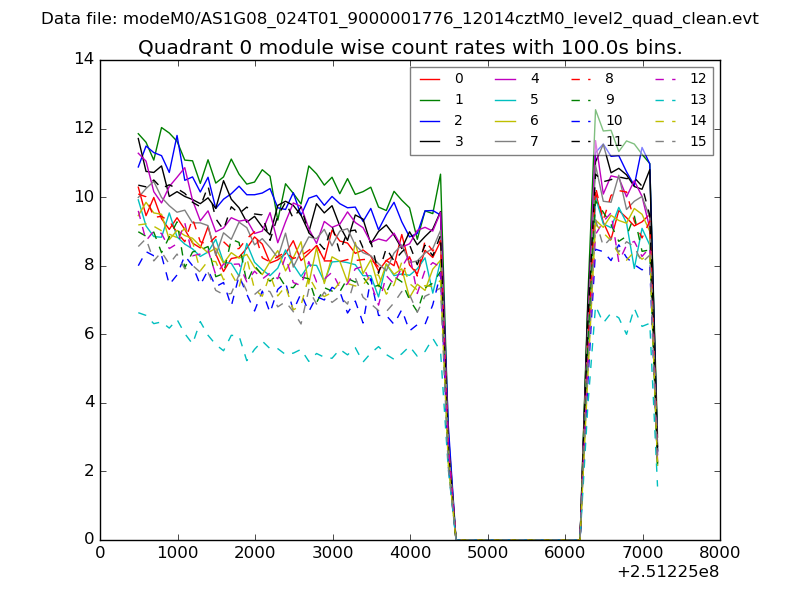

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

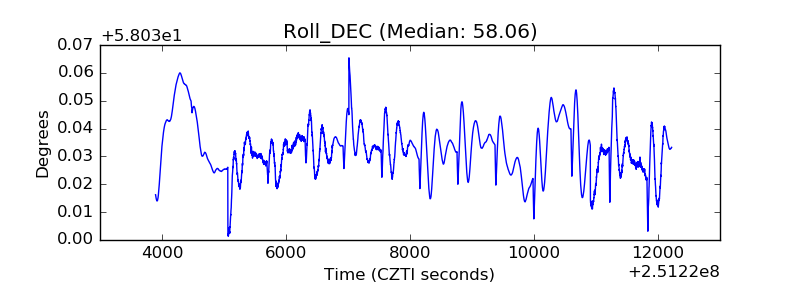

| _Roll_DEC |  |

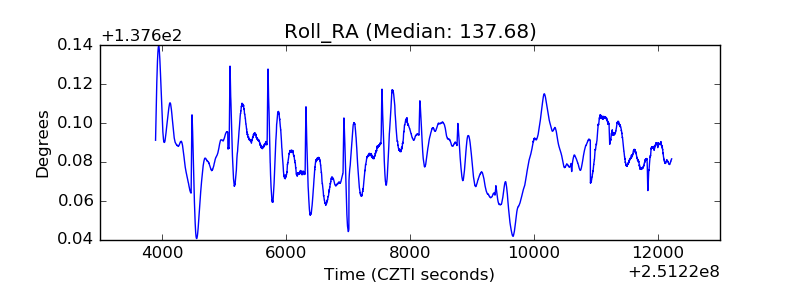

| _Roll_RA |  |
| Veto Counter |  |
