| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_044T01_9000001782_12033cztM0_level2.evt | modeM0/AS1A04_044T01_9000001782_12033cztM0_level2_quad_clean.evt |
| Size (bytes) | 560,056,320 | 110,183,040 |
| Size | 534.1 MB | 105.1 MB |
| Events in quadrant A | 3,933,685 | 703,885 |
| Events in quadrant B | 4,048,230 | 705,917 |
| Events in quadrant C | 3,732,282 | 689,193 |
| Events in quadrant D | 4,689,786 | 667,222 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 168 | 0 |
| B | 0 | 168 | 0 |
| C | 0 | 168 | 0 |
| D | 0 | 168 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17207 | 3 |
| B | 0 | 17345 | 2 |
| C | 0 | 16908 | 2 |
| D | 0 | 19358 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8209 | 133 | 1.620173% |
| B | 8209 | 198 | 2.411987% |
| C | 8209 | 103 | 1.254720% |
| D | 8209 | 175 | 2.131807% |

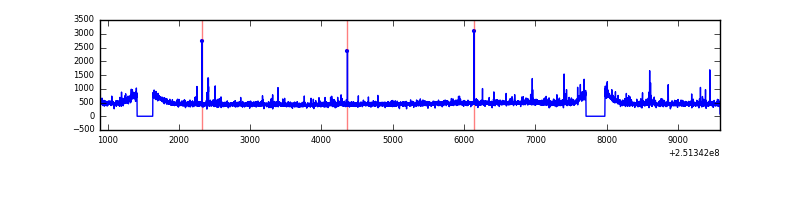

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8695 | 8210 | 3 | 3 | 0.03% | 0.04% |  |
| B | 8695 | 8210 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8695 | 8211 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8695 | 8210 | 78 | 78 | 0.90% | 0.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 51590 | 252.47 | 982 | 959 | 200.5 |
| A | 1 | 178 | 24383 | 116.8 | 982 | 959 | 200.5 |
| A | 1 | 161 | 21635 | 103.1 | 982 | 959 | 200.5 |
| B | 0 | 85 | 87443 | 453.73 | 977 | 949 | 190.6 |
| B | 15 | 204 | 77780 | 403.04 | 977 | 949 | 190.6 |
| B | 4 | 239 | 56063 | 289.11 | 977 | 949 | 190.6 |
| C | 13 | 61 | 6984 | 27.1 | 956 | 959 | 222.3 |
| C | 14 | 234 | 3096 | 9.61 | 956 | 959 | 222.3 |
| C | 0 | 207 | 2697 | 7.82 | 956 | 959 | 222.3 |
| D | 13 | 104 | 572351 | 2528.98 | 945 | 916 | 226.0 |
| D | 8 | 195 | 262762 | 1158.84 | 945 | 916 | 226.0 |
| D | 1 | 52 | 241480 | 1064.66 | 945 | 916 | 226.0 |

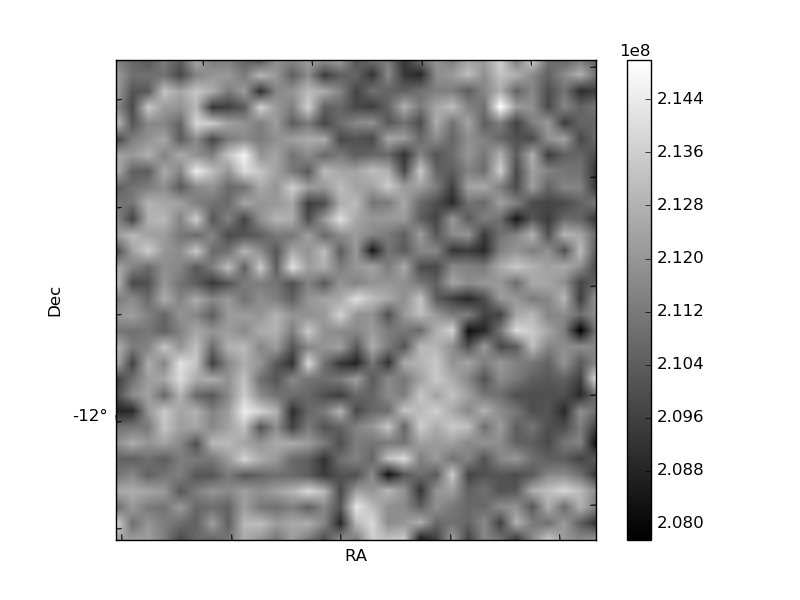

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

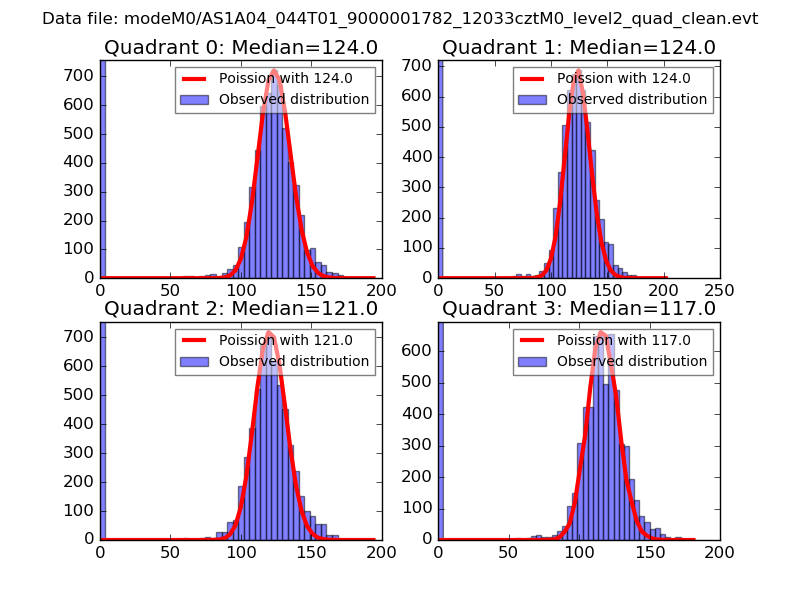

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

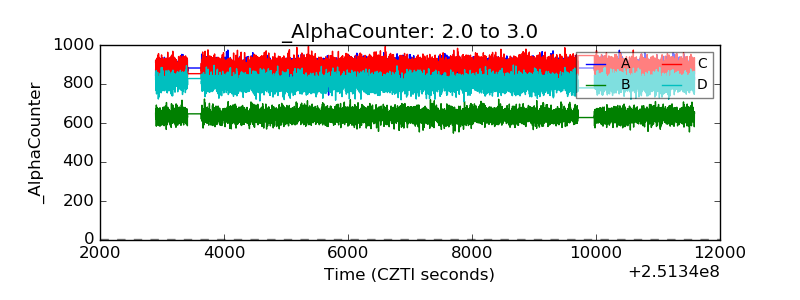

| Alpha Counter |  |
| _CPM_Rate |  |

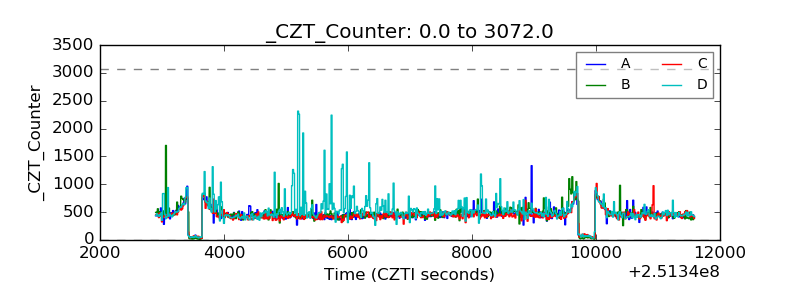

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

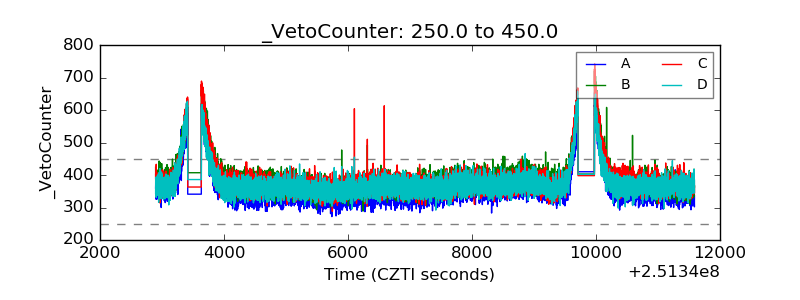

| Veto Counter |  |
