| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_075T03_9000001780_12026cztM0_level2.evt | modeM0/AS1A04_075T03_9000001780_12026cztM0_level2_quad_clean.evt |
| Size (bytes) | 242,568,000 | 25,784,640 |
| Size | 231.3 MB | 24.6 MB |
| Events in quadrant A | 1,438,097 | 155,551 |
| Events in quadrant B | 2,332,515 | 142,642 |
| Events in quadrant C | 1,257,891 | 153,278 |
| Events in quadrant D | 2,140,870 | 143,652 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 50 | 0 |
| B | 0 | 50 | 0 |
| C | 0 | 50 | 0 |
| D | 0 | 50 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5926 | 2 |
| B | 0 | 8804 | 1 |
| C | 0 | 5462 | 1 |
| D | 0 | 8101 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2582 | 23 | 0.890782% |
| B | 2582 | 359 | 13.903950% |
| C | 2582 | 2 | 0.077459% |
| D | 2582 | 204 | 7.900852% |

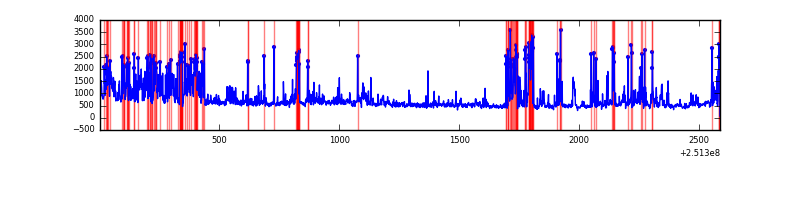

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2583 | 2583 | 3 | 3 | 0.12% | 0.12% |  |
| B | 2583 | 2583 | 231 | 231 | 8.94% | 8.94% |  |
| C | 2583 | 2583 | 0 | 0 | 0.00% | 0.00% |  |
| D | 2583 | 2583 | 147 | 147 | 5.69% | 5.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 40535 | 578.97 | 339 | 331 | 69.4 |
| A | 1 | 162 | 37905 | 541.1 | 339 | 331 | 69.4 |
| A | 1 | 178 | 18251 | 258.06 | 339 | 331 | 69.4 |
| B | 4 | 239 | 467991 | 7705.33 | 320 | 313 | 60.7 |
| B | 0 | 85 | 380365 | 6261.63 | 320 | 313 | 60.7 |
| B | 15 | 204 | 86714 | 1423.52 | 320 | 313 | 60.7 |
| C | 14 | 234 | 3084 | 37.14 | 321 | 322 | 74.4 |
| C | 13 | 61 | 2288 | 26.44 | 321 | 322 | 74.4 |
| C | 0 | 207 | 1749 | 19.19 | 321 | 322 | 74.4 |
| D | 4 | 95 | 430217 | 5763.35 | 312 | 304 | 74.6 |
| D | 1 | 52 | 294512 | 3944.11 | 312 | 304 | 74.6 |
| D | 8 | 195 | 66663 | 889.6 | 312 | 304 | 74.6 |

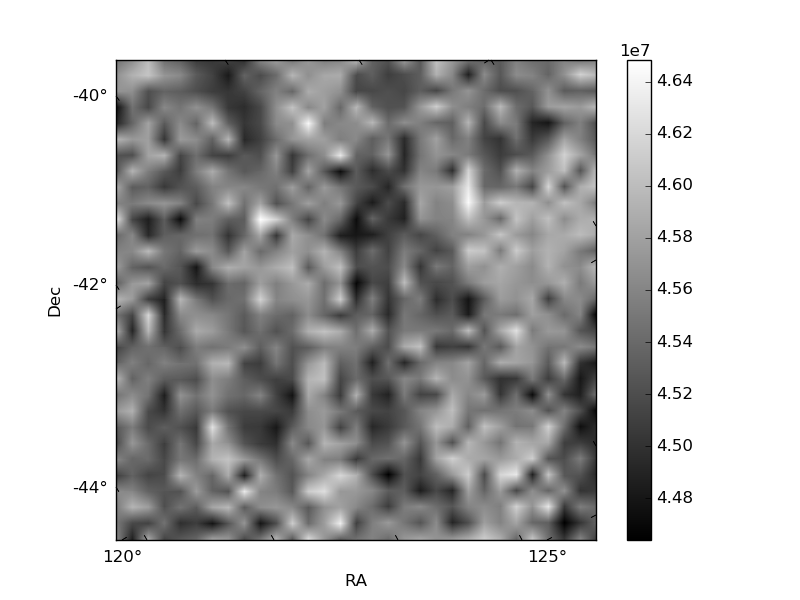

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

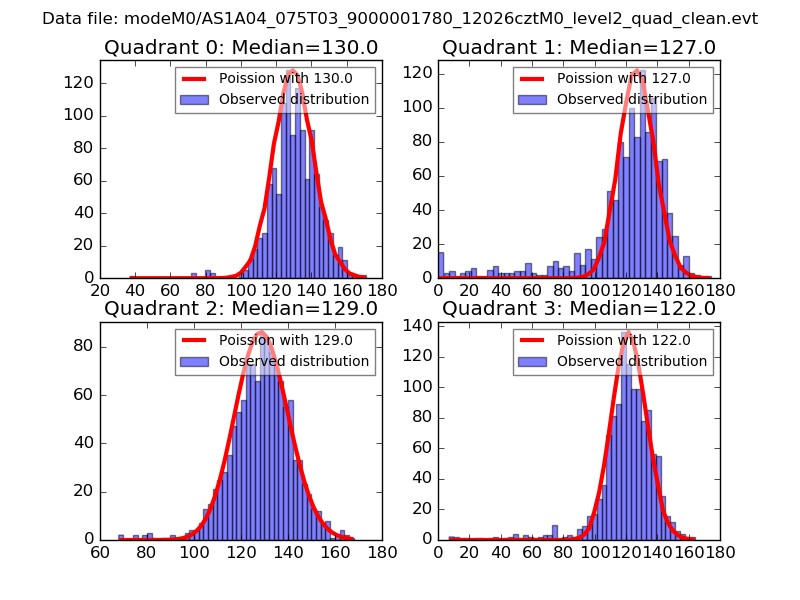

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

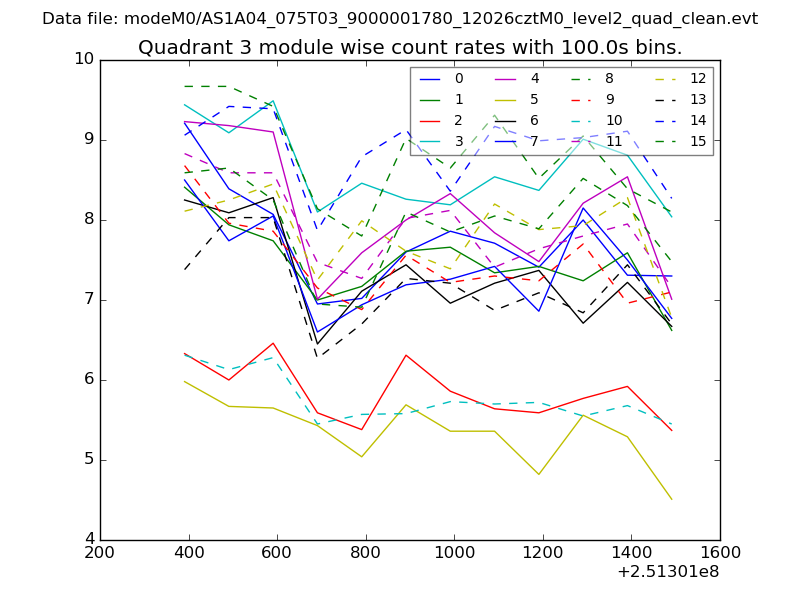

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

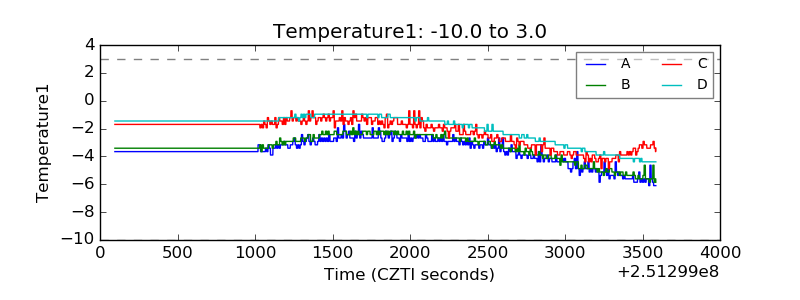

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

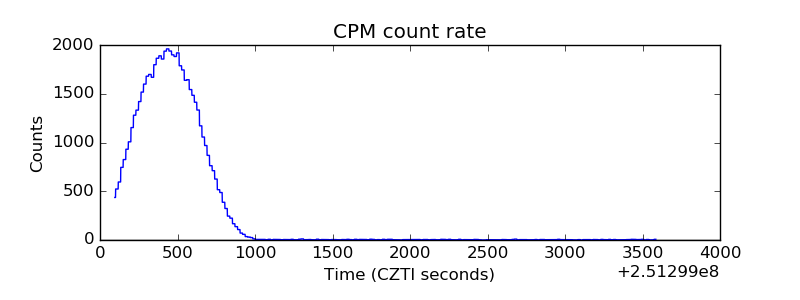

| _CPM_Rate |  |

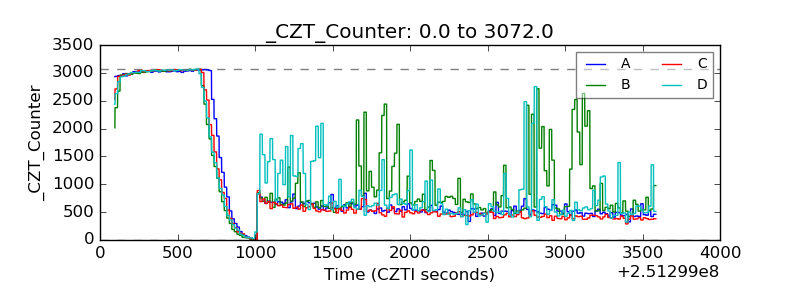

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

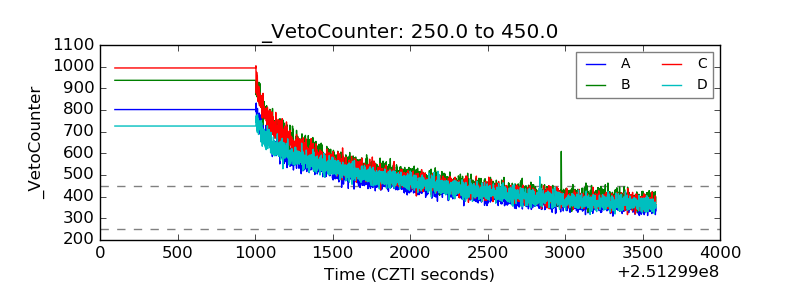

| Veto Counter |  |
