| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_085T02_9000001784_12041cztM0_level2.evt | modeM0/AS1A03_085T02_9000001784_12041cztM0_level2_quad_clean.evt |
| Size (bytes) | 529,591,680 | 105,390,720 |
| Size | 505.1 MB | 100.5 MB |
| Events in quadrant A | 3,756,821 | 710,567 |
| Events in quadrant B | 4,660,705 | 695,618 |
| Events in quadrant C | 3,095,023 | 687,850 |
| Events in quadrant D | 4,098,500 | 657,341 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15365 | 3 |
| B | 0 | 18305 | 2 |
| C | 0 | 13362 | 2 |
| D | 0 | 16222 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6310 | 125 | 1.980983% |
| B | 6310 | 370 | 5.863708% |
| C | 6310 | 29 | 0.459588% |
| D | 6310 | 207 | 3.280507% |

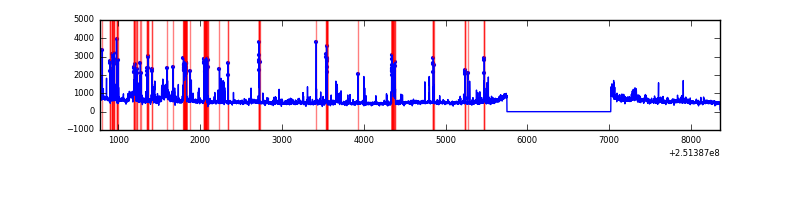

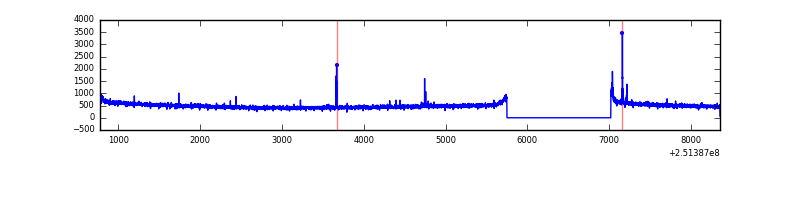

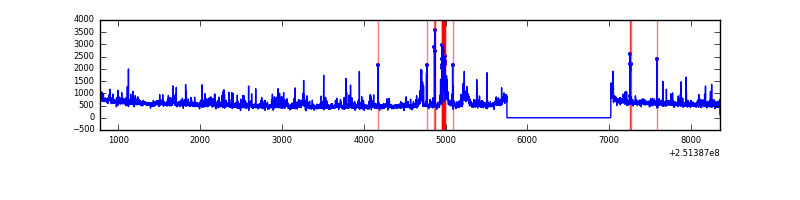

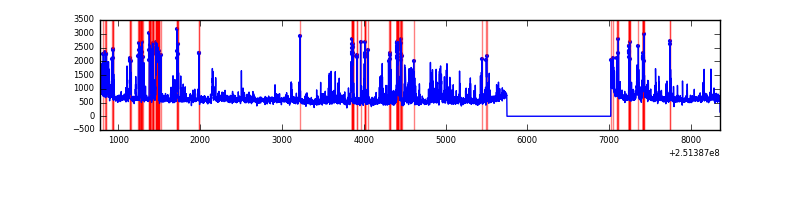

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7581 | 6312 | 32 | 32 | 0.42% | 0.51% |  |
| B | 7581 | 6311 | 170 | 170 | 2.24% | 2.69% |  |
| C | 7581 | 6311 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7581 | 6311 | 141 | 141 | 1.86% | 2.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 208664 | 1249.47 | 830 | 818 | 166.3 |
| A | 1 | 162 | 106759 | 636.87 | 830 | 818 | 166.3 |
| A | 1 | 178 | 58742 | 348.21 | 830 | 818 | 166.3 |
| B | 4 | 239 | 898436 | 5826.35 | 813 | 794 | 154.1 |
| B | 15 | 204 | 200137 | 1293.88 | 813 | 794 | 154.1 |
| B | 4 | 206 | 125762 | 811.13 | 813 | 794 | 154.1 |
| C | 14 | 234 | 33956 | 183.42 | 785 | 790 | 180.8 |
| C | 13 | 61 | 5822 | 27.83 | 785 | 790 | 180.8 |
| C | 3 | 202 | 1952 | 6.43 | 785 | 790 | 180.8 |
| D | 1 | 52 | 715710 | 3848.34 | 783 | 764 | 185.8 |
| D | 8 | 195 | 191882 | 1028.73 | 783 | 764 | 185.8 |
| D | 10 | 50 | 72868 | 388.11 | 783 | 764 | 185.8 |

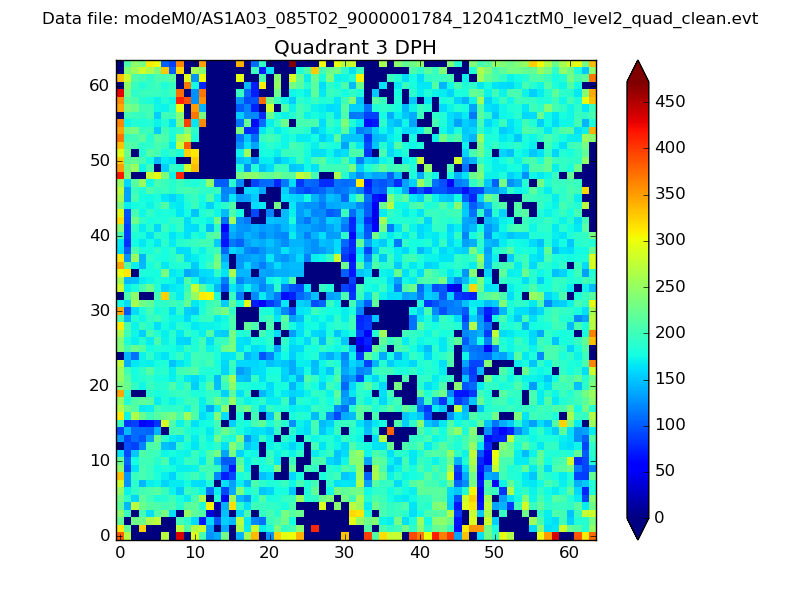

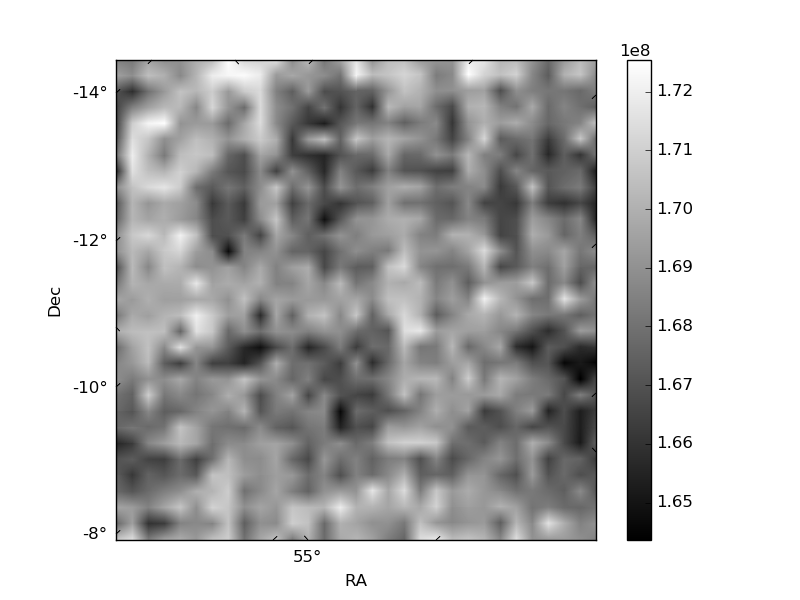

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

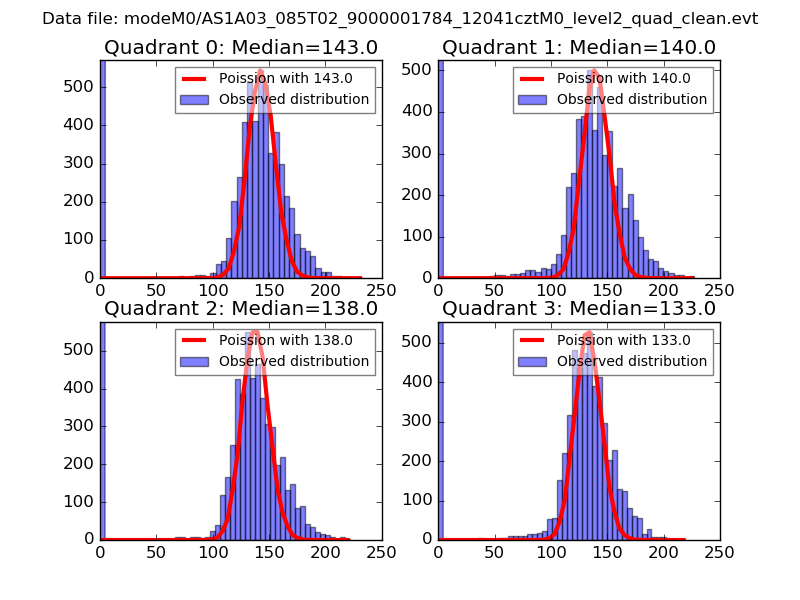

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

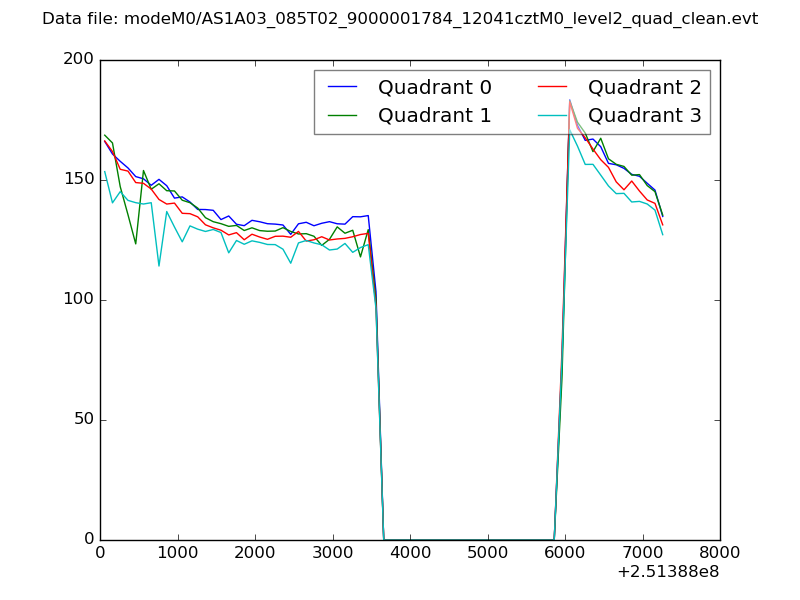

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

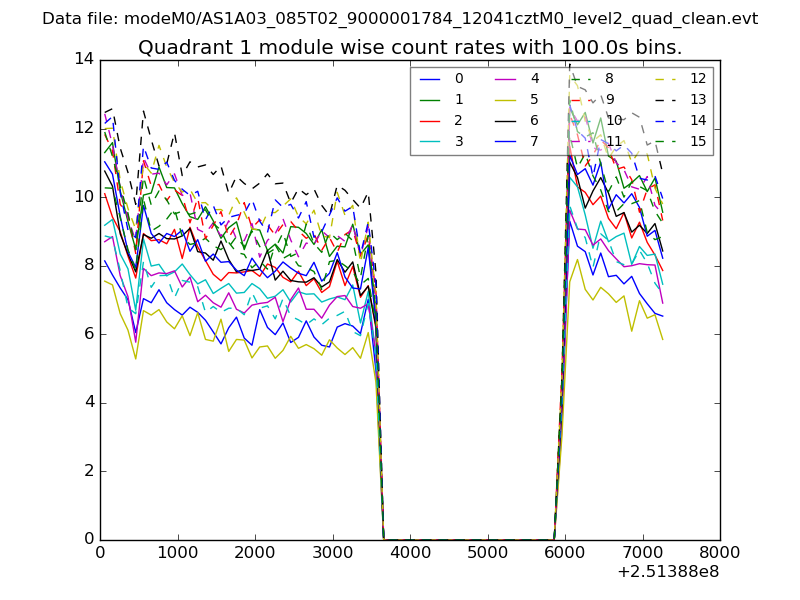

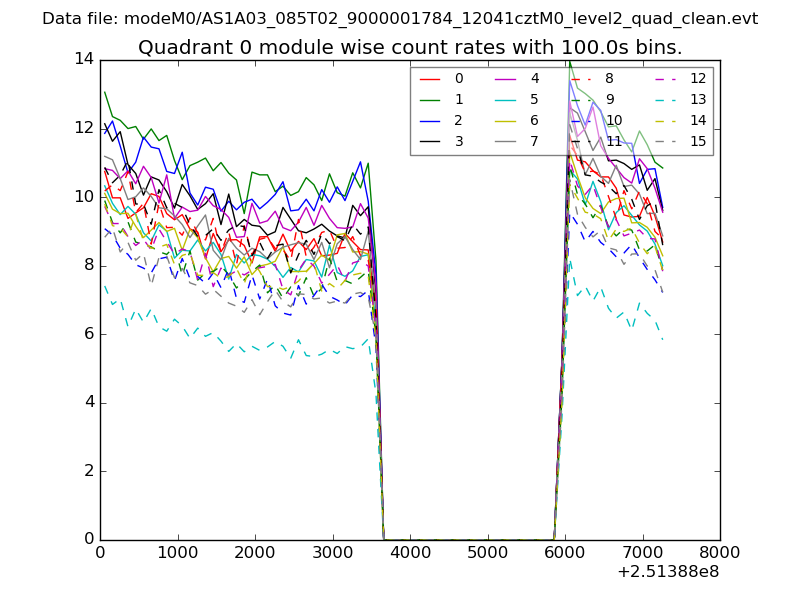

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

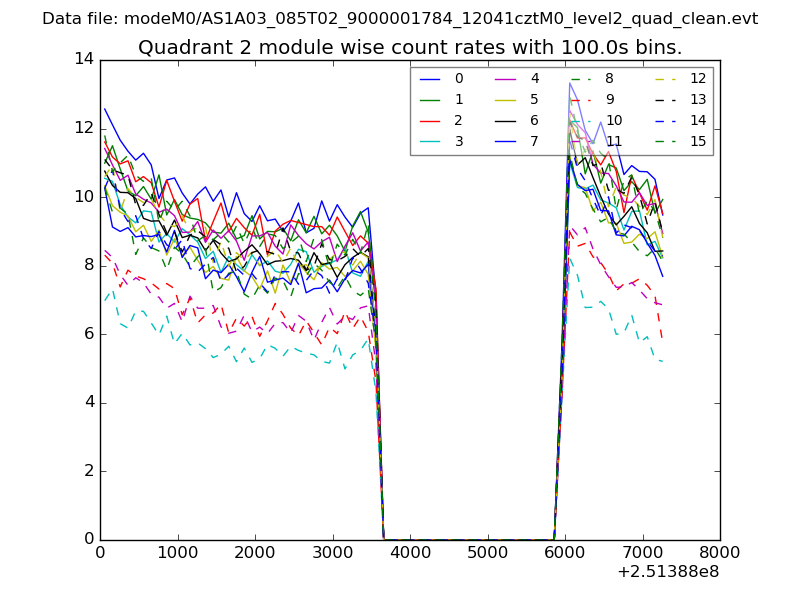

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

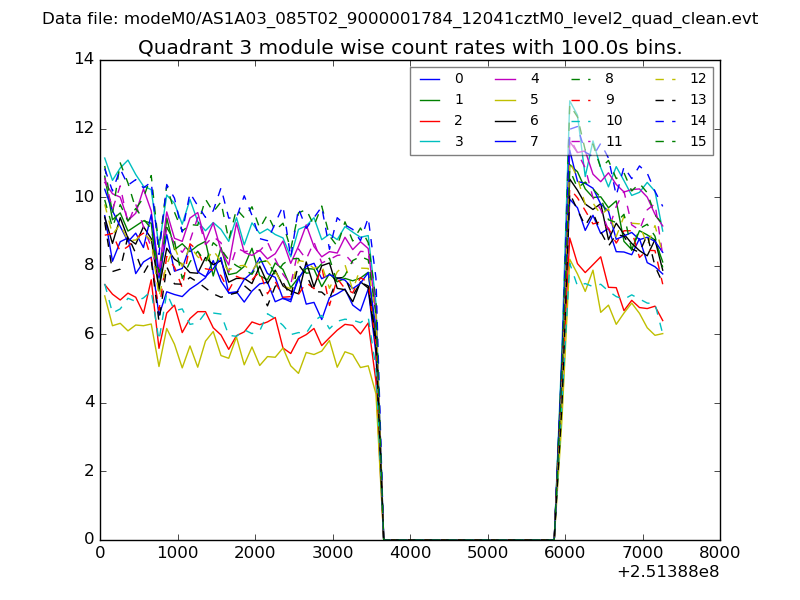

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

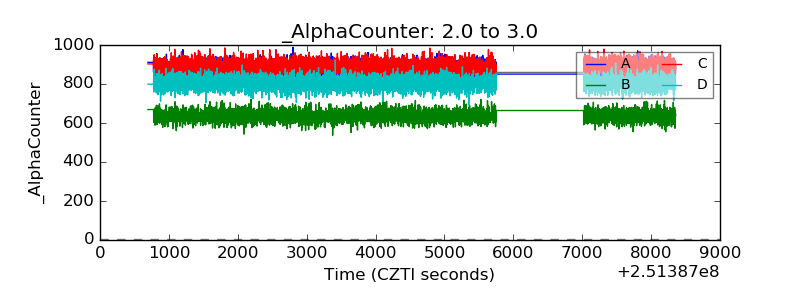

| Alpha Counter |  |

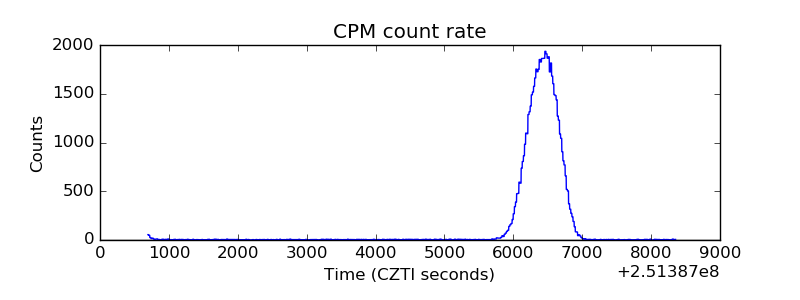

| _CPM_Rate |  |

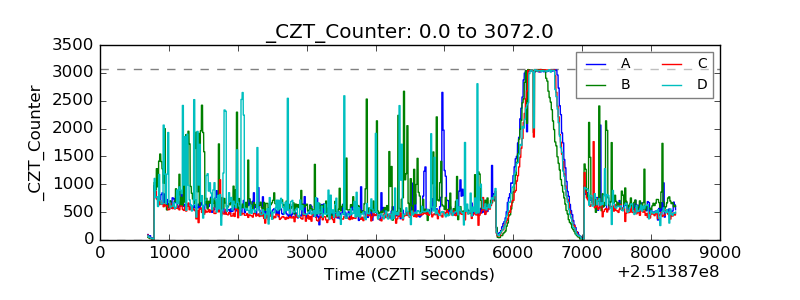

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

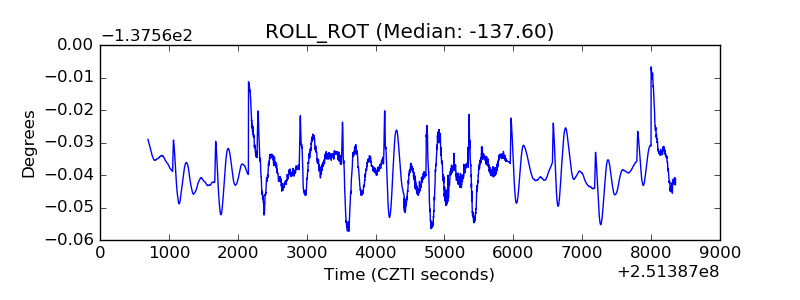

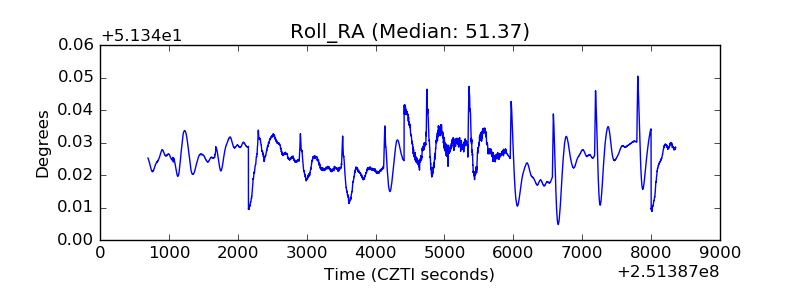

| _ROLL_ROT |  |

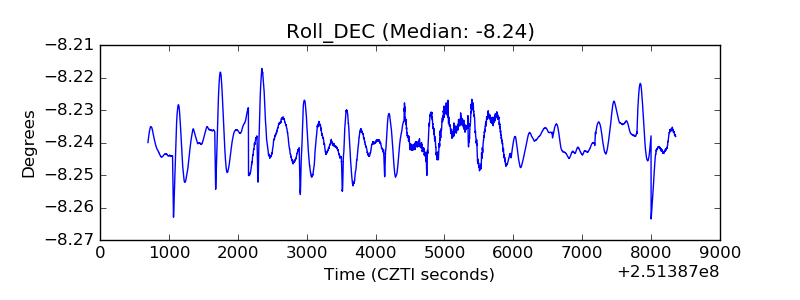

| _Roll_DEC |  |
| _Roll_RA |  |

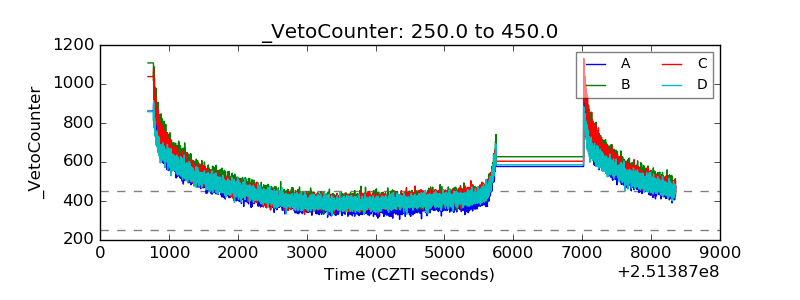

| Veto Counter |  |
