| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_085T02_9000001784_12046cztM0_level2.evt | modeM0/AS1A03_085T02_9000001784_12046cztM0_level2_quad_clean.evt |
| Size (bytes) | 589,475,520 | 100,399,680 |
| Size | 562.2 MB | 95.7 MB |
| Events in quadrant A | 3,906,346 | 644,166 |
| Events in quadrant B | 5,532,887 | 625,804 |
| Events in quadrant C | 3,398,909 | 633,912 |
| Events in quadrant D | 4,504,534 | 613,198 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16629 | 3 |
| B | 0 | 21523 | 2 |
| C | 0 | 15428 | 2 |
| D | 0 | 18227 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7515 | 121 | 1.610113% |
| B | 7515 | 469 | 6.240852% |
| C | 7515 | 31 | 0.412508% |
| D | 7515 | 94 | 1.250832% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8631 | 7518 | 34 | 34 | 0.39% | 0.45% |  |
| B | 8631 | 7518 | 197 | 197 | 2.28% | 2.62% |  |
| C | 8631 | 7517 | 4 | 4 | 0.05% | 0.05% |  |
| D | 8631 | 7517 | 63 | 63 | 0.73% | 0.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 147119 | 806.76 | 888 | 867 | 181.3 |
| A | 5 | 16 | 108185 | 591.99 | 888 | 867 | 181.3 |
| A | 1 | 178 | 67711 | 368.73 | 888 | 867 | 181.3 |
| B | 4 | 239 | 1133530 | 6650.16 | 881 | 859 | 170.3 |
| B | 4 | 206 | 293382 | 1717.47 | 881 | 859 | 170.3 |
| B | 10 | 244 | 254670 | 1490.18 | 881 | 859 | 170.3 |
| C | 14 | 234 | 25548 | 122.09 | 864 | 866 | 202.2 |
| C | 13 | 61 | 6201 | 26.39 | 864 | 866 | 202.2 |
| C | 8 | 128 | 4094 | 15.97 | 864 | 866 | 202.2 |
| D | 1 | 52 | 561467 | 2687.7 | 857 | 834 | 208.6 |
| D | 8 | 195 | 392565 | 1877.98 | 857 | 834 | 208.6 |
| D | 13 | 104 | 155346 | 740.74 | 857 | 834 | 208.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

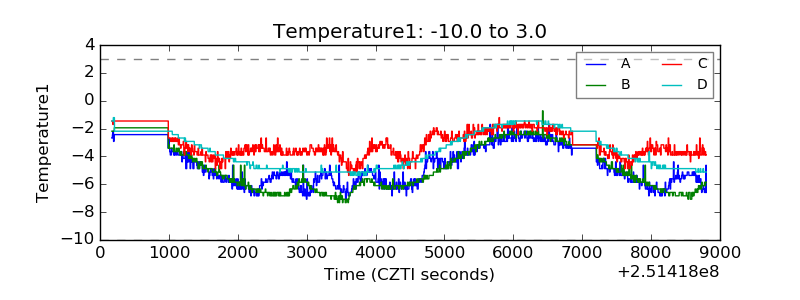

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

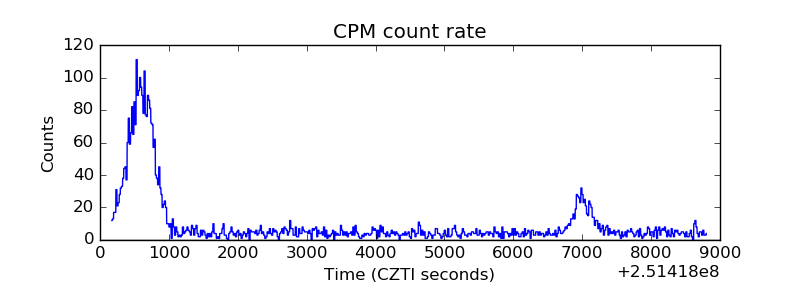

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

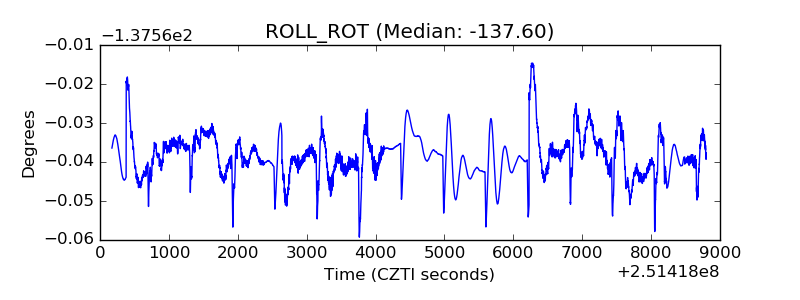

| _ROLL_ROT |  |

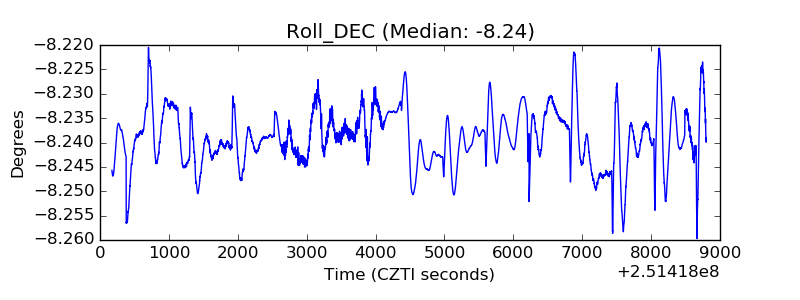

| _Roll_DEC |  |

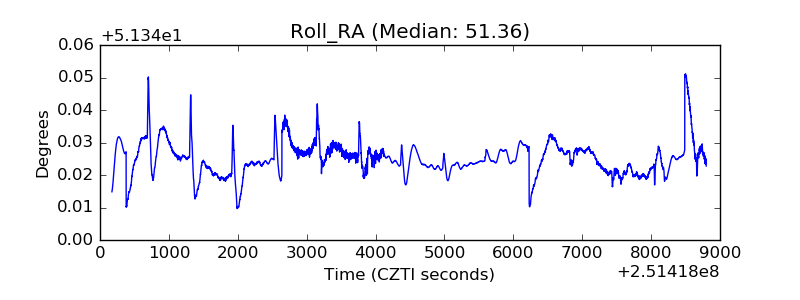

| _Roll_RA |  |
| Veto Counter |  |
