| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_085T02_9000001784_12052cztM0_level2.evt | modeM0/AS1A03_085T02_9000001784_12052cztM0_level2_quad_clean.evt |
| Size (bytes) | 537,978,240 | 82,967,040 |
| Size | 513.1 MB | 79.1 MB |
| Events in quadrant A | 3,521,484 | 517,799 |
| Events in quadrant B | 5,092,010 | 503,564 |
| Events in quadrant C | 3,348,148 | 510,954 |
| Events in quadrant D | 3,858,449 | 494,779 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14915 | 3 |
| B | 0 | 19646 | 2 |
| C | 0 | 14612 | 2 |
| D | 0 | 15716 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6968 | 155 | 2.224455% |
| B | 6968 | 518 | 7.433984% |
| C | 6968 | 114 | 1.636051% |
| D | 6968 | 136 | 1.951780% |

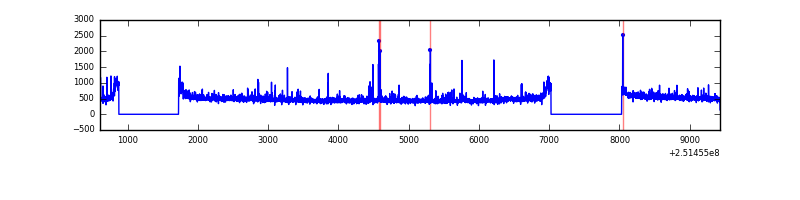

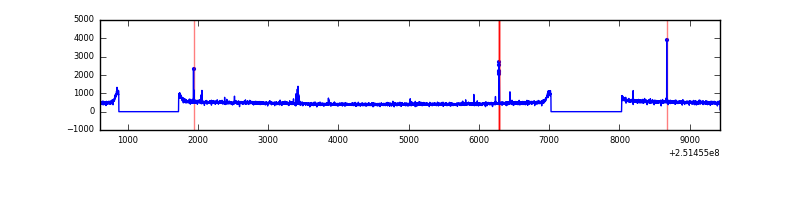

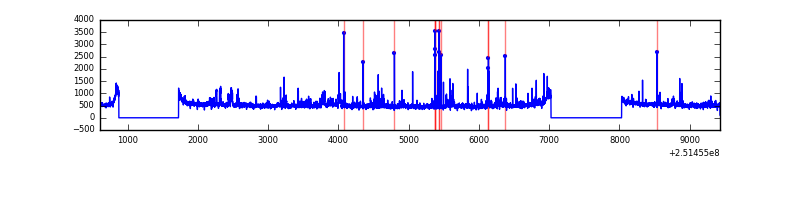

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8824 | 6969 | 4 | 4 | 0.05% | 0.06% |  |
| B | 8824 | 6969 | 200 | 200 | 2.27% | 2.87% |  |
| C | 8824 | 6969 | 7 | 7 | 0.08% | 0.10% |  |
| D | 8824 | 6969 | 13 | 13 | 0.15% | 0.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 49553 | 271.76 | 876 | 857 | 179.2 |
| A | 1 | 178 | 22262 | 119.46 | 876 | 857 | 179.2 |
| A | 5 | 16 | 21712 | 116.39 | 876 | 857 | 179.2 |
| B | 4 | 239 | 1165661 | 7019.73 | 860 | 839 | 165.9 |
| B | 0 | 85 | 203796 | 1223.11 | 860 | 839 | 165.9 |
| B | 15 | 204 | 150255 | 900.45 | 860 | 839 | 165.9 |
| C | 14 | 234 | 35585 | 176.06 | 848 | 853 | 197.3 |
| C | 13 | 61 | 6038 | 26.28 | 848 | 853 | 197.3 |
| C | 7 | 247 | 4571 | 18.85 | 848 | 853 | 197.3 |
| D | 8 | 195 | 292811 | 1431.48 | 844 | 821 | 204.0 |
| D | 1 | 52 | 281337 | 1375.23 | 844 | 821 | 204.0 |
| D | 10 | 50 | 47360 | 228.16 | 844 | 821 | 204.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

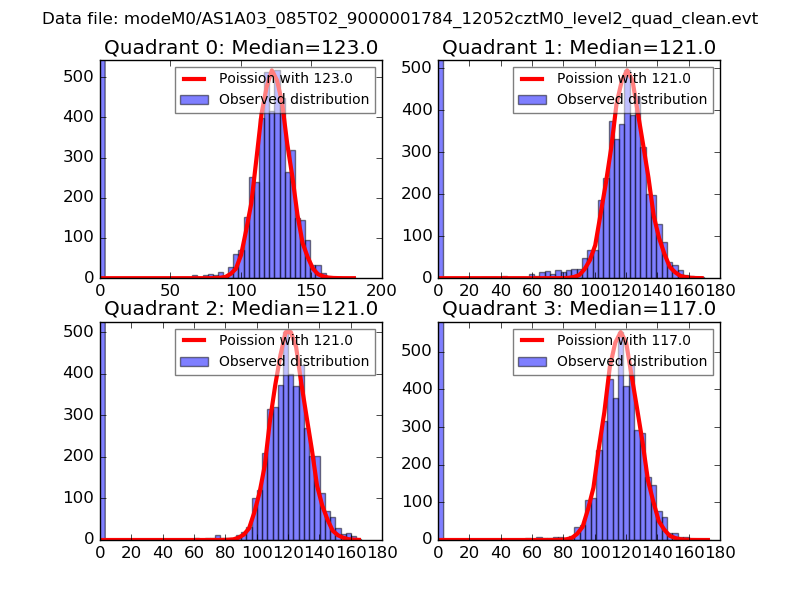

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

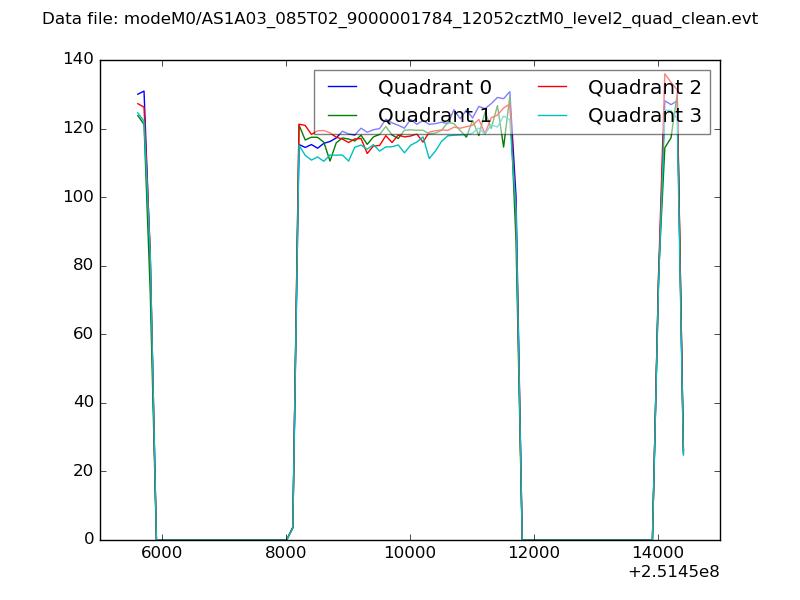

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

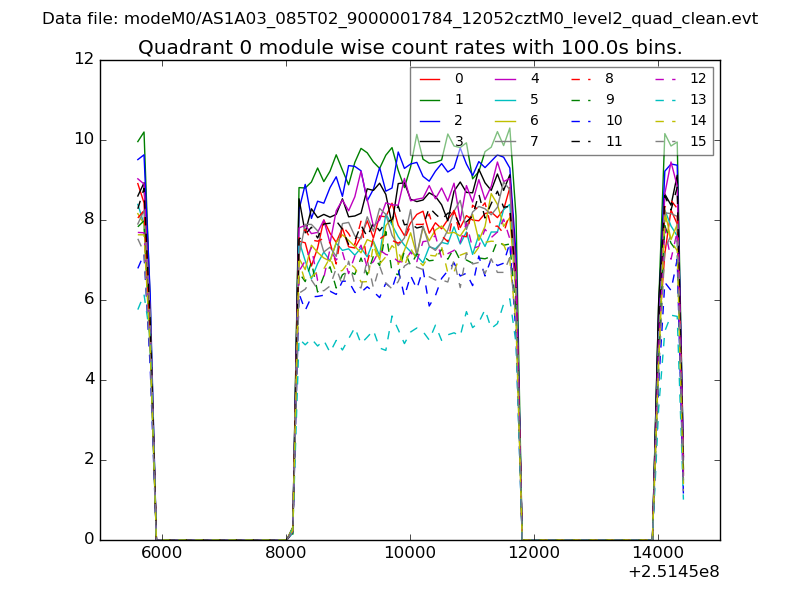

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

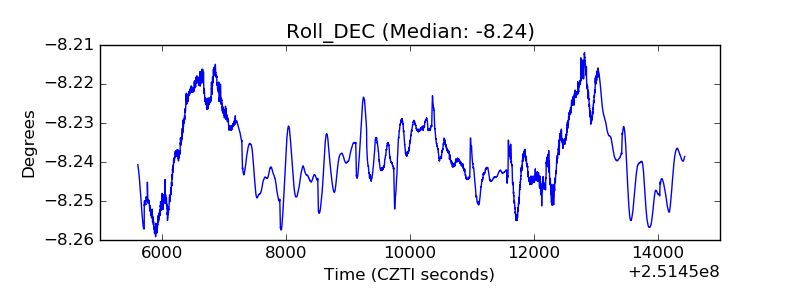

| _Roll_DEC |  |

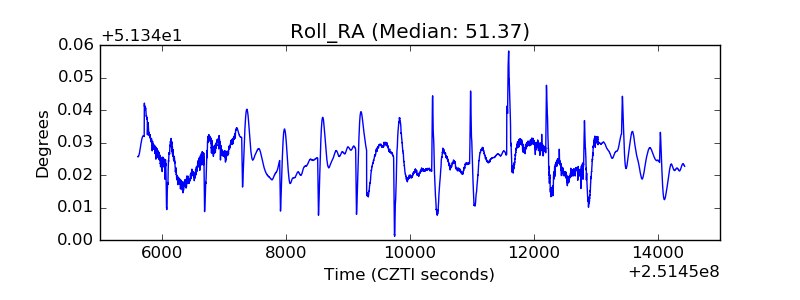

| _Roll_RA |  |
