| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_130T01_9000001792_12074cztM0_level2.evt | modeM0/AS1A04_130T01_9000001792_12074cztM0_level2_quad_clean.evt |
| Size (bytes) | 511,655,040 | 95,065,920 |
| Size | 488.0 MB | 90.7 MB |
| Events in quadrant A | 3,386,443 | 604,826 |
| Events in quadrant B | 4,483,033 | 592,529 |
| Events in quadrant C | 3,336,405 | 608,086 |
| Events in quadrant D | 3,816,027 | 587,405 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14677 | 0 |
| B | 0 | 17853 | 0 |
| C | 0 | 14684 | 0 |
| D | 0 | 15814 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6976 | 92 | 1.318807% |
| B | 6976 | 344 | 4.931193% |
| C | 6976 | 34 | 0.487385% |
| D | 6976 | 60 | 0.860092% |

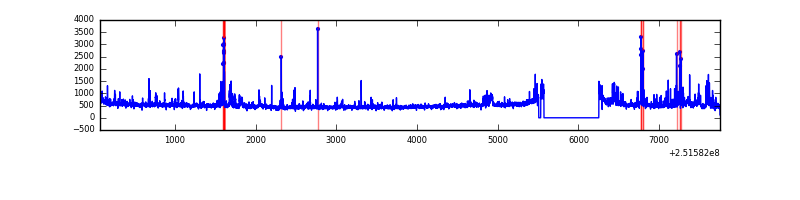

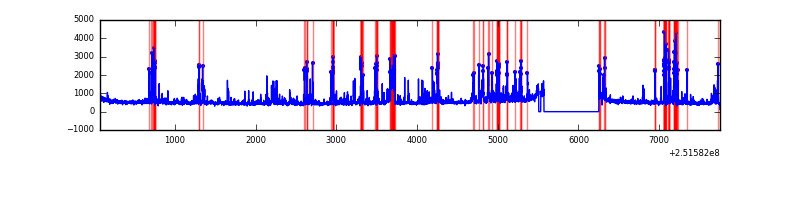

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7682 | 6979 | 5 | 5 | 0.07% | 0.07% |  |
| B | 7682 | 6979 | 171 | 171 | 2.23% | 2.45% |  |
| C | 7682 | 6979 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7682 | 6979 | 21 | 21 | 0.27% | 0.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 51899 | 301.53 | 836 | 818 | 169.4 |
| A | 3 | 1 | 23689 | 135.01 | 836 | 818 | 169.4 |
| A | 1 | 178 | 19059 | 107.67 | 836 | 818 | 169.4 |
| B | 4 | 239 | 1010970 | 6355.41 | 825 | 803 | 158.9 |
| B | 15 | 204 | 101387 | 632.82 | 825 | 803 | 158.9 |
| B | 3 | 209 | 59110 | 366.84 | 825 | 803 | 158.9 |
| C | 8 | 208 | 129967 | 673.56 | 820 | 826 | 191.7 |
| C | 13 | 61 | 6018 | 27.08 | 820 | 826 | 191.7 |
| C | 0 | 207 | 5255 | 23.1 | 820 | 826 | 191.7 |
| D | 1 | 52 | 243328 | 1241.32 | 817 | 795 | 195.4 |
| D | 8 | 195 | 214402 | 1093.27 | 817 | 795 | 195.4 |
| D | 14 | 34 | 71696 | 362.88 | 817 | 795 | 195.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

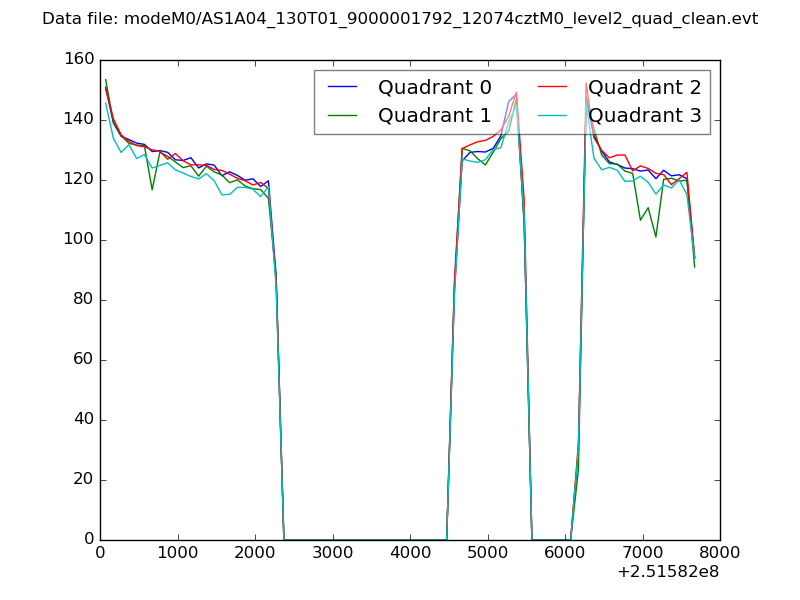

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

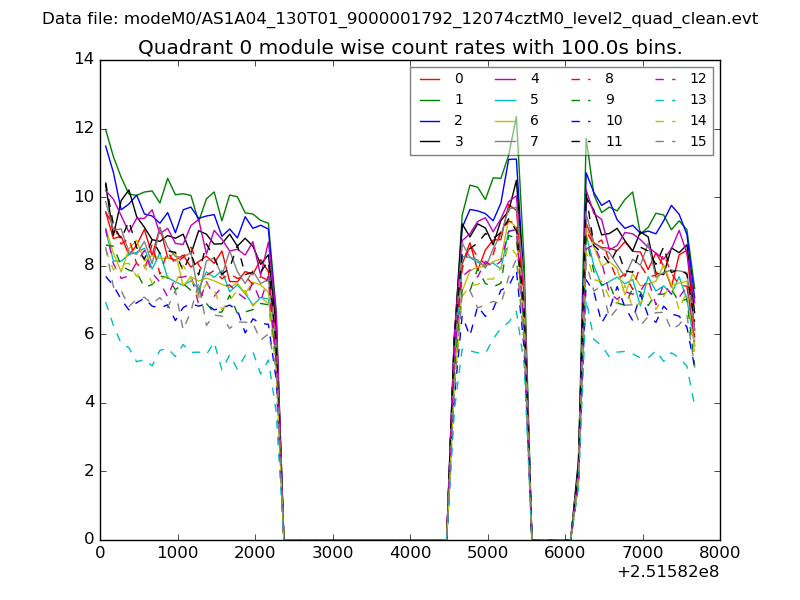

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

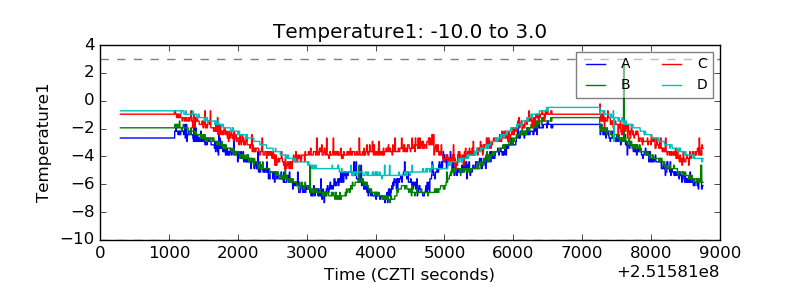

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

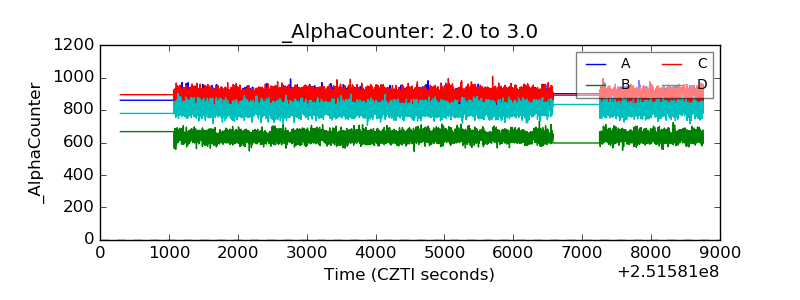

| Alpha Counter |  |
| _CPM_Rate |  |

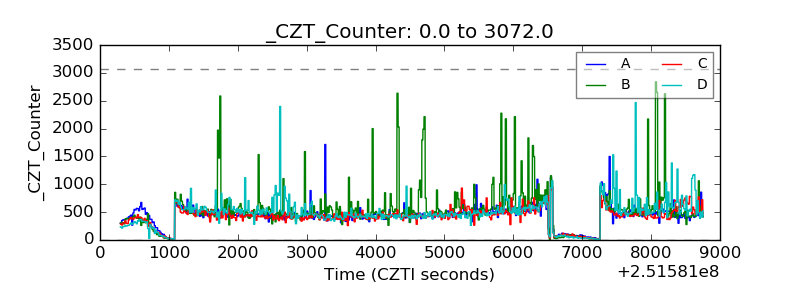

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

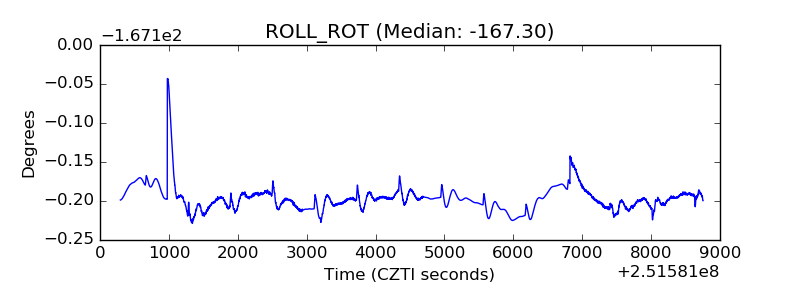

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
