| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_130T01_9000001792_12077cztM0_level2.evt | modeM0/AS1A04_130T01_9000001792_12077cztM0_level2_quad_clean.evt |
| Size (bytes) | 600,382,080 | 90,527,040 |
| Size | 572.6 MB | 86.3 MB |
| Events in quadrant A | 3,714,744 | 559,241 |
| Events in quadrant B | 5,443,173 | 545,221 |
| Events in quadrant C | 3,544,913 | 565,375 |
| Events in quadrant D | 4,960,492 | 538,352 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16121 | 3 |
| B | 0 | 21314 | 2 |
| C | 0 | 15841 | 2 |
| D | 0 | 19687 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7666 | 115 | 1.500130% |
| B | 7666 | 552 | 7.200626% |
| C | 7666 | 38 | 0.495695% |
| D | 7666 | 214 | 2.791547% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8232 | 7668 | 2 | 2 | 0.02% | 0.03% |  |
| B | 8232 | 7669 | 244 | 244 | 2.96% | 3.18% |  |
| C | 8232 | 7669 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8232 | 7669 | 113 | 113 | 1.37% | 1.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 60700 | 316.46 | 921 | 901 | 189.0 |
| A | 14 | 63 | 29554 | 151.63 | 921 | 901 | 189.0 |
| A | 1 | 162 | 20616 | 104.33 | 921 | 901 | 189.0 |
| B | 4 | 239 | 1478936 | 8346.58 | 906 | 881 | 177.1 |
| B | 11 | 51 | 107438 | 601.73 | 906 | 881 | 177.1 |
| B | 0 | 231 | 106028 | 593.77 | 906 | 881 | 177.1 |
| C | 8 | 208 | 16032 | 71.14 | 903 | 907 | 212.6 |
| C | 12 | 4 | 7004 | 28.68 | 903 | 907 | 212.6 |
| C | 13 | 61 | 6580 | 26.68 | 903 | 907 | 212.6 |
| D | 1 | 52 | 707916 | 3280.44 | 890 | 867 | 215.5 |
| D | 8 | 195 | 335550 | 1552.8 | 890 | 867 | 215.5 |
| D | 14 | 34 | 178966 | 826.31 | 890 | 867 | 215.5 |

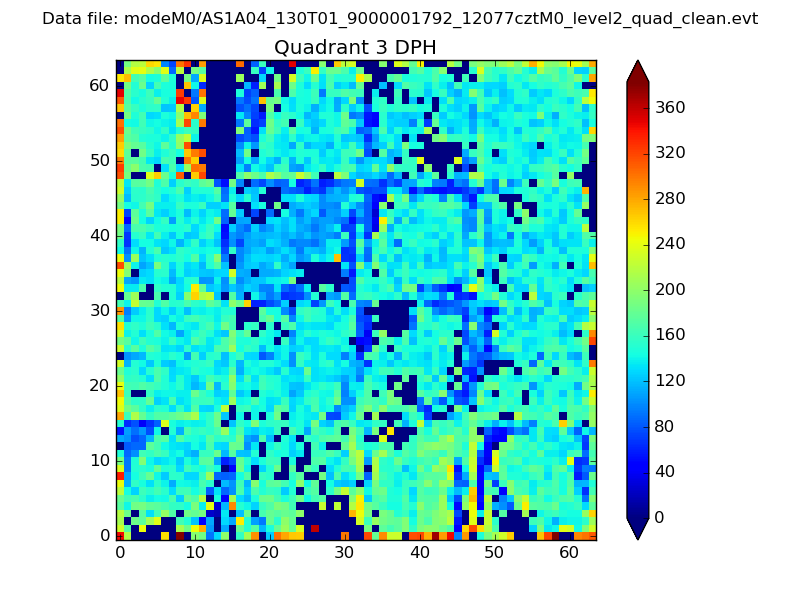

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

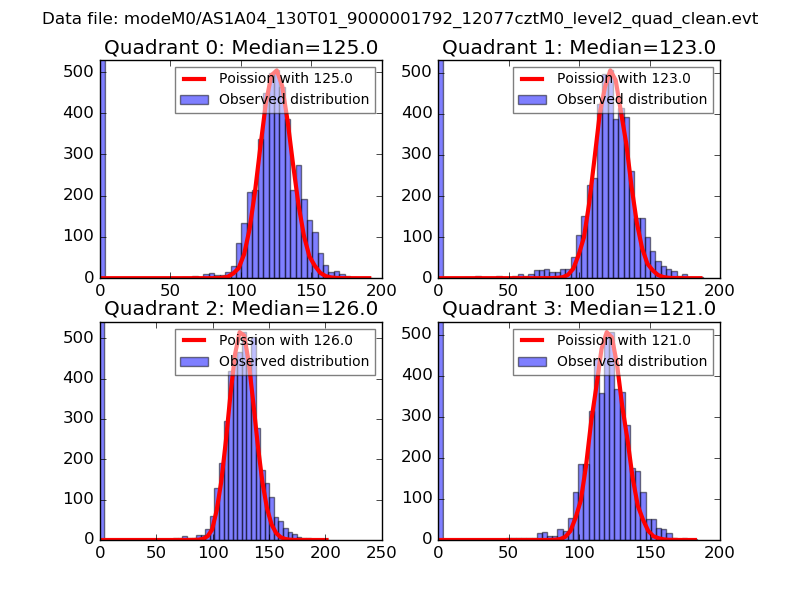

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

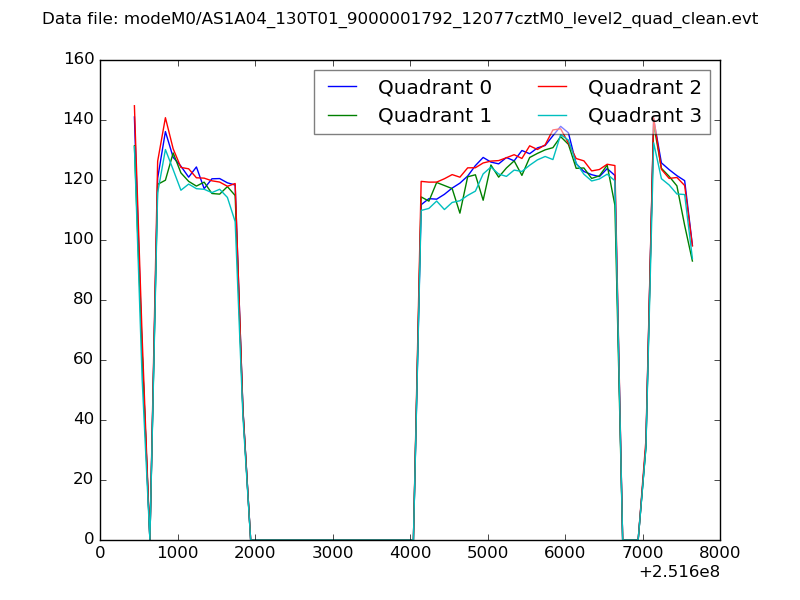

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

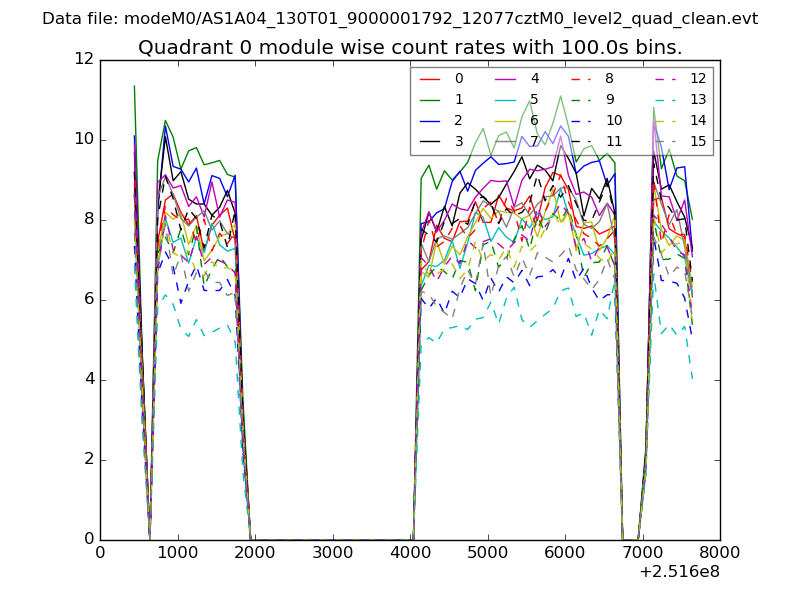

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
