| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_065T01_9000001796_12086cztM0_level2.evt | modeM0/AS1G08_065T01_9000001796_12086cztM0_level2_quad_clean.evt |
| Size (bytes) | 546,586,560 | 94,993,920 |
| Size | 521.3 MB | 90.6 MB |
| Events in quadrant A | 3,955,296 | 615,772 |
| Events in quadrant B | 4,293,906 | 613,768 |
| Events in quadrant C | 3,206,333 | 619,114 |
| Events in quadrant D | 4,671,881 | 589,241 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15967 | 3 |
| B | 0 | 16875 | 2 |
| C | 0 | 13557 | 2 |
| D | 0 | 18349 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6285 | 228 | 3.627685% |
| B | 6285 | 343 | 5.457438% |
| C | 6285 | 68 | 1.081941% |
| D | 6285 | 280 | 4.455052% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7621 | 6286 | 37 | 37 | 0.49% | 0.59% |  |
| B | 7621 | 6286 | 130 | 130 | 1.71% | 2.07% |  |
| C | 7621 | 6287 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7621 | 6286 | 170 | 170 | 2.23% | 2.70% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 220218 | 1323.59 | 825 | 810 | 165.8 |
| A | 13 | 251 | 160288 | 962.06 | 825 | 810 | 165.8 |
| A | 1 | 178 | 112793 | 675.54 | 825 | 810 | 165.8 |
| B | 4 | 239 | 867526 | 5762.54 | 819 | 801 | 150.4 |
| B | 15 | 204 | 109031 | 719.58 | 819 | 801 | 150.4 |
| B | 11 | 51 | 95892 | 632.23 | 819 | 801 | 150.4 |
| C | 14 | 67 | 7072 | 33.37 | 820 | 824 | 187.2 |
| C | 13 | 61 | 5974 | 27.5 | 820 | 824 | 187.2 |
| C | 8 | 208 | 2471 | 8.79 | 820 | 824 | 187.2 |
| D | 1 | 52 | 529667 | 2764.2 | 806 | 785 | 191.3 |
| D | 8 | 195 | 468532 | 2444.67 | 806 | 785 | 191.3 |
| D | 10 | 199 | 167276 | 870.16 | 806 | 785 | 191.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

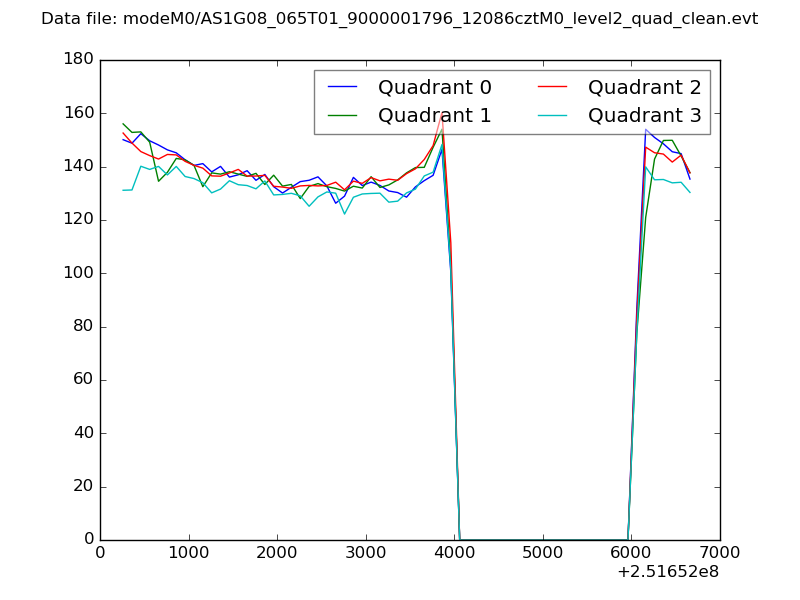

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

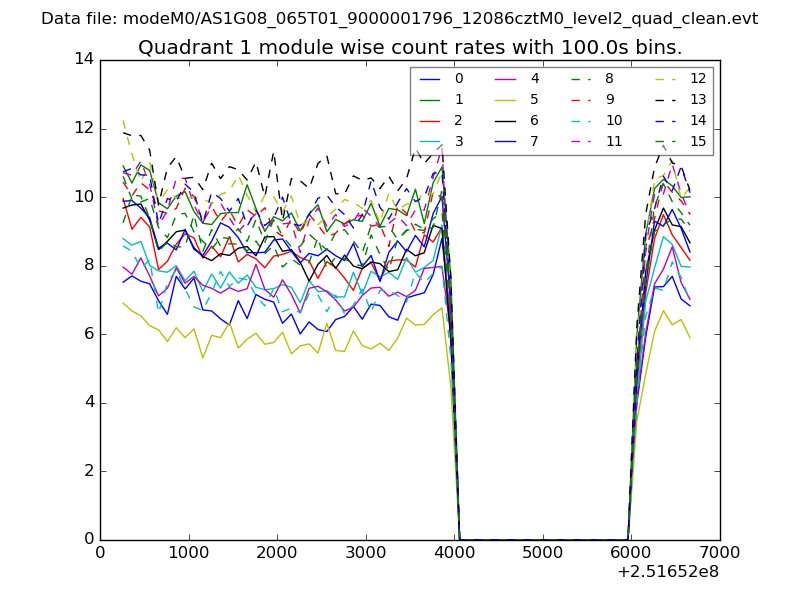

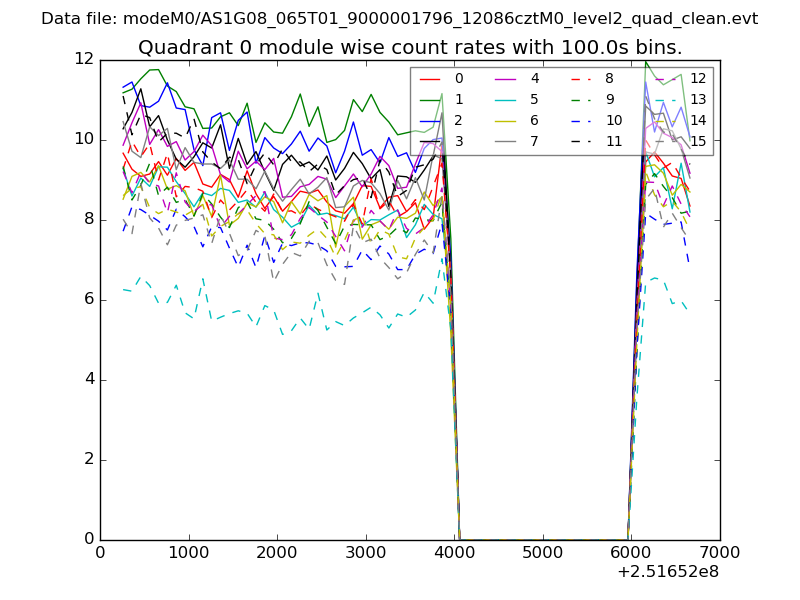

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

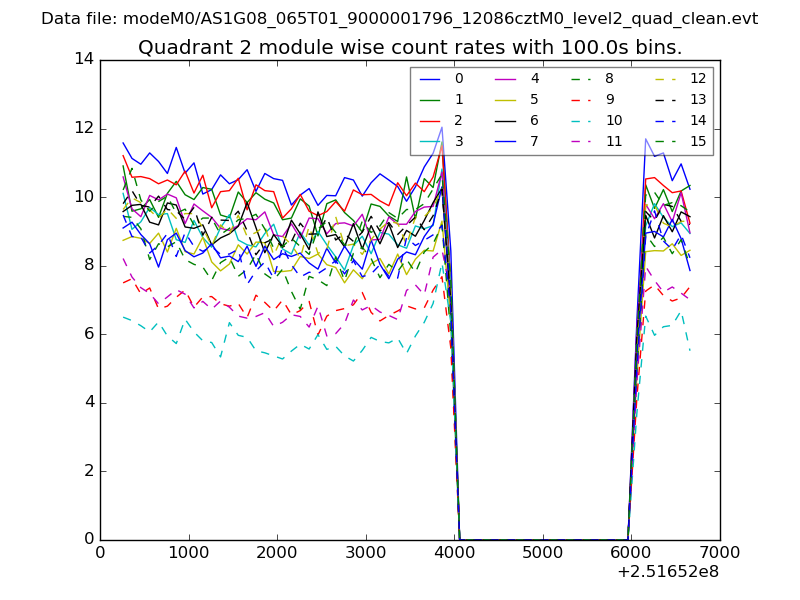

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

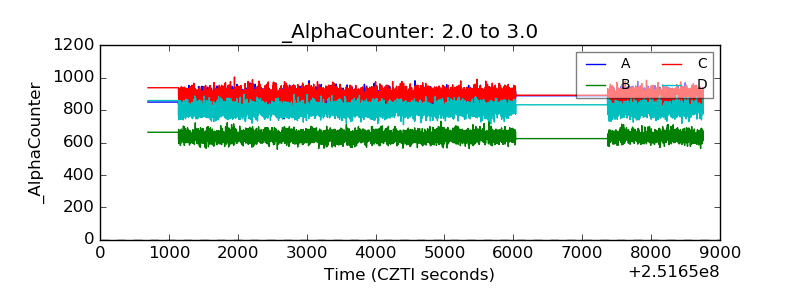

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

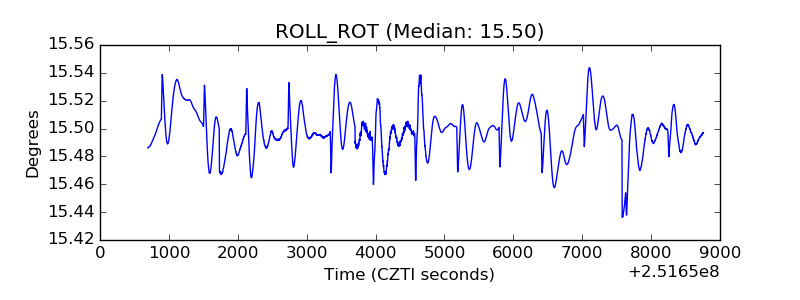

| _ROLL_ROT |  |

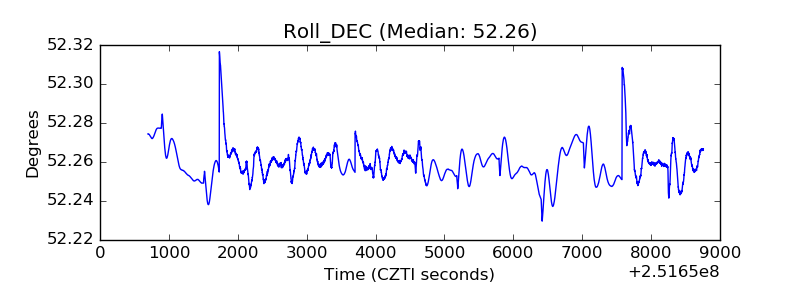

| _Roll_DEC |  |
| _Roll_RA |  |

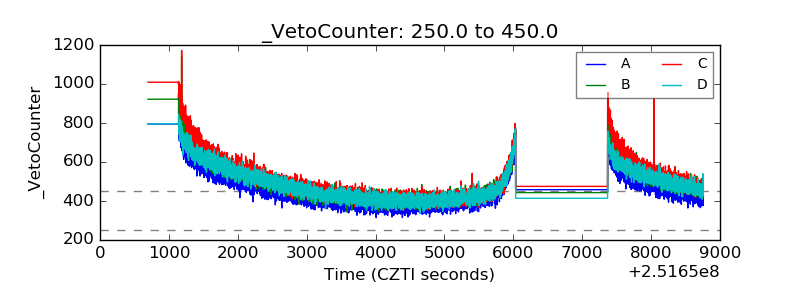

| Veto Counter |  |
