| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_065T01_9000001796_12098cztM0_level2.evt | modeM0/AS1G08_065T01_9000001796_12098cztM0_level2_quad_clean.evt |
| Size (bytes) | 537,102,720 | 70,819,200 |
| Size | 512.2 MB | 67.5 MB |
| Events in quadrant A | 3,694,600 | 433,553 |
| Events in quadrant B | 4,299,102 | 422,575 |
| Events in quadrant C | 3,245,999 | 422,212 |
| Events in quadrant D | 4,579,739 | 406,181 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15339 | 3 |
| B | 0 | 17119 | 2 |
| C | 0 | 13881 | 2 |
| D | 0 | 18155 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6599 | 97 | 1.469920% |
| B | 6599 | 269 | 4.076375% |
| C | 6599 | 36 | 0.545537% |
| D | 6599 | 183 | 2.773147% |

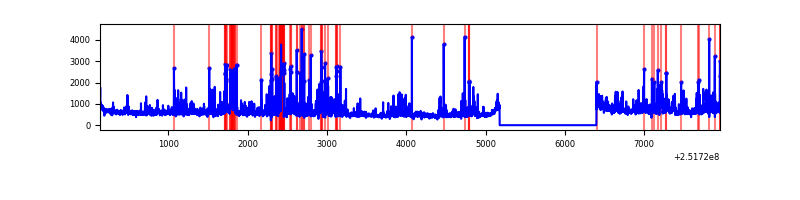

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7819 | 6599 | 10 | 10 | 0.13% | 0.15% |  |
| B | 7819 | 6600 | 118 | 118 | 1.51% | 1.79% |  |
| C | 7819 | 6599 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7819 | 6599 | 116 | 116 | 1.48% | 1.76% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 92231 | 530.48 | 865 | 848 | 172.3 |
| A | 14 | 63 | 67537 | 387.13 | 865 | 848 | 172.3 |
| A | 13 | 251 | 35501 | 201.16 | 865 | 848 | 172.3 |
| B | 4 | 239 | 587751 | 3720.68 | 848 | 829 | 157.7 |
| B | 15 | 204 | 151978 | 958.18 | 848 | 829 | 157.7 |
| B | 11 | 51 | 101870 | 640.53 | 848 | 829 | 157.7 |
| C | 13 | 61 | 6166 | 27.86 | 831 | 836 | 191.3 |
| C | 14 | 67 | 3233 | 12.53 | 831 | 836 | 191.3 |
| C | 12 | 4 | 2501 | 8.7 | 831 | 836 | 191.3 |
| D | 1 | 52 | 488705 | 2489.01 | 827 | 804 | 196.0 |
| D | 8 | 195 | 305356 | 1553.66 | 827 | 804 | 196.0 |
| D | 14 | 34 | 181388 | 921.24 | 827 | 804 | 196.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

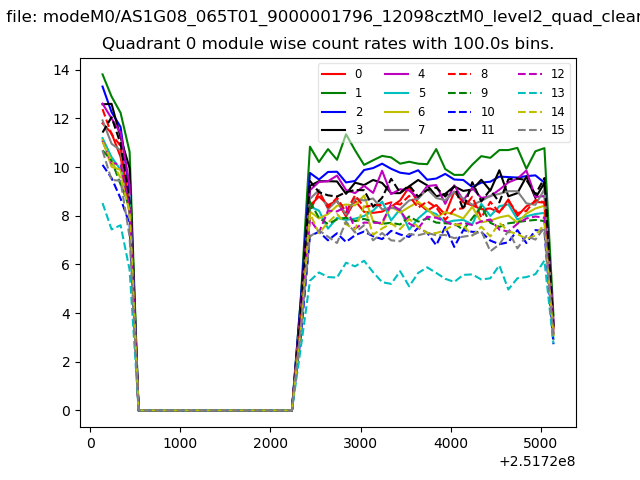

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

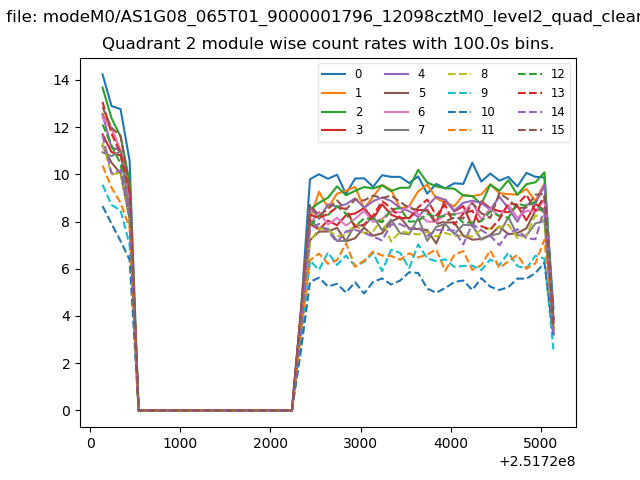

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

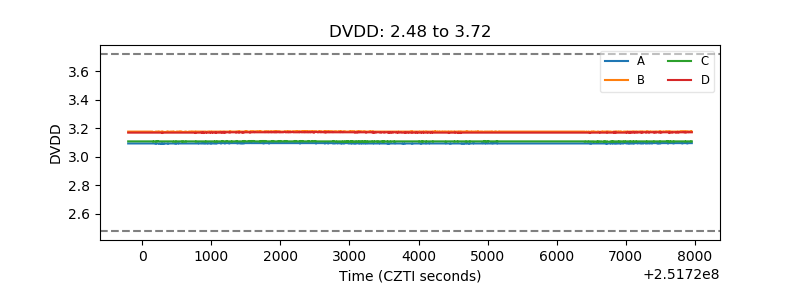

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

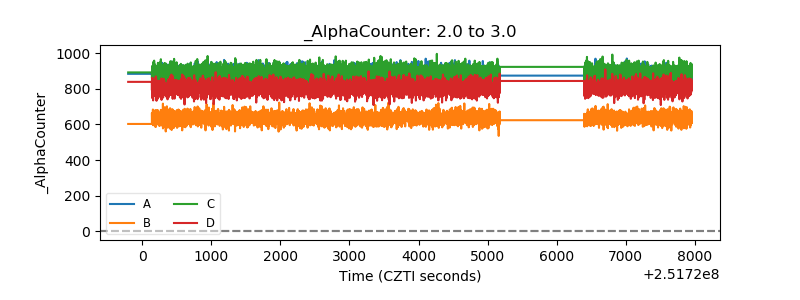

| Alpha Counter |  |

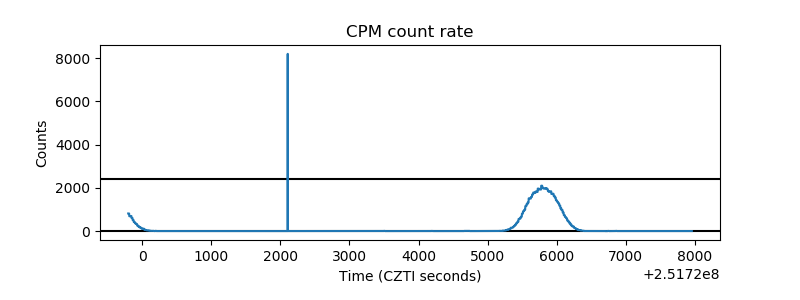

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

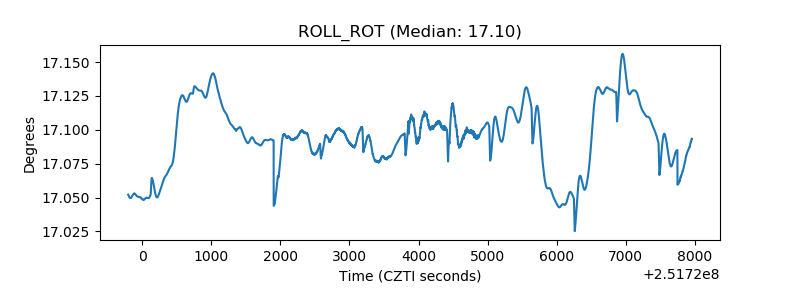

| _ROLL_ROT |  |
| _Roll_DEC |  |

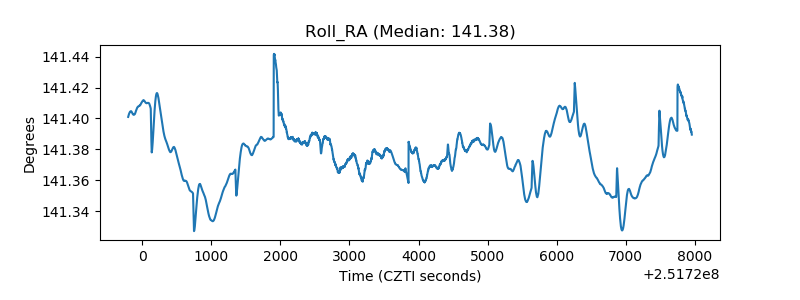

| _Roll_RA |  |
| Veto Counter |  |
