| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_065T01_9000001796_12113cztM0_level2.evt | modeM0/AS1G08_065T01_9000001796_12113cztM0_level2_quad_clean.evt |
| Size (bytes) | 571,858,560 | 71,519,040 |
| Size | 545.4 MB | 68.2 MB |
| Events in quadrant A | 3,611,219 | 442,194 |
| Events in quadrant B | 4,911,443 | 422,686 |
| Events in quadrant C | 3,397,701 | 430,599 |
| Events in quadrant D | 4,955,648 | 413,805 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14978 | 3 |
| B | 0 | 19270 | 2 |
| C | 0 | 14194 | 2 |
| D | 0 | 19250 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6537 | 94 | 1.437968% |
| B | 6537 | 311 | 4.757534% |
| C | 6537 | 58 | 0.887257% |
| D | 6537 | 310 | 4.742236% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

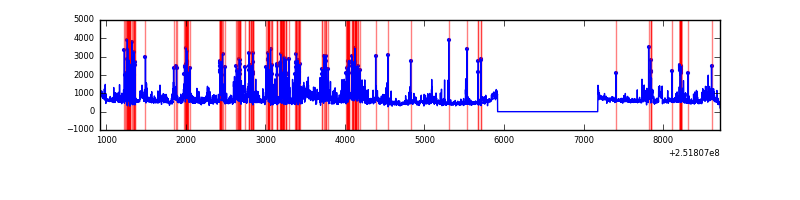

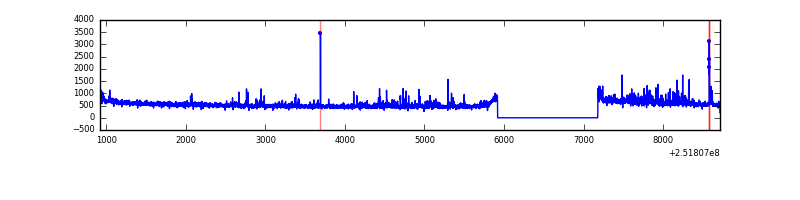

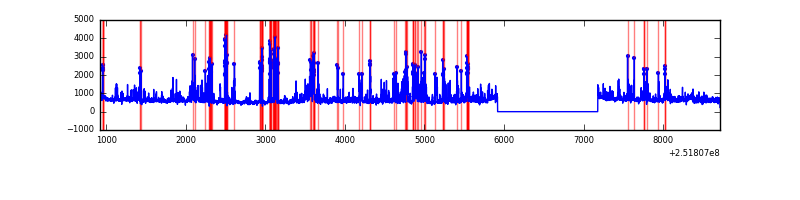

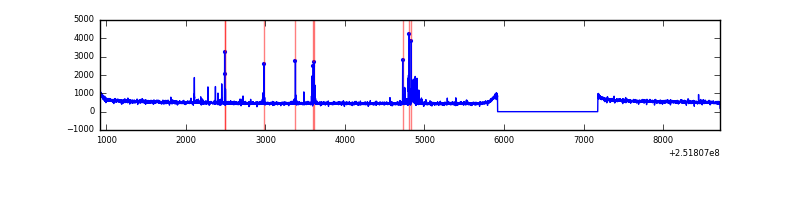

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7798 | 6539 | 4 | 4 | 0.05% | 0.06% |  |
| B | 7798 | 6539 | 145 | 145 | 1.86% | 2.22% |  |
| C | 7798 | 6538 | 9 | 9 | 0.12% | 0.14% |  |
| D | 7798 | 6538 | 213 | 213 | 2.73% | 3.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 86168 | 494.26 | 874 | 857 | 172.6 |
| A | 1 | 178 | 38487 | 218.02 | 874 | 857 | 172.6 |
| A | 1 | 161 | 35362 | 199.91 | 874 | 857 | 172.6 |
| B | 4 | 239 | 1027743 | 6540.25 | 851 | 835 | 157.0 |
| B | 15 | 204 | 142616 | 902.99 | 851 | 835 | 157.0 |
| B | 4 | 173 | 132839 | 840.72 | 851 | 835 | 157.0 |
| C | 15 | 208 | 119692 | 619.45 | 841 | 849 | 191.9 |
| C | 13 | 61 | 6208 | 27.93 | 841 | 849 | 191.9 |
| C | 3 | 202 | 2126 | 6.66 | 841 | 849 | 191.9 |
| D | 1 | 52 | 1428569 | 7337.86 | 832 | 812 | 194.6 |
| D | 10 | 199 | 93497 | 476.35 | 832 | 812 | 194.6 |
| D | 10 | 50 | 73244 | 372.26 | 832 | 812 | 194.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

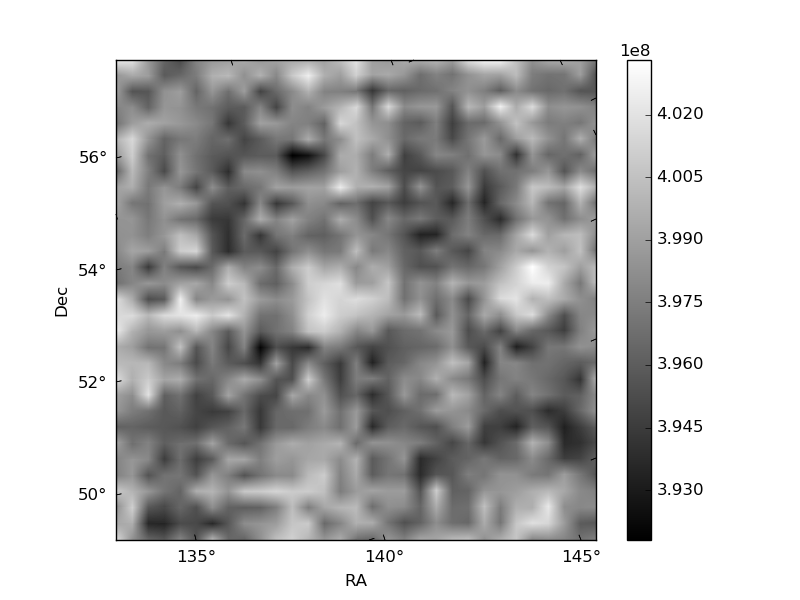

| Plot type | Count rate plots | Images |
|---|---|---|

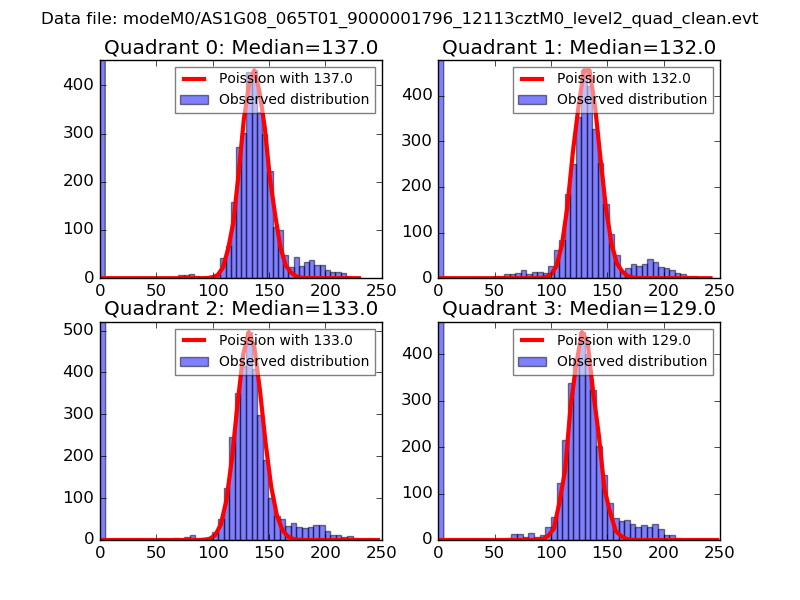

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

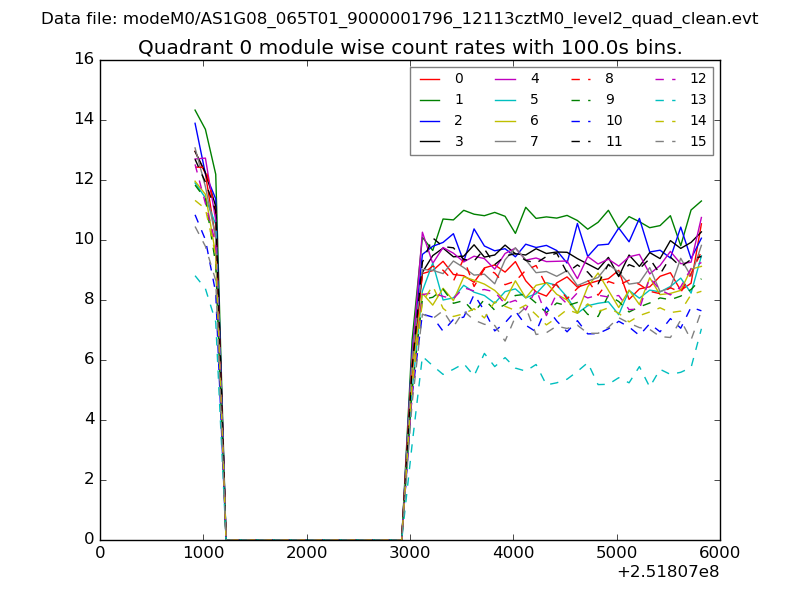

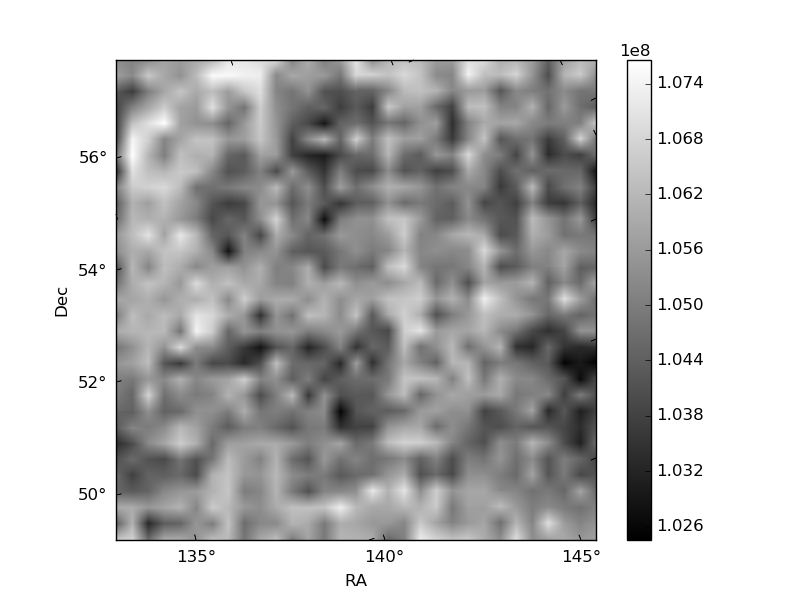

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

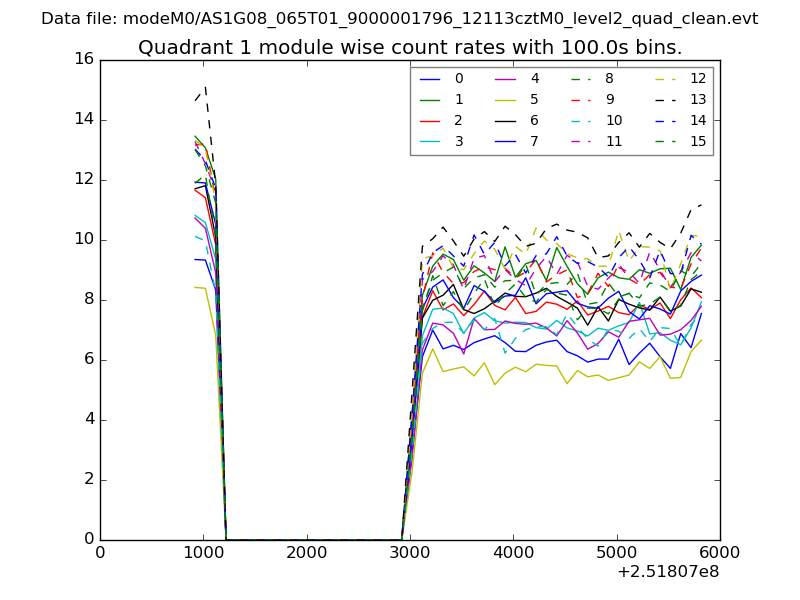

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

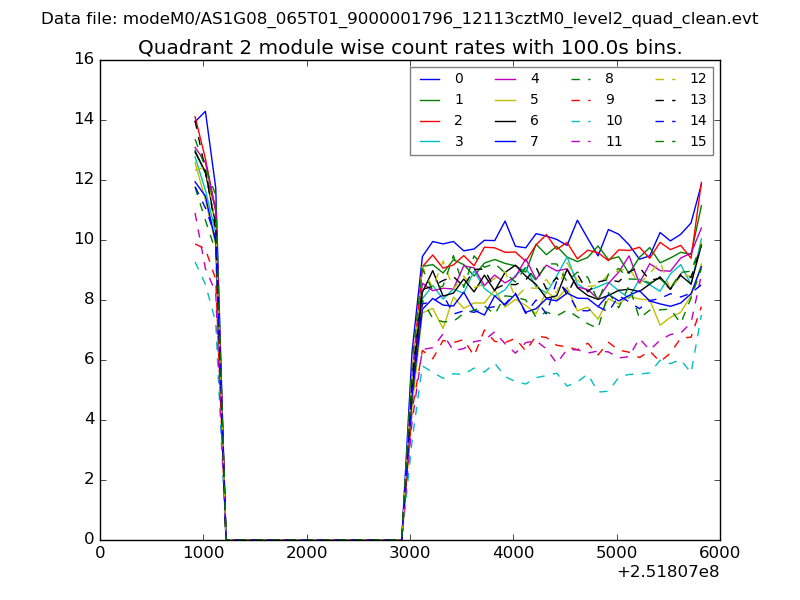

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

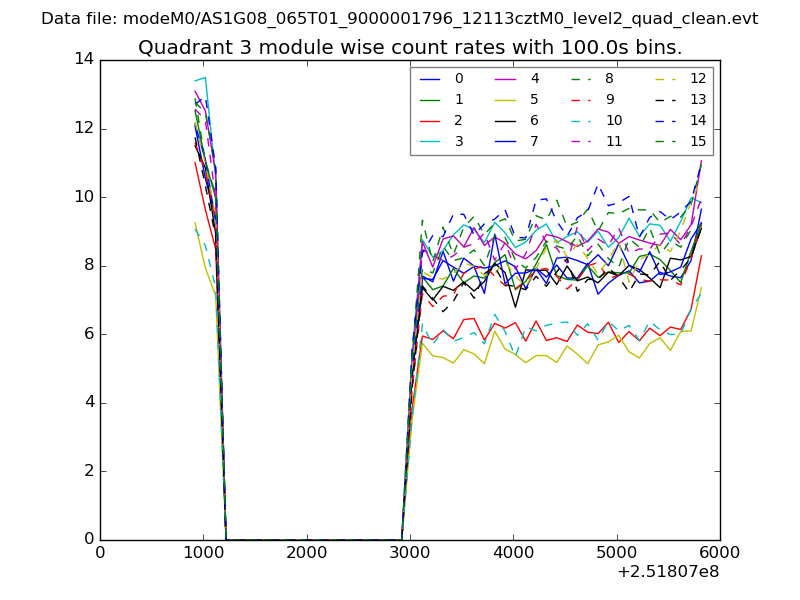

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

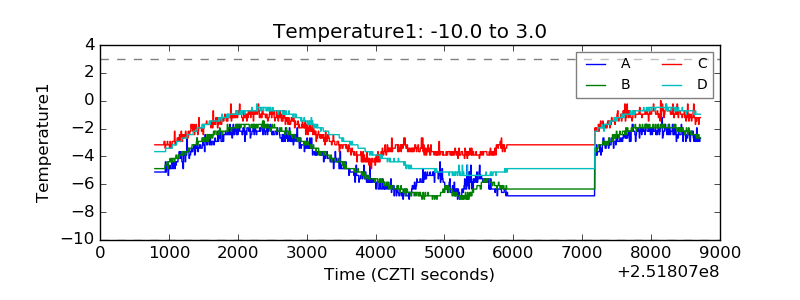

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

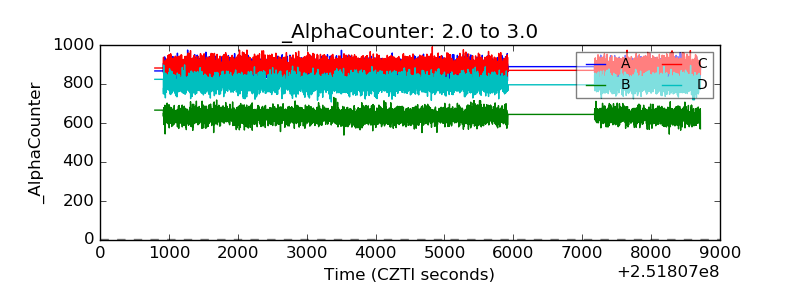

| Alpha Counter |  |

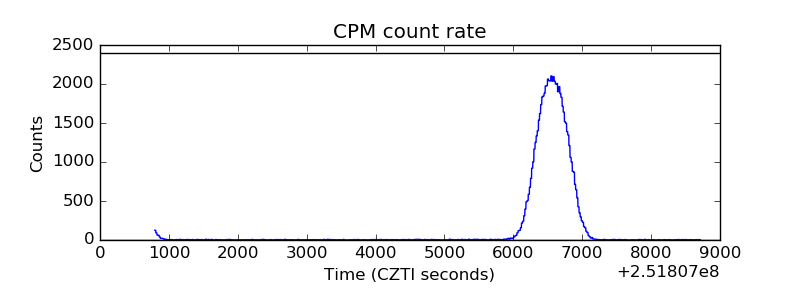

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

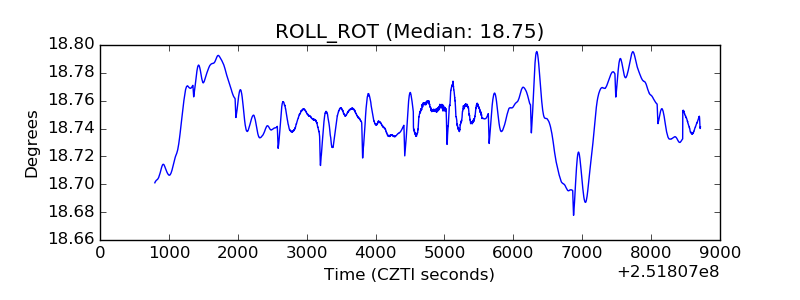

| _ROLL_ROT |  |

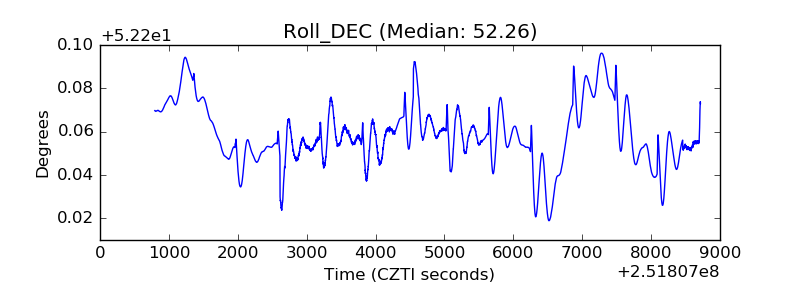

| _Roll_DEC |  |

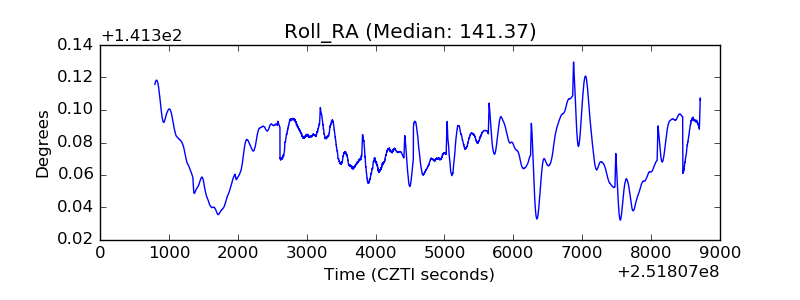

| _Roll_RA |  |

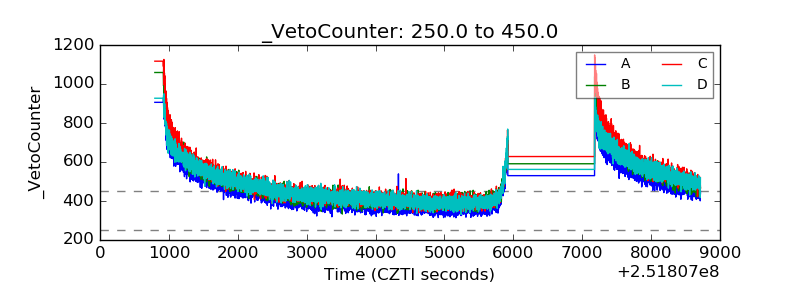

| Veto Counter |  |
