| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_065T01_9000001796_12114cztM0_level2.evt | modeM0/AS1G08_065T01_9000001796_12114cztM0_level2_quad_clean.evt |
| Size (bytes) | 538,401,600 | 74,589,120 |
| Size | 513.5 MB | 71.1 MB |
| Events in quadrant A | 3,652,089 | 467,414 |
| Events in quadrant B | 4,698,527 | 446,175 |
| Events in quadrant C | 3,577,453 | 454,258 |
| Events in quadrant D | 3,944,041 | 444,432 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15135 | 3 |
| B | 0 | 18562 | 2 |
| C | 0 | 14609 | 2 |
| D | 0 | 16152 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6393 | 125 | 1.955264% |
| B | 6393 | 317 | 4.958548% |
| C | 6393 | 107 | 1.673706% |
| D | 6393 | 140 | 2.189895% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7714 | 6394 | 15 | 15 | 0.19% | 0.23% |  |
| B | 7714 | 6394 | 144 | 144 | 1.87% | 2.25% |  |
| C | 7714 | 6394 | 38 | 38 | 0.49% | 0.59% |  |
| D | 7714 | 6394 | 56 | 56 | 0.73% | 0.88% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 124993 | 726.76 | 866 | 851 | 170.8 |
| A | 1 | 178 | 51270 | 295.17 | 866 | 851 | 170.8 |
| A | 1 | 161 | 47603 | 273.7 | 866 | 851 | 170.8 |
| B | 4 | 239 | 896488 | 5744.57 | 845 | 827 | 155.9 |
| B | 15 | 204 | 133557 | 851.3 | 845 | 827 | 155.9 |
| B | 4 | 206 | 127483 | 812.34 | 845 | 827 | 155.9 |
| C | 15 | 208 | 292185 | 1526.61 | 841 | 846 | 190.8 |
| C | 13 | 61 | 6150 | 27.79 | 841 | 846 | 190.8 |
| C | 7 | 247 | 4876 | 21.11 | 841 | 846 | 190.8 |
| D | 1 | 52 | 275133 | 1379.8 | 841 | 822 | 198.8 |
| D | 8 | 195 | 98184 | 489.74 | 841 | 822 | 198.8 |
| D | 4 | 95 | 97479 | 486.19 | 841 | 822 | 198.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

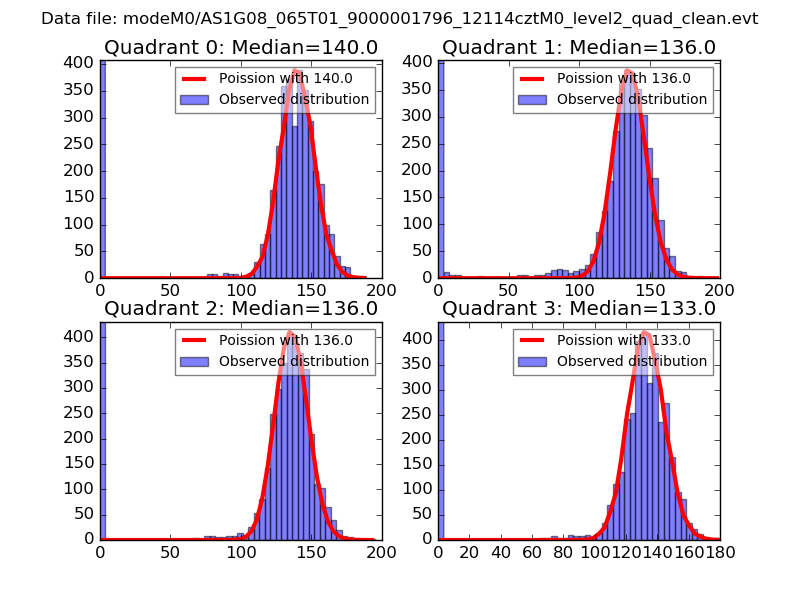

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
