| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_065T01_9000001796_12117cztM0_level2.evt | modeM0/AS1G08_065T01_9000001796_12117cztM0_level2_quad_clean.evt |
| Size (bytes) | 540,060,480 | 103,086,720 |
| Size | 515.0 MB | 98.3 MB |
| Events in quadrant A | 3,352,610 | 682,606 |
| Events in quadrant B | 4,902,028 | 652,827 |
| Events in quadrant C | 3,169,799 | 677,213 |
| Events in quadrant D | 4,484,973 | 650,140 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14411 | 2 |
| B | 0 | 19010 | 1 |
| C | 0 | 13898 | 1 |
| D | 0 | 17825 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6590 | 57 | 0.864947% |
| B | 6590 | 450 | 6.828528% |
| C | 6590 | 36 | 0.546282% |
| D | 6590 | 151 | 2.291351% |

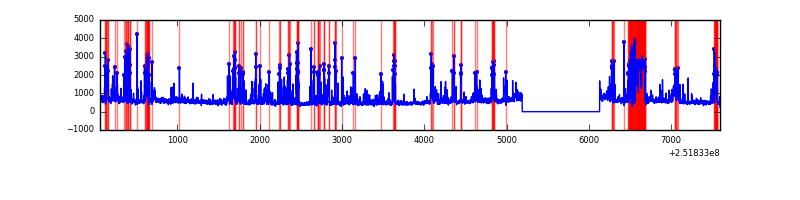

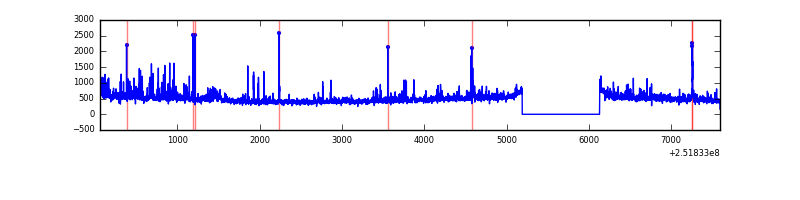

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7531 | 6592 | 8 | 8 | 0.11% | 0.12% |  |
| B | 7531 | 6592 | 281 | 281 | 3.73% | 4.26% |  |
| C | 7531 | 6592 | 15 | 15 | 0.20% | 0.23% |  |
| D | 7531 | 6592 | 54 | 54 | 0.72% | 0.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 100036 | 623.01 | 788 | 773 | 159.3 |
| A | 14 | 63 | 51357 | 317.48 | 788 | 773 | 159.3 |
| A | 1 | 178 | 45947 | 283.53 | 788 | 773 | 159.3 |
| B | 4 | 239 | 1555857 | 10836.97 | 766 | 747 | 143.5 |
| B | 15 | 204 | 189186 | 1313.16 | 766 | 747 | 143.5 |
| B | 11 | 51 | 82572 | 570.21 | 766 | 747 | 143.5 |
| C | 15 | 208 | 154791 | 863.79 | 772 | 776 | 178.3 |
| C | 14 | 234 | 6231 | 30.59 | 772 | 776 | 178.3 |
| C | 13 | 61 | 5596 | 27.03 | 772 | 776 | 178.3 |
| D | 1 | 52 | 1123897 | 6171.3 | 760 | 740 | 182.0 |
| D | 14 | 34 | 162830 | 890.62 | 760 | 740 | 182.0 |
| D | 4 | 95 | 97834 | 533.49 | 760 | 740 | 182.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

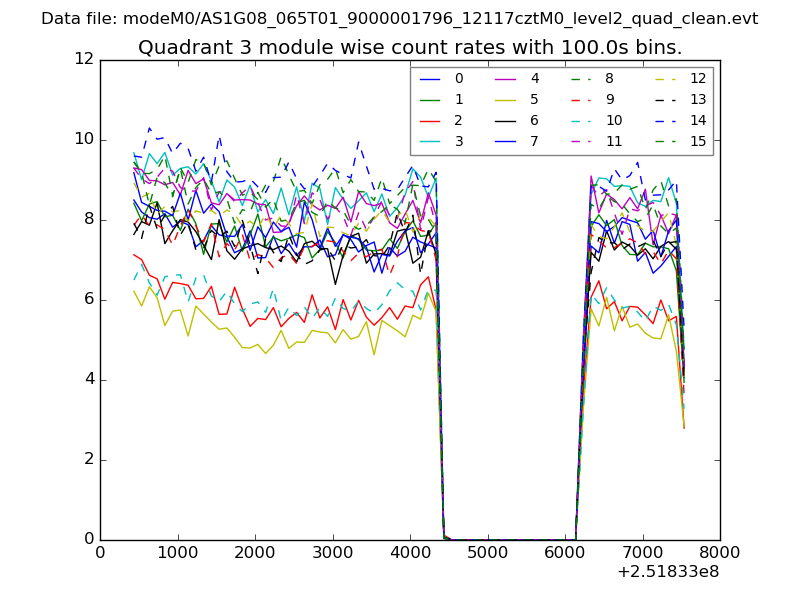

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

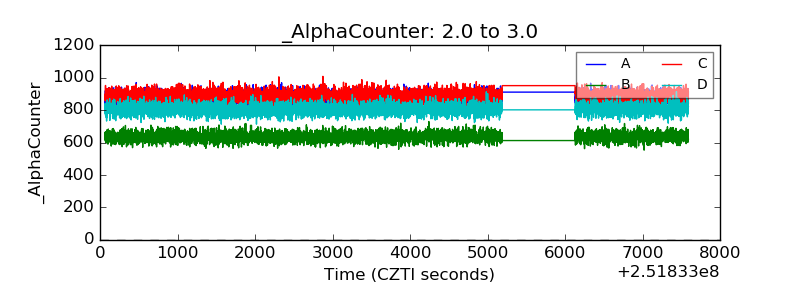

| Alpha Counter |  |

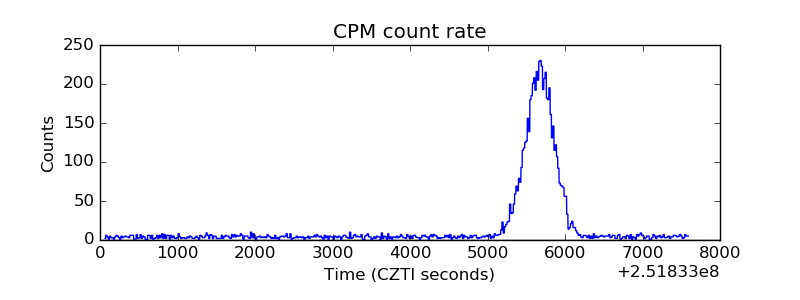

| _CPM_Rate |  |

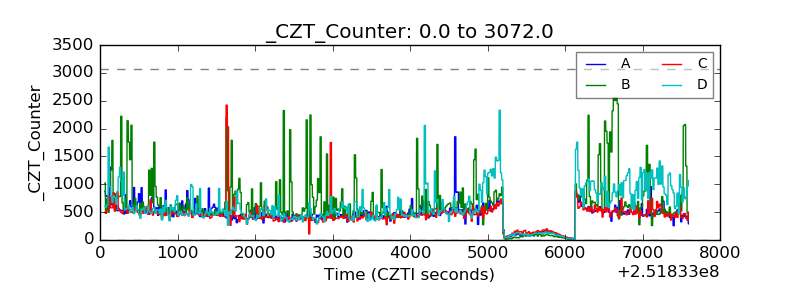

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

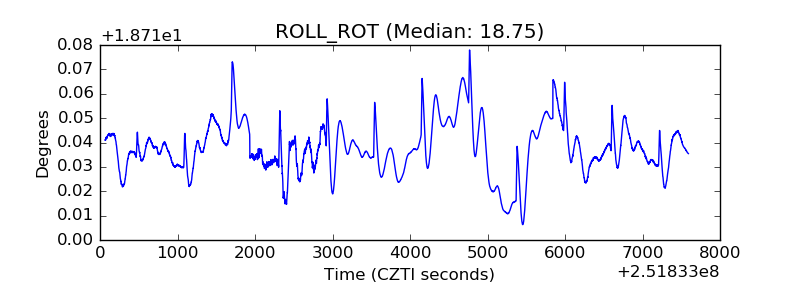

| _ROLL_ROT |  |

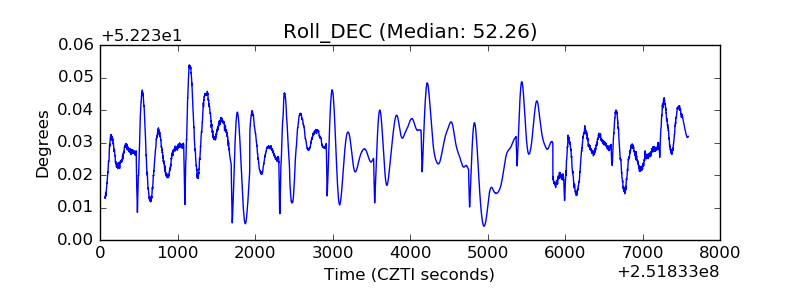

| _Roll_DEC |  |
