| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_065T01_9000001796_12126cztM0_level2.evt | modeM0/AS1G08_065T01_9000001796_12126cztM0_level2_quad_clean.evt |
| Size (bytes) | 558,763,200 | 85,530,240 |
| Size | 532.9 MB | 81.6 MB |
| Events in quadrant A | 4,303,271 | 538,917 |
| Events in quadrant B | 4,792,545 | 530,469 |
| Events in quadrant C | 3,230,760 | 533,173 |
| Events in quadrant D | 4,135,144 | 513,832 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17724 | 3 |
| B | 0 | 18712 | 2 |
| C | 0 | 14131 | 2 |
| D | 0 | 16472 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6794 | 119 | 1.751545% |
| B | 6794 | 365 | 5.372387% |
| C | 6794 | 57 | 0.838976% |
| D | 6794 | 145 | 2.134236% |

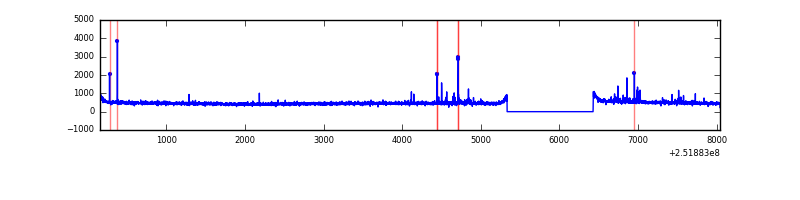

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7890 | 6795 | 3 | 3 | 0.04% | 0.04% |  |
| B | 7890 | 6796 | 151 | 151 | 1.91% | 2.22% |  |
| C | 7890 | 6796 | 7 | 7 | 0.09% | 0.10% |  |
| D | 7890 | 6796 | 76 | 76 | 0.96% | 1.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 63 | 724723 | 4266.55 | 845 | 831 | 169.7 |
| A | 13 | 248 | 125302 | 733.62 | 845 | 831 | 169.7 |
| A | 1 | 162 | 82263 | 479.95 | 845 | 831 | 169.7 |
| B | 4 | 239 | 819257 | 5191.39 | 828 | 808 | 157.7 |
| B | 15 | 201 | 212475 | 1342.6 | 828 | 808 | 157.7 |
| B | 11 | 51 | 162265 | 1024.12 | 828 | 808 | 157.7 |
| C | 15 | 208 | 70571 | 375.03 | 808 | 814 | 186.0 |
| C | 14 | 234 | 6139 | 28.63 | 808 | 814 | 186.0 |
| C | 13 | 61 | 5886 | 27.27 | 808 | 814 | 186.0 |
| D | 1 | 52 | 542608 | 2793.01 | 809 | 786 | 194.0 |
| D | 8 | 195 | 215458 | 1106.6 | 809 | 786 | 194.0 |
| D | 10 | 50 | 92271 | 471.59 | 809 | 786 | 194.0 |

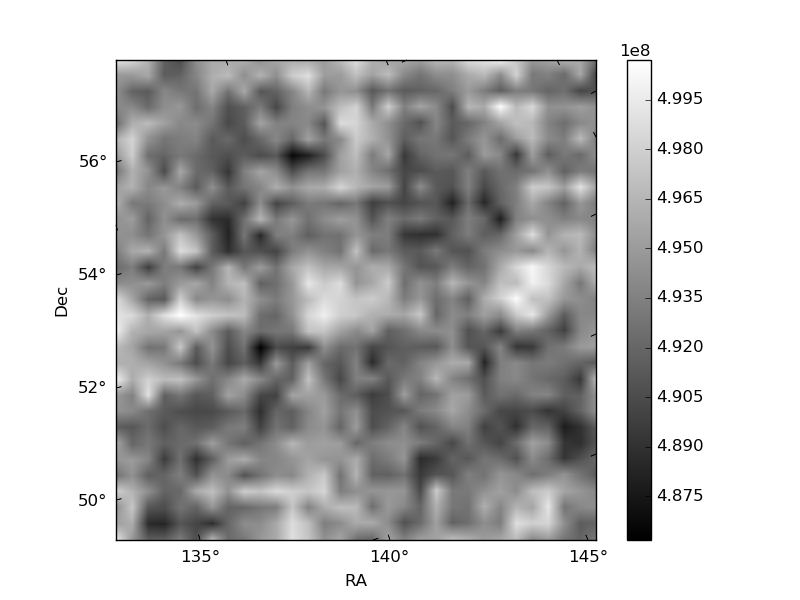

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

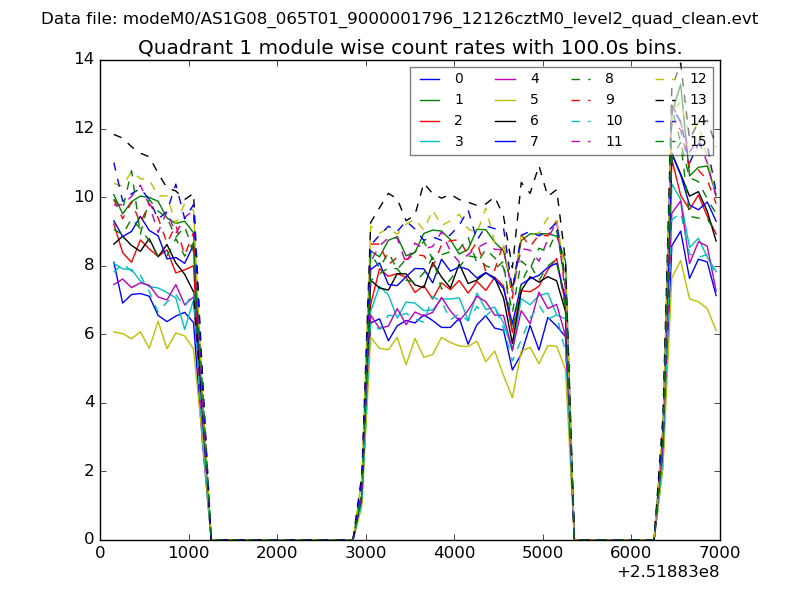

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

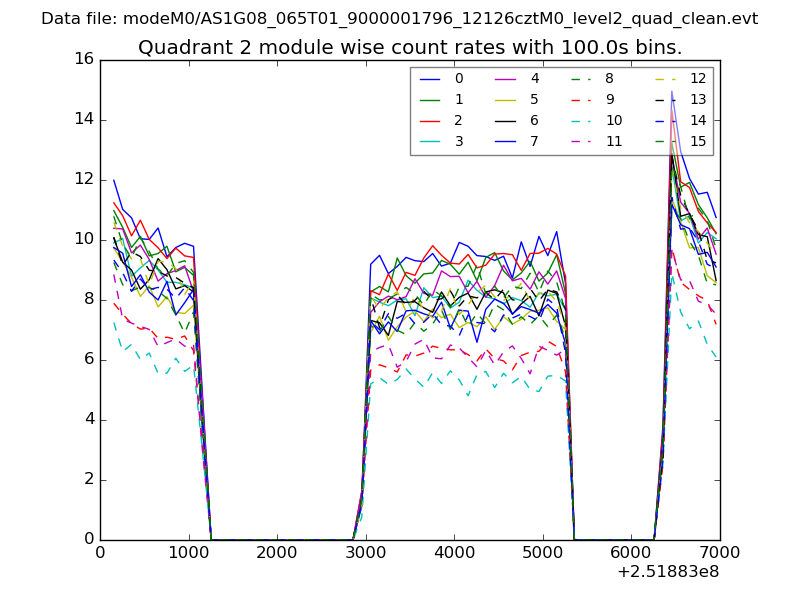

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

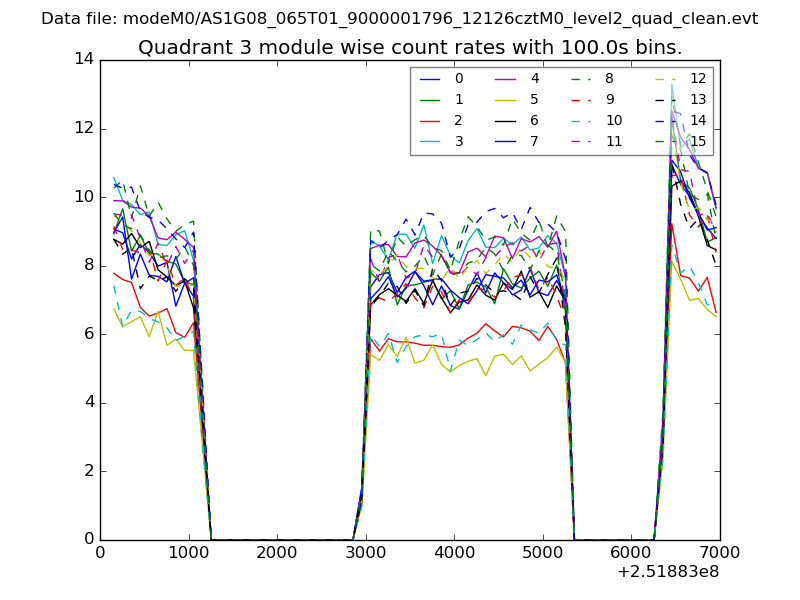

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

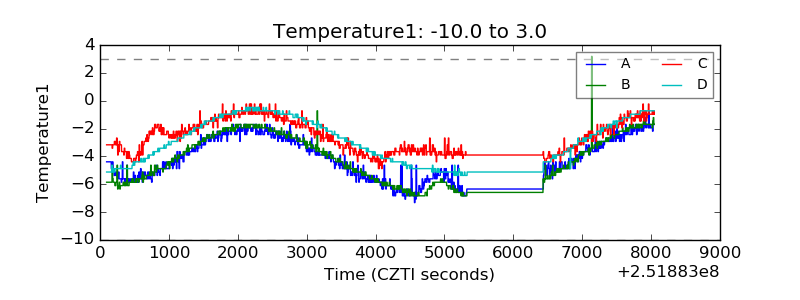

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

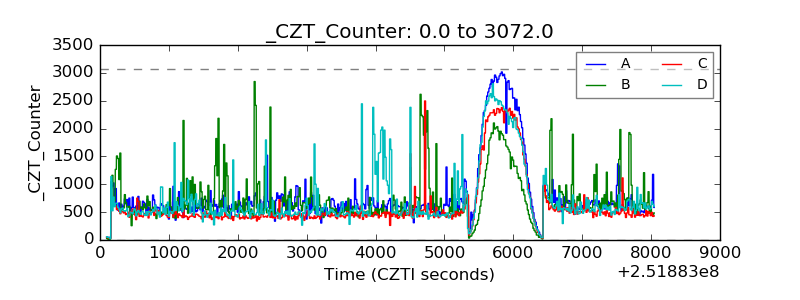

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

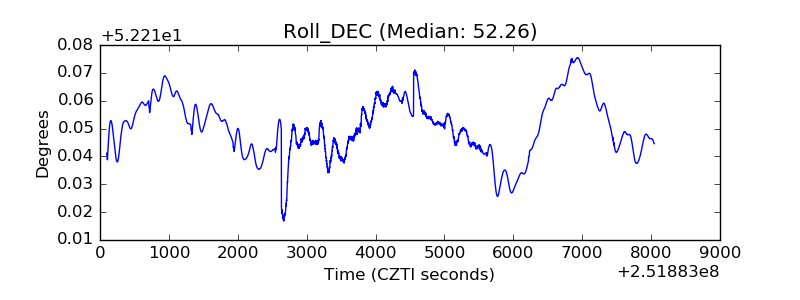

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
