| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_065T01_9000001796_12146cztM0_level2.evt | modeM0/AS1G08_065T01_9000001796_12146cztM0_level2_quad_clean.evt |
| Size (bytes) | 493,695,360 | 101,796,480 |
| Size | 470.8 MB | 97.1 MB |
| Events in quadrant A | 3,425,846 | 666,428 |
| Events in quadrant B | 4,096,880 | 655,767 |
| Events in quadrant C | 3,166,810 | 655,162 |
| Events in quadrant D | 3,801,929 | 633,415 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14647 | 3 |
| B | 0 | 16670 | 2 |
| C | 0 | 13970 | 2 |
| D | 0 | 15840 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6780 | 128 | 1.887906% |
| B | 6780 | 284 | 4.188791% |
| C | 6780 | 67 | 0.988201% |
| D | 6780 | 157 | 2.315634% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7671 | 6782 | 7 | 7 | 0.09% | 0.10% |  |
| B | 7671 | 6782 | 99 | 99 | 1.29% | 1.46% |  |
| C | 7671 | 6782 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7671 | 6782 | 64 | 64 | 0.83% | 0.94% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 66514 | 397.43 | 826 | 808 | 165.3 |
| A | 15 | 239 | 53889 | 321.07 | 826 | 808 | 165.3 |
| A | 1 | 178 | 29235 | 171.94 | 826 | 808 | 165.3 |
| B | 4 | 239 | 471305 | 3074.12 | 813 | 792 | 153.1 |
| B | 3 | 64 | 110823 | 718.89 | 813 | 792 | 153.1 |
| B | 15 | 204 | 108430 | 703.26 | 813 | 792 | 153.1 |
| C | 15 | 208 | 10994 | 55.03 | 809 | 813 | 185.0 |
| C | 13 | 61 | 5706 | 26.45 | 809 | 813 | 185.0 |
| C | 4 | 175 | 2178 | 7.38 | 809 | 813 | 185.0 |
| D | 1 | 52 | 430774 | 2212.62 | 805 | 783 | 194.3 |
| D | 8 | 195 | 142856 | 731.07 | 805 | 783 | 194.3 |
| D | 5 | 222 | 56934 | 288.94 | 805 | 783 | 194.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

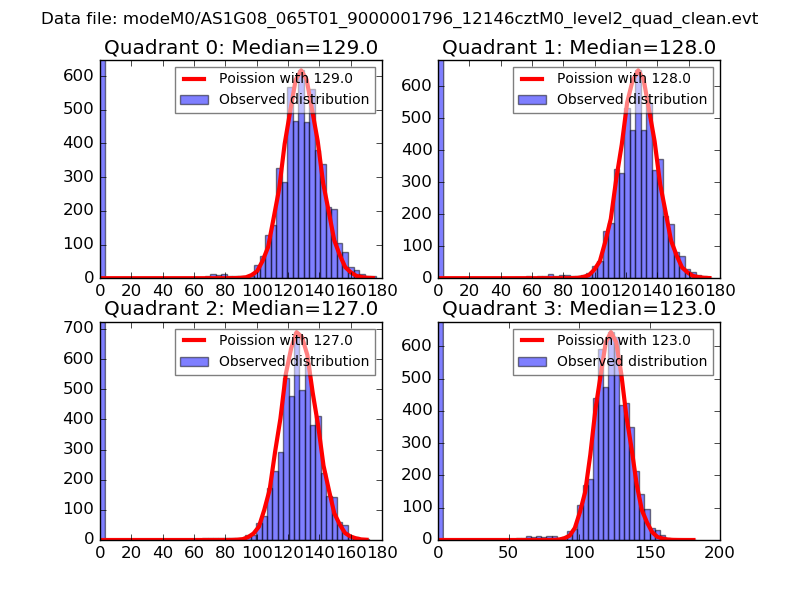

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

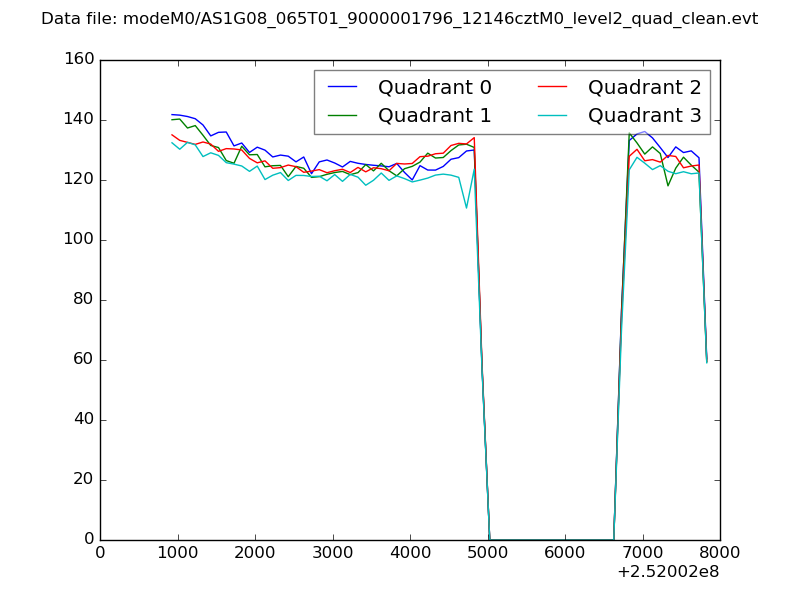

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

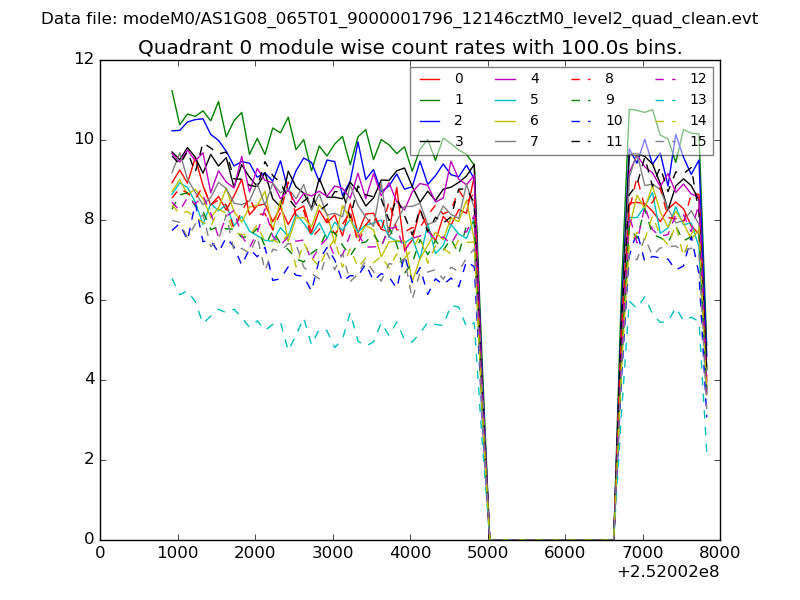

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

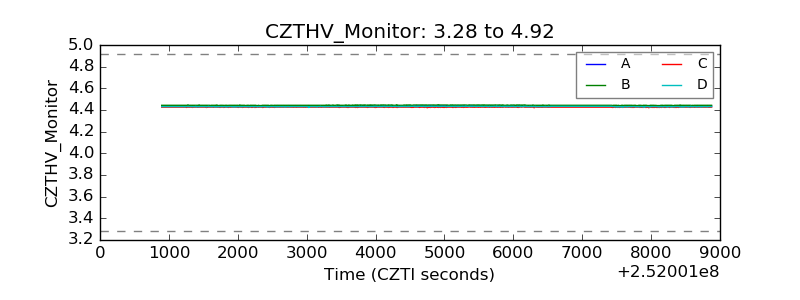

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

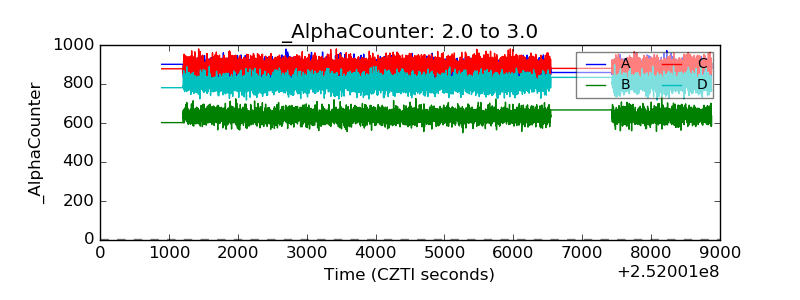

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

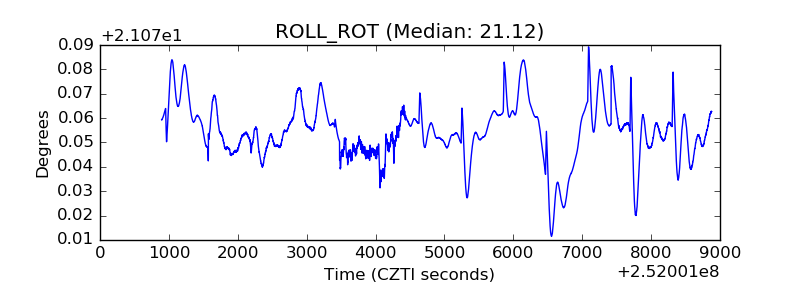

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
