| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_065T01_9000001796_12155cztM0_level2.evt | modeM0/AS1G08_065T01_9000001796_12155cztM0_level2_quad_clean.evt |
| Size (bytes) | 481,311,360 | 88,303,680 |
| Size | 459.0 MB | 84.2 MB |
| Events in quadrant A | 3,120,199 | 572,809 |
| Events in quadrant B | 4,947,323 | 548,379 |
| Events in quadrant C | 2,924,584 | 560,201 |
| Events in quadrant D | 3,150,261 | 546,647 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13346 | 3 |
| B | 0 | 18855 | 2 |
| C | 0 | 12997 | 2 |
| D | 0 | 13579 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6390 | 51 | 0.798122% |
| B | 6390 | 520 | 8.137715% |
| C | 6390 | 19 | 0.297340% |
| D | 6391 | 37 | 0.578939% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7526 | 6392 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7526 | 6392 | 261 | 261 | 3.47% | 4.08% |  |
| C | 7526 | 6392 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7527 | 6393 | 12 | 12 | 0.16% | 0.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 42912 | 263.05 | 784 | 767 | 160.2 |
| A | 1 | 178 | 18453 | 110.39 | 784 | 767 | 160.2 |
| A | 1 | 161 | 16881 | 100.58 | 784 | 767 | 160.2 |
| B | 4 | 239 | 872712 | 6104.69 | 756 | 738 | 142.8 |
| B | 3 | 64 | 481158 | 3363.42 | 756 | 738 | 142.8 |
| B | 15 | 201 | 338989 | 2368.09 | 756 | 738 | 142.8 |
| C | 13 | 61 | 5452 | 27.38 | 748 | 752 | 171.6 |
| C | 15 | 208 | 5313 | 26.57 | 748 | 752 | 171.6 |
| C | 14 | 234 | 2200 | 8.44 | 748 | 752 | 171.6 |
| D | 10 | 50 | 71710 | 393.92 | 753 | 732 | 180.2 |
| D | 10 | 157 | 70124 | 385.12 | 753 | 732 | 180.2 |
| D | 13 | 249 | 38035 | 207.03 | 753 | 732 | 180.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

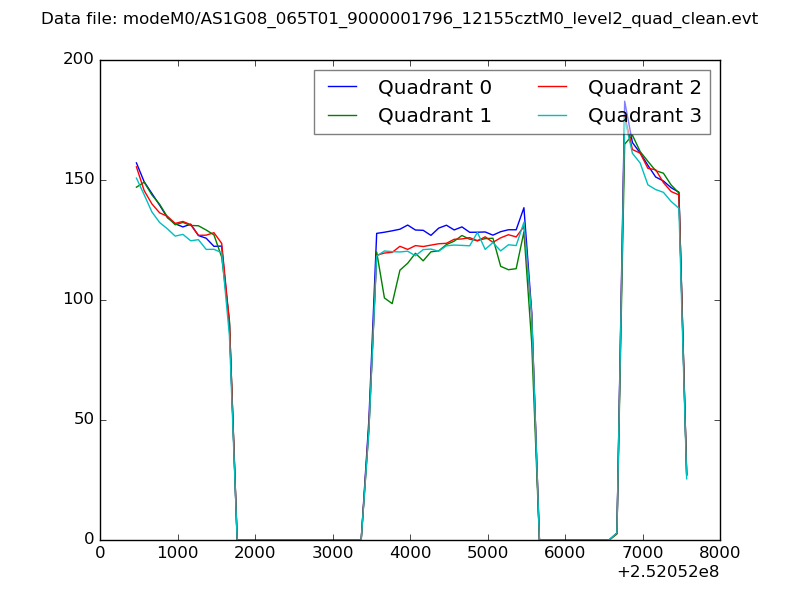

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

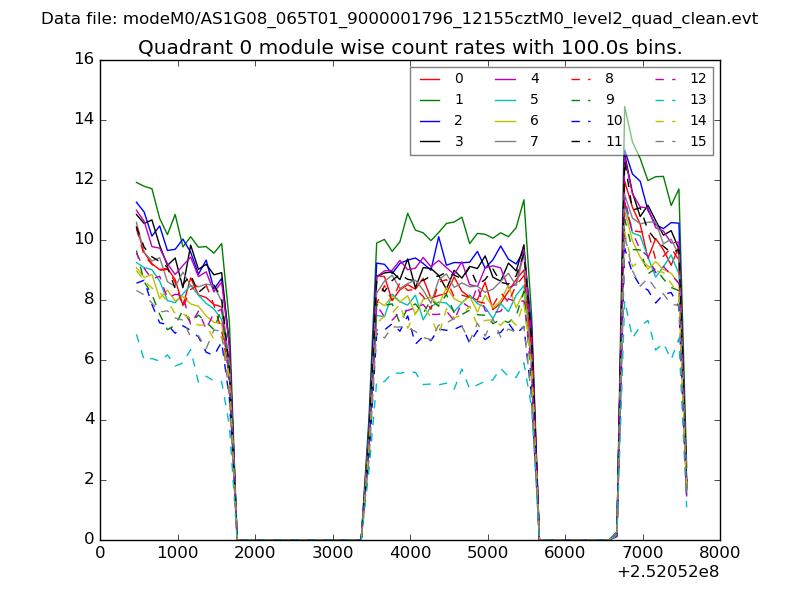

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

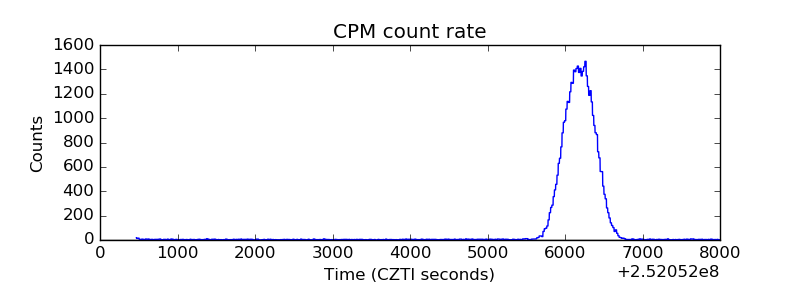

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

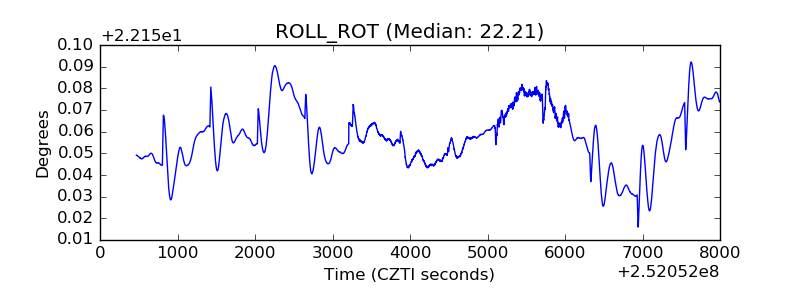

| _ROLL_ROT |  |
| _Roll_DEC |  |

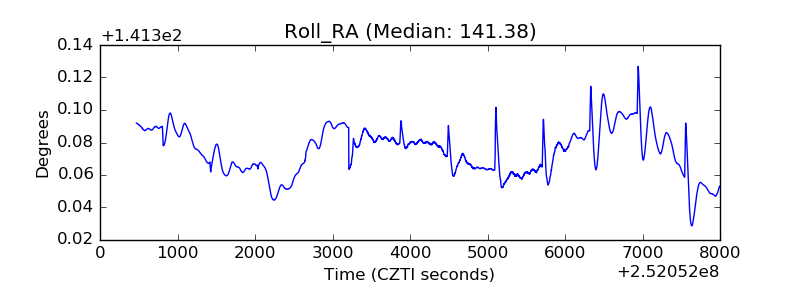

| _Roll_RA |  |
| Veto Counter |  |
