| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_065T01_9000001796_12158cztM0_level2.evt | modeM0/AS1G08_065T01_9000001796_12158cztM0_level2_quad_clean.evt |
| Size (bytes) | 527,489,280 | 71,887,680 |
| Size | 503.1 MB | 68.6 MB |
| Events in quadrant A | 3,539,910 | 444,389 |
| Events in quadrant B | 4,833,398 | 433,983 |
| Events in quadrant C | 3,416,128 | 432,595 |
| Events in quadrant D | 3,755,998 | 423,575 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14742 | 3 |
| B | 0 | 18695 | 2 |
| C | 0 | 14004 | 2 |
| D | 0 | 15506 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6339 | 103 | 1.624862% |
| B | 6339 | 509 | 8.029658% |
| C | 6339 | 67 | 1.056949% |
| D | 6340 | 90 | 1.419558% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7680 | 6341 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7680 | 6341 | 256 | 256 | 3.33% | 4.04% |  |
| C | 7680 | 6341 | 19 | 19 | 0.25% | 0.30% |  |
| D | 7681 | 6342 | 15 | 15 | 0.20% | 0.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 69625 | 399.71 | 861 | 844 | 172.1 |
| A | 8 | 15 | 58813 | 336.88 | 861 | 844 | 172.1 |
| A | 1 | 178 | 32383 | 183.28 | 861 | 844 | 172.1 |
| B | 4 | 239 | 1094888 | 7196.69 | 829 | 811 | 152.0 |
| B | 11 | 51 | 150341 | 983.59 | 829 | 811 | 152.0 |
| B | 0 | 85 | 131515 | 859.75 | 829 | 811 | 152.0 |
| C | 15 | 208 | 156984 | 828.19 | 832 | 838 | 188.5 |
| C | 3 | 233 | 14096 | 70.32 | 832 | 838 | 188.5 |
| C | 13 | 61 | 6177 | 28.32 | 832 | 838 | 188.5 |
| D | 8 | 195 | 160720 | 814.76 | 834 | 813 | 196.3 |
| D | 13 | 104 | 130868 | 662.66 | 834 | 813 | 196.3 |
| D | 1 | 52 | 107398 | 543.07 | 834 | 813 | 196.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

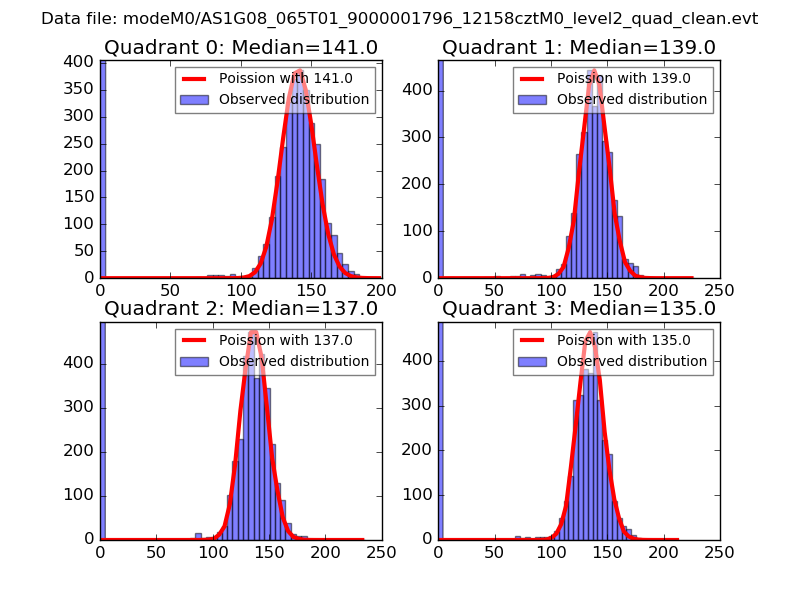

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

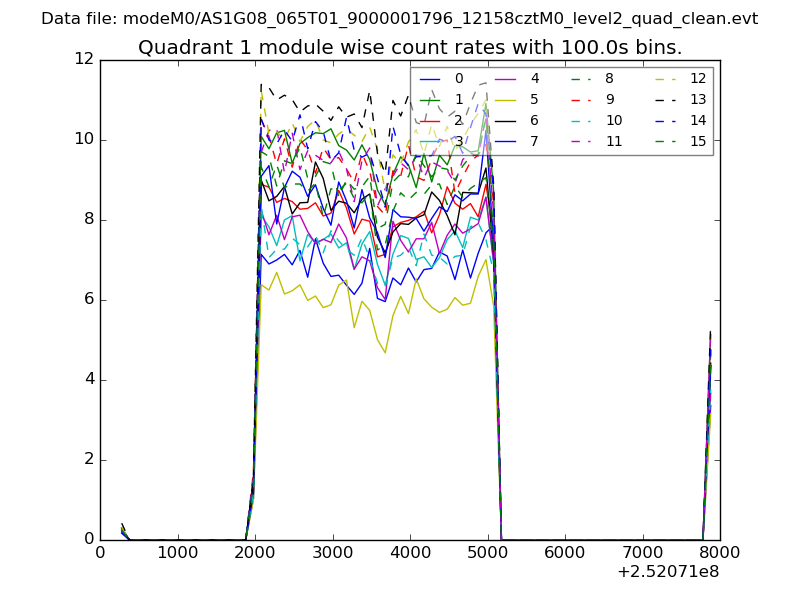

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

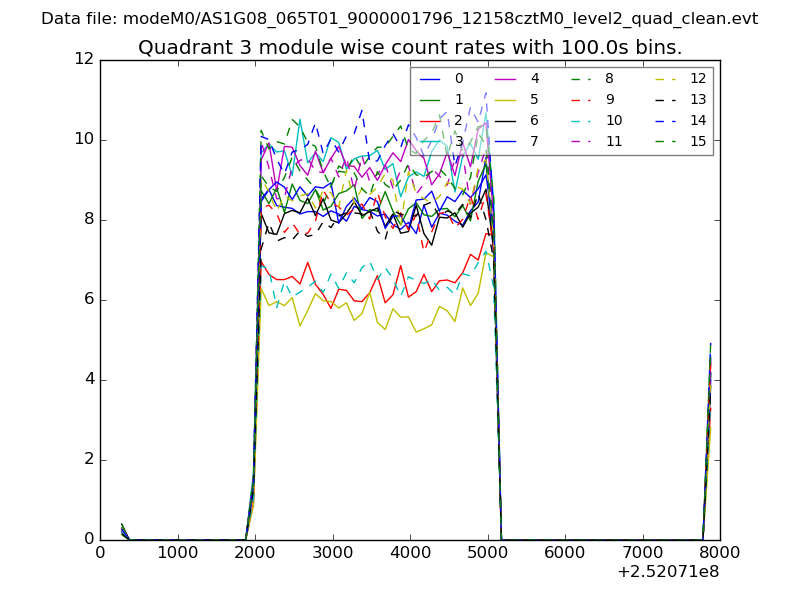

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

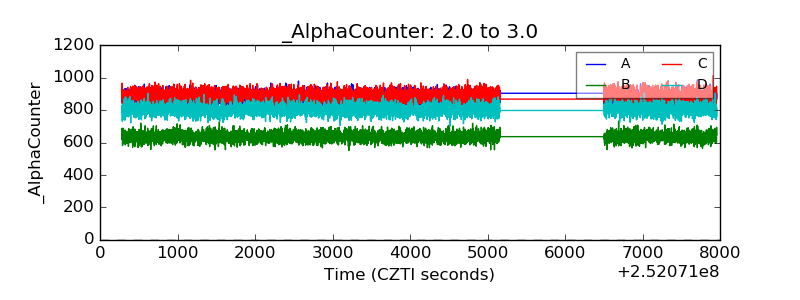

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

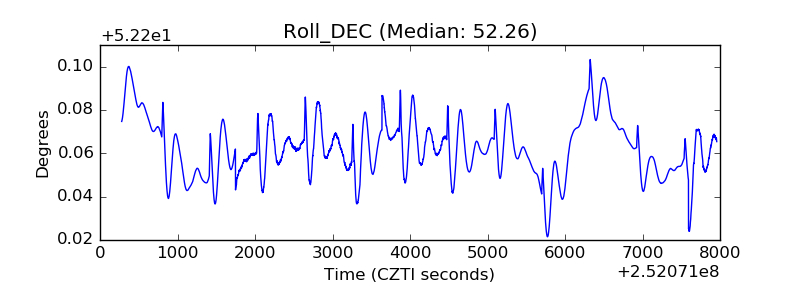

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
