| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_065T01_9000001796_12160cztM0_level2.evt | modeM0/AS1G08_065T01_9000001796_12160cztM0_level2_quad_clean.evt |
| Size (bytes) | 490,271,040 | 95,175,360 |
| Size | 467.6 MB | 90.8 MB |
| Events in quadrant A | 3,200,197 | 623,842 |
| Events in quadrant B | 4,622,985 | 606,121 |
| Events in quadrant C | 3,218,636 | 613,068 |
| Events in quadrant D | 3,375,074 | 596,084 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13687 | 3 |
| B | 0 | 18150 | 2 |
| C | 0 | 13744 | 2 |
| D | 0 | 14302 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6346 | 83 | 1.307910% |
| B | 6346 | 412 | 6.492279% |
| C | 6346 | 64 | 1.008509% |
| D | 6346 | 113 | 1.780649% |

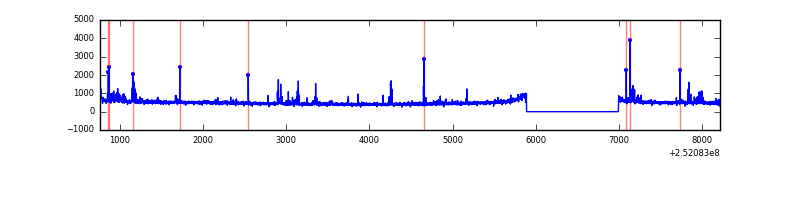

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7452 | 6348 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7452 | 6348 | 195 | 195 | 2.62% | 3.07% |  |
| C | 7452 | 6348 | 9 | 9 | 0.12% | 0.14% |  |
| D | 7452 | 6348 | 39 | 39 | 0.52% | 0.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 43954 | 270.12 | 796 | 779 | 159.8 |
| A | 1 | 162 | 23107 | 139.69 | 796 | 779 | 159.8 |
| A | 9 | 143 | 21985 | 132.67 | 796 | 779 | 159.8 |
| B | 4 | 239 | 627997 | 4321.97 | 776 | 757 | 145.1 |
| B | 0 | 85 | 544962 | 3749.82 | 776 | 757 | 145.1 |
| B | 15 | 204 | 132494 | 907.73 | 776 | 757 | 145.1 |
| C | 15 | 208 | 200009 | 1119.46 | 773 | 776 | 178.0 |
| C | 13 | 61 | 5746 | 27.93 | 773 | 776 | 178.0 |
| C | 13 | 250 | 3427 | 14.9 | 773 | 776 | 178.0 |
| D | 10 | 199 | 128414 | 692.52 | 772 | 751 | 184.3 |
| D | 1 | 52 | 117860 | 635.27 | 772 | 751 | 184.3 |
| D | 13 | 122 | 59472 | 318.54 | 772 | 751 | 184.3 |

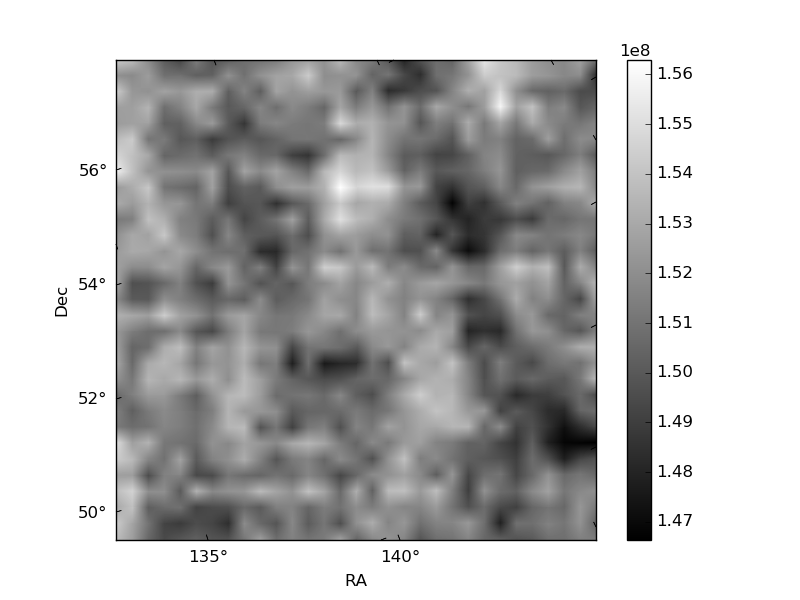

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

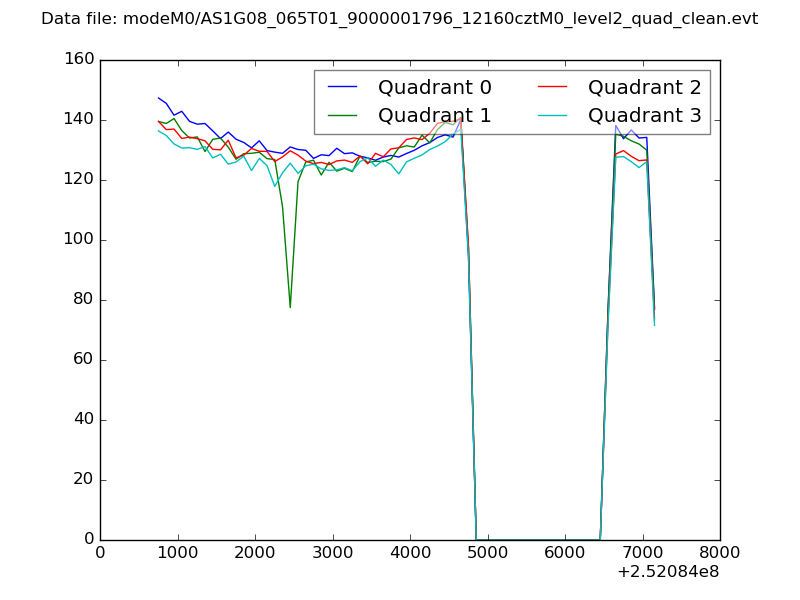

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

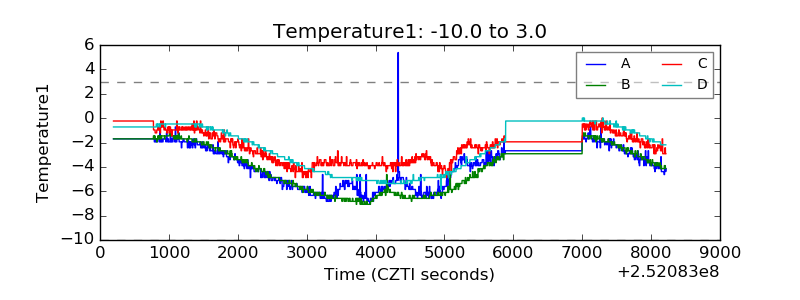

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

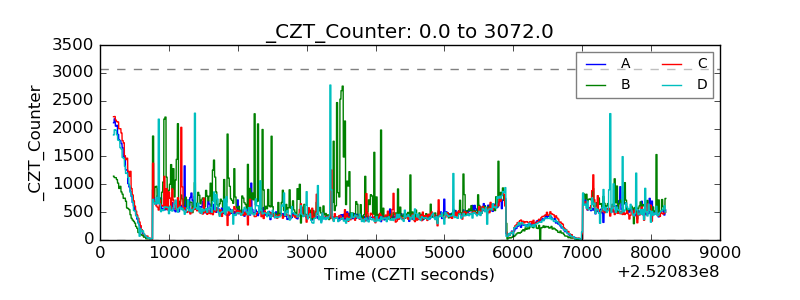

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

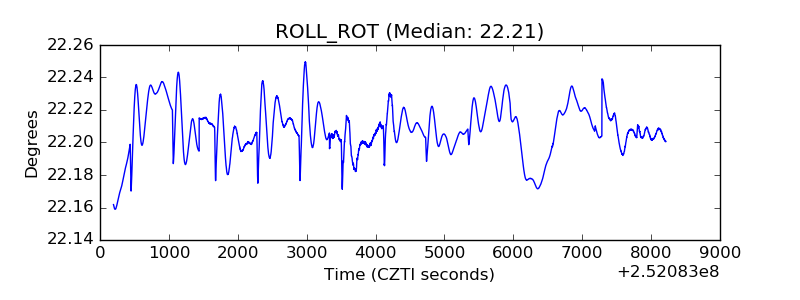

| _ROLL_ROT |  |
| _Roll_DEC |  |

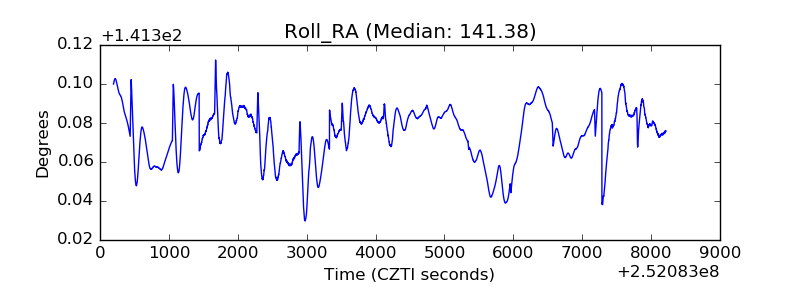

| _Roll_RA |  |

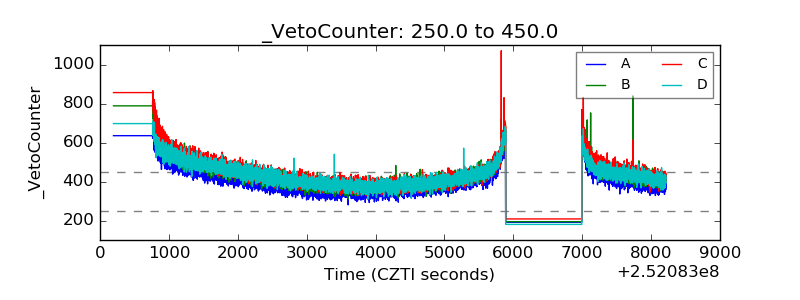

| Veto Counter |  |
