| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_065T01_9000001796_12166cztM0_level2.evt | modeM0/AS1G08_065T01_9000001796_12166cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,069,741,440 | 187,404,480 |
| Size | 1020.2 MB | 178.7 MB |
| Events in quadrant A | 7,271,697 | 1,206,830 |
| Events in quadrant B | 8,555,018 | 1,202,000 |
| Events in quadrant C | 7,085,442 | 1,195,898 |
| Events in quadrant D | 8,570,138 | 1,135,644 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30644 | 4 |
| B | 0 | 34510 | 3 |
| C | 0 | 30714 | 3 |
| D | 0 | 35087 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 276 | 0 |
| B | 0 | 276 | 0 |
| C | 0 | 276 | 0 |
| D | 0 | 276 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 13542 | 347 | 2.562398% |
| B | 13542 | 476 | 3.514990% |
| C | 13542 | 300 | 2.215330% |
| D | 13542 | 546 | 4.031901% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 15148 | 13546 | 156 | 156 | 1.03% | 1.15% |  |
| B | 15148 | 13546 | 215 | 215 | 1.42% | 1.59% |  |
| C | 15148 | 13546 | 172 | 172 | 1.14% | 1.27% |  |
| D | 15148 | 13546 | 382 | 382 | 2.52% | 2.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 699193 | 2201.54 | 1564 | 1529 | 316.9 |
| A | 8 | 15 | 188294 | 589.35 | 1564 | 1529 | 316.9 |
| A | 1 | 162 | 123198 | 383.94 | 1564 | 1529 | 316.9 |
| B | 4 | 239 | 1247158 | 4191.65 | 1561 | 1521 | 297.2 |
| B | 10 | 16 | 451880 | 1515.49 | 1561 | 1521 | 297.2 |
| B | 0 | 85 | 201518 | 673.0 | 1561 | 1521 | 297.2 |
| C | 15 | 208 | 1074838 | 3065.2 | 1515 | 1523 | 350.2 |
| C | 3 | 233 | 71377 | 199.49 | 1515 | 1523 | 350.2 |
| C | 14 | 234 | 32396 | 88.17 | 1515 | 1523 | 350.2 |
| D | 1 | 52 | 989045 | 2758.12 | 1491 | 1447 | 358.1 |
| D | 8 | 195 | 575971 | 1604.5 | 1491 | 1447 | 358.1 |
| D | 4 | 95 | 543009 | 1512.45 | 1491 | 1447 | 358.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

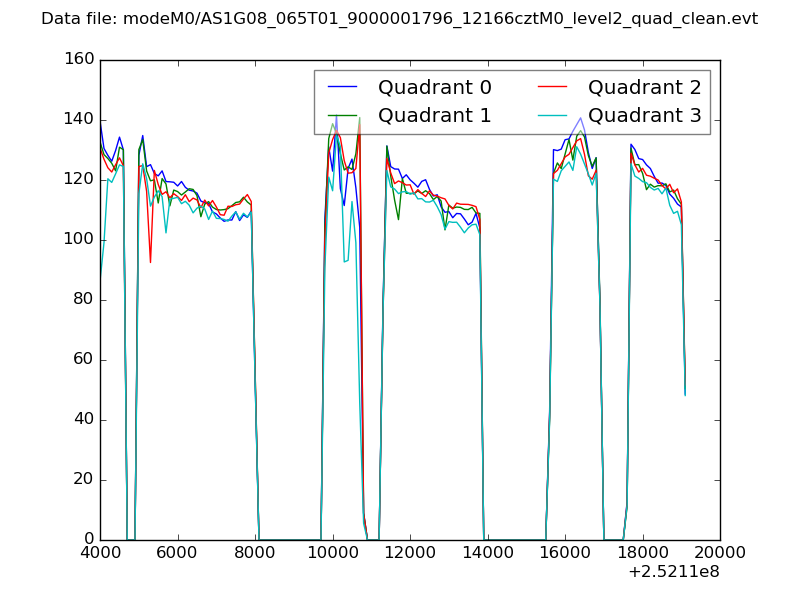

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

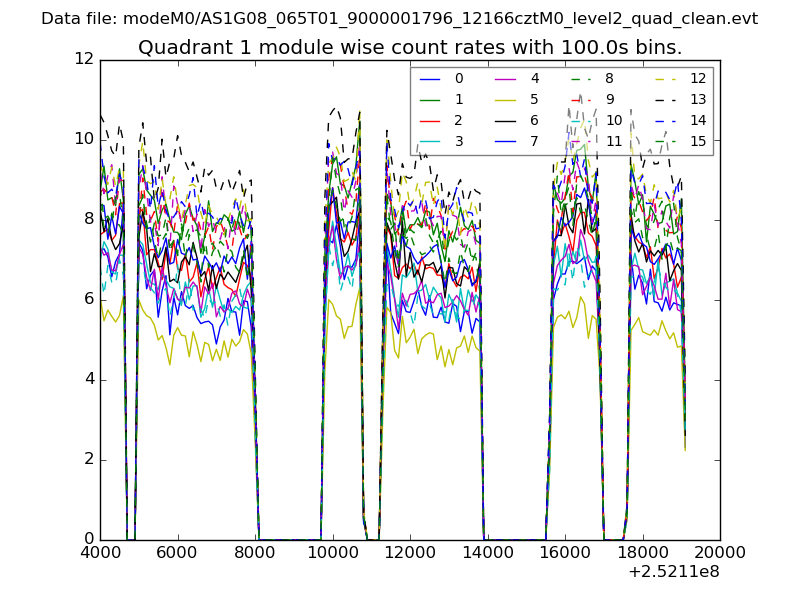

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

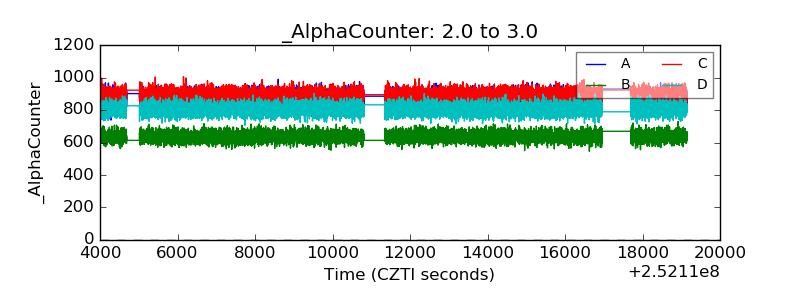

| Alpha Counter |  |
| _CPM_Rate |  |

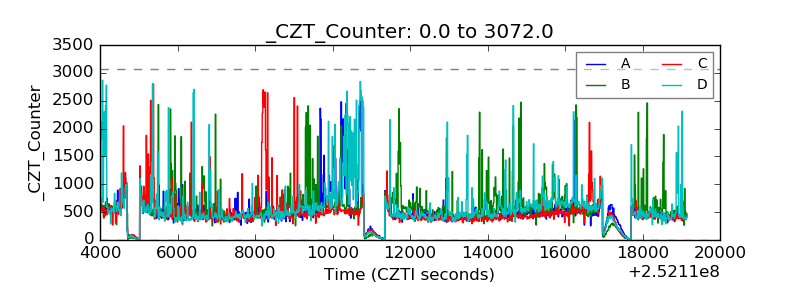

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

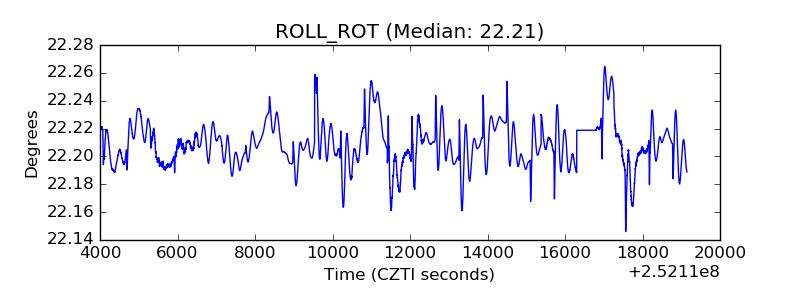

| _ROLL_ROT |  |

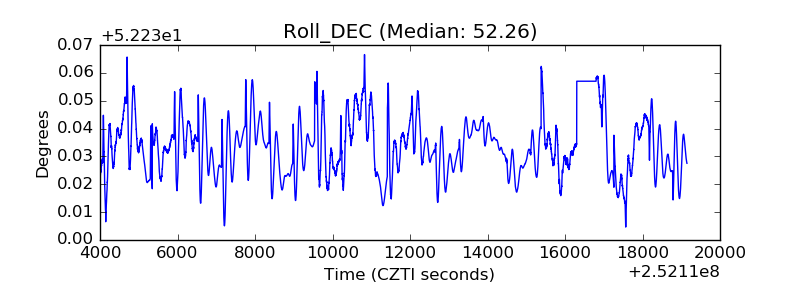

| _Roll_DEC |  |

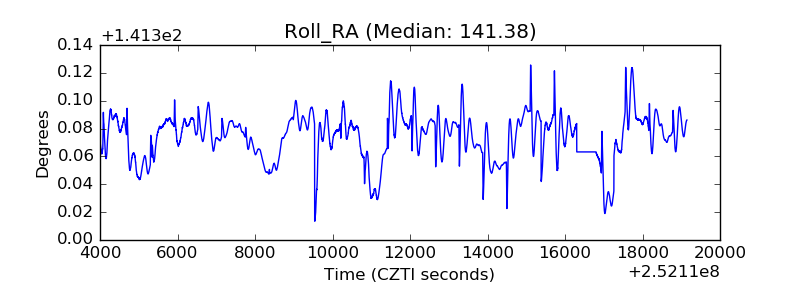

| _Roll_RA |  |
| Veto Counter |  |
