| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_065T01_9000001796_12167cztM0_level2.evt | modeM0/AS1G08_065T01_9000001796_12167cztM0_level2_quad_clean.evt |
| Size (bytes) | 509,664,960 | 100,771,200 |
| Size | 486.1 MB | 96.1 MB |
| Events in quadrant A | 3,353,293 | 652,849 |
| Events in quadrant B | 4,724,488 | 635,322 |
| Events in quadrant C | 3,375,048 | 645,763 |
| Events in quadrant D | 3,504,777 | 627,766 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14688 | 3 |
| B | 0 | 18558 | 2 |
| C | 0 | 15076 | 2 |
| D | 0 | 15211 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7031 | 86 | 1.223155% |
| B | 7031 | 465 | 6.613568% |
| C | 7031 | 100 | 1.422273% |
| D | 7031 | 83 | 1.180486% |

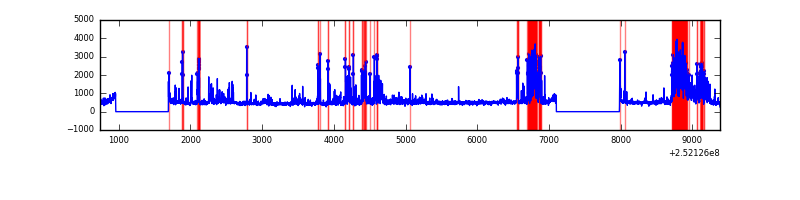

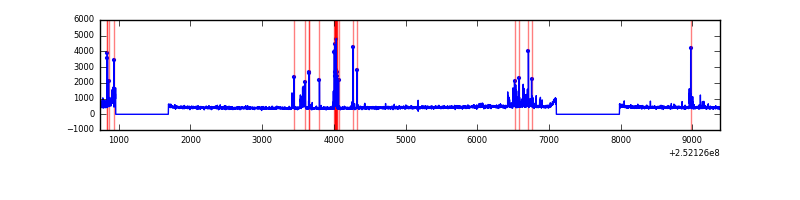

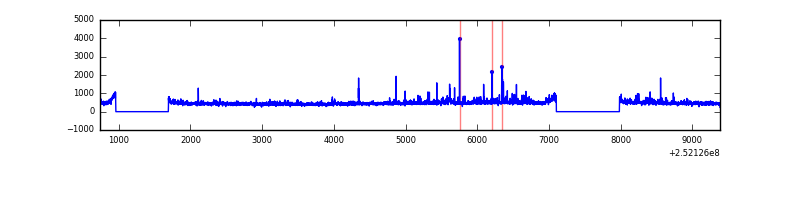

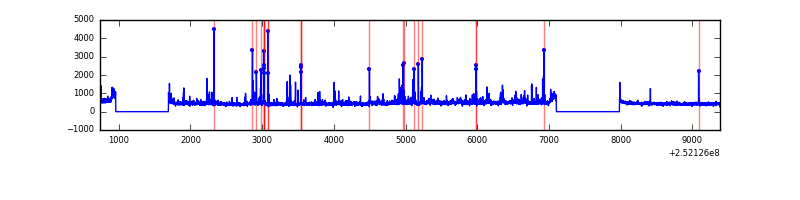

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8647 | 7034 | 3 | 3 | 0.03% | 0.04% |  |
| B | 8647 | 7034 | 249 | 249 | 2.88% | 3.54% |  |
| C | 8647 | 7034 | 29 | 29 | 0.34% | 0.41% |  |
| D | 8647 | 7034 | 23 | 23 | 0.27% | 0.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 39239 | 228.98 | 820 | 800 | 167.9 |
| A | 13 | 248 | 38245 | 223.06 | 820 | 800 | 167.9 |
| A | 9 | 143 | 36435 | 212.27 | 820 | 800 | 167.9 |
| B | 4 | 239 | 1266568 | 8187.8 | 802 | 782 | 154.6 |
| B | 11 | 51 | 86803 | 556.43 | 802 | 782 | 154.6 |
| B | 0 | 214 | 85936 | 550.82 | 802 | 782 | 154.6 |
| C | 15 | 208 | 220138 | 1202.21 | 787 | 790 | 182.5 |
| C | 14 | 234 | 79927 | 433.74 | 787 | 790 | 182.5 |
| C | 3 | 233 | 6898 | 33.48 | 787 | 790 | 182.5 |
| D | 1 | 52 | 196224 | 1036.7 | 788 | 766 | 188.5 |
| D | 8 | 195 | 92381 | 485.92 | 788 | 766 | 188.5 |
| D | 10 | 50 | 86493 | 454.69 | 788 | 766 | 188.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

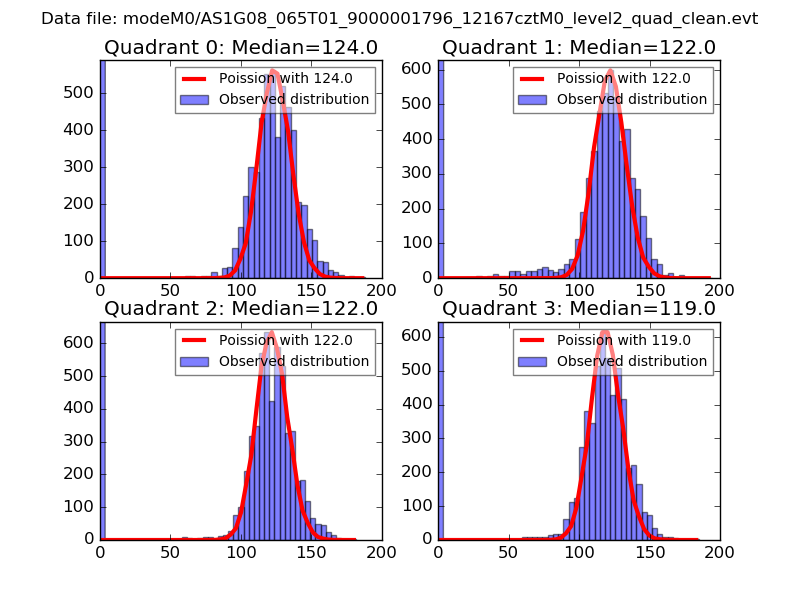

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

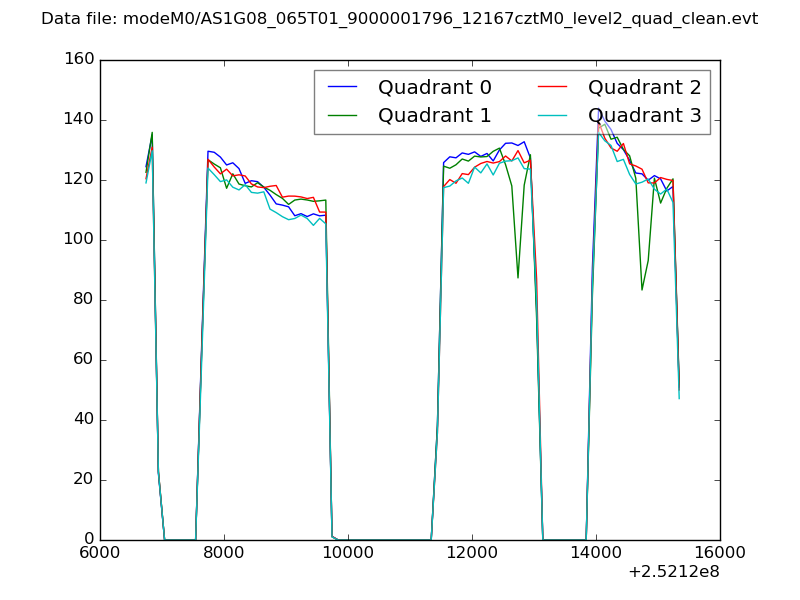

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

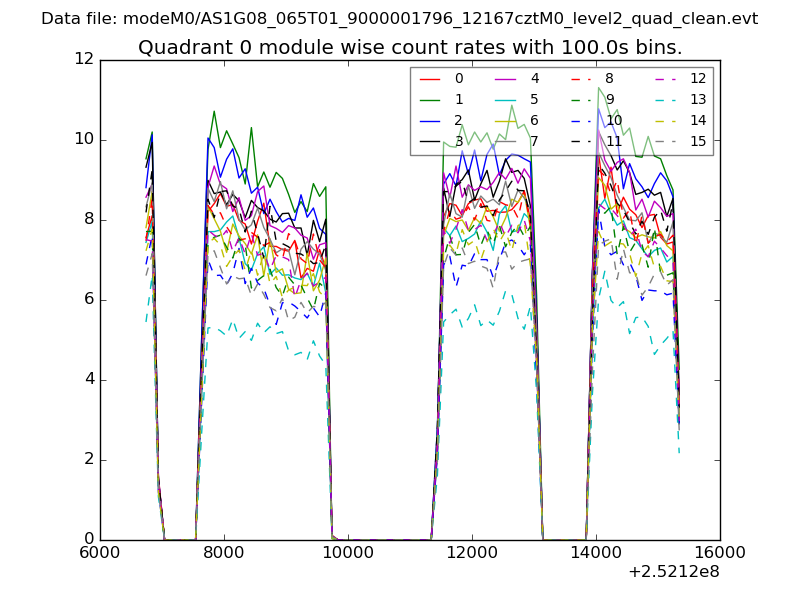

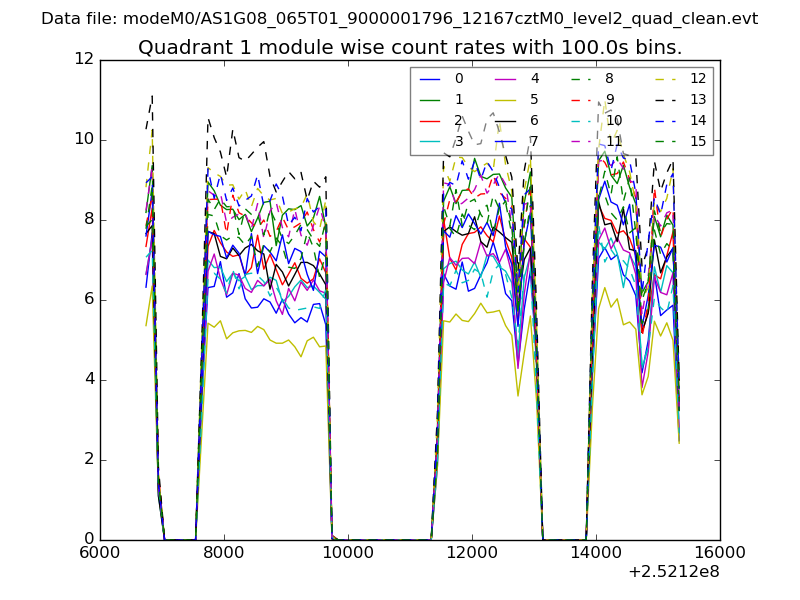

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

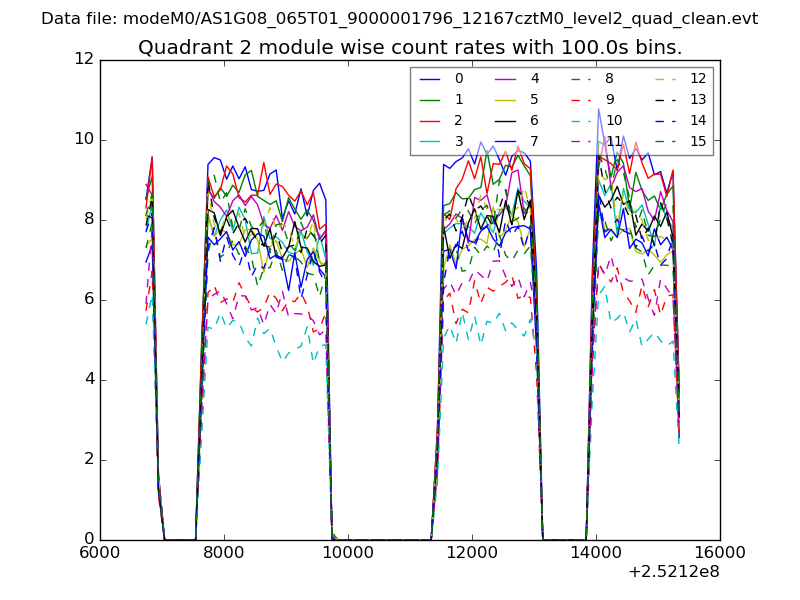

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

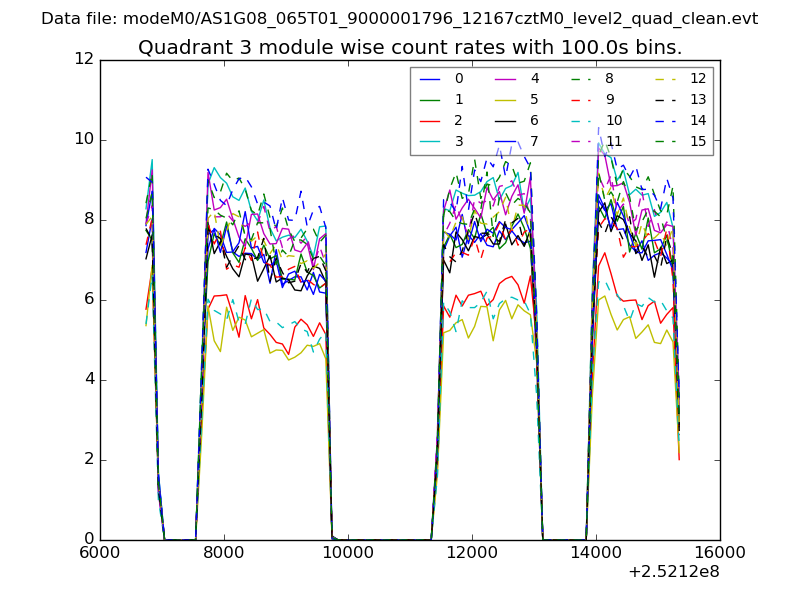

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

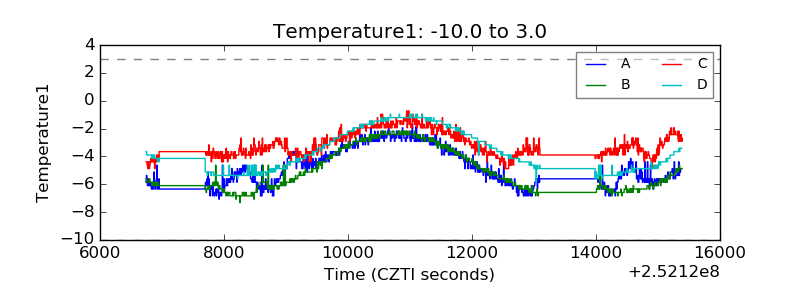

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

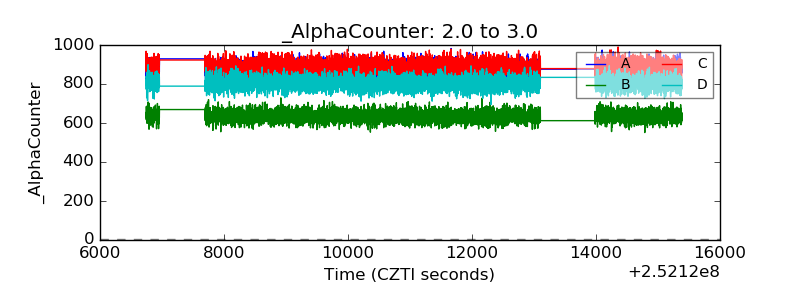

| Alpha Counter |  |

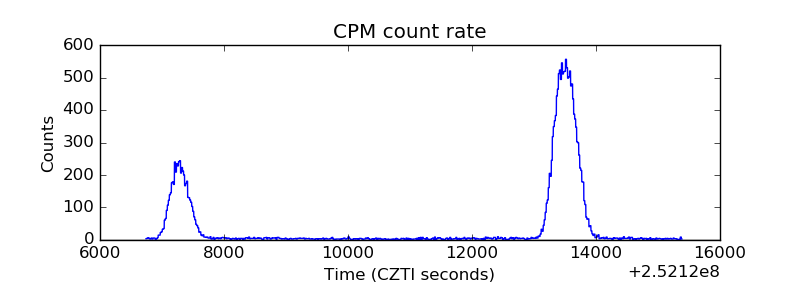

| _CPM_Rate |  |

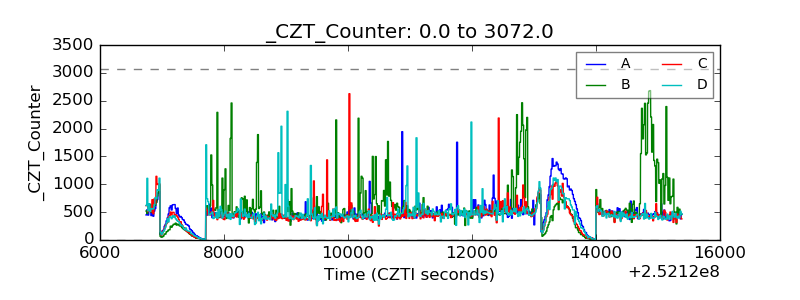

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

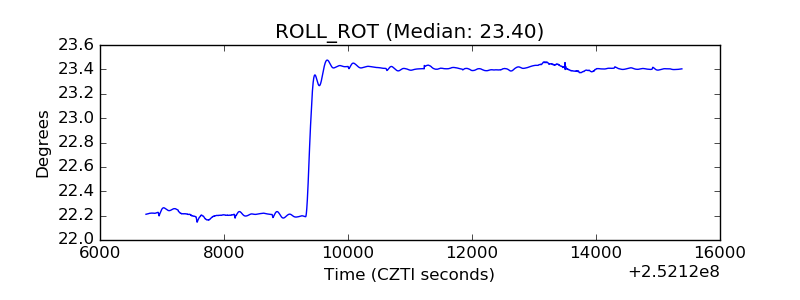

| _ROLL_ROT |  |

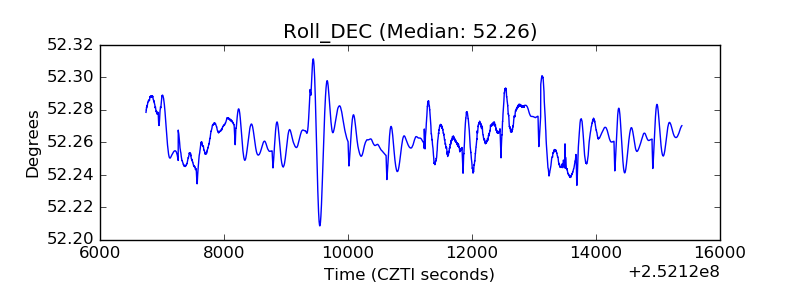

| _Roll_DEC |  |

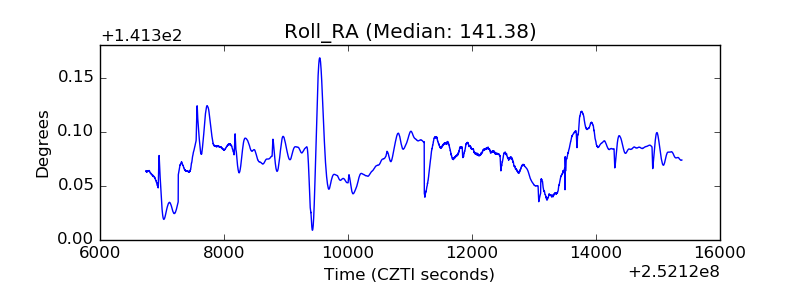

| _Roll_RA |  |

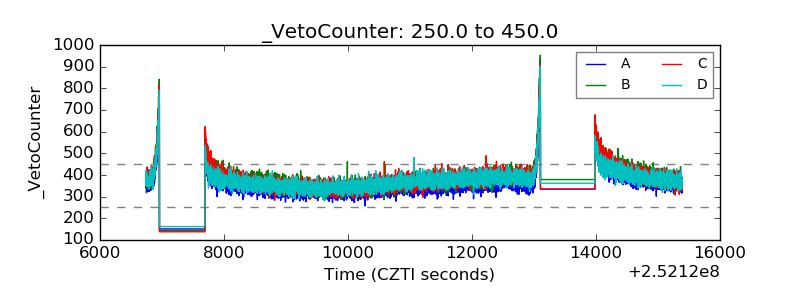

| Veto Counter |  |
