| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_065T01_9000001796_12168cztM0_level2.evt | modeM0/AS1G08_065T01_9000001796_12168cztM0_level2_quad_clean.evt |
| Size (bytes) | 501,569,280 | 91,586,880 |
| Size | 478.3 MB | 87.3 MB |
| Events in quadrant A | 3,124,886 | 596,933 |
| Events in quadrant B | 4,419,387 | 579,131 |
| Events in quadrant C | 3,540,065 | 585,626 |
| Events in quadrant D | 3,666,507 | 560,534 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13548 | 147 |
| B | 0 | 17491 | 184 |
| C | 0 | 15081 | 166 |
| D | 0 | 15539 | 261 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 133 | 1 |
| B | 0 | 134 | 2 |
| C | 0 | 133 | 1 |
| D | 0 | 133 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6469 | 74 | 1.143917% |
| B | 6463 | 404 | 6.250967% |
| C | 6467 | 133 | 2.056595% |
| D | 6462 | 206 | 3.187868% |

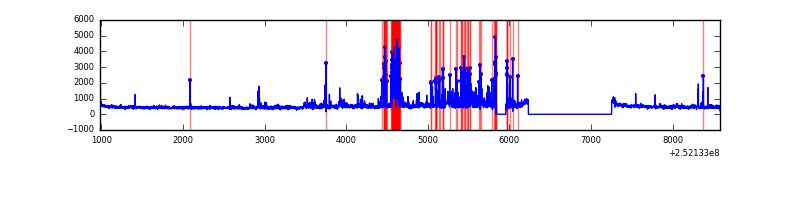

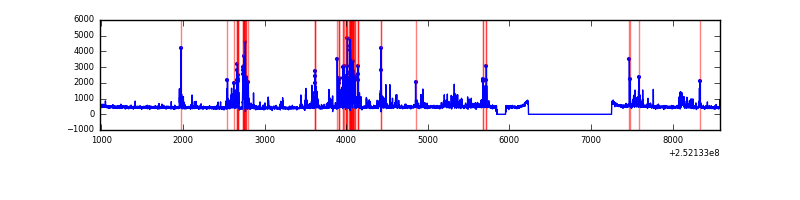

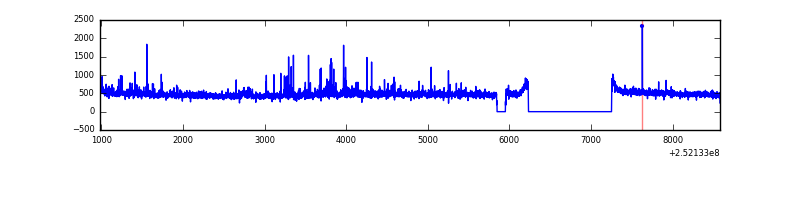

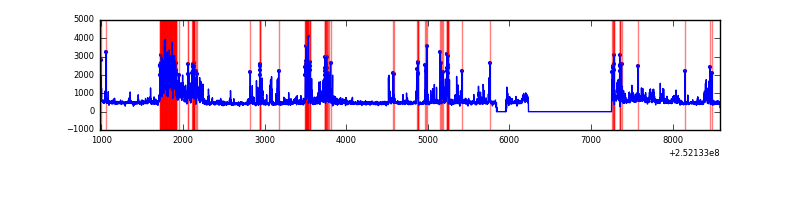

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7599 | 6477 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7599 | 6470 | 209 | 209 | 2.75% | 3.23% |  |
| C | 7599 | 6476 | 76 | 76 | 1.00% | 1.17% |  |
| D | 7599 | 6466 | 123 | 123 | 1.62% | 1.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 51683 | 324.3 | 772 | 755 | 157.0 |
| A | 1 | 178 | 22592 | 139.06 | 772 | 755 | 157.0 |
| A | 1 | 161 | 20853 | 127.98 | 772 | 755 | 157.0 |
| B | 4 | 239 | 1203935 | 8449.95 | 750 | 733 | 142.4 |
| B | 0 | 214 | 122998 | 858.65 | 750 | 733 | 142.4 |
| B | 11 | 51 | 73221 | 509.08 | 750 | 733 | 142.4 |
| C | 15 | 208 | 674642 | 3984.4 | 734 | 737 | 169.1 |
| C | 13 | 61 | 5364 | 27.36 | 734 | 737 | 169.1 |
| C | 14 | 234 | 2418 | 9.94 | 734 | 737 | 169.1 |
| D | 10 | 157 | 559151 | 3167.46 | 733 | 712 | 176.3 |
| D | 1 | 52 | 172175 | 972.54 | 733 | 712 | 176.3 |
| D | 13 | 104 | 41698 | 232.47 | 733 | 712 | 176.3 |

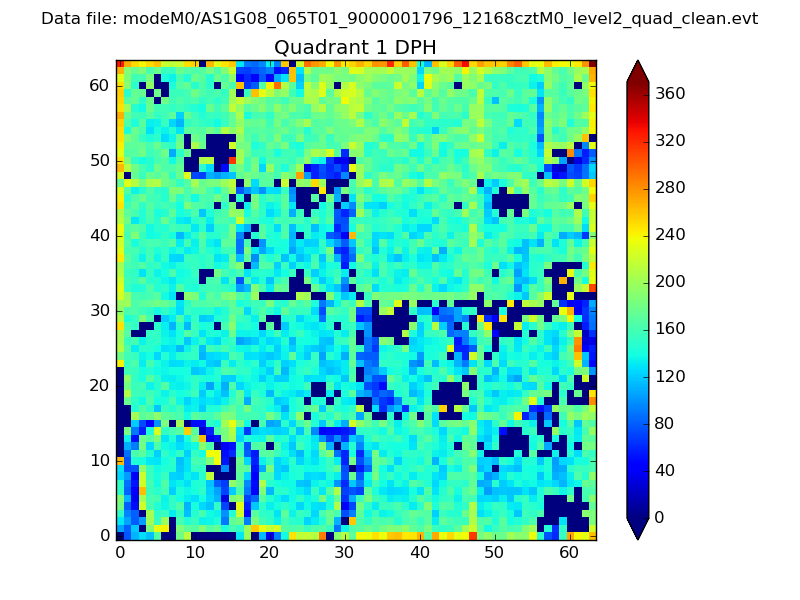

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

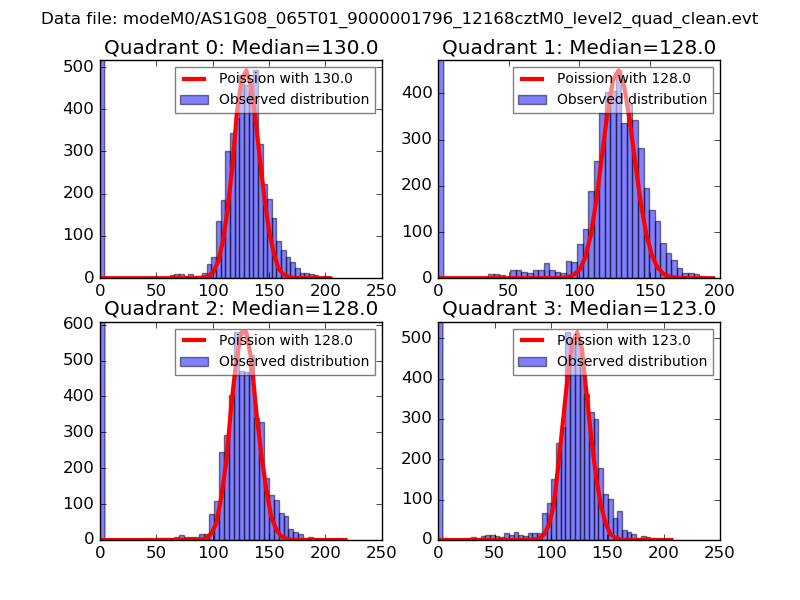

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

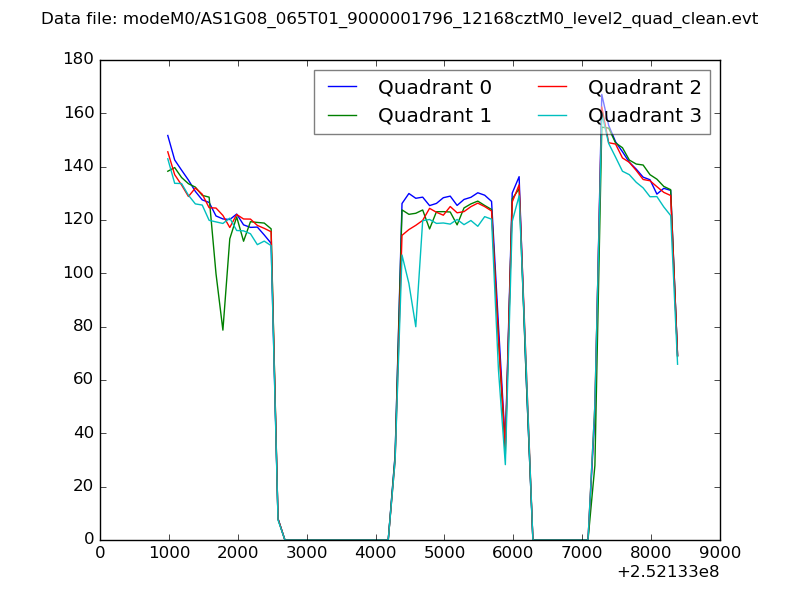

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

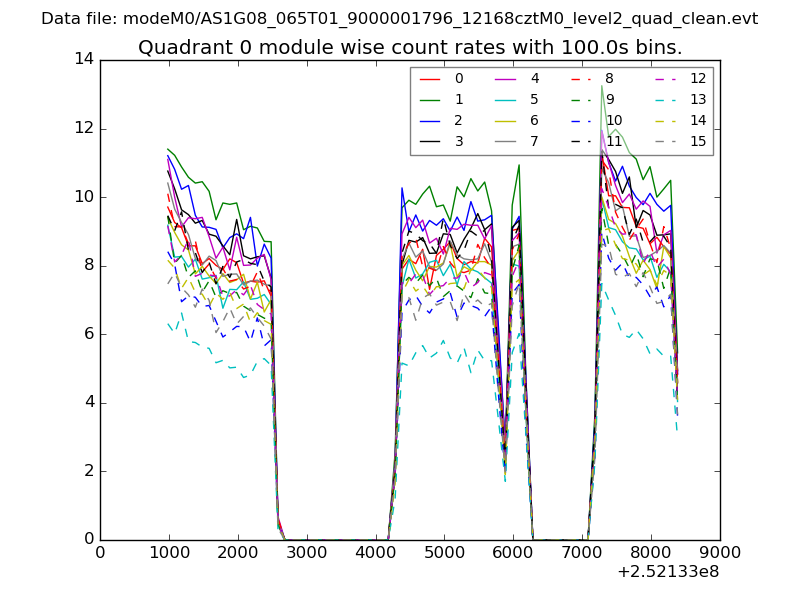

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

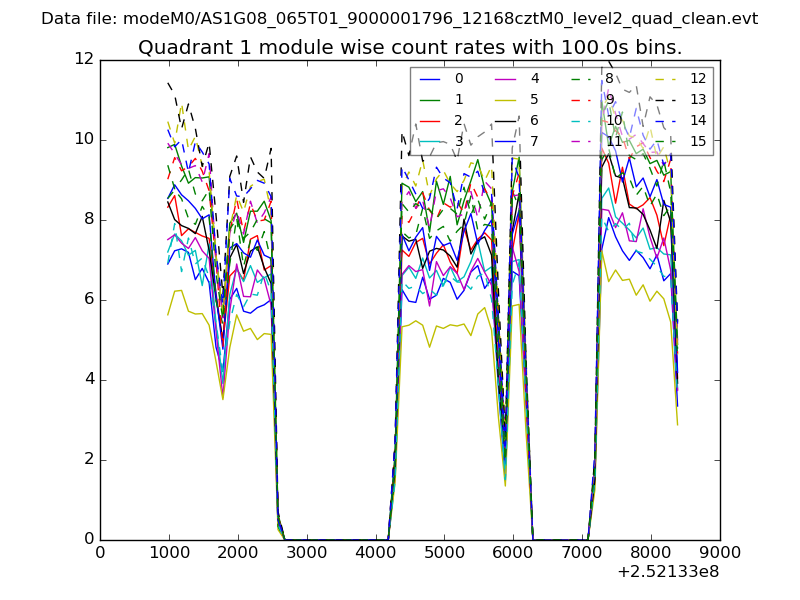

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

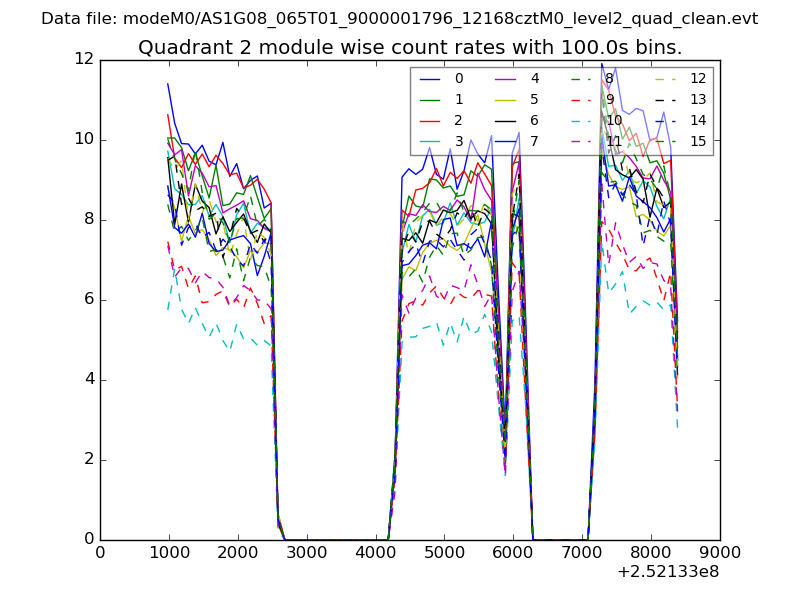

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

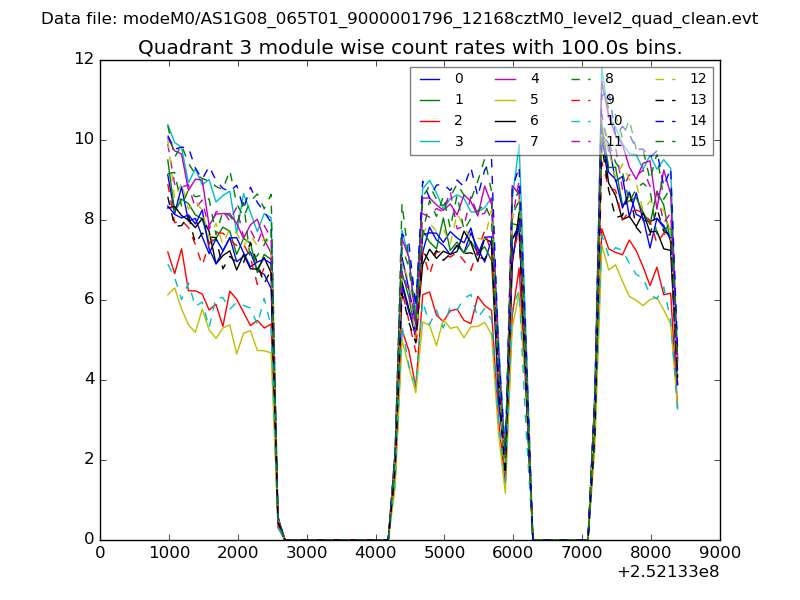

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

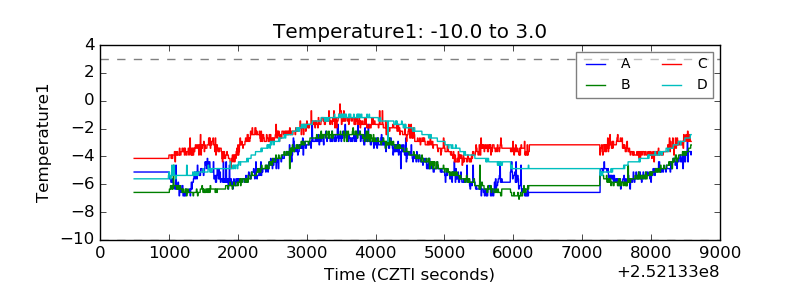

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

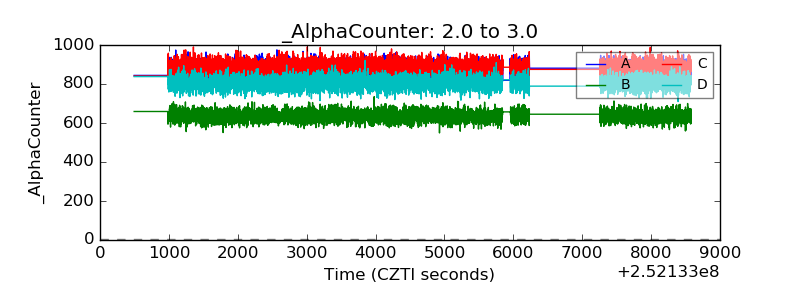

| Alpha Counter |  |
| _CPM_Rate |  |

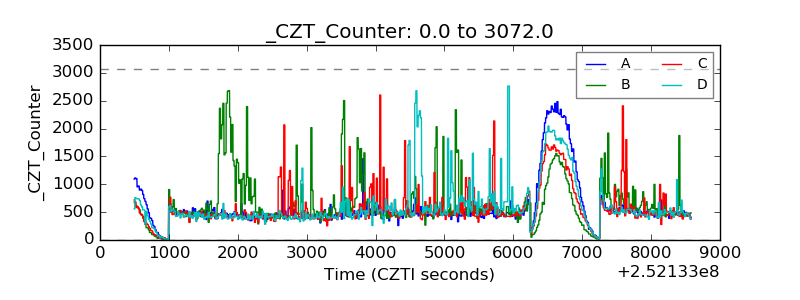

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

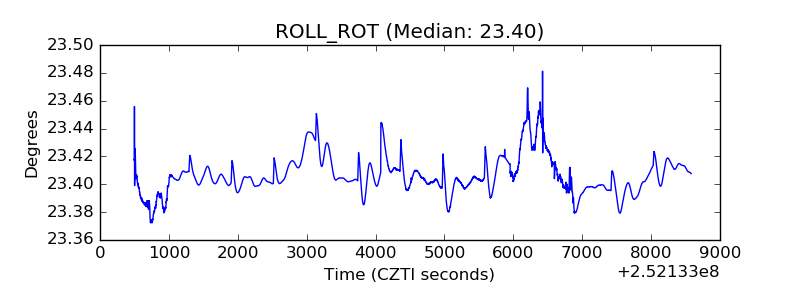

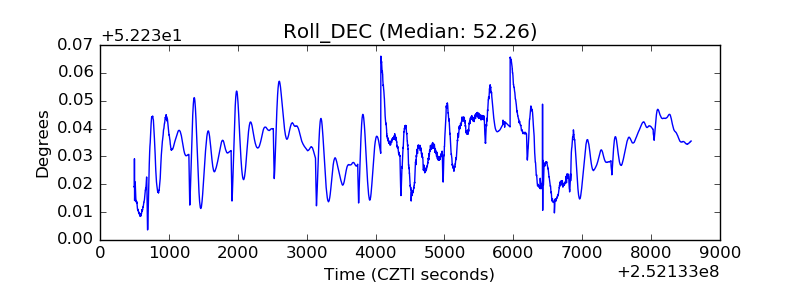

| _ROLL_ROT |  |
| _Roll_DEC |  |

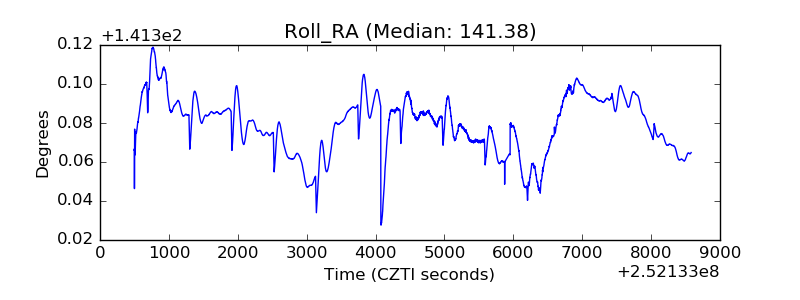

| _Roll_RA |  |

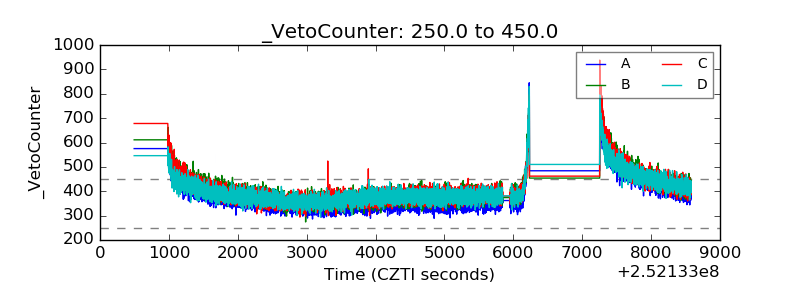

| Veto Counter |  |
