| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_065T01_9000001796_12177cztM0_level2.evt | modeM0/AS1G08_065T01_9000001796_12177cztM0_level2_quad_clean.evt |
| Size (bytes) | 531,806,400 | 90,607,680 |
| Size | 507.2 MB | 86.4 MB |
| Events in quadrant A | 3,416,942 | 584,076 |
| Events in quadrant B | 5,030,683 | 553,822 |
| Events in quadrant C | 3,261,687 | 575,883 |
| Events in quadrant D | 3,934,485 | 555,701 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14738 | 2 |
| B | 0 | 19572 | 2 |
| C | 0 | 14451 | 2 |
| D | 0 | 16236 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6806 | 85 | 1.248898% |
| B | 6806 | 681 | 10.005877% |
| C | 6806 | 78 | 1.146048% |
| D | 6806 | 146 | 2.145166% |

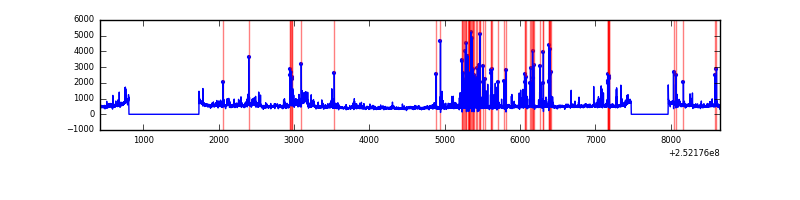

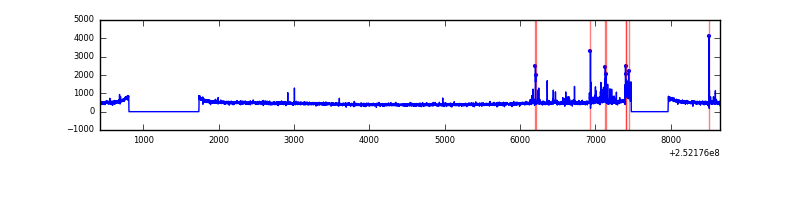

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

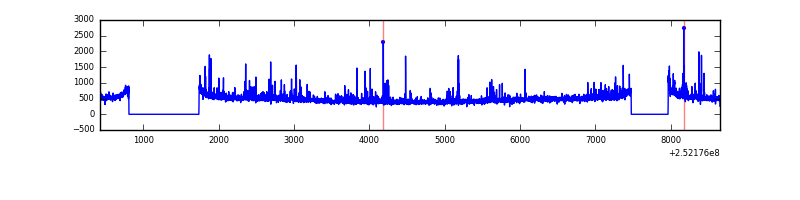

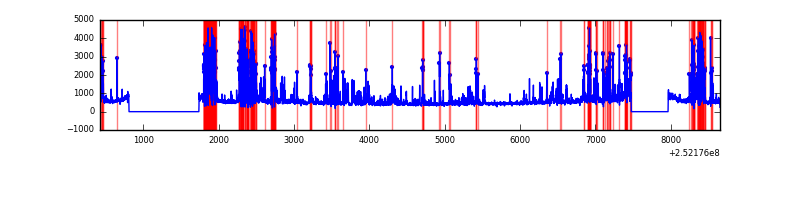

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8227 | 6809 | 2 | 2 | 0.02% | 0.03% |  |
| B | 8227 | 6809 | 345 | 345 | 4.19% | 5.07% |  |
| C | 8227 | 6809 | 9 | 9 | 0.11% | 0.13% |  |
| D | 8227 | 6809 | 74 | 74 | 0.90% | 1.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 83129 | 492.62 | 821 | 803 | 167.1 |
| A | 9 | 143 | 45143 | 265.32 | 821 | 803 | 167.1 |
| A | 1 | 178 | 33543 | 195.91 | 821 | 803 | 167.1 |
| B | 4 | 239 | 1621192 | 10959.88 | 778 | 759 | 147.9 |
| B | 11 | 51 | 86556 | 580.29 | 778 | 759 | 147.9 |
| B | 0 | 231 | 70976 | 474.92 | 778 | 759 | 147.9 |
| C | 15 | 208 | 154302 | 836.48 | 794 | 797 | 183.5 |
| C | 13 | 61 | 5857 | 27.57 | 794 | 797 | 183.5 |
| C | 4 | 175 | 5557 | 25.94 | 794 | 797 | 183.5 |
| D | 1 | 52 | 446086 | 2324.92 | 793 | 770 | 191.5 |
| D | 8 | 195 | 191527 | 995.91 | 793 | 770 | 191.5 |
| D | 10 | 157 | 85857 | 444.22 | 793 | 770 | 191.5 |

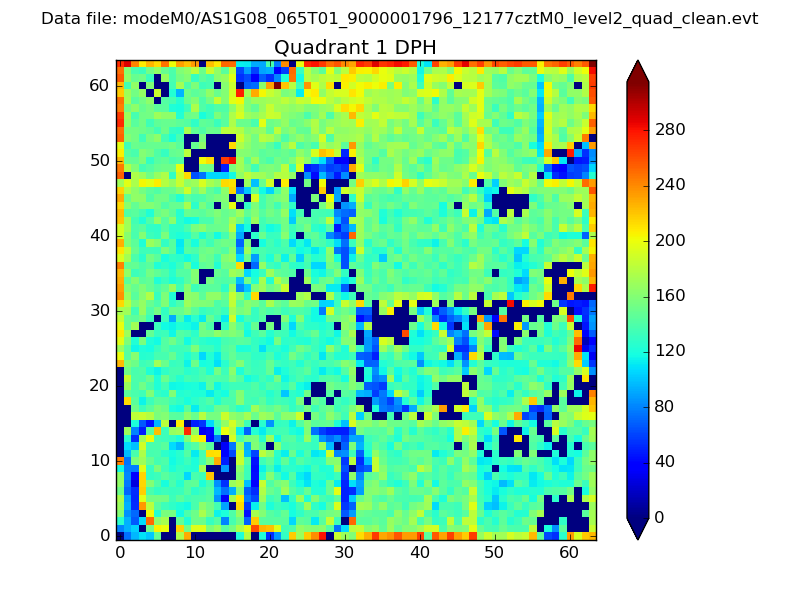

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

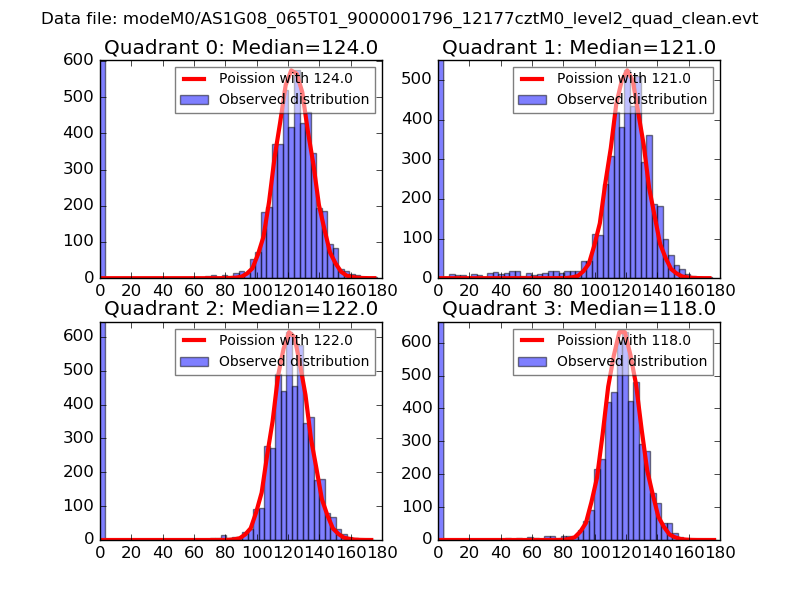

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

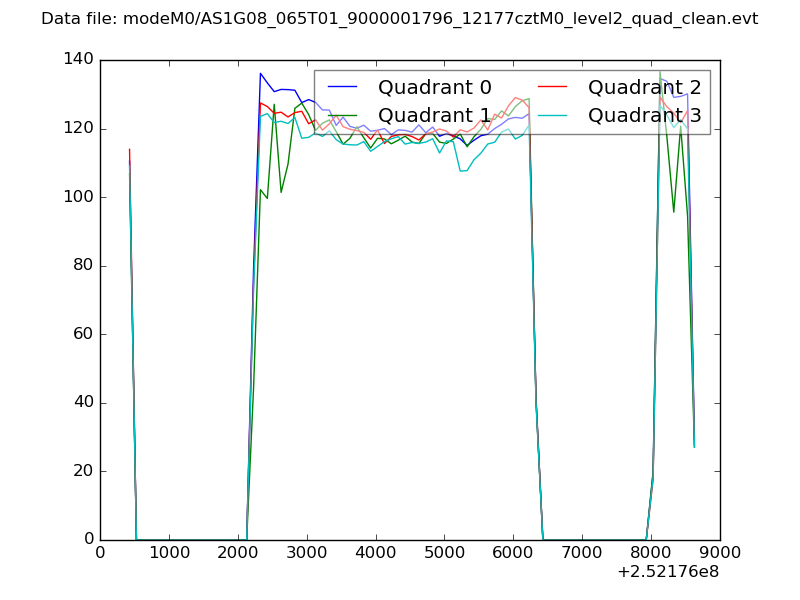

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

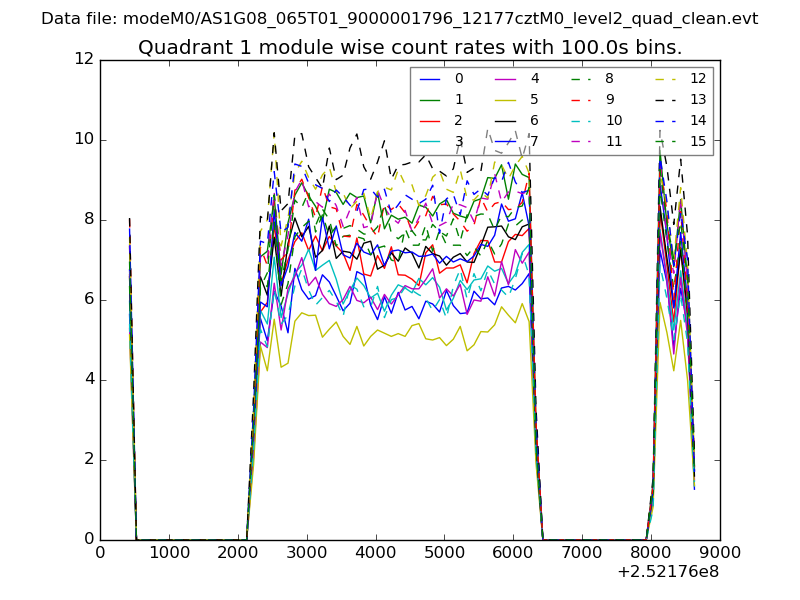

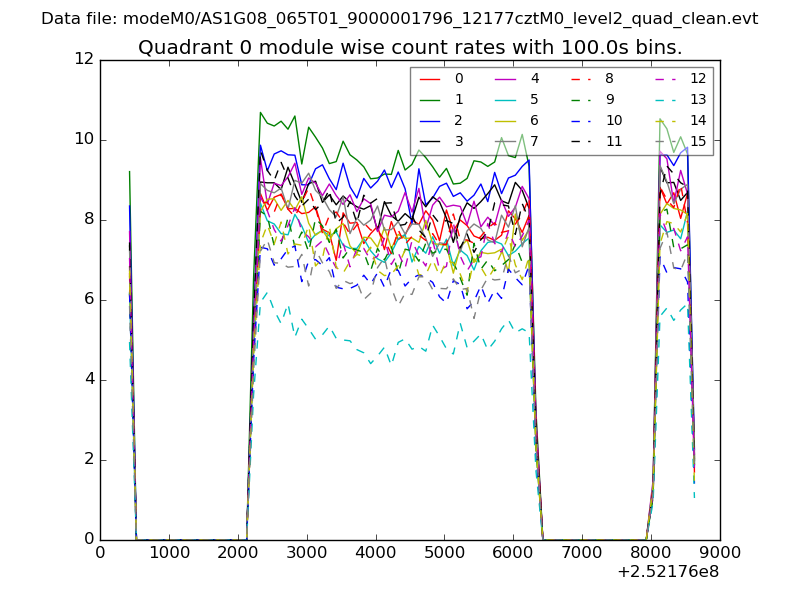

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

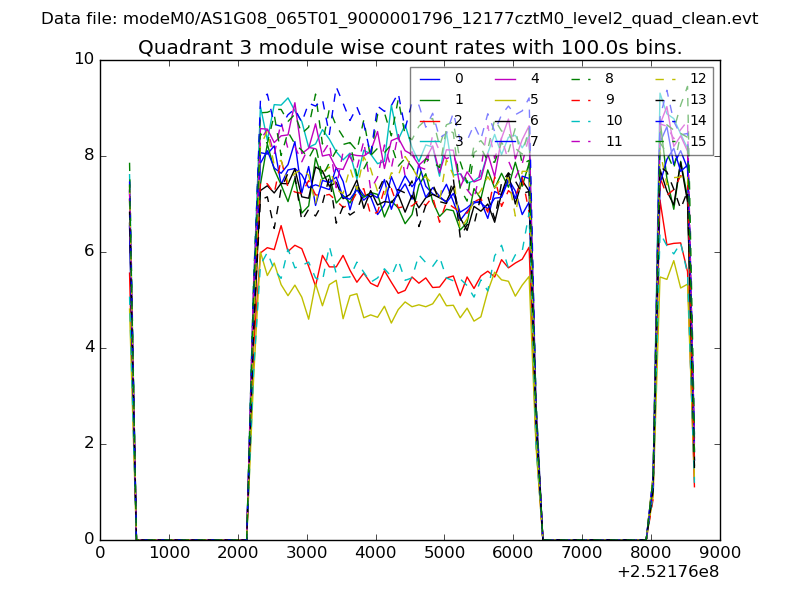

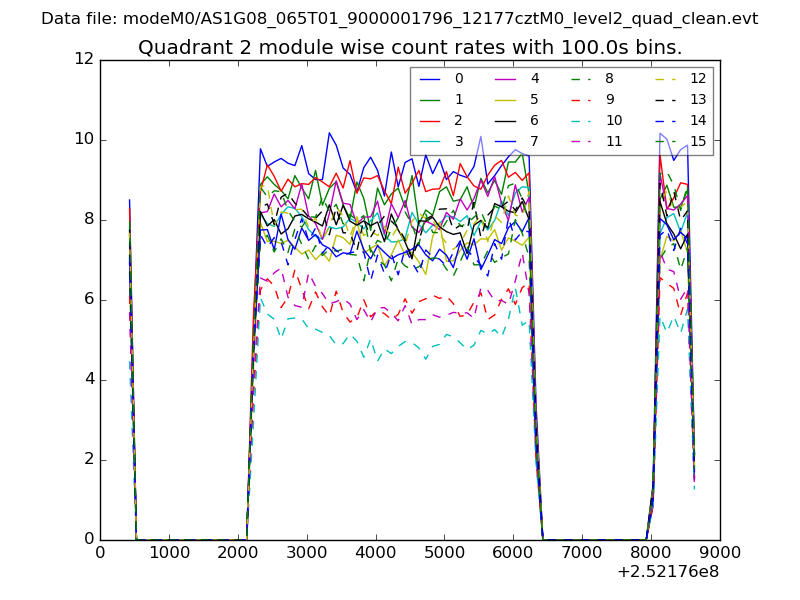

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

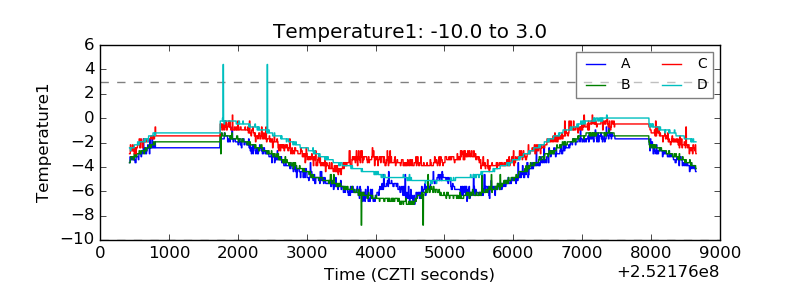

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

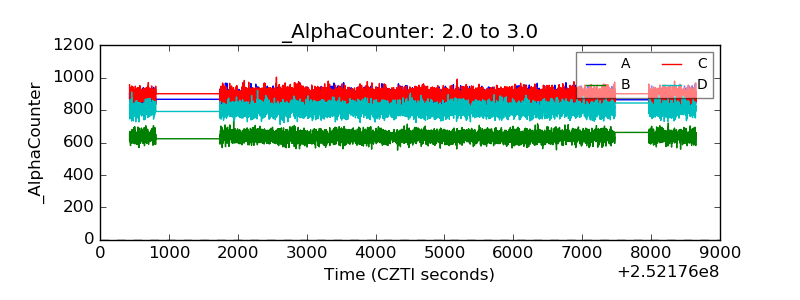

| Alpha Counter |  |

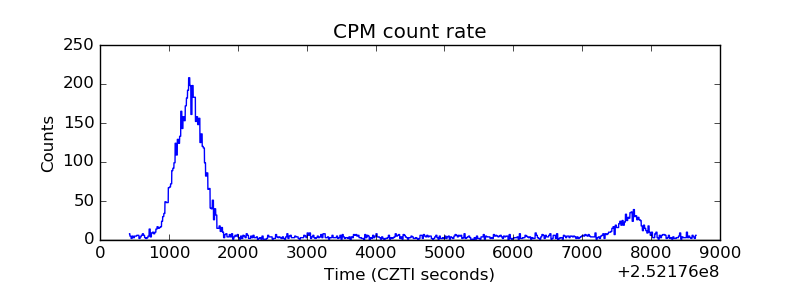

| _CPM_Rate |  |

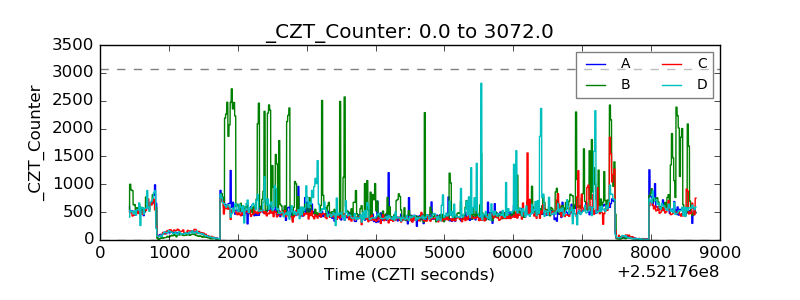

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

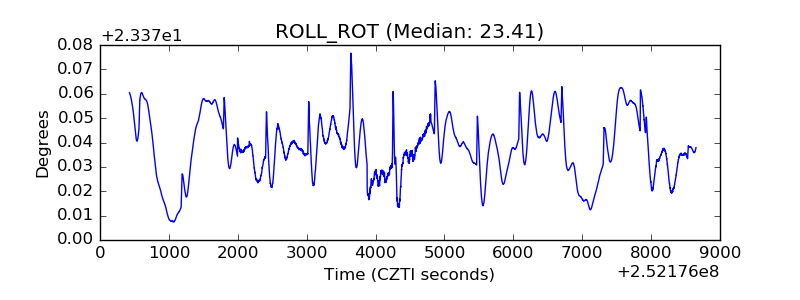

| _ROLL_ROT |  |

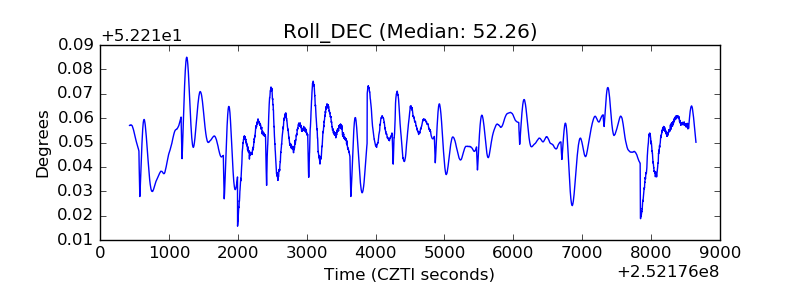

| _Roll_DEC |  |

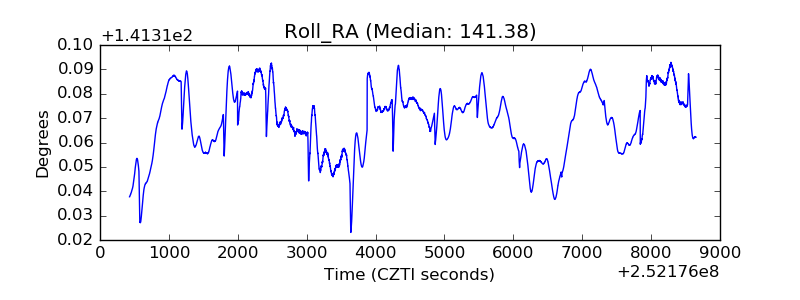

| _Roll_RA |  |

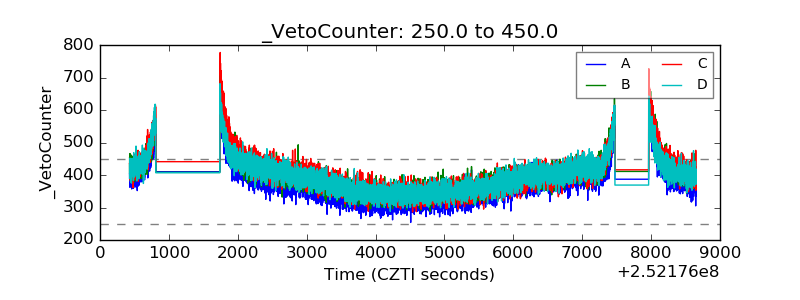

| Veto Counter |  |
